IN HOUSE ASSEMBLY TEMPLATE

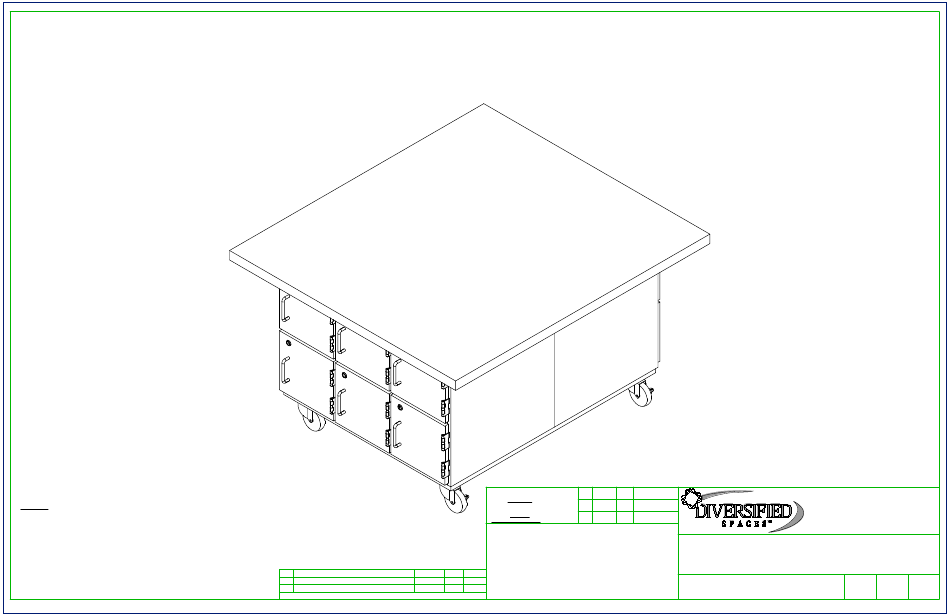

WOOD WORKBENCH ON CASTERS
NOTE:
1.
MODEL VIEWS MAY NOT REPRESENT EXACT MODEL PURCHASED
WW12C, WW31C, & WW32C SERIES (OAK OR MAPLE)
ASSEMBLY INSTRUCTIONS
B
UPDATED CASTER STEP
3/6/2024
RJM
A
CREATED ASSEMBLY INSTRUCTIONS
9/27/21
EMR
REV.
DESCRIPTION
DATE
NAME
REVISION LEVEL
DATE
ALL DIMENSIONS ARE IN INCHES UNLESS
DWN
9/27/21
EMR
NOTED OTHERWISE
BY:
DWN:
DECIMALS: .X = ± .030
APR
DATE
.XX = ± .020
BY:
APR:
.XXX = ± .010
ANGLES: = ± 1°0'
APR
DATE
CABINET SQUARENESS = ± .0625
BY:
APR:
CONFIDENTIAL:
ALL DESIGN RIGHTS RESERVED
THE INFORMATION, DATA, DESIGN, AND DRAWINGS EMBODIED
IN THIS DOCUMENT AND ALL REPRODUCTIONS THEREOF ARE
THE EXCLUSIVE PROPERTY OF DIVERSIFIED WOODCRAFTS, INC.
THESE DOCUMENTS ARE SUPPLIED WITH THE UNDERSTANDING
1447
THAT THEY WILL NOT BE DISCLOSED TO THIRD PARTIES WITHOUT
WRITTEN CONSENT OF DIVERSIFIED WOODCRAFTS, INC. ANY
N/A
REPRODUCTION IN PART OR WHOLE WITHOUT WRITTEN
ECN No.
CONSENT IS SUBJECT TO LEGAL ACTION.
300 South Krueger Street
Suring, WI 54174
diversifiedwoodcrafts.com
TITLE:
WOOD WORKBENCH ON CASTERS
ASSEMBLY INSTRUCTIONS
SCALE:
DRAWING NUMBER:
WW12C, WW31C, & WW32C SERIES
NTS
SHEET:
REVISION:
REV B
1 OF 9
Advertisement
Related Manuals for DIVERSIFIED SPACES WW12C Series
Summary of Contents for DIVERSIFIED SPACES WW12C Series
- Page 1 IN HOUSE ASSEMBLY TEMPLATE WOOD WORKBENCH ON CASTERS WW12C, WW31C, & WW32C SERIES (OAK OR MAPLE) ASSEMBLY INSTRUCTIONS DATE ALL DIMENSIONS ARE IN INCHES UNLESS 9/27/21 NOTED OTHERWISE DWN: 300 South Krueger Street DECIMALS: .X = ± .030 NOTE: DATE .XX = ±...
- Page 2 IN HOUSE ASSEMBLY TEMPLATE ASSEMBLY COMPONENTS TOOLS REQUIRED ITEMS INCLUDED PART # PART DESCRIPTION DRILL TOP,(STYLE & THICKNESS VARIES)X48X54 VARIES " WRENCH SCREWS - BUTCHER BLOCK TOP 100641 SCREW#8X1 "QUAD RD WASH HD SCREWS - HPL TOP 100597 SCREW#8X1-1/2"QUAD RD WASH HD APPLIED BOTTOM - 0.75"THK x 43.50"W x APPLIED BOTTOM 35.50"L...
- Page 3 IN HOUSE ASSEMBLY TEMPLATE HARDWARE REQUIRED FOR STEP DESCRIPTION PART NUMBER APPLIED BOTTOM CASTERS 100081 CASTER HARDWARE KIT 206509 STEP 1: APPLIED BOTTOM ATTACH CASTERS TO APPLIED BOTTOM USING PROVIDED HARDWARE LISTED ABOVE. **SEE NOTE** MAKE SURE ALL SCREWS ARE ON TIGHT AND CASTERS ARE SECURE BEFORE MOVING ON.
- Page 4 IN HOUSE ASSEMBLY TEMPLATE HARDWARE REQUIRED FOR STEP STEP 2: DESCRIPTION PART NUMBER WITH HELP FROM ANOTHER PERSON, TURN THE TWO CABINETS OVER SO BOTTOM SIDE IS FACING UP. LOWER APPLIED BOTTOM DOWN ONTO BASE CABINETS WITH PROPER INSET - SHOULD BE A "...
- Page 5 IN HOUSE ASSEMBLY TEMPLATE HARDWARE REQUIRED FOR STEP DESCRIPTION PART NUMBER SCREWS - BOTTOM AND CABINETS 100597 STEP 3: TOP FASTENING CLEATS WITH HELP FROM MULTIPLE PEOPLE, TURN WORKBENCH OVER ONTO CASTERS. SECURE CABINETS TOGETHER WITH THE REMAINING (2) SCREWS. ATTACH CABINETS TOGETHER BY SCREWING THROUGH TOP FASTENING CLEAT OF ONE CABINET INTO THE OTHER CABINET.
- Page 6 IN HOUSE ASSEMBLY TEMPLATE HARDWARE REQUIRED FOR STEP DESCRIPTION PART NUMBER VARIES SCREWS - TOP 100641 OR 100597 54.00 STEP 4: PLACE TOP ON WORKSTATION WITH PROPER OVERHANG (SEE IMAGE BELOW). ATTACH TOP TO CABINETS WITH HARDWARE PROVIDED FOR TOP TYPE PURCHASED. SCREW THROUGH INSIDE OF CABINETS TO THE TOP.
- Page 7 IN HOUSE ASSEMBLY TEMPLATE HARDWARE REQUIRED FOR STEP DESCRIPTION PART NUMBER SHELF CLIPS 100027 STEP 5: IF YOU HAVE ADJUSTABLE SHELVES IN YOUR UNIT (WW31C), INSERT SHELF CLIPS IN DESIRED LOCATION. PLACE SHELVES ON CLIPS, MAKING SURE THEY ARE LEVEL. ADJUSTABLE SHELF DATE...
- Page 8 IN HOUSE ASSEMBLY TEMPLATE STEP 6: SET MOBILE WORKSTATION IN DESIRED LOCATION. WW31C WW32C WW12C COMPLETE UNITS SHOWN DATE ALL DIMENSIONS ARE IN INCHES UNLESS 9/27/21 NOTED OTHERWISE DWN: 300 South Krueger Street DECIMALS: .X = ± .030 NOTE: DATE .XX = ±...
- Page 9 Butcher Block (Varnished Tops) Maintenance & Repair PRODUCT SPILLS • Be sure any spills are cleaned up immediately. Excessive moisture and certain chemicals allowed to stand on a finished surface can cause damage. •. Clean spills or soiled areas with a damp cloth and dry thoroughly. • Periodically, apply a coat of spray wax, paste wax, or lemon oil to finished surface. This will enhance and protect the finish and insure a moisture barrier is intact in the event the finish becomes scratched or worn. SCRATCHES & DENTS • Minor scratches and dents can be easily repaired by rubbing the affected area with steel wool or fine grit (#220) sandpaper. Remember, when rubbing or sanding always sand with the grain of the wood. Feather edges of repair in to the surrounding area. Remove all dust and residue and apply a coat of clear lacquer type finish or paint. Clear lacquer type finish can be purchased at most paint or hardware stores. Small cans of touch-up paint are available form your dealer or representative. Paint colors can easily be matched at most paint stores. Confine touch-up only to the area that was sanded. Remember, follow manufacturing directions on product label when refinishing. • Major scratches and gouges where large portions of wood have been removed or damaged should be handled by a professional experienced in furniture repair with the proper tools and equipment. MINERAL STREAKS • Mineral Streaks – Natural Coloring of wood due to mineral deposits in the tree. Repair is not required and will add to the individuality of your table. Sizes can range up to a 1/4" wide and up to 3" in length.
