Graff G-0001 Series Installation Instructions Manual

Flush plate

Advertisement

Quick Links

Dear Customer
Thank you for selecting our product. We are confident we can fully satisfy
your expectations by offering you a wide range of technologically advanced
products which directly result from our many years of experience in faucet
and fitting production.
For care, use soft towel with soap and water only! Under no
ATTENTION!
circumstances should you use any chemicals.
MATCH TO
COINCIDIR CON
GEBERIT SIGMA 8,GEBERIT SIGMA 12,
TECE, TOTO
3"
O
(76mm)
4-1/4" (108mm)
For easy installation of your GRAFF product you will need:
to READ ALL the instructions completely before beginning,
to READ ALL the warnings, care and maintenance information.
To complete the project, you should:
gather the tools and all the parts you will need,
prepare the mounting area,
finally test.
You should have the following tools:
an adjustable spanner
1
FINISH PLATE
2
FASTENING PLATE
3
FASTENING SET
4
SET OF ACTUATING BUTTONS
"
5
3/16
HEX KEY
"
6
1/8
HEX KEY
IOG 5598.87
ENGLISH
9-5/8" (245mm)
2-3/16" (56mm)
ENGLISH
ENGLISH
PLACA DE ACCIONAMIENTO
Installation Instructions  Instrucciones de Instalación
Estimado Cliente
Muchas gracias por elegir nuestro producto. Estamos seguros que podemos
satisfacer completamente sus expectativas ofreciéndole una amplia variedad
de productos tecnológicamente avanzados que resultan directamente de
muchos años de experiencia en grifos y su producción apropiada.
Para el cuidado, utilice solamente una toalla suave con jabón
ATENCIÓN!
y aqua! Bajo ninguna circunstancia no use productos químicos.
TOTO, GEBERIT Wall min. 13/16"(20mm)
TOTO, GEBERIT Wall max. 2-3/8"(60mm)
O
1-15/16"
(48mm)
TECE Wall min. 1-3/16"(30mm)
TECE Wall max. 2-3/4"(70mm)
Para la instalación fácil de su producto de la GRAFF usted
necesitará:
LEER TODAS las instrucciones completamente antes de comenzar,
LEER TODA la información sobre las advertencias, cuidado y mantenimiento.
Para terminar el proyecto, usted debe:
r
recolectar las herramientas y todas las piezas que usted necesitará,
prepare el área para el montaje,
finalmente pruebe,
Usted debe tener las herramientas siguientes:
llave ajustable
1
PLANCHA DE ACABADO
2
PLACA DE FIJACIÓN
3
JUEGO DE FIJACIÓN
4
JUEGO DE ACCIONAMIENTO PULSADORES
5
LLAVE ALLEN 3/16
6
LLAVE ALLEN 1/8
1

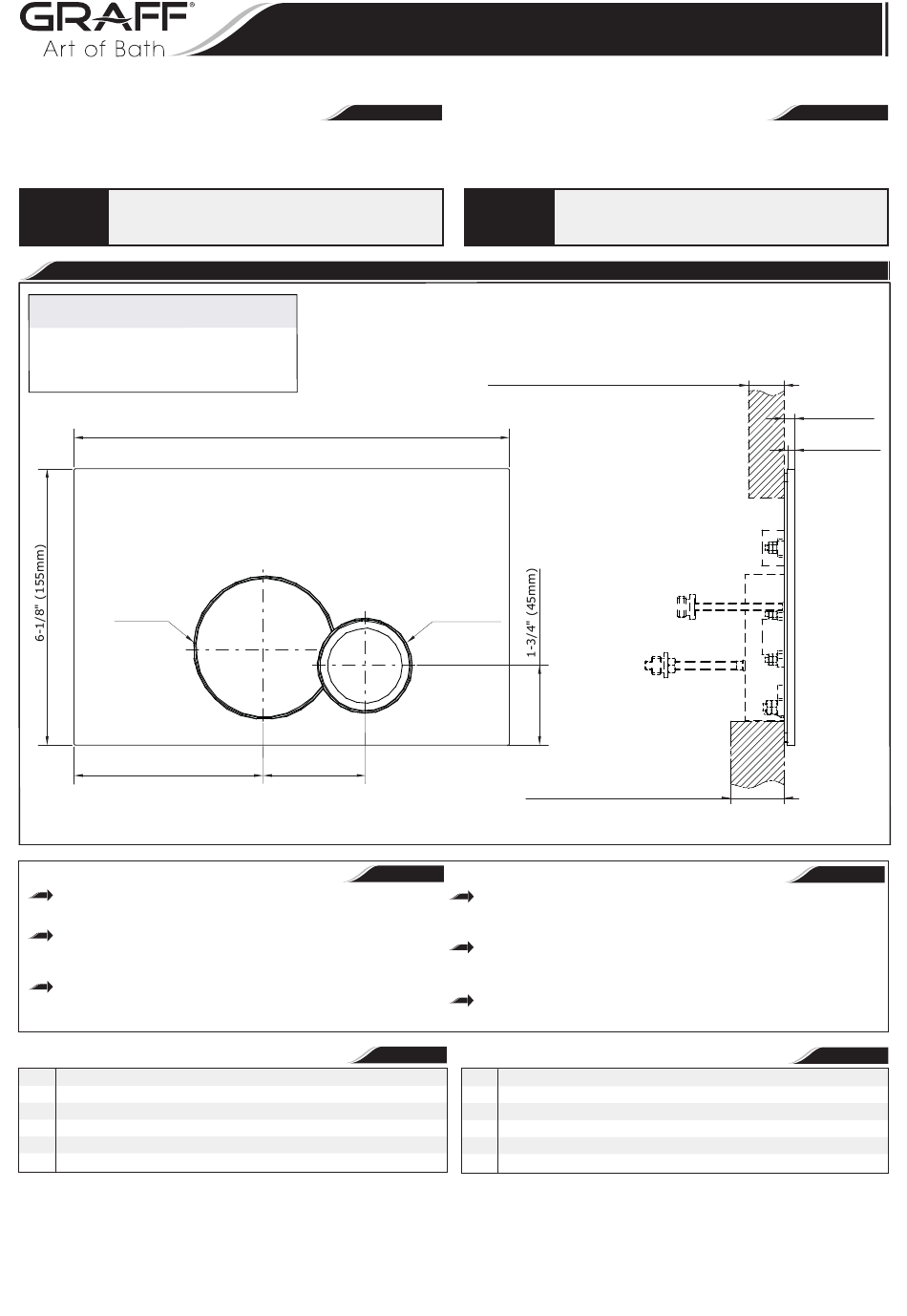

FLUSH PLATE
"
"
Rev. 3 March 2025
~
ESPANOL
G-0001-**
1/4"(6mm)
3/16"(4mm)
~
ESPANOL
~
ESPANOL

Advertisement

loading
Need help?

Need help?

Do you have a question about the G-0001 Series and is the answer not in the manual?

Questions and answers

Summary of Contents for Graff G-0001 Series

  • Page 1 TECE Wall max. 2-3/4”(70mm) ENGLISH ESPANOL For easy installation of your GRAFF product you will need: Para la instalación fácil de su producto de la GRAFF usted to READ ALL the instructions completely before beginning, necesitará:  to READ ALL the warnings, care and maintenance information.
  • Page 2 FLUSH PLATE PLACA DE ACCIONAMIENTO Installation Instructions  Instrucciones de Instalación TECE GEBERIT TOTO TECE IOG 5598.87 Rev. 3 March 2025...
  • Page 3 FLUSH PLATE PLACA DE ACCIONAMIENTO Installation Instructions  Instrucciones de Instalación Use extension G-0001Y (+ 1-15/16” ) Utilice la extensión G-0001Y (+ 1-15/16”) GEBERIT Finishing wall Pared de acabado IOG 5598.87 Rev. 3 March 2025...
  • Page 4 FLUSH PLATE PLACA DE ACCIONAMIENTO Insta llation Instructions  Instrucciones de Instalación Use extension G-0001Y (+ 1-15/16” ) Utilice la extensión G-0001Y (+ 1-15/16”) IOG 5598.87 Rev. 3 March 2025...
  • Page 5 FLUSH PLATE PLACA DE ACCIONAMIENTO Installation Instructions  Instrucciones de Instalación TOTO Finishing wall Pared de acabado Finishing wall Pared de acabado Use extension G-0001Y (+ 1-15/16” ) Utilice la extensión G-0001Y (+ 1-15/16”) IOG 5598.87 Rev. 3 March 2025...
  • Page 6 FLUSH PLATE PLACA DE ACCIONAMIENTO Installation Instructions  Instrucciones de Instalación IOG 5598.87 Rev. 3 March 2025...
  • Page 7: Warranty  Garantía

    MORE INFORMATION MÁS INFORMACIÓN www.graff-designs.com All dimensions and drawings are for reference only. For details, please refer to actual products. Todas las dimensiones y dibujos sirven únicamente de referencia. Para consultar detalles, ver los productos.
