Model 116
Revere
FEATURES
• Capacities: 30T and 40T
• Self-restoring rocker column
• High performance compact design
• Environmentally sealed, IP66/IP68 (5 bar)
• Certiicate: OIML R60 (NTEP Class IIIL: 10,000d
Pending)
• Current calibration output ensures easy and accurate
parallel connection of multiple load cells
• Anti-rotation pin
APPLICATIONS
• Weighbridges
• Silo and hopper weighing
• Process weighing
DESCRIPTION
The Model 116 is a high-capacity single-column load cell,
designed around a nickel-plated, alloy steel element. It is
environmentally sealed and the use of redundant O-rings
and high-grade potting material provide excellent ingress
protection.

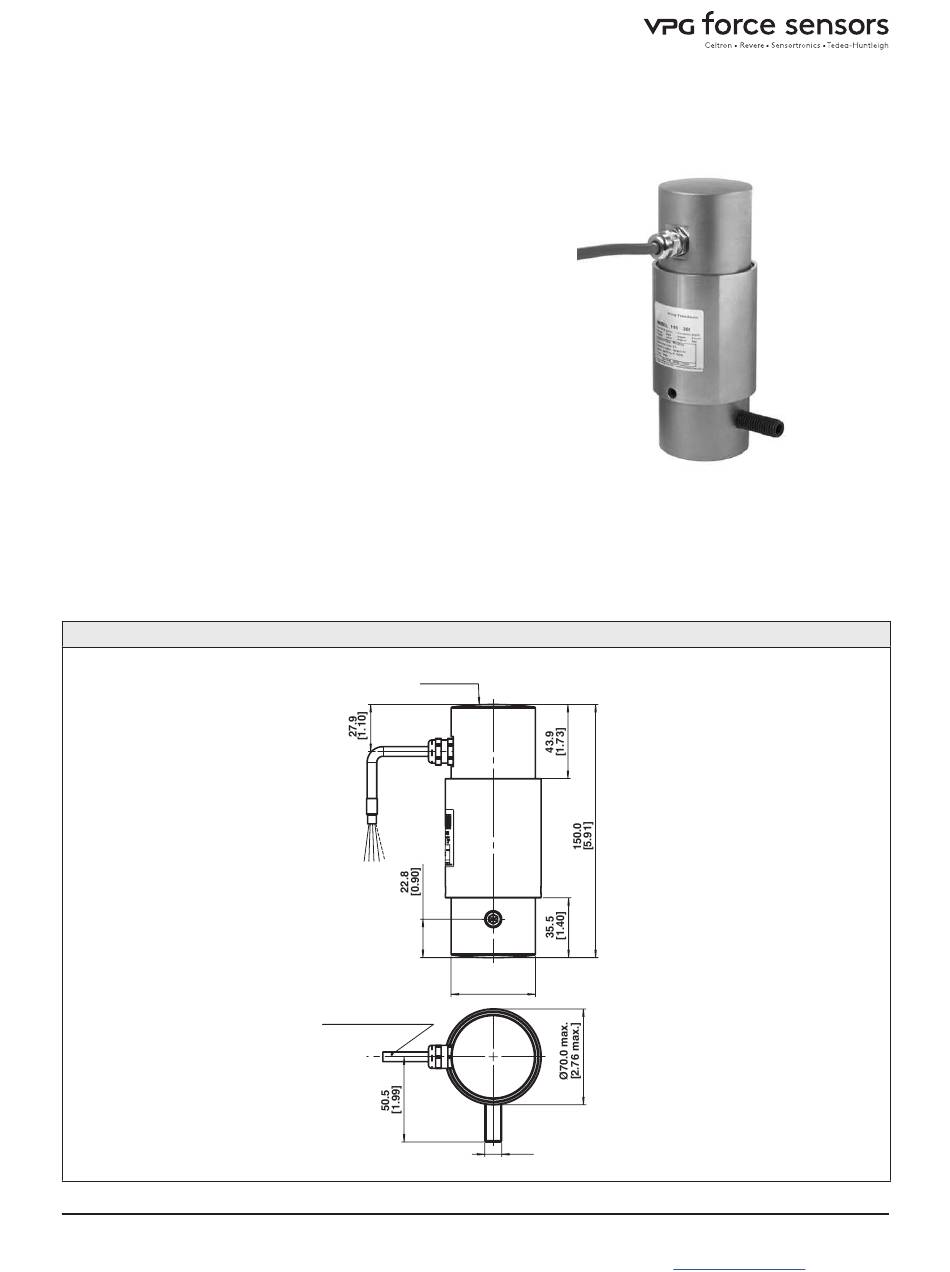

OUTLINE DIMENSIONS in millimeters [inches]
www.vpgforcesensors.com
258
The document and the products described herein are subject to change from time to time without notice and are also subject to speciic disclaimers. Please visit
Rocker Column Load Cell
Rocker Column Load Cell
SR200 [7.9]
Four lead shielded cable
15m [49'] long
Technical contact: vpgfs.americas@vpgsensors.com,
vpgfs.asia@vpgsensors.com, vpgfs.emea@vpgsensors.com
The Model 116 is suitable for all heavy weighing
applications and provides the user with excellent overall
value.
30t
30t
12345678
12345678
Ø50.0
[1.97]
M10
Document No.: 11628
Revision: April-2024
https://vpgsensors.com/disclaimer
for more information.
