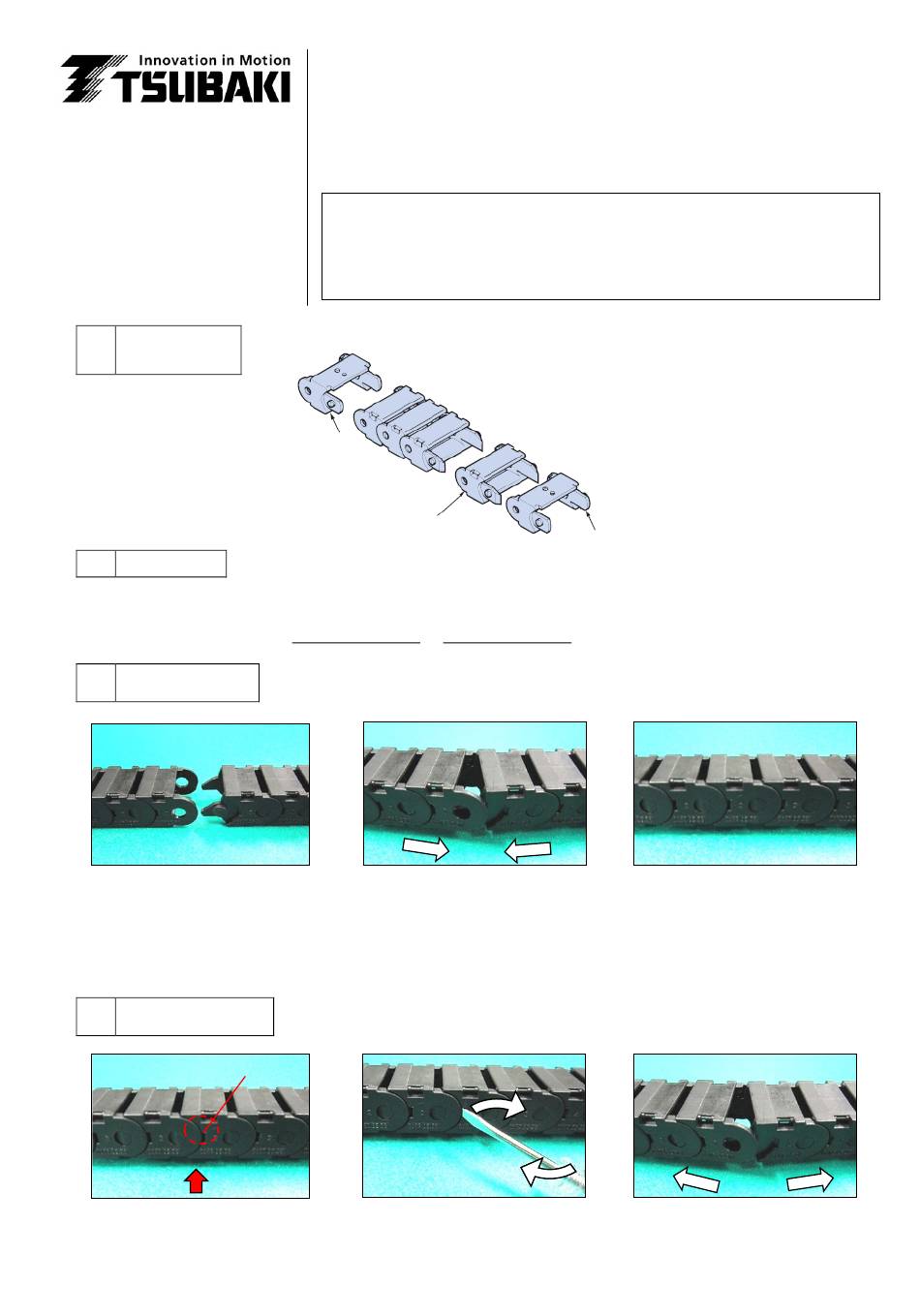

Tsubaki TKP13H10 Instruction Manual

1 Structure/
Part Name
2 Delivery
The cable carrier is delivered in sections if its length exceeds the standard length (number of links shown below).
The moving and fixed end plastic brackets are usually delivered unmounted.
[Standard length (No. of links)] • TKP13H10: 77 links • TKP18H15: 55 links
3 Connection
1. Align two links to be
connected to each other.
Note: Make sure that the two
links are placed so that both
of their top faces are oriented
upward.
4 Disassembly
Recess
Disassembling
point
1. Insert a flathead screwdriver
(tip width: 2 to 3 mm) into the
recess at the disassembling
point (circled part).
TSUBAKI
CABLEVEYOR
(Cable Carriers)
TKP13H10, TKP18H15
(Formerly TKP0130)
Single-part Frame
Caution: Wear suitable protective equipment for the work (such as safety goggles, gloves, and safety shoes).
Moving end
plastic bracket
Link
* The same procedure applies to connecting the links to the moving and fixed end plastic
brackets respectively.
2. Overlap the links with each
other and insert the pin into
the hole on one side.
* The same procedure applies to separating the links from the moving and fixed end
plastic brackets respectively.
2. Twist the flathead screwdriver
in the direction of the arrow to
remove the pin from the hole.
(Formerly TKP0180)
The stay cannot be opened because the link
and stay form a single-part frame.
Fixed end
plastic bracket
3. Push in the other side of the
3. Bend the cable carrier in the
1
Instruction Manual
Single-part Frame
links and insert the pin into the
hole to connect them.
direction of the arrows using
the pin on the other side as a
pivot point to split it.
