Page 1: Safety Information

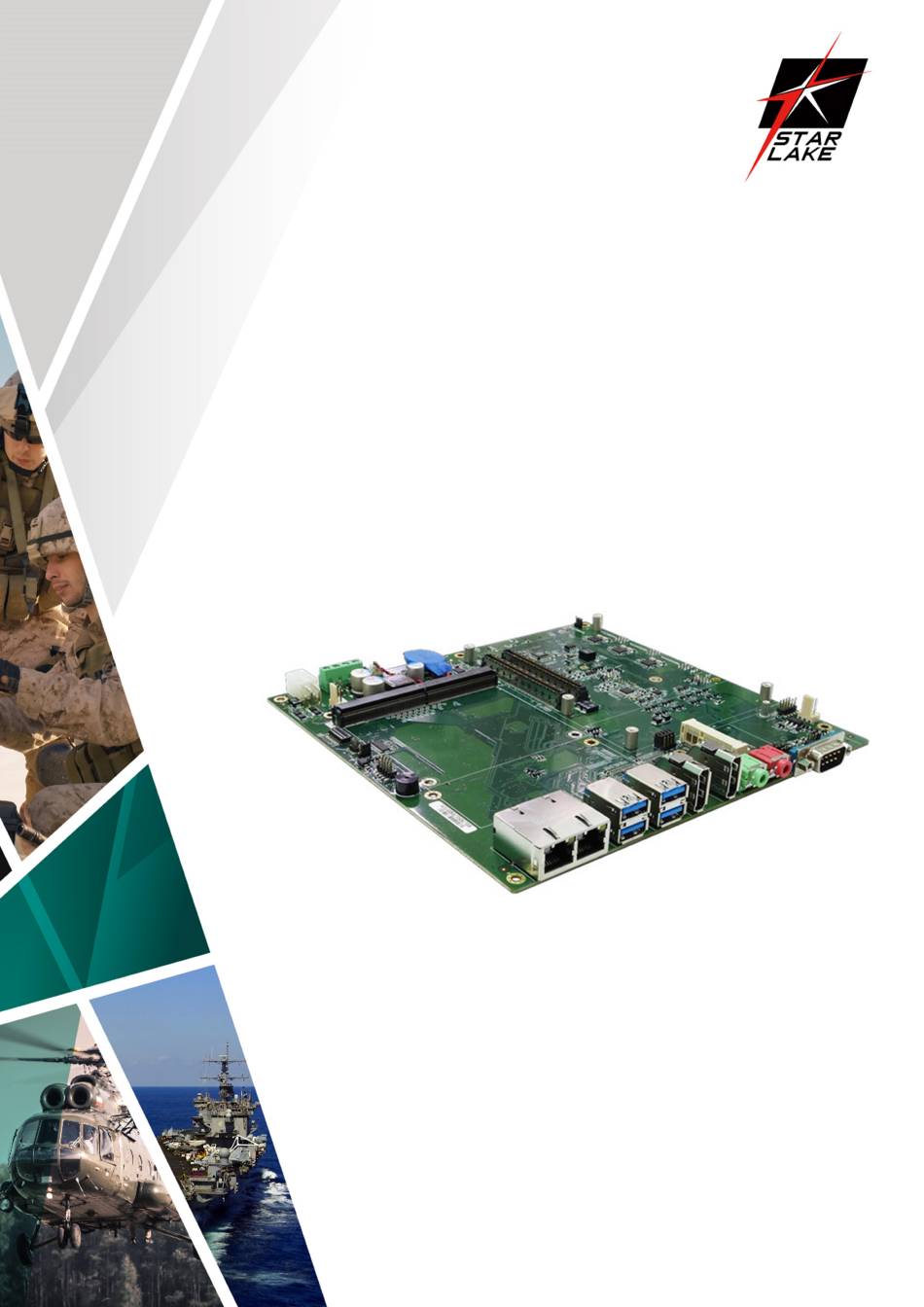

SK513 COM Express® Type 6 Carrier Board +MXM Graphics System+ PCIe/104 User’s Manual Revision Date: March 15 2022... -
Page 2: Operation Safety
SK513 User’s Manual Revision Date: March 15 2022 Safety Information Electrical safety To prevent electrical shock hazard, disconnect the power cable from the electrical outlet before relocating the system. When adding or removing devices to or from the system, ensure that the power cables ... -
Page 3: Revision History
SK513 User’s Manual Revision Date: March 15 2022 Revision History Revision Date (yyyy/mm/dd) Changes V1.0 2019.10.01 Initial Release Standard Compliance、OS V1.1 2022.02.24 1.Modify COM ExpressCPU Options(Type 6/7) V1.2 2022.03.15 2.Modify GPU Module Options... -
Page 4: Table Of Contents
SK513 User’s Manual Revision Date: March 15 2022 Table of Contents Safety Information ............................. 1 Electrical safety ............................. 1 Operation safety ............................ 1 Statement ..............................1 Revision History ............................1 Packing list ..............................1 Ordering Information ....................... Chapter 1: Product Information ...................... - Page 5 SK513 User’s Manual Revision Date: March 15 2022 …..................... J23 (Front Panel) …................CN1,CN2 (COM Express Connector) …................. CN15: M_PCIe2 (Mini PCIe Slot) …................. JP6 (Mini PCIe Function Select) …....................... J20 (MXM_VGA) ….................... JP30 (MXM Type Select) ….
- Page 6 SK513 User’s Manual Revision Date: March 15 2022 ….................. JP16,JP17(COM3 Mode Select) …..........JP18(Enable COM3 RS-485/422 Receiver Termination) …................... JP15(COM3 Pin9 Select) ….................. JP20,JP21(COM4 Mode Select) …..........JP22(Enable COM4 RS-485-422 Receiver Termination) …................... JP19(COM4 Pin9 Select) ….
-
Page 7: Chapter 1: Product Information
SK513 User’s Manual Revision Date: March 15 2022 Chapter 1: Product Information 1.1 Key Features System Intel® Core™ i7-12800HE 45W Alder Lake 12th Gen, 14C , Freq. 3.5 /4.6 GHz, 24MB cache Intel® Core™ i7-11850HE 45W Tiger Lake 11th Gen, 8C , Freq. 2.6 /4.7 GHz, 24MB cache Intel®... - Page 8 SK513 User’s Manual Revision Date: March 15 2022 PCIe/104 Expansion 4 x PCIe x 1、1 x PCIe x 4、5 x USB 2.0、1 x LPC、1 x SPI SATAIII 2 x SATAIII Display 2 x Display Port outputs from COM Express®, 4 x outputs from GPU,...
-
Page 9: Board Diagram
SK513 User’s Manual Revision Date: March 15 2022 1.2 Board Diagram... -
Page 10: 1.3 Gpu Options
SK513 User’s Manual Revision Date: March 15 2022 1.3 GPU Options The SK513 has multiple GPUs available. These have different specifications, as detailed below:... -
Page 11: 1.4 Connector & Pin Header
SK513 User’s Manual Revision Date: March 15 2022 1.4 Connector & Pin Header... - Page 12 SK513 User’s Manual Revision Date: March 15 2022 COM1 CN12 (MIC-In), CN13 (LINE-Out) DP1, DP2 CN17, CN23 (USB3.0) CN25 (LAN1, LAN2) JP8,JP9,JP10 CN1, CN2 (COM Express connector) CN15 (miniPCIe) JP30 MXM1 CN21 JBAT1 JP28 DCIN SIM_CARD1 J18 (DPC/D) J17 (DPA/B)
-
Page 13: Chapter 2: Jumpers And Connectors
SK513 User’s Manual Revision Date: March 15 2022 Chapter 2: Jumpers and Connectors 2.1 Connector & Pin Definitions COM1 RS-232 RS-422 RS-485 DCD- DATA+ DTR- DATA- DSR- RTS- CTS- CN12,CN13: MIC-IN,LINE-OUT Definition CN12 MIC-IN CN13 LINE-OUT DP1, DP2: Display Port... -
Page 14: Cn25(Lan1,Lan2)
SK513 User’s Manual Revision Date: March 15 2022 CN25: LAN1, LAN2 JP7: COM1 Pin9 select Function (1-2) Closed (3-4) Closed (5-6) Closed +12V JP8, JP9: COM1 Mode select Mode (2-3) (2-3) RS232 (1-2) (2-3) RS485 Half Duplex (1-2) (1-2) RS485/422 Full Duplex... -
Page 15: J22,J25(Fan Connector )
SK513 User’s Manual Revision Date: March 15 2022 J22: CPU FAN Connector Pin Function CPUFANOUT +12V J25: MXM FAN connector Pin Function +12V J23: Front Panel Pin Function HDLED+ PWLED+ HDLED- PWRBTN# RESET CN1,CN2: COM Express Connector Support COM Express Basic Size Type 6 Module... -
Page 16: Jp6 (Mini Pcie Function Select)
SK513 User’s Manual Revision Date: March 15 2022 JP6: mini PCIe1 function select PCIex1 SATA (1-2) Closed (2-3) Closed J20: MXM_VGA Function MVGA_VS MVGA_SCL MVGA_HS MVGA_SDA MVGA_VCC MVGA_R MVGA_B MVGA_G JP30: MXM Type select Function (1-2) Closed MXM v3.0 (2-3) Closed MXM v3.1... -
Page 17: Jp28: Clear Cmos
SK513 User’s Manual Revision Date: March 15 2022 JP28: Clear CMOS Function (1-2) Closed Normal(default) (3-4) Closed Clear CMOS DCIN: System DC-IN Pin Definition J18: MXM_DP(C/D) Pin Function Pin Function Pin Function Pin Function 11 DPC_TN1 21 DPC_TP3 31 DPC_AUXP_CLK... -
Page 18: J17: Mxm_Dp(A/B)
SK513 User’s Manual Revision Date: March 15 2022 J17: MXM_DP(A/B) Pin Function Pin Function Pin Function Pin Function DPA_TN1 DPA_TP3 DPA_AUXP_CLK DPB_TN1 DPB_TP3 DPB_AUXP_CLK DPA_TP0 DPA_TN3 DPA_AUXN_DAT DPB_TP0 DPB_TN3 DPB_AUXN_DAT DPA_TN0 DPA_TP2 DPB_TN0 DPB_TP2 DPA_TN2 DPA_AUX_SEL DPA_DET DPB_TN2 DPB_AUX_SEL DPB_DET... -
Page 19: J15: Usb2.0(Usb4/Usb5)
SK513 User’s Manual Revision Date: March 15 2022 J15: USB2.0 (USB4/USB5) Pin Function Function 5V_USB4 5V_USB5 USB2_DN4 USB2_DN5 USB2_DP4 USB2_DP5 J8: VGA Pin Function VGA_VS VGA_SCL VGA_HS VGA_SDA VGA_VCC VGA_R VGA_B VGA_G J9: DIO Function GPI0 GPO0 GPI1 GPO1 GPI2... -
Page 20: J11: Lvds Backlight
SK513 User’s Manual Revision Date: March 15 2022 J11: LVDS Backlight Function BKL_VOL LBKLT_CTRL Backlight_EN JP23: LVDS Backlight Power select Function (1-2) Closed (2-3) Closed JP24: LVDS Signal Power select Function (1-2) Closed (2-3) Closed 3.3V No31: LPC/COM2/3/4... -
Page 21: J4: Lpc
SK513 User’s Manual Revision Date: March 15 2022 J4: LPC Pin Function LPC_AD0 LPC_AD1 LPC_AD2 LPC_AD3 LPC_FRAME- LPC_RST# CLK_DBG J5: COM2 / J6: COM3 / J13: COM4 Pin RS232 RS422 RS485 COM_P9 DTR- Data- CTS- Data+ RTS- DSR- DCD- JP12, JP13: COM2 Mode select... -
Page 22: Jp14(Enable Com2 Rs-485/422 Receiver Termination)
SK513 User’s Manual Revision Date: March 15 2022 JP14: Enable COM2 RS-485/422 Receiver Termination Function (1-2) Closed High (2-3) Closed JP11: COM2 Pin9 select Function (1-2) Closed (3-4) Closed (5-6) Closed +12V JP16, JP17: COM3 Mode select Mode (2-3) (2-3) - Page 23 SK513 User’s Manual Revision Date: March 15 2022 JP22: Enable COM4 RS-485/422 Receiver Termination Function (1-2) Closed High (2-3) Closed JP19: COM4 Pin9 select Function (1-2) Closed (3-4) Closed (5-6) Closed +12V CN26,CN27: SATA Function SATA_TP SATA_TN SATA_RN SATA_RP J2, J3: SATAPower...
- Page 24 SK513 User’s Manual Revision Date: March 15 2022 CN3: M.2 (2280 M-key, SATA only) CN36: StackPC1...
- Page 25 SK513 User’s Manual Revision Date: March 15 2022...
