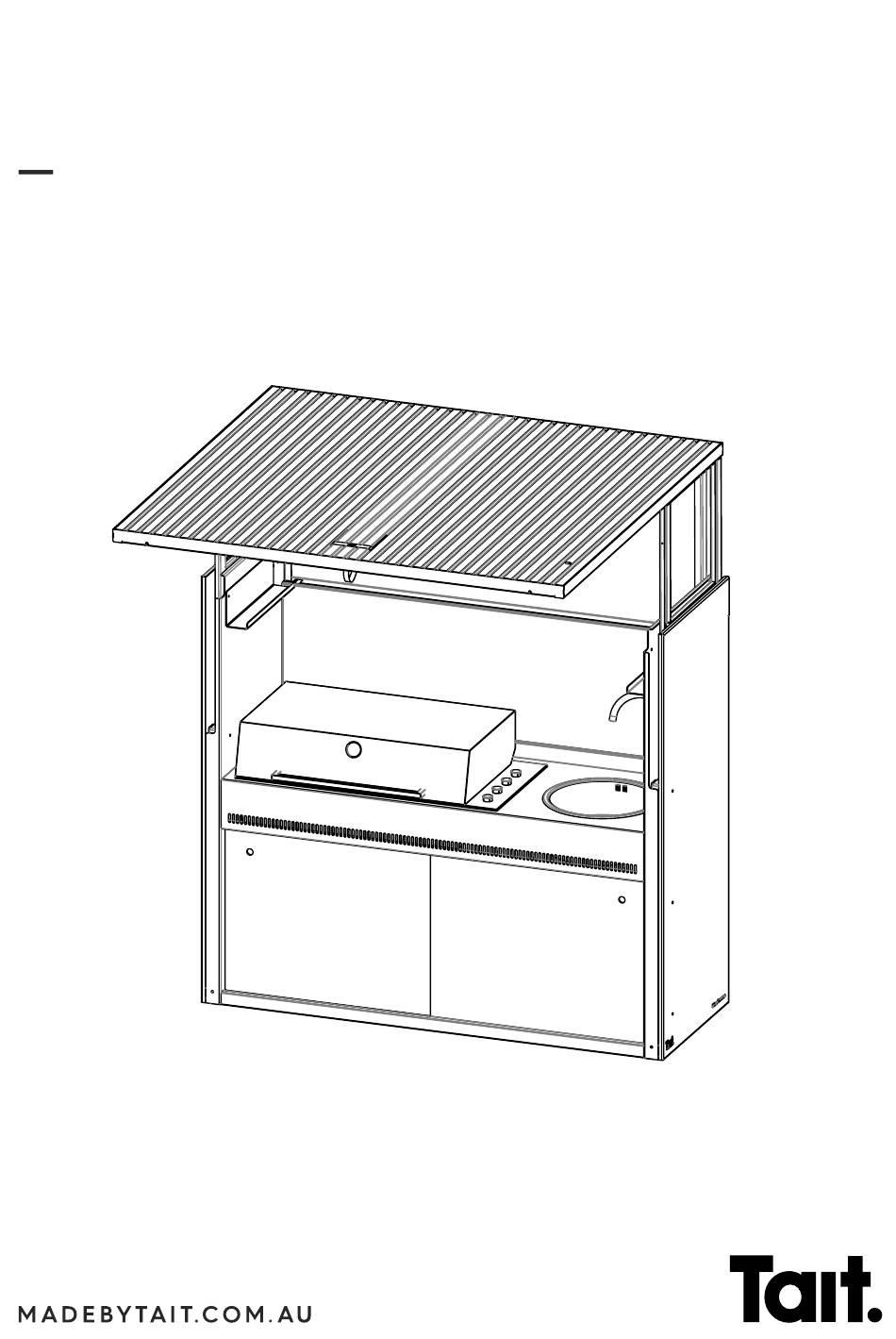

Tilt
I N S T A L L A T I O N G U I D E
Tait's original designs are protected under intellectual property law
V . 4 . 2 0 2 5
1

Advertisement

loading
Need help?

Need help?

Do you have a question about the Tilt and is the answer not in the manual?

Questions and answers

Summary of Contents for Tait Tilt

  • Page 1 Tilt I N S T A L L A T I O N G U I D E Tait’s original designs are protected under intellectual property law V . 4 . 2 0 2 5...
  • Page 3 Place a Blanket on the floor to protect Attach LH & RH inner side panels to Note screw locations. Do not use a driver all Tilt parts, then lay the stainless steel benchtop as shown using supplied M6x20 to attach these screws, they will fuse to benchtop on its front as shown above.
  • Page 4 Tilt - Installation Guide Carefully lift Tilt into final position, tighten Check alignment of Tilt left to right and Bolt unit to the ground using supplied all screws. Minimum 80mm clearance is front to back. Pack out under side panels screws/fixings.
  • Page 5 Tilt - Installation Guide Tighten M10x25 capscrews by hand, but Lift roof panel over Tilt and sit on side The sides of the roof panel sit on the not too tight to allow for movement of panel wheels. Support roof panel in the side panel wheels as shown.
  • Page 6 Tilt - Installation Guide To attach the upper end of the strut, hold After this, the bottom of the strut can be Make sure both struts are connected, as shown and push in with two fingers attached, the door will need to be held with both retention pins firmly and cor- behind the strut attachment.
  • Page 7 Tilt - Installation Guide Feed the 240v power cable (with plug Open the LED driver on the LH side Tighten screws, reattach cap on end of attached) through the cable gland on the marked 240v, and attach 240v power driver. Tighten cable glands so cable is back side of the bottom rear panel, then cable.
  • Page 8 Tilt - Installation Guide Feed front cable through slot on RH side To make sure the cables for the proxiity This is the magnet that activates the panel, plug into proximity sensor. The po- sensor are secure, they can be secured proximity sensor.
  • Page 9 Install grease catching trays. Install grill plates. plates, and other components as per the instructions. Screw on Tilt accessory shelves using RH Accessory shelf. After installing Attach Facade/Outer side panels. If front countersunk M6 screws. The small shelf shelves, remove remaining plastic from edge is bowed, manipulate straight gently fits above the BBQ.
