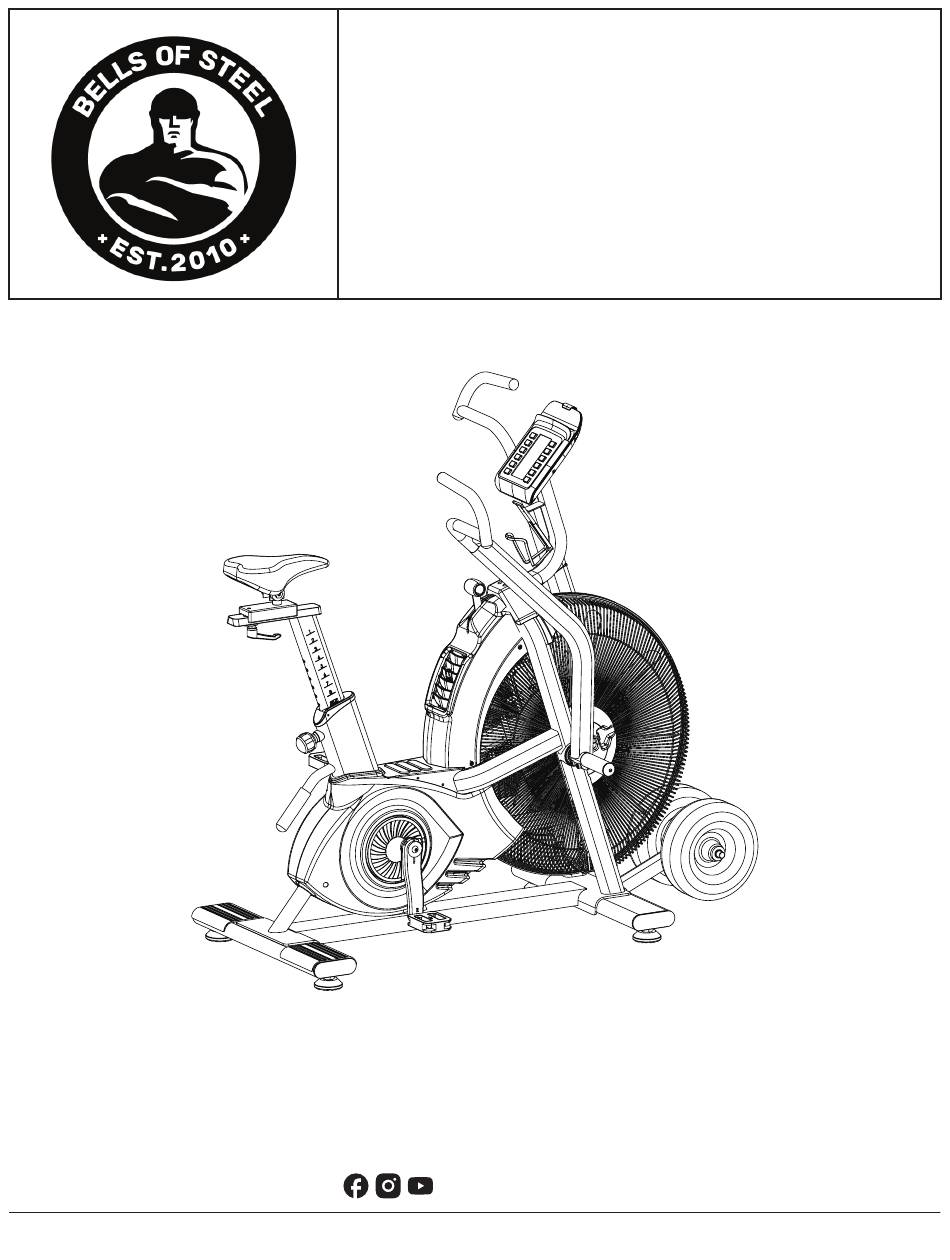

BLITZ MAX AIR BIKE
SKU: BMAX-AIRBK
PO:
ASSEMBLY INSTRUCTIONS
BELLSOFSTEEL
www.bellsofsteel.com | www.bellsofsteel.us | Telephone: 1-888-718-7997

Advertisement

loading
Need help?

Need help?

Do you have a question about the BMAX-AIRBK and is the answer not in the manual?

Questions and answers

Summary of Contents for Bells Of Steel BMAX-AIRBK

  • Page 1 BLITZ MAX AIR BIKE SKU: BMAX-AIRBK ASSEMBLY INSTRUCTIONS BELLSOFSTEEL www.bellsofsteel.com | www.bellsofsteel.us | Telephone: 1-888-718-7997...
  • Page 2 BUILDING STRENGTH, ONE BOLT AT A TIME. Welcome to Bells of Steel, you’ve made an excellent choice. I’ve done my best to keep the setup of your new gear small business. than the included instructions, check our youtube page for assembly videos or feel free to email us for enhance your lifting experience and help you reach your troubleshooting guidance.
  • Page 3 BEFORE WE BEGIN, LET’S STAY SAFE. A GUIDE TO SAFETY LET THE GAINZ BEGIN PAGE 3 OF 21...
  • Page 4: Exploded Drawing

    Exploded Drawing PAGE 4 OF 21...
  • Page 5: Parts List

    PARTS LIST PAGE 5 OF 21...
  • Page 6 PARTS LIST PAGE 6 OF 21...
  • Page 7 PARTS LIST PAGE 7 OF 21...
  • Page 8 ASSEMBLY INSTRUCTIONS 1. Preparation: A. Ensure you have enough space around the item before starting assembly. B. Use the provided tools for assembly. C. Before beginning, verify that all the required parts are available. Refer to the exploded diagram at the beginning of this instruction manual, which lists all the parts (indicated by numbers) included in the package.
  • Page 9 STEP 3 (FIG.3): Insert the Left Handlebar Assembly (18) and the Right Handlebar Assembly (21) into the Main Frame Assembly (16) as shown in the diagram. 2. Secure them in place using Bolts (96), Washers (86), and Nuts (31). 3. Attach the Pedal Screw (92) to the Main Frame Assembly (16).
  • Page 10 ADJUSTMENT To Adjust the Seat Height: Loosen the spring knob on the vertical post stem located on the main frame and pull the knob out. Adjust the vertical seat post to the desired height, ensuring the holes are aligned. Once aligned, release the knob and tighten it securely. To Adjust the Seat Position (Forward or Backward): Loosen the adjusting knob and washer.
  • Page 11 Button Functions: Up ( ) • 2. Down ( ) • 3. Enter • 4. Start • 5. Stop • • 6. Interval • Target Distance • 8. Target Calories • 9. Target Heart Rate • 10. Target Time • PAGE 11 OF 21...
  • Page 12: Using The Monitor

    USING THE MONITOR Power On: (FIG 3) PAGE 12 OF 21...
  • Page 13 Break Mode: (FIG4) Stop Mode: -> -> (FIG5) PAGE 13 OF 21...
  • Page 14 Quick Start: (FIG6) INTERVAL 10/20: (FIG7) (FIG8) PAGE 14 OF 21...
  • Page 15 INTERVAL 20/10: (FIG10) PAGE 15 OF 21...
  • Page 16 INTERVAL CUSTOM: (FIG14) (FIG15) (FIG16) PAGE 16 OF 21...
  • Page 17 TARGET TIME: PAGE 17 OF 21...
  • Page 18 TARGET CALORIES: TARGET DISTANCE: PAGE 18 OF 21...
  • Page 19 TARGET HEART RATE: SetAge 6 PULSE START <TARGET10% >TARGET10% PAGE 19 OF 21...
  • Page 20 Quality Assurance Statement: PAGE 20 OF 21...
  • Page 21 YOU’RE FINISHED! WANT TO LEARN MORE ABOUT THE BLITZ MAX AIR BIKE? CHECK OUT THE OVERVIEW VIDEO: VISIT OUR SHOWROOMS Calgary - HQ Toronto - Showroom Indianapolis - Showroom Corporate Headquarters 7880 66 St SE, Calgary, AB, Canada U.S.A. Headquarters 5925 W 71st St, Indianapolis, IN, U.S.A. Toronto Store 39 Haist Ave # 2, Woodbridge, ON, Canada support@bellsofsteel.com | 1-888-718-7997...
