Summary of Contents for Bellucci LATTE TOUCH

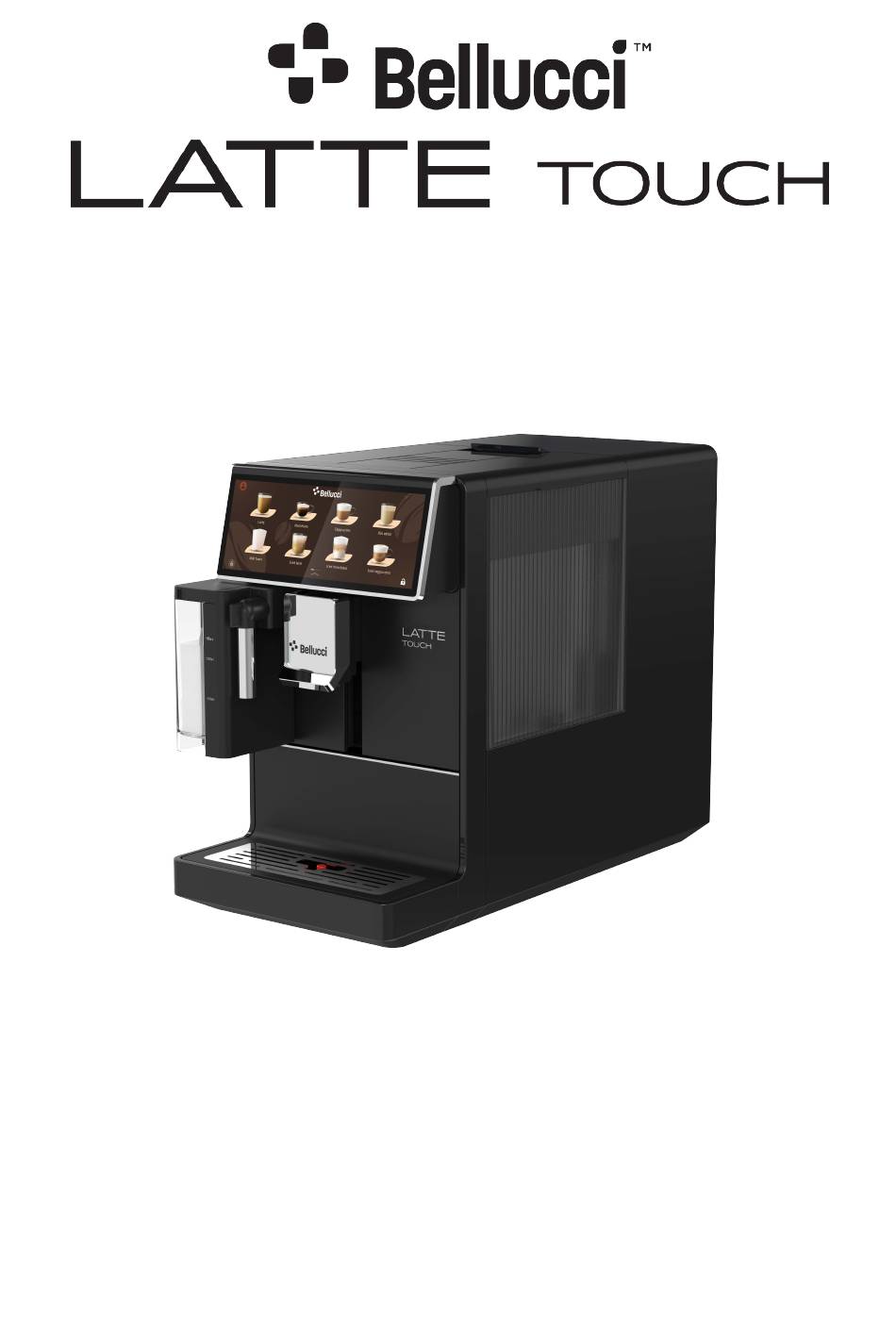

- Page 1 Fully Automatic Coffee Machine User Manual...
-
Page 3: Table Of Contents
Latte Touch Content 1 Safety 1.1 Intended use 1.2 WARNING 1.3 Explanation of safety symbols 2 Welcome to use 3 Machine overview 4 Accessories 5 Preparing and using for the first time 5.1 Unpacking 5.2 Install filter（optional） 5.3 Install milk carafe 6 Beverage preparation 6.1 How to prepare beverage... - Page 4 Latte Touch Content 8.5 Language 8.6 Child lock 8.7 Multi-role function 9 Daily cleaning 9.1 Machine cleaning Milk frother disassembly 10 Display messages 11 Troubleshooting 12 Technical data Disposal...
-
Page 5: Safety
· Connection only be performed by the specification of rating plate, see technical data for more information (Page 23). · Latte Touch is not recommended to use outdoors, and needs to put it on the horizontal waterproof surface that can support its weight before use. -
Page 6: Explanation Of Safety Symbols
Latte Touch · If the supply cord is damaged, it must be replaced by a special cord or assembly available from the manufacturer or its service agent. · Keep the appliance and its cord out of reach of children aged less than 8 years. -
Page 7: Welcome To Use
2. Welcome to use Congratulations on the purchase of your Latte Touch fully-automatic coffee machine! Read the user manual carefully prior to use Latte Touch for the first time, and keep it well for reference later. The machine is only suitable for domestic occasions, not for business occasions. -
Page 8: Accessories
Latte Touch 4. Accessories 1. User manual 2. Powder spoon 3. Milk carafe 5. Preparing and using for the first time 5.1 Unpacking 1. Take out the machine and unveil the protective film, then place it on a horizontal surface which is dry and non-slip. - Page 9 Latte Touch 2. Remove water tank and rinse, then fill the water tank up to max; 3. Replace the water tank and ensure that is installed vertically; 4. Fill the bean hopper with coffee beans; 5. Plug the mains cable for the coffee machine into an electrical outlet;...
-
Page 10: Install Filter（Optional
Latte Touch 5.2 Install filter（optional） After the installation of filter is ensured，then touch Install to continue. Recommended filter：BELLUCCI BEL004 Water Filter (www.bellucci.ca). 5.3 Install milk carafe Please ensure that all parts of milk carafe are assembled correctly before inserting it... -
Page 11: Beverage Preparation
Latte Touch 6. Beverage preparation · Before preparing beverage, sufficient water in the water tank, enough coffee beans in the bean hopper and no error messages appear on the display need to be confirmed first. · Place an appropriate cup beneath the coffee spout, and adjust the coffee spout up and down to the suitable height. -
Page 12: How To Prepare Beverage
Latte Touch 6.1 How to prepare beverage Touch desired beverage on the operation panel. Take Latte as example, coffee strength/Coffee volume/Foam time can be adjusted during production: · Do not reach into bean hopper during the beverage preparation Also water volume can be adjusted during dispensing... -
Page 13: How To Adjust Grinding Degree
Latte Touch 6.2 How to adjust grinding degree Users can adjust grinding degree themselves by using grinding wheel from the bean hopper inside. Total nine levels can be adjusted according to your taste. Turn clockwise for a coarser grind, and turn counterclockwise for a finer grind. -
Page 14: How To Prepare A Drink With Ground Coffee
Latte Touch 6.3 How to prepare a drink with ground coffee Pressing the ground coffee function icon can active this on all coffee beverages： Follow the animations on display，then following steps are same as normal beverage production. · Here we suggest to use powder spoon in box (full powder capacity of spoon is 6g). -
Page 15: Quick Menu
Latte Touch 7. Quick Menu Swipe up to enter the quick menu: One-click rinsing: Click and perform rinsing on brewer or milk unit · Hot water or steam will be sprayed from nozzle and coffee spout during rinsing, it’s recommended that put a cup or other container beneath the coffee spout to prevent scalding. -
Page 16: Setting
Latte Touch 8. Setting 8.1 Cleaning Milk system cleaning In order to prevent milk carafe from being clogged by milk residuals and assure hygiene of milk system. Use specialized milk cleaning agent to clean milk system Please follow the animations on display to perform program. -
Page 17: Install/Remove Filter
Latte Touch · Read the user manual and usage of cleaning agents carefully prior to clean. · During descaling, be careful and avoid to touch acid hot water dispensing from coffee spout. · Descaling for the machine at regular intervals to avoid water residuals accumulation, which will lead to the increase of energy consumption. -
Page 18: System
Latte Touch 8.2 System Water hardness Use the test strip(optional) to test water hardness, you will then be able to adjust the water hardness of machine according to the testing results. You can set your water hardness according to the chart below, based on your water source condition. -
Page 19: Stand By
Latte Touch Stand by Click and adjust time for screen off time setting. Auto stand by Click and adjust time for standby mode. Others Reset: If reset confirmed, all beverage recipe and settings adjusted will be reset Beverage reset: If beverage reset confirmed, any beverage recipe will be reset. -
Page 20: Beverage Setting
Latte Touch 8.3 Beverage setting Once you enter Beverage setting, firstly you need choose setting under which user. Sorting: if location of beverage icon needs to be changed, users need to active sorting function. In the first step, select one beverage you want to change (take Latte as example) - Page 21 Latte Touch Secondly, click target place, eventually Latte icon will move to target place. Recipe adjustment： Select any beverage，then users can choose to adjust parameter in every element（take Macchiato as example）...
- Page 22 Latte Touch Coffee element： Milk foam element：...
- Page 23 Latte Touch Pause time element： Attention: if beverage is iced coffee (like Iced latte, Iced macchiato, Iced cappuccino- Iced flat white，Iced americano and Iced espresso)，coffee temperature cannot be adjusted. If users need to change the sequence of elements, elements need to be deleted first,...
-
Page 24: Information
Latte Touch 8.4 Information Recent beverage data Beverage data Maintenance data... -
Page 25: About: Software Information
Latte Touch About: Software information Current software version will be displayed. 8.5 Language 8.6 Child lock Click child lock icon is located right bottom area . Once child lock function actived, user needs press and hole one central area of sreen for 3 seconds, then lock function will... -
Page 26: Multi-Role Function
Latte Touch 8.7 Multi-role function Click left top area to switch other user’s beverages’ recipe. User can check instruction of recipe adjustment on 8.3 Beverage setting 9. Daily cleaning 9.1 Machine cleaning For better use of coffee machine and beverage preparation, the following compo- nents if used need to be cleaned manually on the day: ·... -
Page 27: Milk Frother Disassembly
Latte Touch Milk carafe disassembly （Please contact customer service if you meet any problem when assembling Milk carafe） · To avoid clogging, rinsing after used is necessary. · Do not put your hands beneath the steam outlet during operation. ·... -
Page 28: Display Messages
Latte Touch 10 Display messages Display content Resolution Fill water tank with enough water Fill in water tank and replace the water tank Fill bean hopper with enough Fill in beans coffee beans Empty coffee grounds from Empty grounds container... - Page 29 Latte Touch Problem Reason Resolution Milk is running out Fill milk carafe with milk Milk sprays out of the spout Perform milk system cleaning Milk frother is clogged or manually clean when making milk foam Milk temperature is high Use cooler milk...
-
Page 30: Technical Data
Latte Touch 12.Technical data Product name Fully automatic coffee machine Model Latte Touch Power supply 120V～ / 60Hz Power rating 1400W Screen 6.86inch 10 cups Recommended daily capacity Bean hopper 200g 1.3L Water tank 250mL Milk carafe Drip tray 600mL... - Page 32 1750, Guillet, Laval, QC Canada H7L 5B2 bellucci.ca | info@bellucci.ca 1 877 819 4443...
