PUSR USR-W610 User Manual

Hide thumbs Also See for USR-W610:

Advertisement

Quick Links

Download this manual

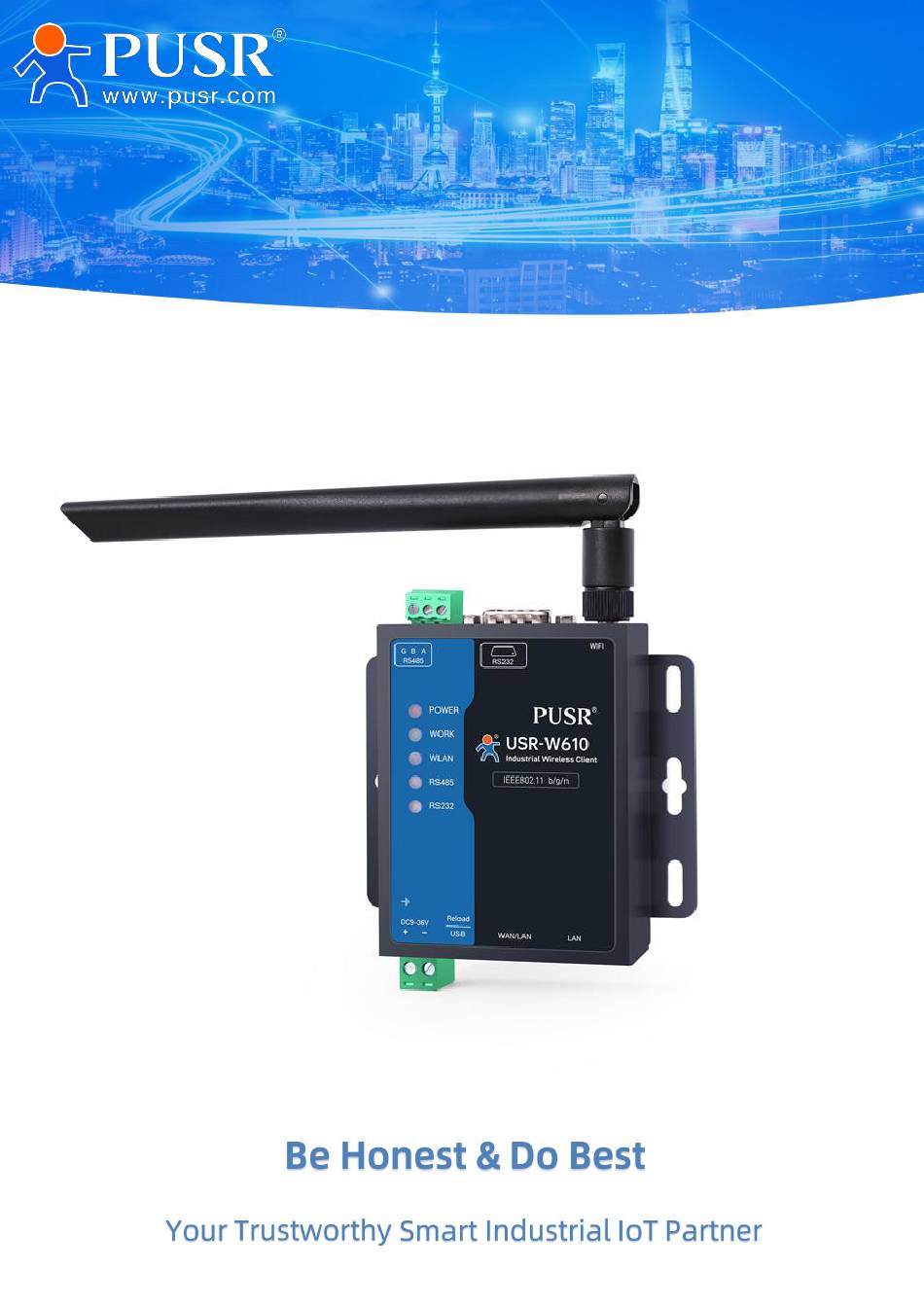

Communication Expert
of Industrial IOT
USR-W610
User Manual
(Qualcomm version)
High-Performance WIFI Serial Device Server

Advertisement

loading
Need help?

Need help?

Do you have a question about the USR-W610 and is the answer not in the manual?

Questions and answers

Related Manuals for PUSR USR-W610

Summary of Contents for PUSR USR-W610

  • Page 1 Communication Expert of Industrial IOT USR-W610 User Manual (Qualcomm version) High-Performance WIFI Serial Device Server...

  • Page 2: Table Of Contents

    目录 1. Product introduction ..............................4 1.1. Product feature ..............................4 1.2. Technical parameters ............................5 1.3. Power consumption parameters ........................7 1.4. Status indicator lamp ............................7 1.5. Size description ..............................8 2. Basic functions ................................9 2.1. Webpage settings ............................9 2.2.
  • Page 3 5.3. Advanced setup ..............................48 6. Service function ................................50 6.1. PUSR Cloud services ............................50 6.2. Dynamic Domain Name Resolution (DDNS) ....................51 6.2.1 Supported services ..........................51 6.2.2 Custom services ..........................52 6.2.3 Functional characteristics ......................... 54 6.3. SNMPD ................................54 7. System ..................................55 7.1.

  • Page 4: Product Introduction

    1*RS232/1*RS485 serial port, supports TCP, UDP, MQTT, HTTP, MODBUS, PUSR Cloud, Alibaba Cloud, AWS cloud, SNMP and other transmission protocols; built-in hardware and software dual watchdog, fault recovery and other mechanisms; it can adapt to different industry scenarios, and still operates stably and reliably in harsh environments.

  • Page 5: Technical Parameters

    Power out HT20（18dBm）; HT40(17dBm) WiFi Antenna 1* Rod antenna （5 dBi） Coverage distance Outdoor open/unobstructed, coverage radius up to 400 meters Socket mode TCPS/TCPC/UDPS/UDPC/MODBUS/MQTT/HTTP/ Alibaba Cloud/AWS/PUSR CLOUD Heartbeat package/ Support Registration package RS232 interface: 1200/2400/4800/9600/19200/38400/57600/115200/230400 Serial port baud rate RS485 interface:...
  • Page 6 USR-W610s User Manual Stop bit 1，2 Parity bit NONE,ODD,EVEN Serial port type 1*RS232/1*RS485 Operating temperature -25℃~ +70℃ Storage temperature -40℃~+125℃ Operating humidity 5%~95%RH (no condensation) Storage humidity 1%~95%RH (no condensation) Service voltage DC 9-36V Physical Adapter 12V/1A property Working Current Average current 155 mA（DC12V）...

  • Page 7: Power Consumption Parameters

    USR-W610s User Manual 1.3. Power consumption parameters Table 2 USR-W610s power consumption table Working Service voltage Average current Maximum current Full-load operation DC12V 173mA 265mA 1.4. Status indicator lamp There are 5 status indicators with the following meanings: Table 3 Indicator lamp description table Name Explain Power indicator light, long on after correct power-on...

  • Page 8: Size Description

    USR-W610s User Manual 1.5. Size description Unit: mm Figure1 USR-W610s size diagram Sheet metal housing, fixing holes on both sides, compatible with rail mounting parts;  Product Dimensions: 89*103. 7*26mm(L*W*H)  w w w . u s r . c...

  • Page 9: Basic Functions

    USR-W610s User Manual 2. Basic functions 2.1. Web page settings When using the USR-W610s for the first time, you can connect the LAN port of the USR-W610s or connect the W610s WIFI through the PC, and then configure the functions with the web management page. SSID,IP addresses and user names and passwords are as follows: Table 4 USR-W610s network default settings table Parameter...

  • Page 10: Web Features Introduction

    USR-W610s User Manual 2.2. Web Features Introduction On the left side of the web page is a tab page, where you can specifically set some parameters of the device.  Status: mainly displays device name information, firmware version, routing table, running status, serial communication status, etc.;...

  • Page 11: System State

    USR-W610s User Manual 3. System state Overview Product information, memory usage, network connection status, connection sites, serial server communications, routing tables, DHCP allocation situation. Figure 4 Overview interface The MAC address description: Mac on the device tag, the address is Wan mac, Lan Mac Is the wan mac + 1, The AP MAC in the WiFi 2.4G band is Wan mac + 2，The AP MAC in the WiFi 5G band is Wan mac + 3.

  • Page 12: Dhcp Client

    USR-W610s User Manual F Fig5 The WAN port setting page 1*wired WAN port, 1*wireless WAN port, WAN port is WAN interface;  Support DHCP client, static IP,PPPOE mode(only line WAN port);  Default DHCP client;  WAN port IP cannot be the same segmentas LAN port IP ...

  • Page 13: Static Ip

    USR-W610sManual Fig. 6 WAN Port Settings-DHCP 4.1.2 Static IP IP, gateway and subnet mask of the same network segment as that of the superior router should be filled in correctly. If it is a dedicated public network cable,IP, subnet mask, gateway and DNS server should be filled in correctly according to the IP Fig.

  • Page 14: Pppoe

    USR-W610sManual 4.1.3 PPPoE Only wired WAN can be set up, which needs to be filled in according to the correct username and password given by the operator. Figure8 WAN Port Settings-PPPoE 4.2. LAN interface LAN port is a local area network, with 1 LAN port and 1 WAN/LAN port switchable. w w w .
  • Page 15 USR-W610sManual Figure9 LAN Port Settings Page Description: 1 LAN port, 1 WAN/LAN switching;  The default static IP address is192. 168. 1. 1, subnet mask 255. 255. 255. 0  This parameter can be modified, such as staticIPmodifiedto192. 168. 2. 1; WIFI interface bridge to LAN port;...

  • Page 16: Basic Setup

    USR-W610sManual 4.2.1 Basic setup Fig. 10 LAN Settings Page 4.2.2 DHCP function DHCP Server function of LAN port is enabled by default(can be selected to be disabled), and all network devices connected to LAN port can automatically obtain IP address. Figure11 DHCP Settings Page w w w .

  • Page 17: Network Mode

    USR-W610sManual You can adjust the DHCP pool start address, as well as address lease time;  The default DHCP allocation range starts from 192.168.1.100;  Default lease 12hours  4.2.3 Network mode WAN/LAN switching for setting up Port 1. FIG. 12 Gateway Mode Settings 4.3.
  • Page 18 USR-W610sManual FIG. 13 Network handover configuration Table5 Network Handover Configuration Name Describe Default parameters Priority Wired> Wireless: priority networking as indicated> Wireless> Wireless> Wired Wired: priority networking as indicated> Disable: disable network switching function, use current Internet access mode to surf the Internet Reference mode Custom: Determine network status based on custom Custom...

  • Page 19: Wireless Hot Spot

    USR-W610sManual Description: Configure network priority detection rules, enabled by default, default network switching order: wired network  priority; Set 3 IP addresses for detecting networking status, and sequentially perform ping packets. If ping can be  communicated, it is judged that the network is normal and no network-cutting configuration is performed; If none of the 3 groups of detection rules cannot be passed, perform the network cutting operation and continue ...

  • Page 20: Client List

    USR-W610sManual Start using Whether to enable 2. 4GAP: check Checked: Enabled 2.4GAP Unchecked: Off 2.4G AP Hide SSID Check: AP can be hidden, if there is a client need to connect manually Not checked Enter correct SSID and password WIFI Name AP name, Chinese can be set USR-W610s-XXXX ,,Encryption mode of the AP:...

  • Page 21: Wireless Client

    USR-W610sManual Figure15 Client List Interface 4.5. Wireless client You need to start from the basic configuration2. 4Gconfiguration, and then configure to connect AP hot spot parameters. Figure16 Wireless Client Switch 4.5.1 2.4G STA Configuration w w w . u s r . c...
  • Page 22 USR-W610sManual Figure 17 Wireless client setup Table 7 List of the STA setting parameters Name Implication Default Search You can click the search button to search for the current Not have 2.4G WIFI Hot spots WIFI Name AP name to connect WIFI-STA MAC binding BSSID settings, bind specified AP MAC...

  • Page 23: Hot Spot Information

    USR-W610sManual When p in g detection function is turned on, p in g address cannot be empty. Gateway: Connected Server Gateway Reference address Address: You can specify the address where ping is Ping address IP or domain name can be set Empty Description: For example, after opening STA, you need to set the static IP of STA, please enter the network- WAN for...

  • Page 24: Dhcp

    USR-W610sManual 4.6. DHCP Static Address Assignment: Set at Network-DH CP. This feature is an extension of the LAN interface DHCP settings and is used to assign fixed IP addresses and host identifiers to DHCP clients. Use Add to add new lease entries. Identify hosts using MAC-address,IPv4-address assignment address, host name assignment identifier.

  • Page 25: Static Route

    USR-W610sManual Description: You can add up to 100 DHCP rules.  4.7. Static route Fill in the IP of the same network segment as the superior router. The IP, gateway and subnet mask should be filled in correctly. If the dedicated line public network cable, it should be filled in correctly according to the IP, subnet mask, gateway and DNS server given by the operator.

  • Page 26: Serial Port Server Function

    USR-W610sManual Figure 21 The Network diagnosis page On-line diagnosis function, including Ping tool, route analysis tool,DNS viewing tool;  Ping is a Ping tool that can directly test a specific address on the wireless client side;  Trace route is a routing analysis tool that can obtain the routing path through which an address is ...
  • Page 27 USR-W610sManual Figure22 Serial port setting interface Table8 Serial port setting parameter table Name Functional description Default Baud rate Set the baud rate of RS232 or RS485, which can be set 115200 to:1200/2400/4800/9600/19200/38400/57600/115200/230400 Note:RS485 only supports 230400 Data bits Set RS232 or RS485data bits, settable: 7/8 Stop bit Set RS232 or RS485stop bit, settable: 1/2 Parity bit...

  • Page 28: Time Triggered Mode

    USR-W610sManual 5.1.1 Time triggered mode When receiving data from UART, the W610s constantly checks the interval between adjacent 2 bytes. If the interval time is greater than or equal to a certain "time threshold", it is considered that a frame is over, otherwise the data is received until it is greater than or equal to the packet length (default is 1000bytes).

  • Page 29: Length Trigger Mode

    USR-W610s Manual 5.1.2 Length Trigger Mode When receiving data from UART, the W610s constantly checks the number of bytes received. If the number of bytes received reaches a certain "length threshold," a frame is considered to have ended. This frame of data is sent to the network as a TCP or UDP packet. The "length threshold" here is the packing length. The settable range is 5 to 1500 bytes.
  • Page 30 USR-W610s Manual Table9 Communication Configuration Parameter Table Name Functional description Default Name Set the name of this link Empty Agreement Select the network protocol, you can choose: TCPC TCPC/TCPS/UDPC/UDPS/HTTPD/MQTT/AWS/ALI Start using Whether this link is enabled,ON(enabled)/ OFF(disabled) Start using Describe Set comments for this link Empty Description:...

  • Page 31: Tcpc Mode (Tcp Client Mode)

    The time interval between heartbeat packets sent, in seconds Registration NONE: Close Heartbeat Package NONE packet Custom: Customize registration package content MAC: Use device WAN MAC as registration package PUSR cloud: Use the registration package way to connect w w w . u s r . c...
  • Page 32 USR-W610s Manual someone cloud platform SN: Use device SN as registration package content ,Custom registration package type； Register ,HEX: 16 decimal type； Package Type ,ASCII: Character type； Register Register package data content empty package data Register Send a registration packet when connecting to the server; Send once on package connection...

  • Page 33: Tcps Mode (Tcp Server Mode)

    USR-W610s Manual No certificate verification: that is, only data layer Do not verify authentication certificates transmission decryption implemented, method authentication server certificate of the other party is not verified during the handshake process: that is, the client will verify the server certificate during the handshake, andthe root certificate of the server needs to be preset by the client.

  • Page 34: Udpc Mode(Udp Client Mode)

    USR-W610s Manual Table 11 The TCPS parameter table Name Functional description Default Start using Is this link enabled,ON/OFF Name Set the name of this link TCPS_X Describe Set this link comment information TCPS_X Port local port number empty Maximum number of Number of clients accepted, 1-16 Default8 client connections...
  • Page 35 USR-W610s Manual Fig 28 UDPC with the configuration interface Table 12: UDPC parameter setting table Name Functional description Default Start using Is this link enabled,ON/OFF Name Set the name of this link UDPC_X Describe Set this link comment information UDPC_X Server address Server address:IPor domain name form empty...

  • Page 36: Udps Mode (Udp Server Mode)

    USR-W610s Manual MAC: Use the device WAN MAC as the content of the registration package Register Custom Registration Package Type Package Type HEX:hexadecimal type ASCII: Character type Register Register package data content empty package data Register Send a registration packet when connecting to the server Send once on package connection...
  • Page 37 USR-W610s Manual Table 13 UDPS Parameter Table Name Functional description Default Start using Is this link enabled,ON/OFF Name Set the name of this link UDPS_X Describe Set this link comment information UDPS_X Local port local port number empty Transmission Pass-Through: pass-through mode Pass-Through mode Channel binding COM1-485:Transfers datausing...

  • Page 38: Mqtt Mode

    USR-W610s Manual 5.2.5 MQTT Mode The device supports MQTT Clint function, and users can easily access their own private MQTT server through simple configuration. Both data publishing and data subscription support multi-topicadding configuration. Users can send serial data to a topic or push data from the server to a bound serial port by configuring it. Data transmission.
  • Page 39 USR-W610s Manual Reconnection detection interval Next reconnection interval after MQTT disconnection, unit: seconds Authentication If the server requires a username password authentication needs to be enabled ON: Enable MQTT username password authen tication OFF: Disable MQTT username password authentication Last words MQTT connection flag.
  • Page 40 USR-W610s Manual server verify each other's identity, requiring preset the server root certificate, client certificate and client private key Offline data cache Data overflow processing mode selection, cache mode, cache length setting, etc., length limit to 7300 Byte, the number of packages limited to 10 packages;...

  • Page 41: Connect To Amazon

    USR-W610s Manual Table 15 The MQTT topic parameters table Name Functional description Default type Topic type: optional publish/subscribe issue name the name of the topic empty theme Subject: Subject Content empty Subject message quality, settable: 0 atmost once 1 least1 2 Exactly once reservation Set whether to keep messages, ON/OFF...
  • Page 42 USR-W610s Manual Figure 32 The AWS configuration interface Table 16 AWS, Parameter Table name functional description default start using Link enabled,ON/OFF name Name of AWS Platform Link AWS_2 describe AWS Platform Link Remarks AWS_2 server address AWS platform MQTT server connection address:IP or domain amazonaws.

  • Page 43: Connect To Alibaba Cloud Platform

    USR-W610s Manual Reconnection Next reconnection interval after MQTT disconnection, unit: detection interval seconds cleanup session MQTT protocol connection flag bit, used to control the lifetime of the session state, OFF, ON Open server root Select corresponding file not have certificate Equipment Select corresponding file not have...
  • Page 44 USR-W610s Manual Fig 33 The ALI configuration interface Table 17 ALI, Parameter Table Name Functional description Default Start using Link enabled,ON/OFF Name ALI Platform Link Name ALI_2 Describe ALI Platform Link Remarks ALI_2 Instance type Support Alibaba Cloud public instances and enterprise instances public instance Product Key Device properties, Alibaba Cloud adds Product Key of triplet in...
  • Page 45 USR-W610s Manual Device Secret Device key, ALI Cloud adds one of the triplets in the device not have Device Secre Client ID Support custom client ID for splicing MQTT client not have Territory ALI regional code, for example, East China2 (Shanghai):cn- East shanghai China2-...

  • Page 46: Httpd Mode (Http Client Mode)

    USR-W610s Manual The topic adding function is mainly used to add published or subscribed topics. The configuration parameters include basic parameters such as name,TOC,QS,and whether to Serial port association is used to associate a topic with a serial port. Up to16 theme rules can be set. 5.2.8 HTTPD Mode (HTTP Client Mode) In this mode, the user's terminal device can send request data to the specified HTTP server through this device, and then the device receives the data from the HTTP server, parses the data and sends the result to the...

  • Page 47: Registration Package/Heartbeat Package Features

    USR-W610s Manual Table18 HTTPD Parameter Table Name Functional description Default start using Enable this link channel:ON(enabled)/ OFF(disabled) name Name of this link HTTPD_X describe Remarks for this link HTTPD_X request method How to request data from HTTP servers GET/POST filter head Set whether to filter HTTP headers ON(filtered)/ OFF(unfiltered) HTTP URL...

  • Page 48: Advanced Setup

    USR-W610s Manual Description: Select MAC,then WAN port MAC as registration packet content;  This function is available only when the link is set to tcpc and udpc mode.  5.2.9.2 Network heartbeat packet description Network heartbeat packet: sent to the network, the main purpose is to let the server know that the terminal W610s is online, so as to maintain a long connection with the server.
  • Page 49 USR-W610sManual Table19 Parameters of Advanced Configuration Interface Name Functional description Default Network AT command ON(enabled)/ OFF(disabled) Network ATcipher word Network AT password atnetcmd# Serial heartbeat ON:Enable sending heartbeat packet to serial port OFF: Disable sending heartbeat packets to serial port Heartbeat packet type HEX:hexadeci typeASCII:...

  • Page 50: Service Function

    6.1. PUSR Cloud services PUSR Cloud address: https://account.usriot.com/#/login. Using PUSR Cloud service allows wireless client devices to be monitored and controlled efficiently and uniformly managed on PUSR Cloud platform. USR-W610s enables cloud service function by default. The interface can configure reporting parameters for statistical traffic, network status, and heartbeat packets.

  • Page 51: Dynamic Domain Name Resolution (Ddns)

    USR-W610sManual Fig36 USR-W610s manned cloud service interface 6.2. Dynamic Domain Name Resolution (DDNS) DDNS(Dynamic Domain Name Service) maps the user's dynamicIPaddress to a fixed domain name resolution service. Each time the user connects to the network, the client program will transmit the dynamicIPaddress of the host to the server program located on the server host through information transfer.

  • Page 52: Custom Services

    USR-W610sManual Fig 59 DDNS, Setup page The parameter filling requirements are as foll： Table 21 DDNS, a list of the parameters Functional Content Default Open Check Enable DDNS function not checked Effective interface WAN port selection based on demand wan_wired ISP internet Please fill in the DDNS service address dyndns.
  • Page 53 USR-W610sManual Fig 60 DDNS Custom Service Parameter Setting Page DDNS function, which provides a dynamic domain name resolution function for wireless clients in the  external network, and applies for a domain name for itself to point to the IP address of its own WAN This feature allows direct access to wireless clients from remote locations via domain names.

  • Page 54: Functional Characteristics

    USR-W610sManual Password peanut shell code password Domain name Domain name requested by DDNS empty Port Select interface name For example, chooseeth0. 2, that is, wired WAN Synchronization Time interval for detecting IP time (s) 6.2.3 Functional characteristics Please fill in the parameters strictly according to the form instructions, service/URL, domain name, ...

  • Page 55: System

    USR-W610sManual Fig63 SNMP Service Setting Interface Tab23 SNMP parameter list Function Content Default Snmpswitch Check Enable SNMP Service not checked configuration user name Name sassigned to SNMP users user authentication Authentication or authentication and encryption authentication type authentication Authentication protocols used by users and mode hosts to receive traps.

  • Page 56: Time Setting

    USR-W610sManual Default password can be set, default password is root, user name cannot be set. This password is an administrative password (web login password). Fig. 64 Username Password Settings Page The default host name of the wireless client is USR-W610s-XXX X. 7.2.

  • Page 57: Timed Restart

    USR-W610sManual Fig65 Time zone synchronization with local time 7.3. Timed restart Regular restart management can be performed on the wireless client at any time of the day, week or month, and the running cache can be cleared regularly to improve the stability of the wireless client. Qualitative, page settings are as follows.

  • Page 58: Http Port

    USR-W610sManual Figure66 Timing Restart Settings Page 7.4. HTTP port The wireless client can set the login web port number to prevent non-O & M personnel from easily logging in to the wireless client for configuration. Fig67 HTTP port configuration 7.5. Port forwarding Port forwarding allows computers from Internet to access computers or services with in aprivate local area network,i.e., maps a specified port of a WAN address to a host within the intranet.
  • Page 59 USR-W610sManual Fig. 68 port forwarding settings After setting the forwarding rule, click the Add button on the right, and then this rule will be  displayed in the rule bar; Click the Apply button in the lower right corner to make the settings take effect; ...

  • Page 60: Access Restriction Function

    USR-W610sManual Table24 Port forwarding parameter table Function Content Default Name Port forwarding name, character type empty Agreement Protocol type, settable: TCP+UDP/TCP/UDP TCP+UDP Exterior zone External port Port range can be set empty Interior region router subnet area Internal IP Router LAN Are a IP Address empty Internal port Port range can be set...

  • Page 61: Domain Name White List

    USR-W610sManual Fig70 Domain name blacklist 7.6.3 Domain name white list First, select the white list in the mode option, click Add to enter the name of the rule and the correct domain name, and then click Save, the rule will take effect immediately, connect wireless Except for the domain name specified in the rule, other domain names cannot be accessed.

  • Page 62: Log

    USR-W610sManual Figure71 Whitelist of domain names Description: You can add up to 100 access restriction rules. 7.7. Log Log is divided into remote log and local log, located in the System-Log function menu. Remote log Remote log server: IP of remote UDP server, when IP is0. 0. 0. Remote logging is not enabled at0 ...
  • Page 63 USR-W610sManual Figure72. Remote log Local log Kernel log levels: debug support, info, caution, warning, error, fatal error, alert, emergency, total 8  levels; lowest in order of commissioning, highest in emergency; Application log level: same as above;  Log (kernel, application) support instant view, empty, support log file export. ...

  • Page 64: Parameter Backup/Upgrade

    USR-W610sManual Figure73 . Applicationlog 7.8. Parameter backup/upgrade Fig74 . Backup/restore and upload page Parameter backup: Click the "Download Backup" button to back up the current parameter file as a compressed package file, such asbackup-USR-W610s-2024-04-20. tar. GZand save locally. Parameter upload: upload parameter file (such asbackup-USR-W610s-2024-04-20. tar. gz) uploaded to the wireless client, then the parameter file will be saved and take effect.

  • Page 65: Factory Data Reset

    USR-W610sManual Must be USR-W610s configuration file for import, otherwise configuration confusion may occur;  Import and configure the firmware of the same version as much as possible. If the version spans a large  distance, configuration confusion may occur. 7.9. Factory data reset The factory settings can be restored through the web page.

  • Page 66: Restart

    USR-W610sManual Fig76 Upgrade page The firmware upgrade process will last about 3-4 minutes. Please log in again after 4 minutes.  You can choose whether to "retain the configuration", such as the version across a large "retention  configuration" upgrade is not recommended; Please do not power off or unplug the network cable during firmware burning.

  • Page 67: Contacts Us

    8. Contacts Us Jinan USR IOT Technology Limited Address : Floor 12 and 13, CEIBS Alumni Industrial Building, No. 3 Road of Maolingshan, Lixia District, Jinan, Shandong, China Official website: https://www.pusr.com Official shop: https://shop.usriot.com Official shop: https://shop.usriot.com Email : sales@usriot.com...
