Bravi Platforms SMALL-E User And Maintenance Manual

Hide thumbs

Advertisement

Table of Contents

USER AND MAINTENANCE MANUAL
Original instructions
SMALL-E
EC Directive
English
September 2024 rev.1

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the SMALL-E and is the answer not in the manual?

Questions and answers

Related Manuals for Bravi Platforms SMALL-E

Summary of Contents for Bravi Platforms SMALL-E

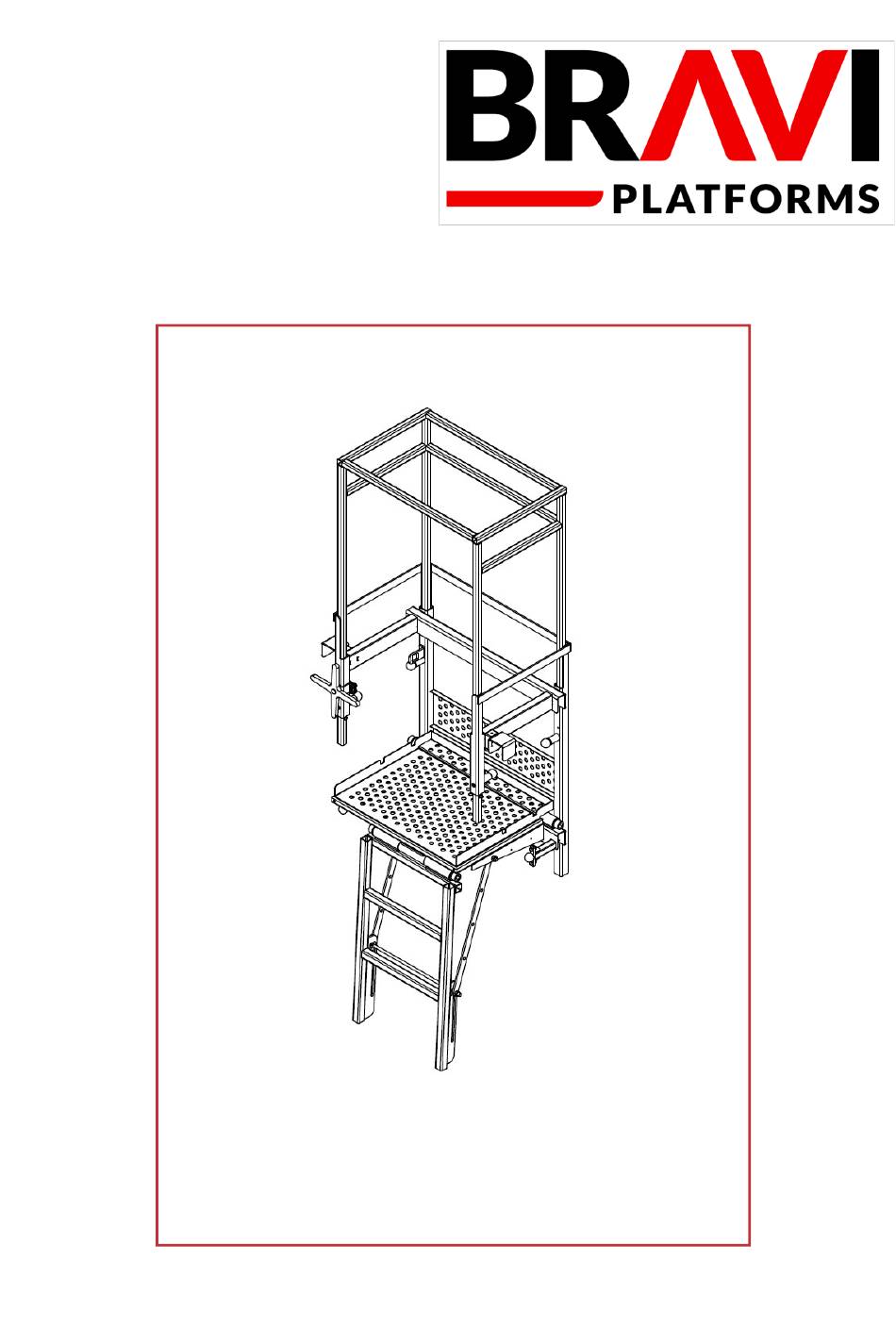

  • Page 1 USER AND MAINTENANCE MANUAL Original instructions SMALL-E EC Directive English September 2024 rev.1...
  • Page 2 SOME NOTES ON THIS USER MANUAL Remember that the USER MANUAL is not an accessory of the SMALL-E inspection device but it is an integral part of it and a SAFETY MEASURE (EN 12100). It is also to be considered an integration of the LUI HD WD and LUI HD 227 WD user manual to which reference must be made before using this device.

  • Page 3: Ec Declaration Of Conformity

    Model Rated Load Platform Capacity Working Height Manual Force Wind Speed on SMALL-E (including SMALL-E with load) (with SMALL-E installed) LUI HD WD 113 kg (1 person) 227 kg 5,5 m 200 N Indoor use only THE MODEL WHICH THIS DECLARATION REFER IS IN CONFORMITY WITH...

  • Page 4: Residual Risks

    Therefore, who works in these areas or is responsible for these phases must be a trained person ac- quainted with the fact that are “dangerous” and as regards the SMALL-E inspection device protections category, has not been possible to eliminate them entirely.
  • Page 5 INDEX Content Page Part 1 Introductory Informations Part 2 Safety Prescriptions 2.11 Part 3 Device Specifications 3.12 Part 4 Installation and Assembly 4.13 Part 5 Cleaning 5.21 Part 6 Ordinary Maintenance 6.22 09-2024 - rev.1...

  • Page 6: Delivery Note

    The manufacturer hopes that you can take advantage of the multiple functions of the SMALL-E inspec- tion device. It is strictly forbidden any reproduction, even partial, of the text and illustrations. The original copy has been given to the owner together with all of the documents relating to the SMALL-E inspection device. 09-2024 - rev.1...
  • Page 7 Each SMALL-E inspection device has its serial number, with the consequent CE marking. 1.2.2 To contact Braviisol Divisione Meccanica srl or its centres of assistance concerning the SMALL-E in- spection device, please always refer the model and serial number legibly affixed to the identification plate.

  • Page 8: General Delivery Notes

    1.3 GENERAL DELIVERY NOTES SMALL-E inspection device can be shipped in containers, or on a pallet wrapped in a protective film, packed in boxes or on the platform. Always verify that upon receipt: 1 - The packaging is intact 2 - The supply corresponds to the order specifications (see bill of lading or packing-list) 3 - There is no damage to the SMALL-E inspection device .
  • Page 9 LIMITED WARRANTY—Warranty Statement IF THE WARRANTY IS NOT INCLUDED IN THE SALES CONTRACT, THE FOLLOWING GUIDELINES APPLY TO THE MACHINE WARRANTY. The Manufacturer BRAVIISOL SRL warrants that all new units of equipment manufactured and sold by it conform to the Company latest specifications. The manufacturer warrants its equipment to the original purchaser against defect in material and/or workmanship under normal use and service for 3 years from date of registered sale or date the unit left the factory if not registered.
  • Page 10 1.5 SMALL-E INSPECTION DEVICE DESCRIPTION 1.5.1Purpose and product description The SMALL-E is a device CERTIFIED TO BE USED ONLY WITH LUI HD WD and LUI HD227 WD. IT IS FORBIDDEN TO USE THIS DEVICE BEFORE HAVING READ THE USER MANUAL AND THE USER AND MAINTENANCE MANUAL OF THE PLATFORM.
  • Page 11 INTRODUCTION TO THE SAFETY PRESCRIPTIONS Read and follow these warnings and the instructions that follow. Failure to do so could result in serious property damage and/or serious bodily injury: a) Keep work area clean. Cluttered areas invite injuries. b) Observe work area conditions. Do not use machine or device in damp or wet locations.
  • Page 12 3.1 SMALL-E INSPECTION DEVICE SPECIFICATIONS SMALL-E INSPECTION DEVICE CAPACITY 1 operator LOAD RATING (with operator) 113 kg NET WEIGHT 35 kg 3.12 06-2022 - rev.1...
  • Page 13 4.1 SMALL-E INSPECTION DEVICE INSTALLATION AND ASSEMBLY ON PLATFORM Before performing the SMALL-E inspection device installation it is necessary to bring the Platform to the Zero Power Condition, that is: - Platform completely lowered (see PART 5 of the Platform user manual).
  • Page 14 Align to the upper and middle basket rail the main frame as showed in drw 2 and then pull down the device. The Small E must only be installed with the basket extension closed. When the extension is open it is not possible to install Small E drw 2 4.14 06-2022 - rev.1...
  • Page 15 Check the SMALL-E lower locking pins are engaged at the basket as showed in drw 3 drw 3 At the end of the installation the SMALL-E inspection device shall be as showed in drw 4 When completely opened, the floor with the ladder shall be as showed in drw 7 drw 4 4.15...
  • Page 16 Release, with one hand, the SMALL-E floor locking pin using the pommel as showed in drw 5 and then pull down with the other hand the floor as showed in drw 6 drw 5 drw 6 4.16 06-2022 - rev.1...
  • Page 17 When completely opened, the floor with the ladder shall be as showed in drw 7 90° drw 7 4.17 06-2022 - rev.1...
  • Page 18 At this stage move the top control box in the position as showed in the drw 8 and the SMALL-E inspection device can be used (refer to the machine user manual for proper use of the machine and for the control box commands) drw 8 4.18...
  • Page 19 To stow, first step down and move the top control box at the entry side. Fold-up the SMALL-E floor until the pin locks as showed in drw 9 drw 9 Pull each spring pin individually. Before releasing the last pin, hold the upper part of the exten- sion in the center and lower it in the closed position as showed in drw 10.
  • Page 20 For removing the SMALL-E inspection device, pull up the device extension untill all four pins snap into the holes then pull the two lower locking pins as showhed in drw 11; lift up the device and re- move it. The procedure is finished.
  • Page 21 5.1 CLEANING 5.1.a As the SMALL-E inspection device works in presence of dusts, it must be daily or whenever it would be necessary clean it. 5.1.b The person in charge with the cleaning must have read and well understood the safety prescriptions shown in this manual (Part 2) 5.1.c...

  • Page 22: General Maintenance Tips

    6.1 GENERAL MAINTENANCE TIPS 6.1.a Regular inspection and conscientious maintenance is the key to efficient economical op- eration of your device. The manufacturer has worked hard to improve device reliability and simplify ordinary maintenance operations. Your equipment will perform satisfactorily with a minimum of service and repair.
  • Page 23 BRAVIISOL Divisione Meccanica S.r.l. S.S. 16 Adriatica km. 314,600 60022 Castelfidardo (AN) Tel. 071.7819090 Fax 071.7819355 E-mail: info@bravi-platforms.com Website : www.bravi-platforms.com Spare parts: www.bravi-parts.com...
