Order Number MAC0804001CE
Vacuum Cleaner
MC-UG787-00
Specifications are subject to change without notice for further improvement.
©
2008
PANASONIC
HOME
APPLIANCES
COMPANY,
DIVISION
OF
PANSONIC
CORPORATION OF NORTH AMERICA. All rights
reserved. Unauthorized copying and distribution is a
violation of law.

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the MC-UG787-00 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Panasonic MC-UG787-00

Summary of Contents for Panasonic MC-UG787-00

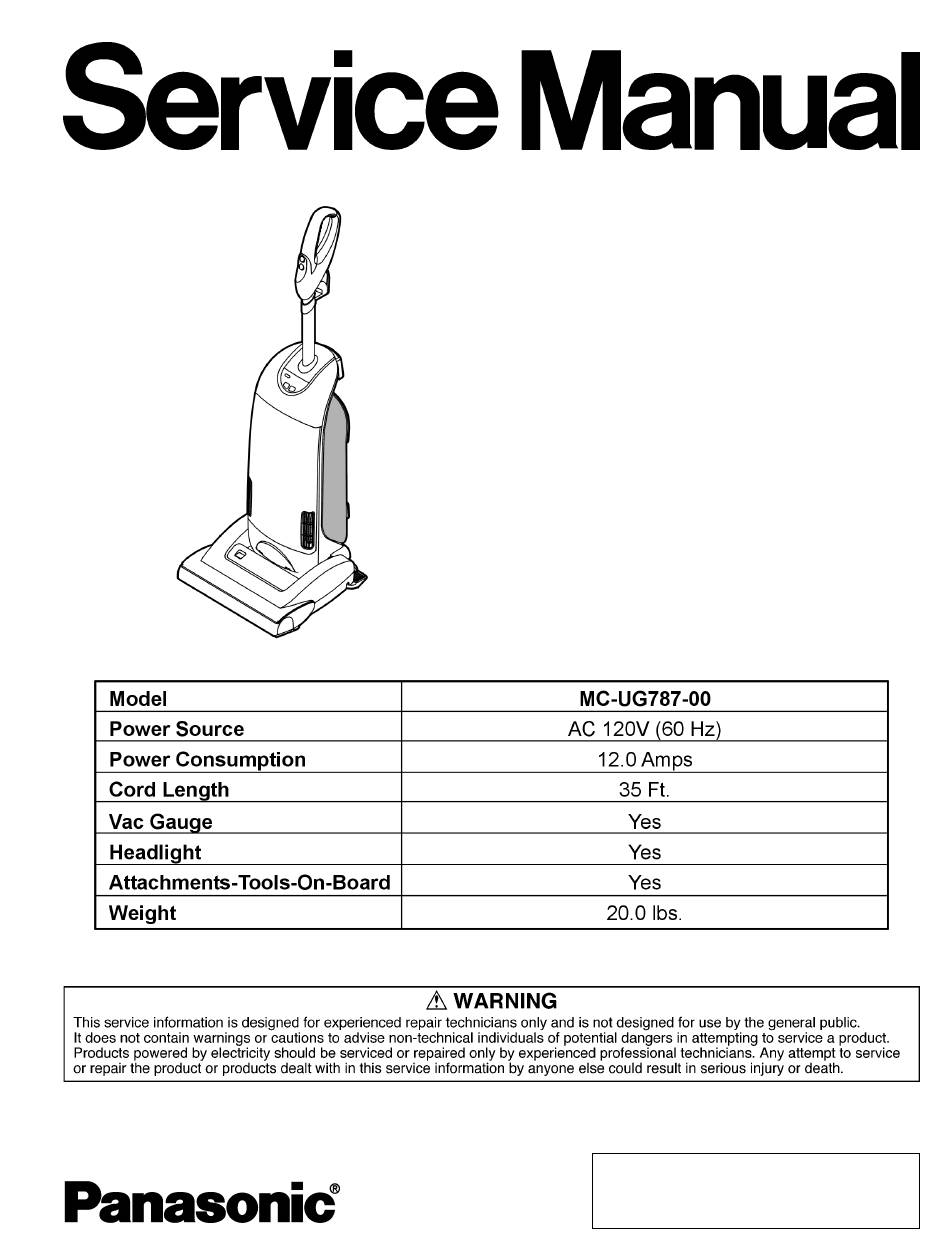

  • Page 1 Order Number MAC0804001CE Vacuum Cleaner MC-UG787-00 Specifications are subject to change without notice for further improvement. © 2008 PANASONIC HOME APPLIANCES COMPANY, DIVISION PANSONIC CORPORATION OF NORTH AMERICA. All rights reserved. Unauthorized copying and distribution is a violation of law.

  • Page 2: Table Of Contents

    MC-UG787-00 CONTENTS Page Page 1 WIRING DIAGRAM AND DRAWING 3.1. Power Cord Replacement 1.1. Wiring Diagram 3.2. Motor Replacement 1.2. PICTORIAL DIAGRAM 3.3. Motor Protector Replacement 2 EXPLODED VIEW AND PARTS LIST 3.4. Headlight Bulb Replacement 2.1. Body 4 SERVICE PROCEDURES - NOZZLE 2.2.

  • Page 3: Wiring Diagram And Drawing

    MC-UG787-00 1 WIRING DIAGRAM AND DRAWING 1.1. Wiring Diagram...

  • Page 4: Pictorial Diagram

    MC-UG787-00 1.2. PICTORIAL DIAGRAM NOTE: For general servicing, it is necessary to eliminate pinching of any wire during reassembly. After servicing any electrical component or electrical enclosure, the unit should be reassembled and checked for dielectric breakdown or current leakage.
  • Page 5 MC-UG787-00 1.2.2. Nozzle...

  • Page 6: Exploded View And Parts List

    MC-UG787-00 2 EXPLODED VIEW AND PARTS LIST 2.1. Body 2.1.1. Exploded View...
  • Page 7 MC-UG787-00 2.1.2. Parts List (Body) Ref. No. Part No. Part Name & Description Quantity Remarks AC40KDFWZV07 DUST COMPARTMENT AC16CDDWZ000 ROLLER SHAFT AC99CBSAZV06 WHEEL UNIT AXWG6E115FY WASHER Shipped 10 per package AC74SUSZ00 STOPPER WHEEL Shipped 10 per package AC83DDAAZU00 LOCKING CAM...

  • Page 8: Fan Motor

    MC-UG787-00 2.2. Fan Motor 2.2.1. Exploded View 2.2.2. Parts List (Packing Materials) Ref. No. Part No. Part Name & Description Quantity Remarks AC45LDDWZV07 AIR OUTLET PACKING AC55LDDWZU01 AIR GUIDE RIGHT AC69KJMZV06 PROTECTOR AC70KCNFZG00 PROTECTOR SPRING AC68KAJDZV06 PROTECTOR CASE AC25SDFWZ000 FLANGE...

  • Page 9: Nozzle Housing

    MC-UG787-00 2.3. Nozzle Housing 2.3.1. Exploded View...
  • Page 10 MC-UG787-00 2.3.2. Parts List Ref. No. Part No. Part Name & Description Quantity Remarks AC01ADFWZGUS NOZZLE HOUSING AC13DCXWZMUH BUTTON AC75ACXWZ000 PACKING AC34PDDEZV06 NOZZLE HOSE AC10ACXXWZV06 FURNITURE GUARD AC747156 MOTOR GASKET AXTN4+16BFY SCREW Shipped 10 per package AC26FCXWZ000 MOTOR CAP AC90FCAMZ000...

  • Page 11: Handle And Attachments

    MC-UG787-00 2.4. Handle and Attachments 2.4.1. Exploded View 2.4.2. Parts List (Handle) Ref. No. Part No. Part Name & Description Quantity Remarks AC93BDFWZV07 HANDLE GRIP UNIT AC06BDFWZV07 HANDLE COVER (A) AC07BDDWZV07 HANDLE COVER (B) AXTN4+16BFY SCREW AC63RDDWZV06 COMBINATION BRUSH AC60RCNFZV06 CREVICE TOOL.

  • Page 12: Packing Materials

    MC-UG787-00 2.5. Packing Materials 2.5.1. Exploded View 2.5.2. Parts List (Packing Materials) Ref. No. Part No. Part Name & Description Quantity Remarks AC94ZDFWZ000 Packing Assembly Includes 1 and items a thru J AC01ZDFWZ000 Operating Instructions...

  • Page 13: Service Procedures - Body

    MC-UG787-00 3 SERVICE PROCEDURES - BODY 3.1. Power Cord Replacement 3.1.1. Removal 1. Remove the switch cover and dust cover to expose the electrical connections of the power cord. 3. Disconnect the motor leads and remove the motor assembly. 4. Remove two air outlet packing and two screws from the 2.

  • Page 14: Headlight Bulb Replacement

    MC-UG787-00 agitator and lower plate as instructed in the respective removal sections. 3.4. Headlight Bulb Replacement 3.4.1. Removal 1. Using a flat screwdriver pry up light lens at slots. 2. Remove old bulb from the socket by pulling straight out.

  • Page 15: Service Procedures - Nozzle

    MC-UG787-00 4 SERVICE PROCEDURES - NOZZLE 4.1. Nozzle cover 4.1.1. Removal 1. Release the nozzle cover by rotating the nozzle cover retainers to the UNLOCK position. 2. Rotate upward on the nozzle cover to remove it from the nozzle base.

  • Page 16: Belt

    MC-UG787-00 INSTALLATION. 3. Loop the other end of the belt over the belt pulley on the 4.3. Belt agitator. 4.3.1. Removal 1. Remove nozzle cover (see NOZZLE COVER REMOVAL). 2. Remove agitator (see AGITATOR REMOVAL). 3. Remove the broken or worn belt and replace with new belt.

  • Page 17: Nozzle Motor

    MC-UG787-00 3. Replace agitator assembly (see AGITATOR REPLACEMENT). 4. Replace nozzle cover (see NOZZLE COVER REPLACEMENT). 4.4. Nozzle Motor 4.4.1. Removal 1. Remove nozzle cover (see NOZZLE COVER REMOVAL). 4. Turn vacuum cleaner over and separate nozzle housing from lower body.

  • Page 18: Overload Protector

    MC-UG787-00 any wires. 4.4.2. Installation 5. Turn vacuum cleaner over. 1. Strip white jumper wire approximately 1/2”. 6. Secure nozzle housing to lower body by replacing four (4) 2. Connect white motor lead wire and white jumper wire with screws.
