Optibike Elite Series Owner's Manual

Hide thumbs Also See for Elite Series:
Table of Contents

Advertisement

Quick Links

Download this manual

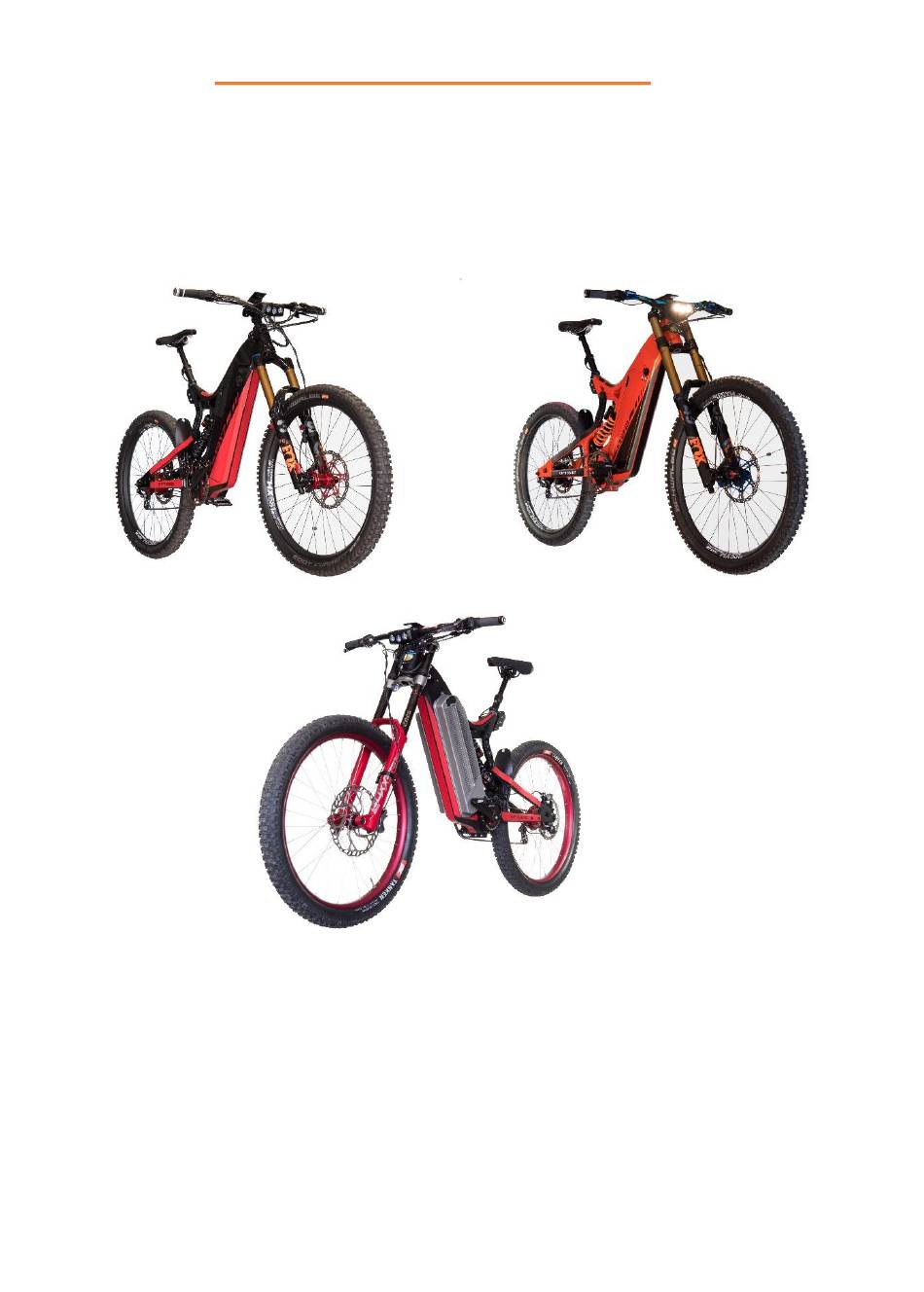

Owners Manual
V1.0
Optibike R10, R17, R22, R22 Everest
This is the Owners Manual for the Optibike R10, R17, R22
and R22 Everest Electric Bicycles.
The Guide provides for basic information required to ride
the bike.
It is recommended that you always ride your electric bike
bike with a helmet and observe all traffic regulations.

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the Elite Series and is the answer not in the manual?

Questions and answers

Related Manuals for Optibike Elite Series

Summary of Contents for Optibike Elite Series

  • Page 1 Owners Manual V1.0 Optibike R10, R17, R22, R22 Everest This is the Owners Manual for the Optibike R10, R17, R22 and R22 Everest Electric Bicycles. The Guide provides for basic information required to ride the bike. It is recommended that you always ride your electric bike...
  • Page 2 Congratulations on your ownership of a new Optibike Full Carbon Elite Series Electric Bike. The Elite Series bikes represent the pinacol of performance and design in the world of E Bikes. Your bike was hand built in Colorado by dedicated craftsman, who build, ride and design the bikes you ride to create an unmatched level of performance.
  • Page 3 27) How to remove the front wheel 28) How to install the front wheel 29) How remove the rear wheel 30) How to install the rear wheel 31) Maintenance Intervals 32) Warranty 33) Contact Optibike Optibike R10, R17, R22, R22 Everest Manual...
  • Page 4 • Failure to perform the repairs and maintenance correctly can result in death or injury. • NOTE: We strongly urge you to read this Manual in its entirety before your first ride. Contact Optibike https://optibike.com/contact/ Phone 303.443.0932 Optibike R10, R17, R22, R22 Everest Manual...

  • Page 5: Maintenance Intervals

    Clean and oil chain Check nuts and bolts Inspect Brake Pads (change as needed) Tension Spokes (as needed) Chain Replacement (as needed) Rohloff oil Change Change Shock Oil Change Fork Oil MBB Service Optibike R10, R17, R22, R22 Everest Manual...
  • Page 6 ▪ Do not ride the bike without the battery installed. • Riding without the battery installed can result in death or injury. Contact Optibike https://optibike.com/contact/ Phone 303.443.0932 Optibike R10, R17, R22, R22 Everest Manual...
  • Page 7 You must use lights when riding at night. This means a headlight and taillight It is also recommended that you ride with a reflective coat or vest. Contact Optibike https://optibike.com/contact/ Phone 303.443.0932 Optibike R10, R17, R22, R22 Everest Manual...
  • Page 8 • This may happen when they pull out from a side street or have just passed you and turning right. • Use Hand Signals • Be Aware! • Be Courteous to pedestrians and other cyclists. Optibike R10, R17, R22, R22 Everest Manual...
  • Page 9 Ebike laws vary by state. The most popular and latest laws are the three Class classifications. The Optibike R10 is a Class 1 E-Bike. The R17, R22 and R22E fit different classifications based on the Power Level they are in. See chart below.
  • Page 10 • Make sure the chain is lubricated • Check the battery charge • Check the throttle for free operation, prior to turning on the bike. • Check all bolts for tightness. Optibike R10, R17, R22, R22 Everest Manual...
  • Page 11 The Dropper Seat Post • The Carbon Elite Series have dropper seat posts. The standard seat post has 125mm of easy adjustable height. Your seat post may have more or less, if customized for you. The seat height can be changed while riding by simply pressing the lever on the handlebar.
  • Page 12 1.Stand up slightly and release pressure on the seat. 2.Push the lever on the left side of handlebar. 3.The seat will begin to move up. 4.Release the lever when at the desired seat height. Optibike R10, R17, R22, R22 Everest Manual...

  • Page 13: Adjusting Seat Angle

    • To Adjust Seat Angle Up in Front: 1.Loosen front Allen Bolt a few turns 2.Tighten rear Allen Bolt 3.Check Angle 4.Repeat to get desired Angle 5.Make sure both Allen bolts are tight when done. Optibike R10, R17, R22, R22 Everest Manual...
  • Page 14 Do not overtighten. Do not lower the seat post so the bottom hits the shock. Leave ½ inch clearance between bottom of seat post and shock. Lowest position of seat position with adequate shock clearance Optibike R10, R17, R22, R22 Everest Manual...
  • Page 15 Power Level 1 To turn bike off, push the lower rear facing button on keypad and hold until Display turns off. The bike will also turn off automatically after 15 minutes of no use. Optibike R10, R17, R22, R22 Everest Manual...
  • Page 16 R22 Everest Battery ▪ The R22 Everest has Optibike’s exclusive Out and Back Technology. ▪ The Everest comes with two individual batteries in the aluminum case. ▪ Use the switch on the right side of the case to switch between Battery 1 and 2.
  • Page 17 How to Read the Display The Elite Series has an LCD display mounted to the handlebar which provides information to the rider. • Battery Charge Level • Speedometer • Power Level • Odometer Optibike R10, R17, R22, R22 Everest Manual...
  • Page 18 The bike will be faster during the first 20-30% of charge as the voltage of the battery is higher. Optibike R10, R17, R22, R22 Everest Manual...
  • Page 19 When the bike is on, turning the throttle will make the bike accelerate. Only turn throttle when you are on the bike and ready to ride. When moving the bike or dismounting, hold the grip, not the throttle. Optibike R10, R17, R22, R22 Everest Manual...
  • Page 20 How to Change the Power Level • The Carbon Elite Series have 5 Power Levels for the Motor. Each Power Level limits the maximum power the motor can deliver. They also change the speed limit and torque limit. • When the bike first turns on it will be in Power Level 1, which is lowest power level.
  • Page 21 To view Trip B, Press the Menu Key quickly again. To Reset the Trip Distance to zero, hold the Menu and Down Button at the same time until the Trip Distance reads “0”. Optibike R10, R17, R22, R22 Everest Manual...
  • Page 22 How to Turn On The Headlight ▪ Your Optibike may be equipped with an LED headlight. There is also an optional LED taillight. ▪ Both lights run off the main battery and do not need separate charging. ▪ The headlight is 2500 Lumens and has a high and low beam.
  • Page 23 • The front brake accounts for 75% of the stopping ability. The Elite Series brakes are reversed from a regular bike. The rear brake is on the left side. Optibike R10, R17, R22, R22 Everest Manual...
  • Page 24 • If you find yourself skidding, release pressure on the brake slightly and shift your weight slightly to the skidding wheel. • This is definitely a skill where practice makes perfect. Optibike R10, R17, R22, R22 Everest Manual...
  • Page 25 You can shift the Rohloff while at a stop. You need to stop pedaling and turn off throttle to shift while riding. Optibike R10, R17, R22, R22 Everest Manual...
  • Page 26 For optimum efficiency, you should keep your pedaling cadence between 60 -80 RPM. Going below 60 RPM, especially on hills will greatly reduce the efficiency and range of the bike. Optibike R10, R17, R22, R22 Everest Manual...

  • Page 27: Charging The Battery

    It will come on as the charger gets hot during the charge cycle. Charging the battery when it is under 35F will damage the battery and void the warranty. Only use the Optibike supplied charger. Optibike R10, R17, R22, R22 Everest Manual...

  • Page 28: How To Charge The Battery

    • When the battery is fully charged, all 5 segments will be Charging the battery when it is under 35F will damage the battery and void the warranty. Only use the Optibike supplied charger. Optibike R10, R17, R22, R22 Everest Manual...
  • Page 29 • Remove the cap from the charge port on the left side of battery. • Plug the charger into the wall socket. (A standard 15 amp wall plug is fine) • Plug the Charger into the bike charge port. Optibike R10, R17, R22, R22 Everest Manual...
  • Page 30 • When the charger is plugged into the bike, the LED on charger will turn from green to a yellow/red. Yellow/red indicates charging. • When the charging is complete, the LED will turn to Green. Optibike R10, R17, R22, R22 Everest Manual...

  • Page 31: How To Remove The Battery

    • While holding battery with your left and right hand, begin to gently push the battery with your right hand out the left side of frame. Optibike R10, R17, R22, R22 Everest Manual...
  • Page 32 Continue to support the bottom edge of battery on frame. • While holding battery with your left use your right hand to unscrew the connector counter clockwise a turn and a half. Optibike R10, R17, R22, R22 Everest Manual...
  • Page 33 • Now hold the battery with both hands and remove from frame. • Place the battery on a non metallic bench. Do not ride the bike without battery installed Optibike R10, R17, R22, R22 Everest Manual...

  • Page 34: How To Install The Battery

    ▪ Move the battery closer to frame so the power cord will reach the connector in the battery. Keep battery at an angle Optibike R10, R17, R22, R22 Everest Manual...
  • Page 35 • Tighten the nut clockwise about 1/3 turn until snug. • Slowly push top of battery into the frame. Be sure the battery cable is not stuck out the right side and rests inside the frame. Optibike R10, R17, R22, R22 Everest Manual...
  • Page 36 How to Install the Battery • Gently push battery into frame until right side is flush. • Install the 3 M6 Allen bolts and tighten with an M5 Allen wrench. Torque to 45 in lbs. Optibike R10, R17, R22, R22 Everest Manual...
  • Page 37 Shock Spring and Rider Weight The Elite Series come with a coil spring shock. Different spring rates are used for different rider weights and riding terrain. Your bike has been fitted with the best spring rate for your weight and riding. If the spring feels too soft or too stiff, it can be changed to another stiffness.
  • Page 38 The Fork is shipped without air and must be pressurized prior to riding with the supplied special suspension pump. A regular tire pump will not work. Optibike R10, R17, R22, R22 Everest Manual...
  • Page 39 60 per cent of the riders weight in psi. Example. If rider weighs 200 lbs., start with 120 psi in fork. Add more pressure to make fork stiffer. Reduce pressure to make fork softer. Optibike R10, R17, R22, R22 Everest Manual...

  • Page 40: Tire Inflation

    Tire Inflation The Elite Series use Presta bicycle valve on the tires. These are smaller than the standard Schrader valves commonly found on cars. Most common bicycle pumps come today with both Schrader and Presta. How to inflate the tires:...
  • Page 41 Step 6: When pressure is correct, remove the pump and reinstall the cap. Recommended tire pressure is 20-40 Psi. Check the side wall of your specific tires for allowable pressure range. Optibike R10, R17, R22, R22 Everest Manual...

  • Page 42: Battery Charge Times

    R8C Charge Times 37 volt 29 AH Battery Charger Type Charger Output 70% Charge Time 100% Charge Time Current Standard 3 Amp 7 hours 14 hours Fast 8 Amp 2.5 hours 5.5 hours Optibike R10, R17, R22, R22 Everest Manual...

  • Page 43: Battery Storage

    The battery must be warmed to above 40F before charging, to prevent damage to the battery. Colder storage temperature will prolong the life of the battery. Do not store below zero degrees F. Optibike R10, R17, R22, R22 Everest Manual...
  • Page 44 Care of the Frame The frame, swingarm and battery case on the Elite Series are molded with carbon fiber. Do not hit these parts with sharp objects such as a hammer. Wash only with mild dap and water. Do not use acetone on frame surface.

  • Page 45: Front Wheel Removal

    Step 1: Place the bike on a stand so the front wheel does not have weight on it. Step 2: Grasp the over center clamp lever. Step 3: Pull the lever away from the bike Optibike R10, R17, R22, R22 Everest Manual...
  • Page 46 Do not pull the front brake lever while wheel is off. This will cause disk brake pads to move together. If this happens, use a clean straight blade screw driver to gently push pads apart. Optibike R10, R17, R22, R22 Everest Manual...

  • Page 47: Front Wheel Installation

    Step 2: Carefully insert the disk between the brake pads. If pads are too close together to fit disk, use a clean straight blade screw driver to gently push pads apart. Optibike R10, R17, R22, R22 Everest Manual...
  • Page 48 Front Wheel Installation Step 3: Insert the axle in the left side of fork. Step 4: Align wheel with axle and slide axle through fork. Optibike R10, R17, R22, R22 Everest Manual...
  • Page 49 (1-20mm in front of the fork), see the Adjusting 15QR Lever Position next page. The over center clamp must be correctly tightened or the wheel could fall off. Optibike R10, R17, R22, R22 Everest Manual...
  • Page 50 • Return the axle nut keeper into place and torque the bolt to 0.90 Nm (8 in- lb). • Repeat the axle installation instructions to verify proper installation and adjustment. Optibike R10, R17, R22, R22 Everest Manual...

  • Page 51: Rear Wheel Removal

    Rear Wheel Removal The Elite Series come with a 14 speed Rohloff Rear wheel. The hub uses a 148mm wide axle. The hub is secured to the swingarm by special Rohloff 7mm bolts, spacers and Nord lock washers on each side.
  • Page 52 (You can also turn the bike upside down while being careful not to damage the display) Step 2: Shift the Rohloff into 14 gear. Step 3: Loosen the knurled nut on shift box Optibike R10, R17, R22, R22 Everest Manual...
  • Page 53 Step 7: While continuing to support wheel with one hand, remove the bolt and spacers from left side. Step 8: Place bolt and spacer on bench, keeping order of spacer and bolt the same as on bike. Optibike R10, R17, R22, R22 Everest Manual...
  • Page 54 5 mm Allen wrench. Step 11: Remove the bolt and place on bench. Keep spacers in correct order. Step 12: While holding wheel with left hand, pull the chain tensioner backward with right hand. Optibike R10, R17, R22, R22 Everest Manual...
  • Page 55 Rear Wheel Removal Step 13: Continue to pull the chain tensioner backwards and push the wheel downwards Step 14: Remove the chain from rear wheel sprocket and remove the wheel Optibike R10, R17, R22, R22 Everest Manual...

  • Page 56: Rear Wheel Installation

    Step 3: Slide the bub in between the swingarm. You will need to align the disk into the caliper and the anti rotation arm into the mount in the caliper holder. Optibike R10, R17, R22, R22 Everest Manual...
  • Page 57 Anti rotation stop in caliper mount Insert the anti rotation arm into stop. Make sure disk is between caliper pads. Optibike R10, R17, R22, R22 Everest Manual...
  • Page 58 Step 7: Use the 5 mm Allen wrench to tighten left and right bolts evenly to 130-170 in lbs. The serrated “NORD” washers should be replaced every 4 wheel removals. Optibike R10, R17, R22, R22 Everest Manual...
  • Page 59 Step 8: Make sure shifter is in 14 gear. Step 9: Attach the shift box to hub. You may need to wiggle shifter a bit to get it to seat. Step 10: Hand tighten the silver knurled knob. Optibike R10, R17, R22, R22 Everest Manual...
  • Page 60 Set shifter to 14 gear. Step 2: Rotate the hex nut inside the Step 3: shift box with a 10mm wrench full counter clockwise unit it stops. Reassemble shift box and Step 4: test. Optibike R10, R17, R22, R22 Everest Manual...

  • Page 61: Bolt Torque Specifications

    40-45 Pedals 15mm open end Battery Mount M5 Allen Throttle M3 Allen Headlight Body M2.5 Allen Shock Mounts M5 Allen 70-80 Lower Linkage M8 Allen Upper Linkage M6 Allen Brake Lever Torx T25 Optibike R10, R17, R22, R22 Everest Manual...

  • Page 62: Warranty Information

    Battery 2 years Optibike Warranty Items listed with Optibike Warranty are covered directly by Optibike. Other items are covered under the warranty of the company the makes the part. Warranty applies to original owner only. Warranty is valid for pleasure use only and does not cover racing or commercial use.
  • Page 63 Warranty is void if battery is not charged every month. In the event that a battery needs to be removed for return shipment to Optibike, Optibike will reimburse customer for labor in the first 12 months of bike ownership. Subject to terms and conditions.
  • Page 64 Subject to terms and conditions. In the event of a warranty claim requiring the electronics to be returned to Optibike customer is responsible for removal and shipment to Optibike. Optibike pays for parts, in house labor and domestic return shipping by FEDEX Ground.
