Optibike R Series Unpacking Manual

Belt drive e-bike
Hide thumbs Also See for R Series:

Advertisement

Quick Links

Download this manual See also: Owner's Manual
Optibike R Series
Unpacking Guide V1.0

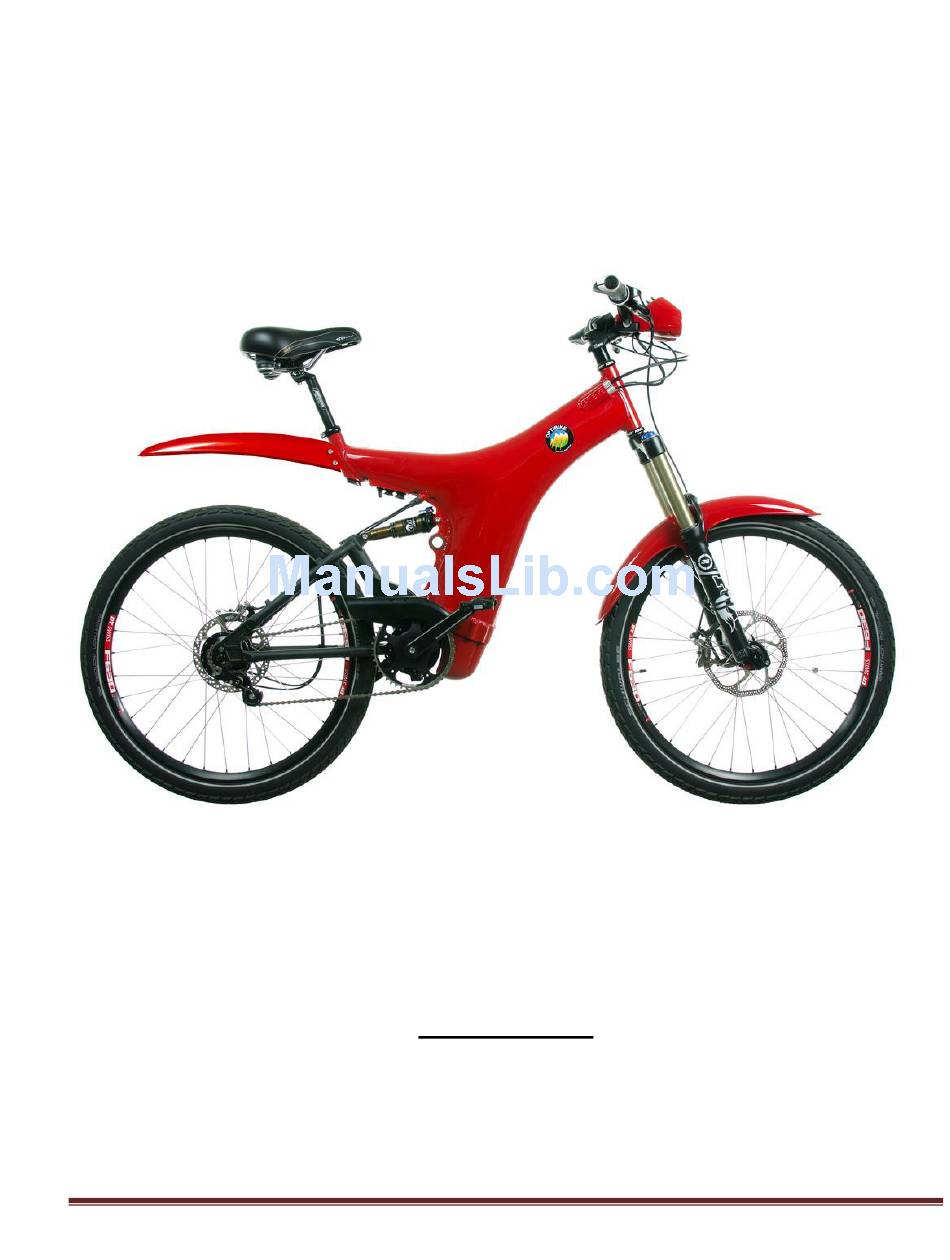

Congratulations on your new Optibike R Series Electric Bike.
Please take time to read through this instruction manual before
unpacking.
ATTENTION!
If you do not have the necessary skills and experience to perform the
actions in this manual, it is strongly suggested that you take the bike to a
bicycle shop to have it assembled.
R Series Unpacking Guide
Page 1

Advertisement

loading
Need help?

Need help?

Do you have a question about the R Series and is the answer not in the manual?

Questions and answers

Related Manuals for Optibike R Series

Summary of Contents for Optibike R Series

  • Page 1 Optibike R Series Unpacking Guide V1.0 Congratulations on your new Optibike R Series Electric Bike. Please take time to read through this instruction manual before unpacking. ATTENTION! If you do not have the necessary skills and experience to perform the actions in this manual, it is strongly suggested that you take the bike to a bicycle shop to have it assembled.
  • Page 2 Pedal wrench or a quality 15mm open end wrench Some type of cutter for opening the box (carpet knife scissors etc.) A pair of wire cutters or pliers Cut the straps holding the box together R Series Unpacking Guide Page 2...
  • Page 3 Rear Fender Fox Suspension Manual Avid Brake Manual Rohloff Hub Manual Cycle Computer Manual Any optional accessories you may have ordered. These items will be in the compartment towards the rear of the bike R Series Unpacking Guide Page 3...
  • Page 4 Remove the staples in all of the circled locations Once these are removed you may remove the support pieces and boxes from the main crate, the large box contains the front wheel and the support on top contains the rear fender R Series Unpacking Guide Page 4...
  • Page 5 Lift the outer box up and off from the bike Now you can see your beautiful new bike Set the crate aside and we can start getting the bike ready. Check the bike for any shipping damage. R Series Unpacking Guide Page 5...
  • Page 6 You will need a 4mm Allen Loosen and remove the two bolts holding the top cap of the fork mount. Be careful after these are removed because the bike can tip at this point R Series Unpacking Guide Page 6...
  • Page 7 (when this is removed be extra careful not to squeeze the front brake or damage may result) Remove the axle by first flipping down the lock levers (this may vary depending on your model fork/wheel) then unscrewing the axle. R Series Unpacking Guide Page 7...
  • Page 8 First place the wheel into the fork taking care to line up the brake rotor in between the pads correctly When this is done reinsert the axle, tighten it firmly and press the lock levers into place R Series Unpacking Guide Page 8...
  • Page 9 Then thread the shock pump into the fork Pump the fork to half the riders weight in psi, this pressure can be varied to suit your preferences (please consult your Fox Shock manual for further details) Then replace the cap. R Series Unpacking Guide Page 9...
  • Page 10 35 psi in both tires. The pressure can be adjusted higher or lower depending on the terrain you are riding on. The R series use Presta style inner tubes that require a special bicycle pump, available at bicycle dealers. R Series Unpacking Guide...
  • Page 11 Recheck Everything Take a few minutes to recheck that everything is tight. Sit on the bike and adjust the seat to a comfortable height. Check the operation of the brakes. Go for an easy ride. R Series Unpacking Guide Page 11...
