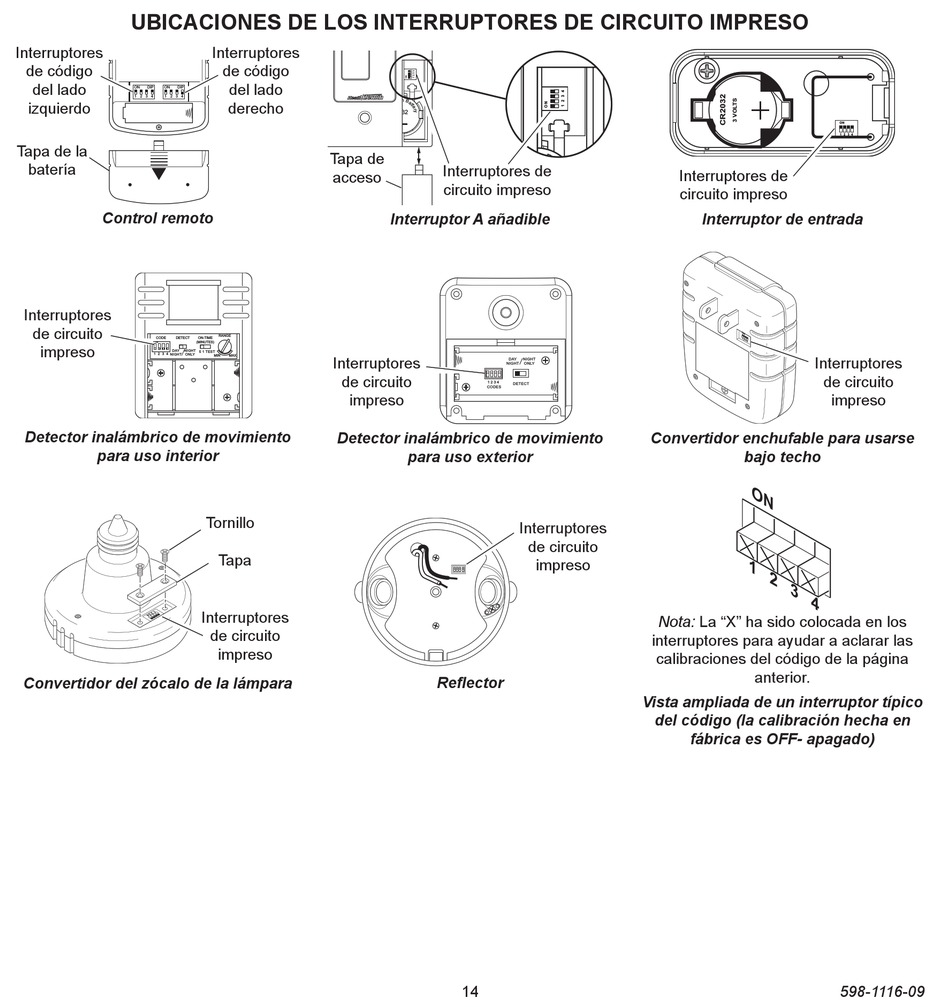

UBICACIONES DE LOS INTERRUPTORES DE CIRCUITO IMPRESO
Interruptores
de código
del lado
ON
DIP
ON
DIP
1 2 3 4
1 2 3 4
izquierdo
Tapa de la
batería
Control remoto
Interruptores
de circuito
CODE
DETECT
impreso
ON
DAY
NIGHT
1 2 3 4
NIGHT
ONLY
Detector inalámbrico de movimiento
para uso interior
Convertidor del zócalo de la lámpara
Interruptores
de código
del lado
derecho
Tapa de
acceso
RANGE
ON-TIME
(MINUTES)
5 1 TEST
Interruptores
MIN
MAX
de circuito
impreso
Detector inalámbrico de movimiento
Tornillo
Tapa
Interruptores
de circuito
impreso
DIM
DIM
2032
Interruptores de
2032
circuito impreso
Interruptor A añadible
DAY
NIGHT
NIGHT
ONLY
1 2 3 4
DETECT
CODES
para uso exterior
Interruptores
de circuito
impreso
Reflector
14
Interruptores de
circuito impreso
Interruptor de entrada
Interruptores
Convertidor enchufable para usarse
bajo techo
Nota: La "X" ha sido colocada en los
interruptores para ayudar a aclarar las
calibraciones del código de la página
anterior.
Vista ampliada de un interruptor típico
del código (la calibración hecha en
fábrica es OFF- apagado)
ON
1 2 3 4
de circuito
impreso
598-1116-09
