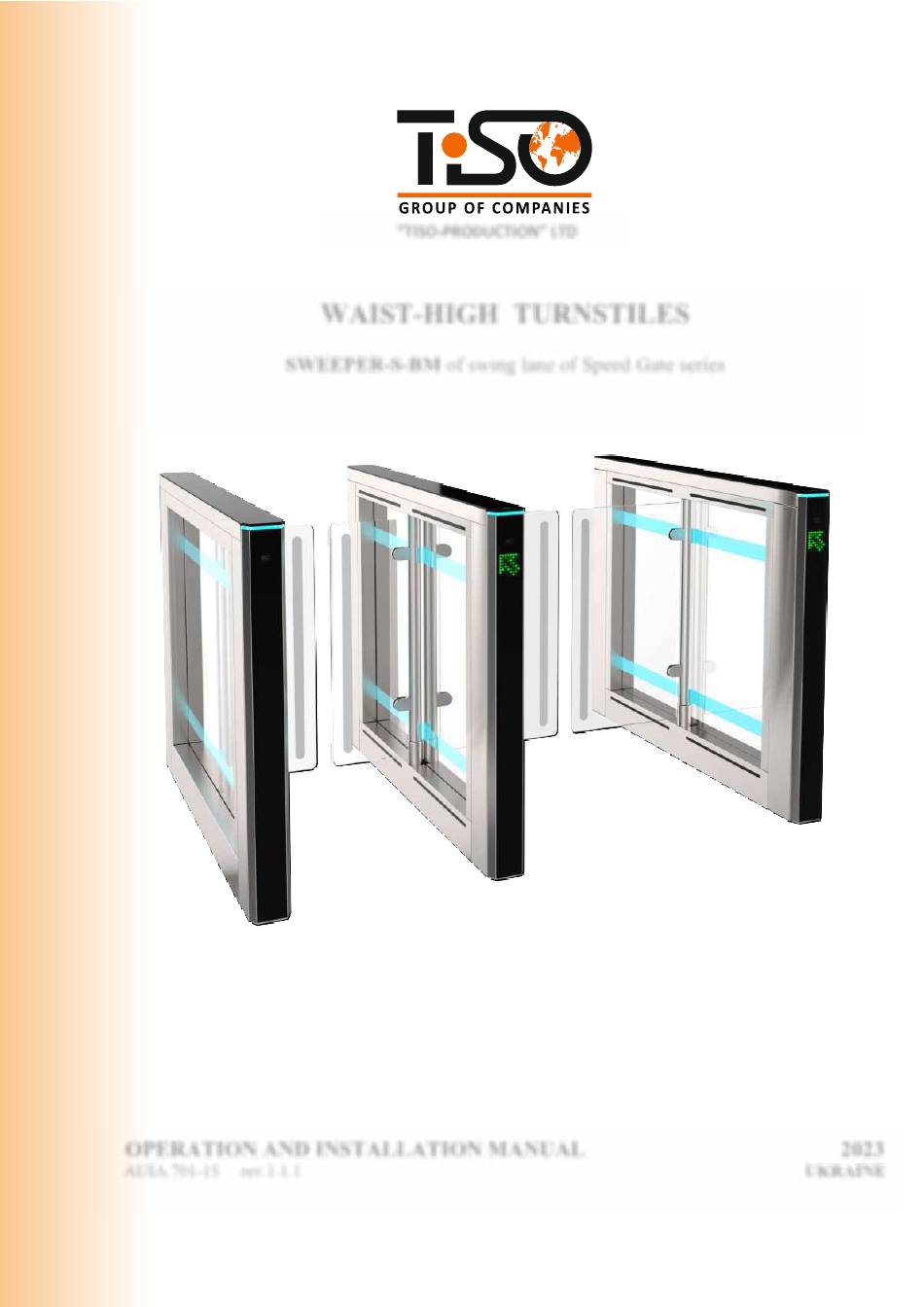

1
"TISO-PRODUCTION" LTD
WAIST-HIGH TURNSTILES
SWEEPER-S-BM of swing lane of Speed Gate series
OPERATION AND INSTALLATION MANUAL
2023
AUIA.701-15
rev.1.1.1
UKRAINE

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the SWEEPER-S-BM and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Tiso SWEEPER-S-BM

Summary of Contents for Tiso SWEEPER-S-BM

  • Page 1 “TISO-PRODUCTION” LTD WAIST-HIGH TURNSTILES SWEEPER-S-BM of swing lane of Speed Gate series OPERATION AND INSTALLATION MANUAL 2023 AUIA.701-15 rev.1.1.1 UKRAINE...

  • Page 2: Table Of Contents

    Annex А2. Overall dimensions of the “SWEEPER-S-BM-1” and “SWEEPER-S-BM-2” type turnstile ....32 Annex B. Control desk and connection diagram ......................33 Annex C.1. Wiring diagram of the Sweeper-S-BM 1.1 BLDC Master (AUIA.701-15) rev 0.7 ........ 35 Annex C.2. Wiring diagram of the Sweeper-S-BM 1.2 BLDC Slave (AUIA.701-15) rev 0.7 ......... 36 Annex C.3.

  • Page 3: Introduction

    So, fulfillment of all requirements specified in this document is mandatory. The turnstile "SWEEPER-S-BM" can be installed both singly and in line. The single turnstile includes two cabinets (left-hand and right-hand), each of which has one glass leaf in the form of swing leaf.

  • Page 4: Warnings To The Customer On Safe Operation Of The Turnstile

    WARNINGS TO THE CUSTOMER ON SAFE OPERATION OF THE TURNSTILE These warnings are designed for ensuring of safety during operation of the turnstile to prevent violation of safety characteristics by improper installation or operation. These warnings are aimed at drawing attention of the customer to safety problems GENERAL WARNINGS The Operation Manual is an integral part of the product and it shall be handed over to the customer.

  • Page 5: Description And Operation

    Width of set for one Length (L) modification type width Height (H) lane (W) 143* Sweeper-S-BM-1 550 1010 1334 Sweeper-S-BM-1 900 1120 150* When the turnstile with more than two access ways is ordered: Wtotal = 660 · s + 1010 · w + b where s –...
  • Page 6 Dimensions, mm Max. Description of the turnstile component Order code weight, kg Н В One side cabinet Master SWEEPER-S-BM-1.1 Т3.КСD.XD One side cabinet Slave SWEEPER-S-BM-1.2 1010 1334 Double side cabinet Master/Slave SWEEPER-S-BM-2 Т3.КСD.XD.X Fig. 3 – Overall dimensions of the turnstile gate 1.1.4 The operation condition parameters according to GOST 15150-69 are specified in Table 3 For...

  • Page 7: Specifications

    1.3.1 The turnstile modification depends on the number of access ways: 1) For arrangement of single access way the turnstile " SWEEPER-S-BM-1" is a set of two similar in design cabinets (Master and Slave) with one swing glass leaf (reference designation Т3.КСD.ХD);...

  • Page 8: Design And Operation

    The turnstile is one or more auxiliary cabinets " SWEEPER-S-BM-2" (Master/Slave) with two swing glass leafs (See Fig. 4). The number of auxiliary cabinets to be specified in the order. The turnstile " SWEEPER-S-BM-2" is used within group of the turnstile " SWEEPER-S-BM-1".
  • Page 9 13 – BMDrive ® gear motor; Fig. 4 – Design of the single "Sweeper-S-BM-1" type turnstile Т3.КСD.ХD 1.4.2 General appearance of the turnstile operating mechanism and control desk The cabinet operating mechanism is shown in Figure 5. 1 – magnetic motor sensor;...
  • Page 10 1.4.3 Principle of operation - LED Light of card reader area; - LED lighting display showing access status; LED lighting of of glass partitions showing turnstile access status Fig.6 – Light indication of the turnstile status Access cycle: Standby mode 1.

  • Page 11: Description And Operation Of Controlers As Integral Components Of The Turnstile

    1.5 Description and operation of controlers as integral components of the turnstile 1.5.1 Turnstile controller AUIA.206.21.20.00 1.5.1.1 Appearance of controller AUIA.206.21.20.00 is shown in Figure 8. 1.5.1.2 Description of operation The controller provides algorithm of operation of the whole turnstile. It is assembled on the card from foil-clad textile laminate of 120 х...
  • Page 12 1 - ON - when command is generated the turnstile will be opened for 5 seconds; OFF - when command is generated the turnstile will be opened for the time set by ACS; 2 - ON- the state of outputs OUT1-5 will be NC; - OFF - the state of outputs OUT1-5 will be NO;...
  • Page 13 Table 6 Connector/ Signal parameters and Designation Direction Purpose Contact No description 1) logical «0» (0  2,2) V; INP1 ХТ4/1 ENTRY "TO BE OPENED FOR 2) logical «1» (3  5) V; ("TO BE OPENED A") SINGLE/FREE ACCESS" INP2 3) active level of signal ХТ4/2 ENTRY...

  • Page 14: Motor Controller Аuia.401.00.00-01

    1.5.2 Motor controller АUIA.401.00.00-01 1.5.2.1. Description of motor controller АUIA.401.00.00-01 The controller АUIA.401.00.00-01 is designed to control BMDrive gear motors, which drives the turnstile ® leaves in motion. At each passage of turnstile installed pair of controllers АUIA.401.00.00-01: the first controller drive the leaf in the Master cabinet, the second controller drive leaf in the Slave cabinet.
  • Page 15 1.5.2.2. Description of the main page of the controller An OLED display and 4 control buttons are installed on the front side of the AUIA.401.00.00-01 controller for the displaying the current state of the controller and for configuration settings at menu After initialization of the controller the main page of the menu is displayed on the screen.
  • Page 16 № Direction Description Designation Connector/contact XT1/1 EXIT Common wire of the control panel (GND ) XT1/2 DATA RS485 (1) communication line with 7-button TISO control panel XT1/3 DATA EXIT XT1/4 Power output for control panel (+12V) XT1/5 +12V EXIT Power output (+12V) for additional devices...
  • Page 17 Сontinuation of table 7 XP6/4 +12V EXIT Power supply of leaf position sensor XP8/1 ENTRY Jumper of line RS 485 (2) pull up resistor XP8/2 ENTRY Jumper of line RS 485 (2) termination resistor (load) XP8/3 ENTRY Jumper of line RS 485 (2) pull up resistor Сommon XP2/1 EXIT...

  • Page 18: Intended Use

    2 INTENDED USE 2.1 Operation restrictions 2.1.1 The turnstile must be used in the environment specified in p. 1.1.4 of this document subject to the specifications listed in section 1.2. IT IS FORBIDDEN: to misuse the turnstile (see section 1 "description and operation"); to use the turnstile unearthed;...
  • Page 19 2.2.5 Total configuration of the " SWEEPER-S-BM " turnstile access ways Fig. 14 – The " SWEEPER-S " turnstile access way arrangement options WARNING: The damages occurred during the turnstile transportation are not covered by the manufacturer's warranty liability.

  • Page 20: Installation Procedure

    Thickness of concrete blinding coat to be at least 150 mm. 5) The turnstile fixation holes to be marked on the area surface according to Figure 16. The turnstile it self can be used as a template. Fig. 16 – Installation dimensions of the "SWEEPER-S-BM-1" and "SWEEPER-S-BM-2" turnstiles set...
  • Page 21 WARNING: The turnstile is fixed by means of Redibolt (with jacket and screw) included in scope of delivery. The turnstile installation and fixation to be performed only after all electric cables are pulled. 6) The relevant holes to be drilled on the surface according to the marking due to diameter of anchors (12×120М10) for the turnstile fixation included in the scope of delivery.
  • Page 22 Option 1 Option 2 Fig. 18 – Options of cable connection between cabinets Master and Slave...
  • Page 23 11) The turnstile to be installed upright at the prepared location. To provide access to fixation holes and terminal blocks from both sides of cabinet it is required to 1 The side door to be opened with allen key (see Fig.19); 2 the solid glass top lid to be removed (see more paragraph 12);...
  • Page 24 13) Turnstile connection: a) Power supply cable ~220 V to be connected (Fig.21): - Phase L to be connected to the circuit breaker; - Neutral (N) to be connected to terminal ~220V(N); - Earth (РЕ) to be connected to earthing terminal (РЕ). b) Control desk link cable to be connected to terminals (Fig.22): - P (Power) –...

  • Page 25: Preparation For Use

    2.4 Preparation for use 2.4.1 Commissioning guidelines Prior to the turnstile energization: 1) make sure of proper connection and good condition of all connecting cables; 2) clear the turnstile leaf swing area from foreign particles. When mains cable of power supply unit is connected to the network the turnstile operating mechanism is energized: leaves are locked from swinging in both directions barring access.

  • Page 26: Contingency Actions

    Сontinuation of table 8 "LOCK" button Make sure that swing 9. Locked access pushed to lock access in Red LED of locked access in one leafs are locked in one direction chosen direction ("A" or chosen direction is lit "B")* Both "LOCK"...

  • Page 27: Maintenance

    3 MAINTENANCE 3.1 General guidelines 3.1.1 Commissioning and subsequent maintenance of the turnstile to be performed only by the staff to be in charge of the turnstile. 3.1.2 The turnstile to be serviced only by the staff having the relevant electrical safety qualification level according to the national requirements.

  • Page 28: Routine Maintenance

    4 ROUTINE MAINTENANCE 4.1 General guidelines Minor malfunctions of the turnstile are listed in Table 10 and to be remedied by the customer. More complicated malfunctions to be remedied by the manufacturer’s representative. IMPORTANT: INSPECTION, CLEANING, REPAIR OF THE TURNSTILE COMPONENTS TO BE PERFORMED ONLY AFTER THE TURNSTILE DEENERGIZATION! 4.2 Possible malfunctions Possible malfunctions of the turnstile and their remedies are listed in Table 10.

  • Page 29: Adjustment Of The Zero Position Of Leaf For "Sweeper-S-Bm

    4.3. Adjustment of the zero position of leaf for “Sweeper-S-BM” For “Sweeper-S-BM” turnstiles, the zero position can be at point CLOSE (0). For turnstiles of  this type, the zero position is set manually by the user during working area searching.

  • Page 30: Transportation And Storage

    Option ІІ (with АUIA.401.00.00-01 fig.25)  Run the menu holding for 2 seconds the lower button (1) on the controller АUIA.401.00.00-01 choose “Calibration”->”GateZeroSet” controller. If you request a calibration procedure, the turnstile will go to “OFF” mode.  Set the zero point of both leaves of Master and Slave cabinets manually (CLOSE position (3)) ...

  • Page 31: Annex А1. Overall And Installation Dimensions Of The "Sweeper-S-Bm-1" Type Turnstile

    Annex А1. Overall and installation dimensions of the “SWEEPER-S-BM-1” type turnstile Figure А.1 – Installation dimensions of the single turnstile T3.KCD.XD_/550/550...

  • Page 32: Annex А2. Overall Dimensions Of The "Sweeper-S-Bm-1" And "Sweeper-S-Bm-2" Type Turnstile

    Annex А2. Overall dimensions of the “SWEEPER-S-BM-1” and “SWEEPER-S-BM-2” type turnstile Figure А.2 – Installation dimensions of group of the turnstiles T3.KCD.XD.X/550/900 and T3.KCD.XD_/900/550...

  • Page 33: Annex B. Control Desk And Connection Diagram

    Annex B. Control desk and connection diagram 1 – control panel body; 5 – "FREE ACCESS" mode control button 2 – "SINGLE ACCESS" mode control button 6 – "PANIC" mode control button 3 – front plate; 7 – access direction LED display; 4 –...
  • Page 34 Continued Annex B. Control panel and connection diagram Fig. B.2 – Connection diagram of control panel AUIA.114.02.00.00...

  • Page 35: Annex C.1. Wiring Diagram Of The Sweeper-S-Bm 1.1 Bldc Master (Auia.701-15) Rev 0.7

    Annex C.1. Wiring diagram of the Sweeper-S-BM 1.1 BLDC Master (AUIA.701-15) rev 0.7 MINI-FIT 8 Z 42BLDP2442-30S/42PM 58 ПВ3 0 .7 5 (Gre e n ) MOT B (V) Hall C (W) ПВ3 0 .7 5 (Ye l l o w ) MOT A (U) ПВ3 0 .7 5 (Bl u e )

  • Page 36: Annex C.2. Wiring Diagram Of The Sweeper-S-Bm 1.2 Bldc Slave (Auia.701-15) Rev 0.7

    Annex C.2. Wiring diagram of the Sweeper-S-BM 1.2 BLDC Slave (AUIA.701-15) rev 0.7 FRONT P CB .205.01.05.00 A A1 P CB .205.01.05.00 X S 25 X P 1 X S 25 X P 1 +12V +12V M INI-FIT 8 Z42BLDP2442-30S/42PM58 ПВ3 0 .7 5 (G re e n )

  • Page 37: Annex C.3. Wiring Diagram Of The "Sweeper-S-Bm-2" Type Turnstile

    Annex C.3. Wiring diagram of the "SWEEPER-S-BM-2" type turnstile Sweeper-S Master/Slave AUIA.701 Wi re s to ma ste r p a rt o f tu rn sti l e HL 4 HL 6 FRONT PCB.2 0 5 .0 1 .0 5 .0 0 PCB.2 0 5 .0 1 .0 5 .0 0...

  • Page 38: Annex D.1. Diagram Of The Turnstile Connection To Access Control System (Acs)

    Annex D.1. Diagram of the turnstile connection to access control system (ACS) Relay 1 Relay 2 Door contact 1 Door contact 2 inp1 - "TO BE OPENED A" in pulse mode. When command is issued entry is activated for 5 sec. inp2- "TO BE OPENED B"...

  • Page 39: Annex D.2. Diagram Of The Turnstile Connection To Access Control System (Acs)

    Annex D.2. Diagram of the turnstile connection to access control system (ACS) inp1- " TO BE OPENED A" in pulse mode. When command is issued the input is activated for 5 sec. . inp - 2 " TO BE OPENED B" in pulse mode. When command is issued the input is activated for 5 seconds.

  • Page 40: Annex D.3. Diagram Of The Turnstile Connection To Fire Alarm (Fa)

    Annex D.3. Diagram of the turnstile connection to fire alarm (FA) inp1- " TO BE OPENED A" in pulse mode. When command is issued the input is activated for 5 sec. inp - 2 " TO BE OPENED B" in pulse mode. When command is issued the input is activated for 5 seconds.

  • Page 41: Annex D.4. Diagram Of The Turnstile Connection To Control Panel

    Annex D.4. Diagram of the turnstile connection to control panel 5 4 3 2 1...

  • Page 42: Service Center

    Manufacturer: LLC TiSO-PRODUCTION 14, Promyslova Street, Kyiv, 02088, Ukraine Phone: +38 (044) 291-21-11 Tel./fax: +38 (044) 291-21-02 E-mail: sales@tiso.global www.tiso.global SERVICE CENTER e-mail: service1@tiso.global Our equipment meets the requirements of European standards: EN ISO 12100:2010, EN ISO 14118:2018, EN 60204-1:2018,...
