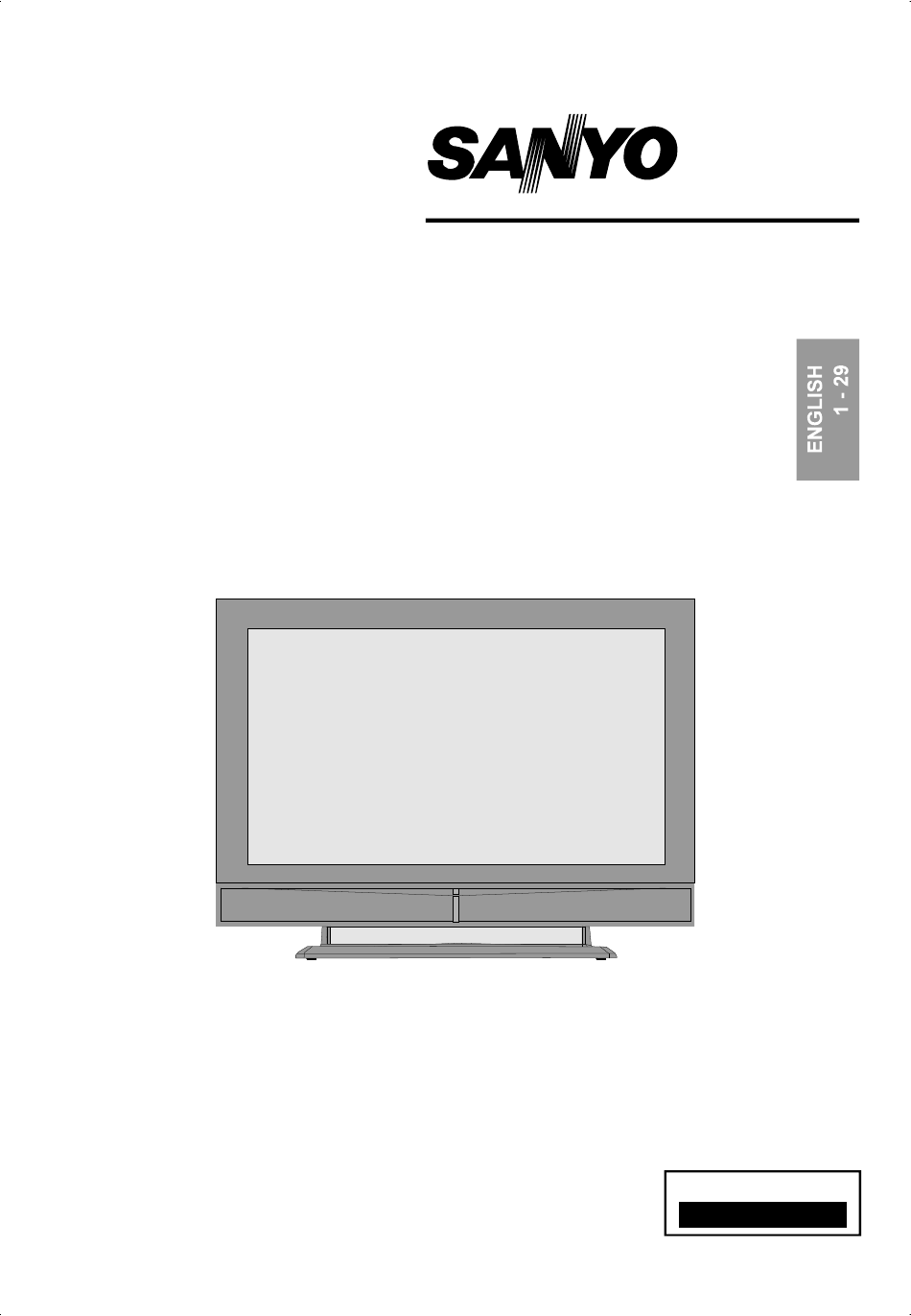

CES37WSD7-B
INSTRUCTION MANUAL
Colour television
Problems with set-up?
Please read this Instruction book before using your television.
Call 0870 240 7475
We wish you many hours of pleasure from your new television.

Advertisement

loading
Need help?

Need help?

Do you have a question about the CES37WSD7-B and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Summary of Contents for Sanyo CES37WSD7-B

  • Page 1 CES37WSD7-B INSTRUCTION MANUAL Colour television Problems with set-up? Please read this Instruction book before using your television. Call 0870 240 7475 We wish you many hours of pleasure from your new television.
  • Page 2: Table Of Contents

    Contents Remote Control Buttons ..........................2 LCD TV ............................... 2 Preparation ..............................3 Safety Precautions ............................. 3 Before Switching On Your TV ........................5 Switching The TV ON/OFF ......................... 5 Navigating the Menu System ........................5 Initial Settings .............................. 6 Basic Operations ............................
  • Page 3: Remote Control Buttons

    Remote Control Buttons = Stand By = Mix, = PIP Mode = Cursor Up = Teletext = Cursor Right = Time / subtitle on/off in the = Info digital mode 0 - 9 = Direct Programme INFO SELECT / Red button = Page Down / -/-- / EXIT = No function Sound Menu P + = Programme Up...
  • Page 4: Preparation

    • PC Input Preparation • Plug&Play for Windows 9X, ME, 2000, XP For ventilation, leave a space of at least 10 cm free all • Audio Line Out around the set. To prevent any fault and unsafe situ- • PIP, PAP, PAT is available. ations, please do not place any objects on top of the set.
  • Page 5: Replacement Parts

    7. Lightning In case of storm and lightning or when going on holi- day, disconnect the power cord from the wall outlet. 8. Replacement Parts When replacement parts are required, be sure the service technician has used replacement parts which are specified by the manufacturer or have the same specifications as the original one.
  • Page 6: Before Switching On Your Tv

    Note: Remove the battery from remote control hand- Before Switching On Your TV set when it is not to be used for a long period. Other- Power Connection wise it can be damaged due to any leakage of bat- tery. IMPORTANT: The TV set is designed to operate on 220-240V AC, 50 Hz.
  • Page 7: Initial Settings

    Initial Settings When the TV is turned on for the first time, it is in the digital mode. Because this is the first time the TV is used, there are no Country channels stored in the memory and the following message appears on the screen.
  • Page 8: Basic Operations

    Basic Operations Everyday Operation You can operate your TV using both the remote Pressing the “ ” button at any time while watch- control and onset buttons. ing television programmes will switch the TV set be- Operation with the buttons on the TV tween displaying the digital terrestrial television broad- casting and its normal analogue broadcasting.
  • Page 9: Displaying The Subtitles

    • If you press “INFO” button you can see the detailed help information easily. And by pressing “INFO” but- ton again you can exit Help menu. • The starting time for EPG is the current time.You can Rolling national and international news including breaking news as it happens, see the event information for the next two hours.
  • Page 10: Over Air Download

    Digital teletext is sometimes broadcast at the same IDTV Menu System time as normal broadcasting. The IDTV menu can only be shown when watching Digi- 1. Press the button. tal terrestrial broadcasting. Press the “ ” but- The digital teletext information appears. ton to turn IDTV on while TV is in analogue mode.
  • Page 11: Deleting The Channels In The Channel List

    To watch a specific channel, highlight it using button and then press “SELECT” button, while the “Se- lect” item on Channel List menu is highlighted by using CHANNEL LIST BBC ONE button. 1. BBC ONE 2. BBC TWO Then the name and number of the selected channel 3.
  • Page 12: Installation

    Setting Favourites This menu includes the following items: 1. Add New Channels You can set various channels as favourites so that only the favourite channels are navigated. To set a favourite 2. First Time Installation. you should highlight the “Favourites” item at bottom of ADD NEW CHANNELS: the Channel List menu.
  • Page 13 Press the “OK” button to start installation. After search Configuration is completed for digital channels, a message asking Press the "M" button to display the Main Menu and search for analogue channels appears on the screen. button twice to highlight Configuration, then press the “SELECT”...
  • Page 14: Favourite Mode

    Favourite mode After “Search for New Version” is activated, the IDTV tunes to each frequency that have been stored This function enables or disables the favourite chan- in its database and looks for the new software. nel list mode. See Channel List menu Favourites on page 13.
  • Page 15 Timers • The channel name is set using the button to display the channel which broadcasts the You can set a timer to switch the TV to any channel programme. without your intervention. This is also for making video • The start time, end time and date are each set with recordings of programmes when you are out.
  • Page 16: Common Interface

    TV Setup Obtain the Conditional Access Module (CAM) and the Viewing card by subscribing to a pay channel com- To be able to go through TV functions, you can use pany, then insert those to the Television using the this item. following procedure.
  • Page 17: Analogue Tv Menu System

    3D Comb is used to improve colour transitions and Analogue TV Menu System colour quality of pictures. Picture Menu   By pressing button, select 3D Comb. Press   button to set this feature On or Off. Note: 3D Comb feature is not functional in NATURAL picture mode.
  • Page 18: Features Menu

    Balance Features Menu    By pressing select Balance.Press button  to change the level of the balance.Balance level can be adjusted between -32 and 32. Headphone FEATURE  By pressing button, select Headphone. Press   button to enter hedphone menu. volume ...
  • Page 19 PIP Position PAP Picture  Select PIP Picture item by using “ ” button. Use  Press “ ” button to enter “PAP Picture” submenu. “ ” / “ ” button to adjust PIP position. PIP Position Adjustments of Contrast, Brightness, Sharpness, info will be displayed at the bottom of the menu OSD.
  • Page 20: Install Menu

    • If currently watched source is analogue TV, a con- Program Table nected device displays analogue TV source as well.  By pressing button, select Program Table.  If this source is set to digital mode, connected de- Press “ ” to display Program Table. vice displays digital source.
  • Page 21: Auto Program

    Band Auto Program Band can be selected either “C” or “S” by press“ ” / “ button. Channel Channel can be changed by “ ” / “ ” button or Digit Country Buttons. Colour System WARNING!  By pressing button, select Colour System. ...
  • Page 22: Source Menu

    Colour System PC Mode  By pressing select Colour System. By press-  Installation ing “ ” / “ ” button, you can change the colour • Power off both Computer and Display before making system to PAL, SECAM, PAL 60, NTSC 4,43, NTSC any connections.
  • Page 23: Other Features

    H (Horizontal) Position Press the “ ” button again to exit the PIP mode. This item shifts the image horizontally to right hand PAP picture is displayed on the screen by “ ” PAP side or left hand side of the screen. Mode, two pictures with equal sizes are displayed on ...
  • Page 24: Freeze Picture

    • For 16:9 aspect ratio pictures that have been The top and bottom of the picture are slightly cut off. squeezed into a normal picture (4:3 aspect ratio), Freeze Picture use the Full mode to restore the picture to its original You can freeze the picture on the screen by pressing shape.
  • Page 25: Connect Peripheral Equipment

    • Time information will be displayed on screen after press- Connect Peripheral Equipment ing “ ” button.If the programme does not have tele- Your LCD Television is capable of displaying High Defi- text transmission, no information will be displayed. nition pictures from devices such as a High Definition •...
  • Page 26: Tips

    Playback NTSC Tips • Connect NTSC VCR player to a Scart socket of the Care Of The Screen Clean the screen with a slightly damp, soft cloth. Do Then, press the “ ” button to select EXT1 or EXT2. not use abrasive solvents as they may damage the Copy Facility TV screen coating layer.
  • Page 27: Specifications

    Specifications TV BROADCASTING PAL/SECAM B/G D/K K' I/I' L/L' RECEIVING CHANNELS VHF (BAND I/III) UHF (BAND U) HYPERBAND CABLE TV (S1-S20/ S21-S41) NUMBER OF PRESET CHANNELS CHANNEL INDICATOR On Screen Display RF AERIAL INPUT 75 Ohm (unbalanced) OPERATING VOLTAGE 220-240V AC, 50Hz AUDIO German+Nicam Stereo AUDIO OUTPUT POWER (W...
  • Page 28: Appendix A: Pc Input Typical Display Modes

    Appendix A: PC Input Typical Display Modes The display has a maximum resolution of 1360 x 768, frequency range of 56-75 Hz. The following table is an illustration of some of the typical video display modes. Resolution Frequency Mode Horizontal Vertical Hor.(kHz) Ver.(Hz) 31,5 37,9 37,5...
  • Page 29: Peripheral Equipment Connections

    Peripheral Equipment Connections SCART 2 S-VHS Input SCART 1 Video Input Component Audio Inputs s Audio Inputs s Component Video Inputs (YPbPr) Headphone Audio Line Outs s PC Audio Input Spdif Coaxial Output PC Input HDMI Input 2 CI Slot HDMI Input 1 Power cable For Service Use Only...
  • Page 30: Important Instruction

    Important Instruction For your own safety read following instruction carefully before attempting to connect this unit to the mains supply. MAINS (AC) OPERATION The wires in the mains lead are coloured in accordance with the following code : GREEN FUSE &...
  • Page 32 DURING WARRANTY. electrical supply for which it has not been properly adjusted. 2: If your SANYO equipment proves faulty during the Unauthorised repairs or modifications, which have not period of guarantee, take it or send it back to the been expressly approved by the manufacturer, shall dealer who originally supplied it together with this render this guarantee null and void.
