KMC PUBLICATION NO. 1405
KMC
KELLY MANUFACTURING COMPANY
RCA22 SERIES

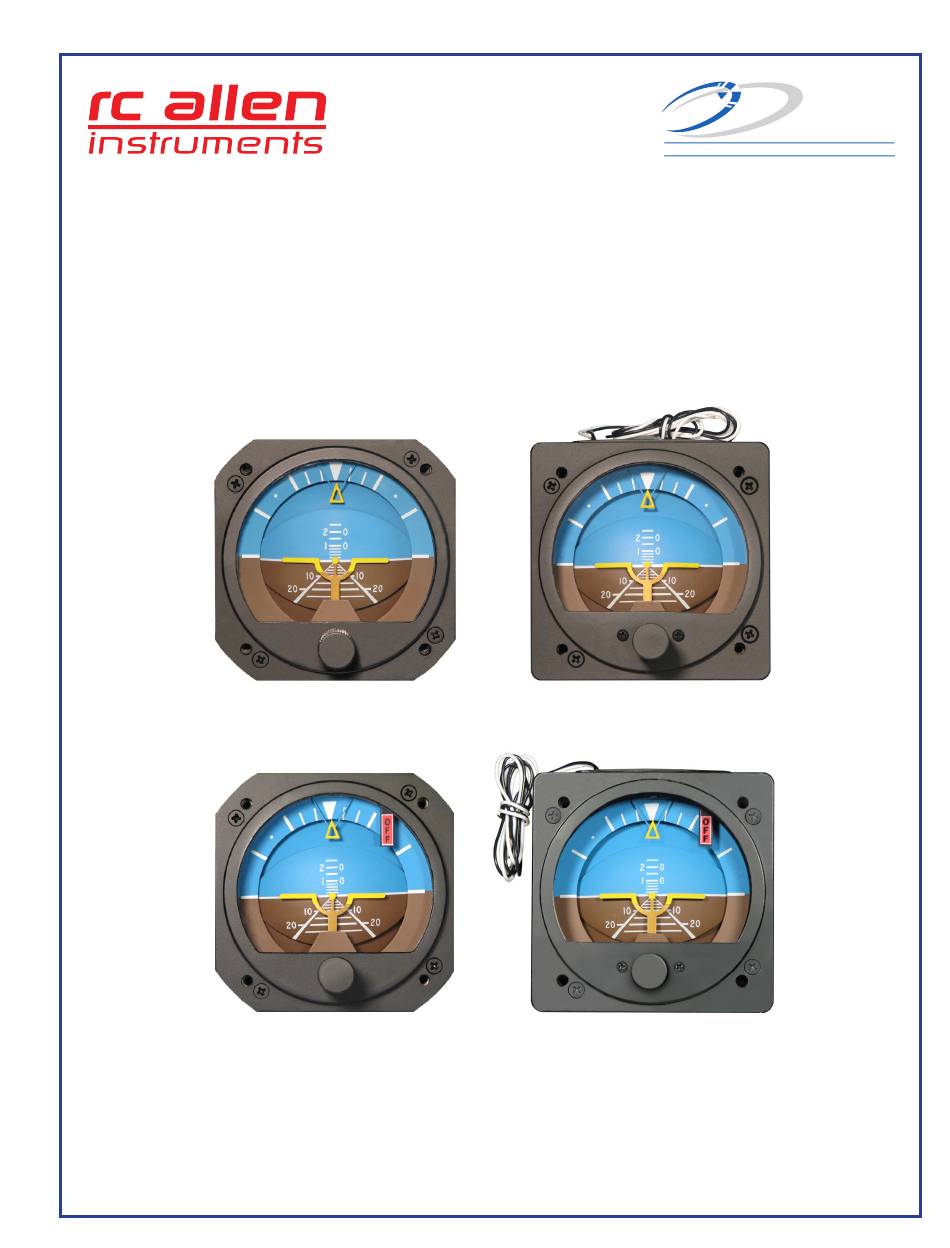

VACUUM HORIZON GYRO
INSTALLATION/OPERATION GUIDE
RCA22-7
RCA22-11
RCA22-7F
RCA22-11F
KELLY MANUFACTURING COMPANY
(316) 265-6868
555 SOUTH TOPEKA
FAX (316) 265-6687
WICHITA, KS 67202
KELLYMFG.COM
Rev B May 5, 2025
