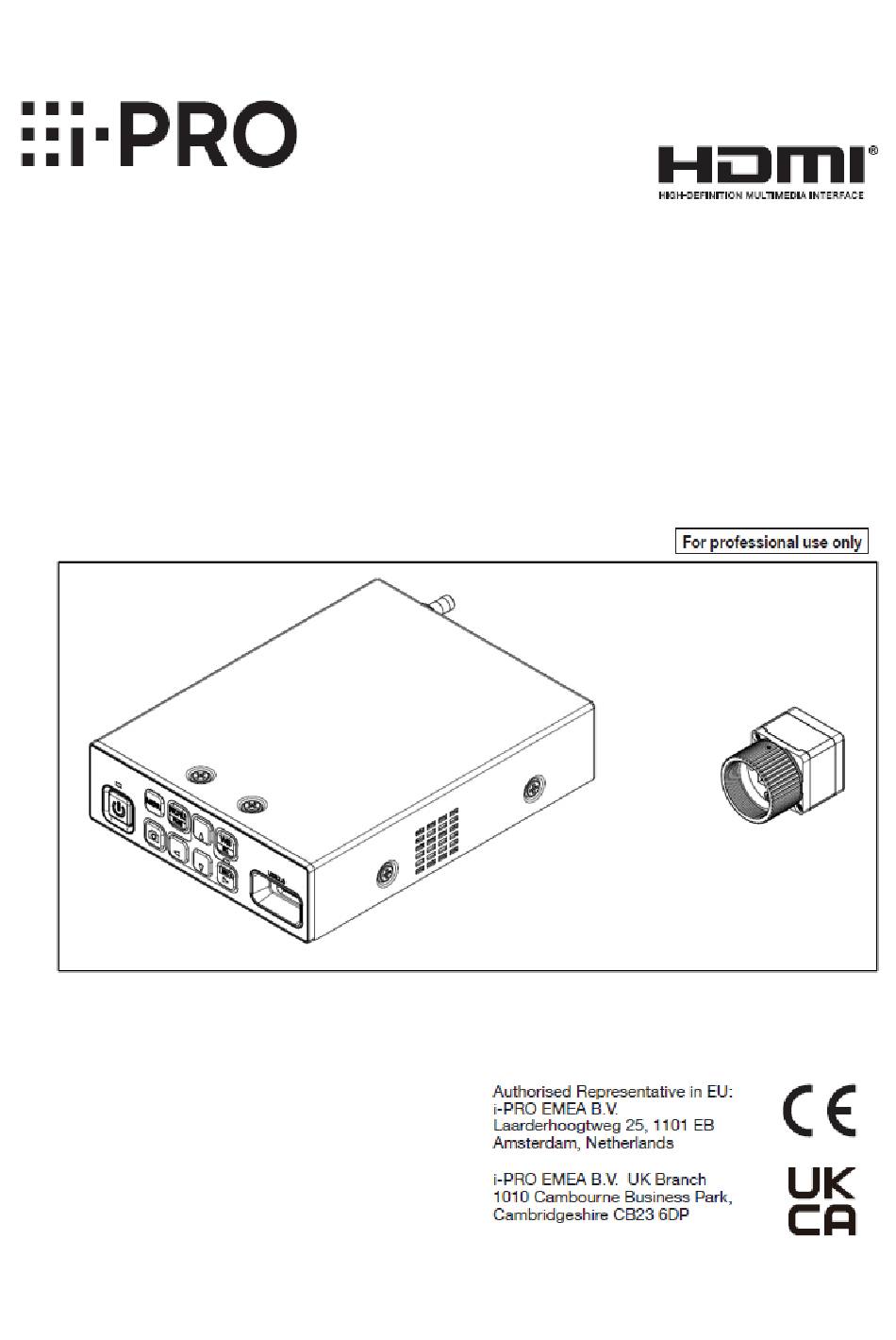

Operating Instructions (Basic)
CCU for 1MOS Camera 2K60P&4K30P
Model No. GP-CE13X00-0B
4K1MOS 30P Camera Head
Model No. GP-HE43CX0-0F
2K1MOS Camera Head
Model No. GP-HE23CX0-0F
Before attempting to connect or operate this product, please read these instructions carefully.
i-PRO Co., Ltd.
Tokyo, Japan
https://www.i-pro.com/
© i-PRO Co., Ltd. 2025
Advertisement
Table of Contents
Related Manuals for i-PRO GP-CE13X00-0B
Summary of Contents for i-PRO GP-CE13X00-0B
- Page 1 4K1MOS 30P Camera Head Model No. GP-HE43CX0-0F 2K1MOS Camera Head Model No. GP-HE23CX0-0F Before attempting to connect or operate this product, please read these instructions carefully. i-PRO Co., Ltd. Tokyo, Japan https://www.i-pro.com/ © i-PRO Co., Ltd. 2025...
-
Page 2: Table Of Contents
Contents Contents Precautions …………………………………………………………………… Introduction …………………………………………………………………… Preface ……………………………………………………………………………… Limitation of liability ………………………………………………………………… Protection of personal information ………………………………………………… Disclaimer ………………………………………………………………………… For trademarks and registered trademarks ……………………………………… Open Source Software …………………………………………………………… Copyright …………………………………………………………………………… Network security …………………………………………………………………… Precautions for installation and use ……………………………………………… Parts and functions ……………………………………………………………... - Page 3 Disposal of Old Equipment and Batteries Only for European Union and countries with recycling systems These symbols on the products, packaging, and/or accompanying documents mean that used electrical and electronic products and batteries must not be mixed with general household waste. For proper treatment, recovery and recycling of old products and used batteries, please take them to applicable collection points in...
- Page 4 Trade name : i-PRO Model No. : GP-CE13X00-0B GP-HE43CX0-0F GP-HE23CX0-0F Responsible Party : i-PRO Americas Inc. 8550 Fallbrook Drive, Suite 200 Houston, Texas 77064 Support Contact : 1-800-513-5417 For U.S.A. The model number and serial number of this product may be found on the surface of the unit.
- Page 5 WARNING: ・Operation of this product in a residential environment could cause radio interference. Caution: ・The socket-outlet shall be easily accessible to shut down the main power of power supplying equipment to this product. ・Only connect 12 V DC Class 2 power supply (UL 1310/CSA 223), limited power source (IEC/ EN/UL/ CSA 60950-1, IEC/EN/UL/CSA 62368-1 Annex Q) or IEC/EN/UL/CSA 62368-1 PS2.
-
Page 6: Precautions
Precautions Precautions In order to prevent harm to people and damage to property, it explains what must be observed without fail. ■ Refer installation work to the dealer. Installation work requires technique and experiences. Failure to observe this may cause fire, electric shock, injury, or damage to the product. - Page 7 Precautions ■ Do not strike or give a strong shock to this product. Failure to observe this may cause fire or injury. ■ Do not insert any foreign objects. Do not allow any foreign object or liquid such as water, a metallic part, etc. to enter since it may cause fire or electric shock.
-
Page 8: Introduction
(hereinafter called camera head) that uses digital signal processing and is compact and lightweight while providing high image quality and multiple functions. GP-CE13X00-0B … CCU for 1MOS Camera 2K60P&4K30P GP-HE43CX0-0F … 4K1MOS 30P Camera Head GP-HE23CX0-0F … 2K1MOS Camera Head 1. -
Page 9: Protection Of Personal Information
Handle video information properly in accordance with the law. Disclaimer IN NO EVENT SHALL i-PRO Co., Ltd. BE LIABLE TO ANY PARTY OR ANY PERSON, EXCEPT FOR REPLACEMENT OR REASONABLE MAINTENANCE OF THE PRODUCT, FOR THE CASES, INCLUDING BUT NOT LIMITED TO BELOW:... -
Page 10: For Trademarks And Registered Trademarks
Introduction For trademarks and registered trademarks ・The terms HDMI, HDMI High-Definition Multimedia Interface, HDMI Trade Dress and the HDMI Logos are trademarks or registered trademarks of HDMI Licensing Administrator, Inc. ・Microsoft, Windows, Windows Media, Microsoft Edge, and ActiveX are registered trademarks or trademarks of Microsoft Corporation in the United States and/or other countries. -
Page 11: Network Security
Introduction Network security As you will use this unit connected to a network, your attention is called to the following security risks. ① Leakage or theft of information through this unit ② Use of this unit for illegal operations by persons with malicious intent ③... - Page 12 Introduction generated ・Locations where corrosive gas is produced ・Locations where the temperature is not within 0 ℃ to 40 ℃ {32 ℉ to 104 ℉} ・Locations subject to vibrations (This product is not designed for on-vehicle use.) ...
- Page 13 Introduction installation environment of this equipment. ・We shall not be liable for content compensation, losses of recorded or edited content and any direct or indirect consequent damages caused by failure to record or edit due to faults with this unit or the USB memory. In addition, the same provisions apply after unit is reparied. ・Do not aim this product at strong light sources.
- Page 14 ・About Routers Use a broadband router with a port forwarding function (NAT, IP Mascalade). ・i-PRO Co., Ltd. assumes no responsibility for injuries or property damage resulting from failures arising out of improper installation or operation inconsistent with this documentation.
-
Page 15: Parts And Functions
Parts and functions Parts and functions Camera head Important ・Be sure to turn off the power (Stand-by) of the CCU before connecting or disconnecting the camera cable. ・Avoid bending excessively or breaking the camera cable. ・Use the specific-camera head only. ... -
Page 16: Camera Control Unit (Ccu)
Parts and functions Camera control unit (CCU) ＜Front＞ ④ Power On/Off(Stand-by) switch [ This switch toggles the power of the CCU and camera head on and off (stand-by). ⑤ Power indicator lamp On (gleen) : While the power is turned on. Off : While the power is turned off (stand-by). - Page 17 Parts and functions ⑧ Up button [ Press this button to adjust the brightness (BRIGHTNESS) to brighter. Press this button to move the cursor upward while the SETUP menu is displayed. ⑨ White balance/Select button [WB/SEL] Press this button to execute white balance. "WHITE BAL MODE" in the SETUP menu (ADVANCED MENU) need to be set "AWC".
- Page 18 Parts and functions Off : USB memory is unmounted. ⑮ USB connector [USB2.0] When a USB memory is inserted, it will be mounted. ・Please be sure to unmount USB memory and check the USB memory status lamp is turned off before removing the USB memory.
- Page 19 Parts and functions If it does not start up properly, try again. ・We recommend that you write down the setting data beforehand if necessary. ・Do not turn off the power during initialization. Doing so may result in incorrect initialization or cause a malfunction. ...
-
Page 20: Video Format Settings
Video format settings Video format settings You can select the video format by turning on the power while pressing each button on the CCU and continuing to press the button until an image appears on the monitor. [REC/ ] button ： 3840x2160p ... -
Page 21: How To Install
How to install How to install The following shows how to mount the camera on the tripod (locally procured). < Sample of camera mounting on tripod > Important: ・The tripod and CCU shall be horizontally placed. ・The CCU shall be horizontally placed. Do not place the unit in an upright or tilted position. How to mount lens Important: ・A lens whose projection length of the lens mount section is 7 mm {9/32 inches} or less shall be... - Page 22 How to install information, refer to the operating instructions for the lens. ・When the lens is removed, be sure to put the cap on the lens mount section of the camera head. ・Securing the lens excessively to the lens mount may deviate the back focal length. ・Do not loosen the fixing screw on the side of the lens mount.
-
Page 23: System Configuration
System configuration System configuration... -
Page 24: Specifications
Specifications Specifications CCU (Camera Control Unit) Model No. GP-CE13X00-0B Camera Head to be connected GP-HE43CX0-0F GP-HE23CX0-0F Video Output HDMI HDMI (4K / 2K) RGB / YPbPr Video Output Format HDMI GP-HE43CX0-0F is connected. 3840x2160p (29.97Hz/25Hz), 1920x1080p (29.97Hz/25Hz/59.94Hz/ 50Hz) (Even when 1920x1080p (59.94Hz/50Hz) is selected, picture reflesh rate is 29.97Hz/25Hz.) - Page 25 Specifications Weight Approx. 680 g {1.5 lbs.} Included Items Important Safety Instructions, cable tie Option Power Supply Abstract Exposure Control Shutter, Gain, Long Exposure Picture Adjustment White Balance, Detail Enhancement, DNR, Color level, Color Phase, Pedestal Contrast Adjustment Black Stretch, Contrast Level, Highlight Stretch, Image Enhancement IR mix functions General Functions...
- Page 26 Specifications Bit Rate / Client 64 kbps／128 kbps*／256 kbps*／384 kbps*／512 kbps*／768 kbps*／1024 kbps*／1536 kbps*／2048 kbps*／3072 kbps*／4096 kbps*／6144 kbps*／8192 kbps*／10240 kbps*／12288 kbps*／ 14336 kbps*／16384 kbps*／20480 kbps*／ 24576 kbps* *Selection will be limitated based on the resolution. Transmission Mode Constant bit rate / VBR / Frame rate / Best effort Transmission Type Unicast port (AUTO)/ Unicast port...
- Page 27 Specifications Browser Microsoft Edge Google Chrome Firefox Mobile / Tablet terminal iPad, iPhone, Android terminals compatibility Camera Head Model No. GP-HE43CX0-0F GP-HE23CX0-0F Camera Prism － － Image Sensor 1/3 type 4K sensor (Visible) 1/3 type 2K sensor (Visible) Scanning Method Progressive Scan、...
-
Page 28: Troubleshooting
Troubleshooting Troubleshooting Before asking for repairs, check the symptoms with the following table. Contact your dealer if a problem cannot be solved even after checking and trying the solution in the table or a problem is not described below. Symptom Cause/solution No image displayed ・Are the cables appropriately connected to HDMI output...
