i-PRO WV-Q157 Operating Instructions

Operating Instructions
Model No.
Before attempting to connect or operate this product,
please read these instructions carefully
and save this manual for future use.
The model number is abbreviated in some descriptions
in this manual.

Installations

Be sure to read "Precautions" before installation.

How to engage the inner cover

Slide the covers located on the both lateral sides of
the camera and put the inner cover on the camera
until the hooks inside the inner cover are engaged in
the holes of the camera (until a click is heard).
Important:
• Put the inner cover down on the camera until the
outside cover of the camera cannot be seen from
the opening (from which the camera lens is visi-
ble) of the inner cover.If this engagement work is
not successfully performed, the inner cover may
be removed or the hidden part at the top of the
screen may become larger in the wide mode.
• When the inner cover with this product and an
outdoor dome housing equipped is mounted, the
clearance between this product and the housing
shall be 2 mm or more.

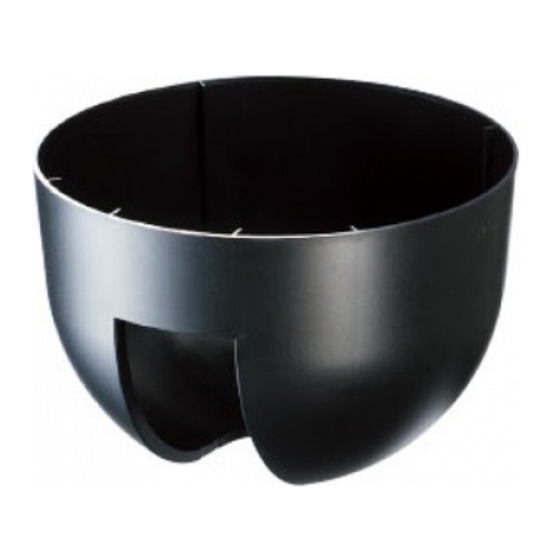

Inner Cover
WV-Q157
WV-Q157E
Clearance of 2 mm
or more

Preface

This product is an inner cover that is exclusively
designed to be used with the network cameras.
to the catalog or the installation guide of the camera for
supported cameras.
This inner cover is a component to lower the reflection of
the dome part of the network camera.

Precautions

• Refer installation work to the dealer.
Installation work requires skills and experiences.
Failure to observe this may cause fire, electric
shock, injury, or damage to the product. Be sure
to consult the dealer.
• Be sure to engage the inner cover onto the
camera main body before installation of the
camera main body.
Failure to observe this may cause a drop resulting
in injury or accidents.
Inner cover
Hook
+
Cover
Put on until a click is
heard
Refer
