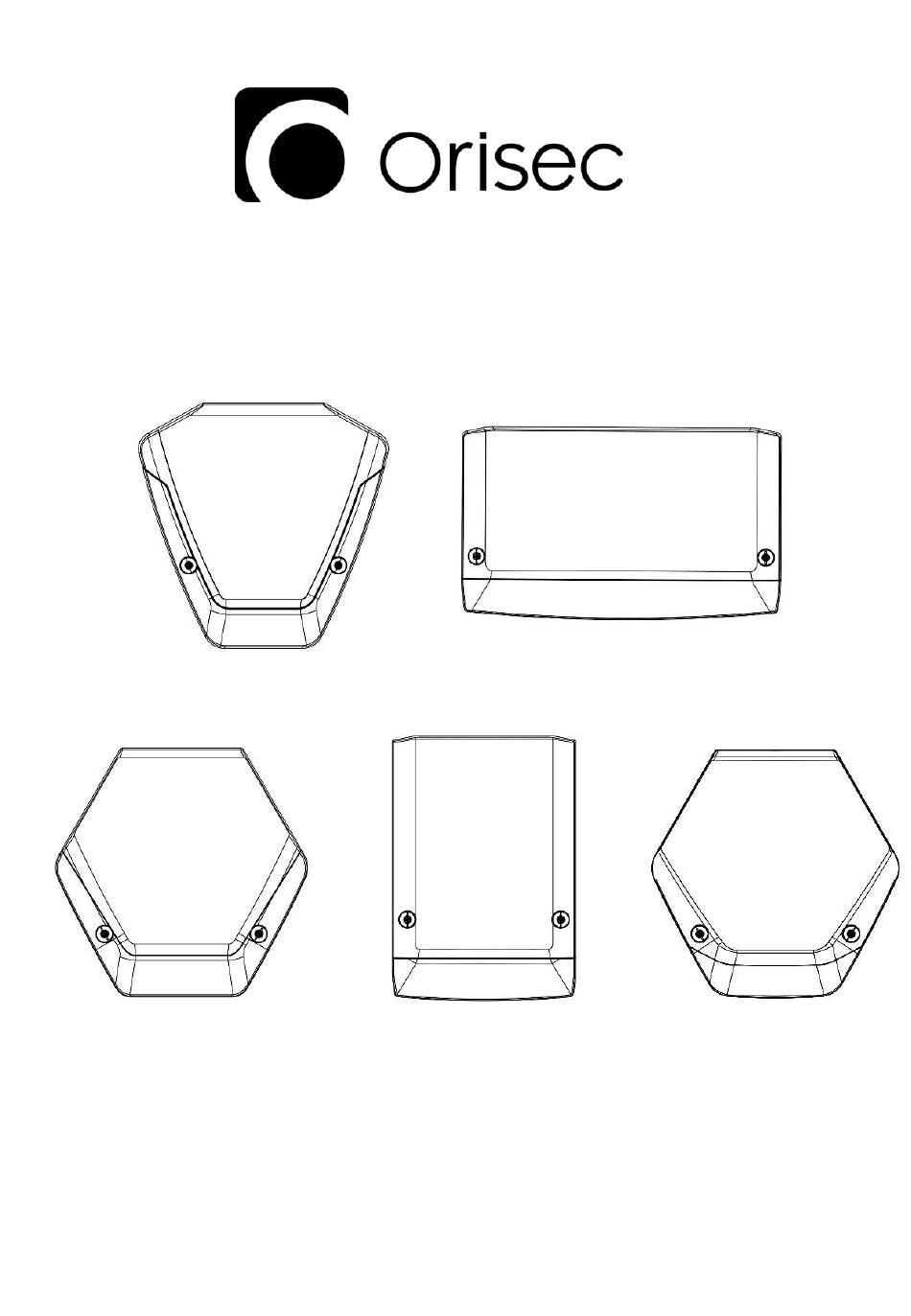

  • Page 1 External Sounders (Wireless) Installation Manual W-ES-220 W-ES-120 W-ES-320 W-ES-520 W-ES-420 Designed and Manufactured in the United Kingdom www.orisec.co.uk...
  • Page 3: Table Of Contents

    Contents Introduction .............................. 4 External Sounder Setup ........................5 1. Choosing a Suitable Mounting Location ................... 5 2. Fixing the Optional Orisec DLUX Backlight ..................5 W-ES-120 DLUX Installation........................6 W-ES-220 DLUX Installation ........................6 W-ES-320 DLUX Installation ........................7 W-ES-420 DLUX Installation ........................
  • Page 4: Introduction

    PD6662:2017 and EN 50131-4 Grade 2 functionality. The Orisec DLUX Backlights can be fitted to a range of front cover colours to provide adjustable back lit illumination either on installation or retrospectively. (Local power supply required.)
  • Page 5: External Sounder Setup

    ► A flat and even mounting surface ► Allow at least 5cm above for hinged cover 2. Fixing the Optional Orisec DLUX Backlight When the Grade 2 External Sounders are locally powered it is possible to fit the optional DLUX backlight.
  • Page 6: W-Es-120 Dlux Installation

    W-ES-120 DLUX Installation W-ES-220 DLUX Installation NOTE: Do not remove protective shrink wrap...
  • Page 7: W-Es-320 Dlux Installation

    W-ES-320 DLUX Installation W-ES-420 DLUX Installation NOTE: Do not remove protective shrink wrap...
  • Page 8: W-Es-520 Dlux Installation

    W-ES-520 DLUX Installation NOTE: Do not remove protective shrink wrap...
  • Page 9 Connect the flying lead on the backlight to the JP1 connector on the PCB and route the cable through the exit hole and horizontally along the channel Model shown W-ES-120...
  • Page 10: Fixing The Front Cover To The Backplate

    Position the cover so the hinge studs and the backplate holes align. Push the cover release tab upwards to secure the cover. Model shown W-ES-120 4. Mounting the External Sounder Depending on the model, four, five or six standard fixing holes are provided, plus the central keyhole, to aid mounting and levelling.
  • Page 11: Accessing The Terminal Block

    Model shown W-ES-120 5. Accessing the Terminal Block To open the terminal block cover, squeeze the side clips inwards and pull away from the backplate. To close the terminal block cover, push towards the backplate until you hear a click.
  • Page 12: Closing The

    6. Closing the Front Cover To close the front cover, pull downwards. You will hear a loud click. Rotate the retained front cover locking screws 180° clockwise to secure the cover in place. Model shown W-ES-120...
  • Page 13: Powering The External Sounder

    Powering the External Sounder There are 2 options when powering the External Sounder: 1. Using the provided battery pack The External Sounders are provided with 4x 3.6V AA Lithium Thionyl Chloride Batteries pre-fitted within the battery pack casing. To connect the battery pack: connect the black wire to “Batt-“ and the red wire to “Batt+” 2.
  • Page 14: Programmable Output

    Programmable Output The External Sounders have 1 fully programmable output (100mA, transistorised) which may be set to any of the available output types. For a full list of output types and attributes please refer to the control panel installation manual. The physical allocation for the External Sounder’s output is dependent on the zone number the External Sounder has been learnt to.
  • Page 15: Simple Enrolment

    Simple Enrolment On the control panel: Enter engineering mode Select “setup wireless zones” Highlight required zone Scroll down to “Learn” Press and hold “Learn” button on the sounder for 1 second NOTE: The zone type should be programmed as ‘Wireless Tamper’ in the Zone Set Up menu. Please refer to the control panel installation manual for further information.
  • Page 16: Dlux Backlight - Psu Only

    DLUX Backlight – PSU only The DLUX Backlight can only be used when powered via the PSU. It will automatically illuminate the external sounder during darkness. Programming If you do not want the DLUX Backlight to automatically illuminate during darkness, a custom programmed “Chain”...
  • Page 17: Specifications

    Cut Off Timer - Strobe: Programmable (Default 3 minutes) Environmental Operating Temperature: -25°C to +55°C (-13°F to +131°F) Storage Temperature: -25°C to +60°C (-13°F to +140°F) Max. Humidity: 95% non-condensing Physical W-ES-120 W-ES-220 W-ES-320 W-ES-420 W-ES-520 Packed Weight: 1.3 kg 1.3kg 1.3 kg 1.3 kg...
  • Page 18: Standards

    RoHS legislation that it does not contain more than the agreed levels of: Lead (Pb), Cadmium (Cd), Mercury (Hg), Hexavalent chromium (Cr6+), Polybrominated biphenyls (PBB), Polybrominated diphenyl ethers (PBDE) Manufacturer: Orisec Ltd, 1 St Crispin Way, Haslingden, Lancashire. BB4 4PW. United Kingdom.
  • Page 19: Warranty

    2 years (Grade 2 models) from the date of purchase excluding batteries. Disclaimer: Orisec will not accept any liability based on a claim that the external sounder failed to perform correctly as it is a component part of an installation and not a complete intruder alarm system.
  • Page 20 UK Based Technical Support t: +44 (0) 1706 398740 e: support@orisec.co.uk © Orisec Ltd 2020 INS138...
