Inkbird IBS-TY3-PLUS-WIFI Manual

Inkbird IBS-TY3-PLUS-WIFI Manual

Hide thumbs

Advertisement

Quick Links

Download this manual
TEMPERATURE
HUMIDITY SENSOR

Advertisement

loading
Need help?

Need help?

Do you have a question about the IBS-TY3-PLUS-WIFI and is the answer not in the manual?

Questions and answers

Related Manuals for Inkbird IBS-TY3-PLUS-WIFI

Summary of Contents for Inkbird IBS-TY3-PLUS-WIFI

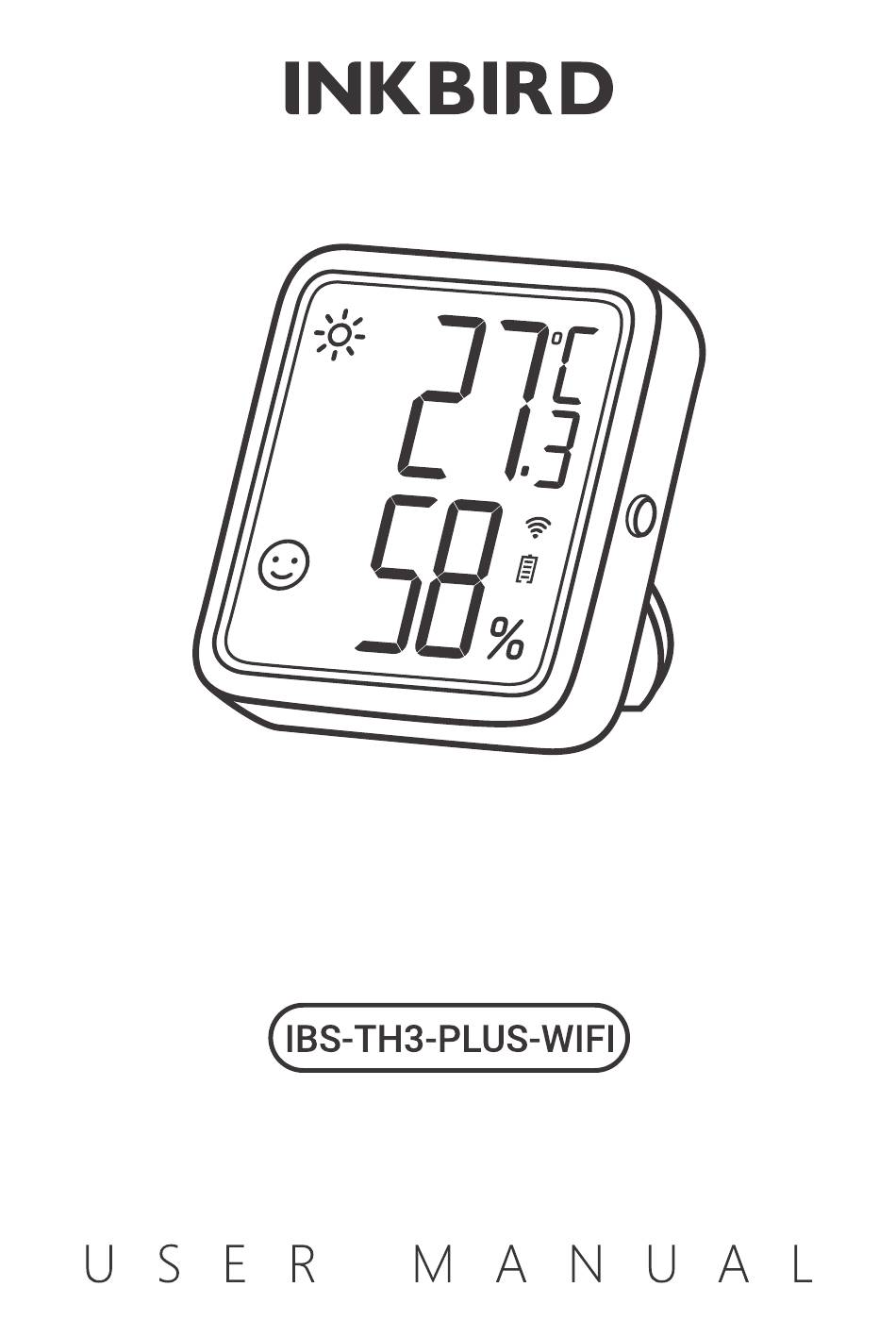

  • Page 1 TEMPERATURE HUMIDITY SENSOR...
  • Page 2 Warm tips To quickly jump to a specific chapter page, click on the relevant text on the contents page. You can also use the thumbnail or document outline in the top left corner to quickly find a specific page.
  • Page 3 CONTENTS...

  • Page 4: Product Introduction

    01 Product Introduction Temperature Current Comfort Level Temperature Humidity Comfort Level Action Button WiFi Icon Charging Port Battery Level Current Humidity Power Switch Kickstand...

  • Page 5: Screen Display Description

    Screen Display Description Type Icon Definition Hot; The current temperature is higher than the preset high-tem- perature value, which is 26℃/78.8 ℉ by default. Comfortable; The current Temperature temperature is in the comfort Comfort zone, the default is 20℃~26℃/68 Level ℉~78.8℉.

  • Page 6: Technical Parameters

    Action Button Operation Short press it to check the current WiFi status. When the WiFi icon remains on, the sensor is paired to the network. Pressing the action button at this point will instantly sync the data with the app. If the WiFi icon is flashing rapidly, the sensor is not yet paired to the network and can enter the pairing state.
  • Page 7 Humidity Measurement 0%RH~99%RH Range Humidity Measurement Typical ±3%RH Accuracy Maximum ±4.5%RH (25℃/77℉, 20%~80%RH) Relative Humidity Accuracy Typical ±4.5%RH (25℃/77℉, 0%~100%RH) Maximum ±7.5%RH 10 minutes, 30 minutes, 60 minutes (default), 120 minutes, 180 minutes, 240 minutes (The longer the Recording Interval recording interval you choose, the longer the battery life.)

  • Page 8: App Instructions

    Magnetic Back Product Warranty 1 Year 03 APP Instructions 3.1 How to download the INKBIRD App Search the INKBIRD App from Google Play or App Store to get it for free, or you can scan the QR code left to download it directly.

  • Page 9: How To Connect

    3.2.2 Enter the verification code to confirm your identity, and the registration is complete. 3.2.3 Registering an account is necessary before using the INKBIRD app for the first time. 3.3 How to connect 3.3.1 Open the app, click the “+” in the upper right corner, and select IBS-TH3 PLUS to start the connec- tion.
  • Page 10 3.3.2 Make sure the power switch is pushed to ON and the screen displays normally, then click Next Step to continue.
  • Page 11 3.3.3 Select the Wi-Fi to connect to, enter the password, and click Next Step to continue.
  • Page 12 3.3.4 Press and hold the action button of the sensor until the WiFi icon flashes to enter the pairing state. Then click Confirm to continue.
  • Page 13 3.3.5 Your smartphone will automatically enter the device scan page. Please place the device as close as possible to your smartphone and router. Once the device is found, click Next Step to continue.
  • Page 14 3.3.6 The device automatically pairs with your smartphone.
  • Page 15 3.3.7 Pairing is successful. Note: If the pairing fails, turn off the power supply and restart the device, place the device as close as possible to your smartphone and router, then repeat steps 3.3.1~3.3.6 to try again.

  • Page 16: App Main Interface

    3.4 APP Main Interface Battery Level IBS-TH3 PLUS Enter the settings page Current Temperature Go to view history Current Humidity...

  • Page 17: Troubleshooting

    3.5 Troubleshooting 3.5.1 The WiFi network is often dropped, historical data is lost, or the network cannot be connected? a. Make sure the WiFi signal is stable, and place the device as close to the router as possible. b. Make sure there are as few barriers as possible between the device and the router.

  • Page 18: Product Warranty

    This item carries a 1-year warranty against defects in either components or workmanship. During this period, products that prove to be defective will, at the discretion of INKBIRD, be either repaired or replaced without charge. 06 FCC Requirement Changes or modifications not expressly approved by the party responsible for compliance could void the user’s authority to operate the equipment.
  • Page 19 Note: This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses, and can radiate radio frequency energy, and if not installed and used in accordance with the instructions, may cause harmful...
  • Page 20 your body. This transmitter must not be co-located or operating in conjunction with any other antenna or transmitter.
