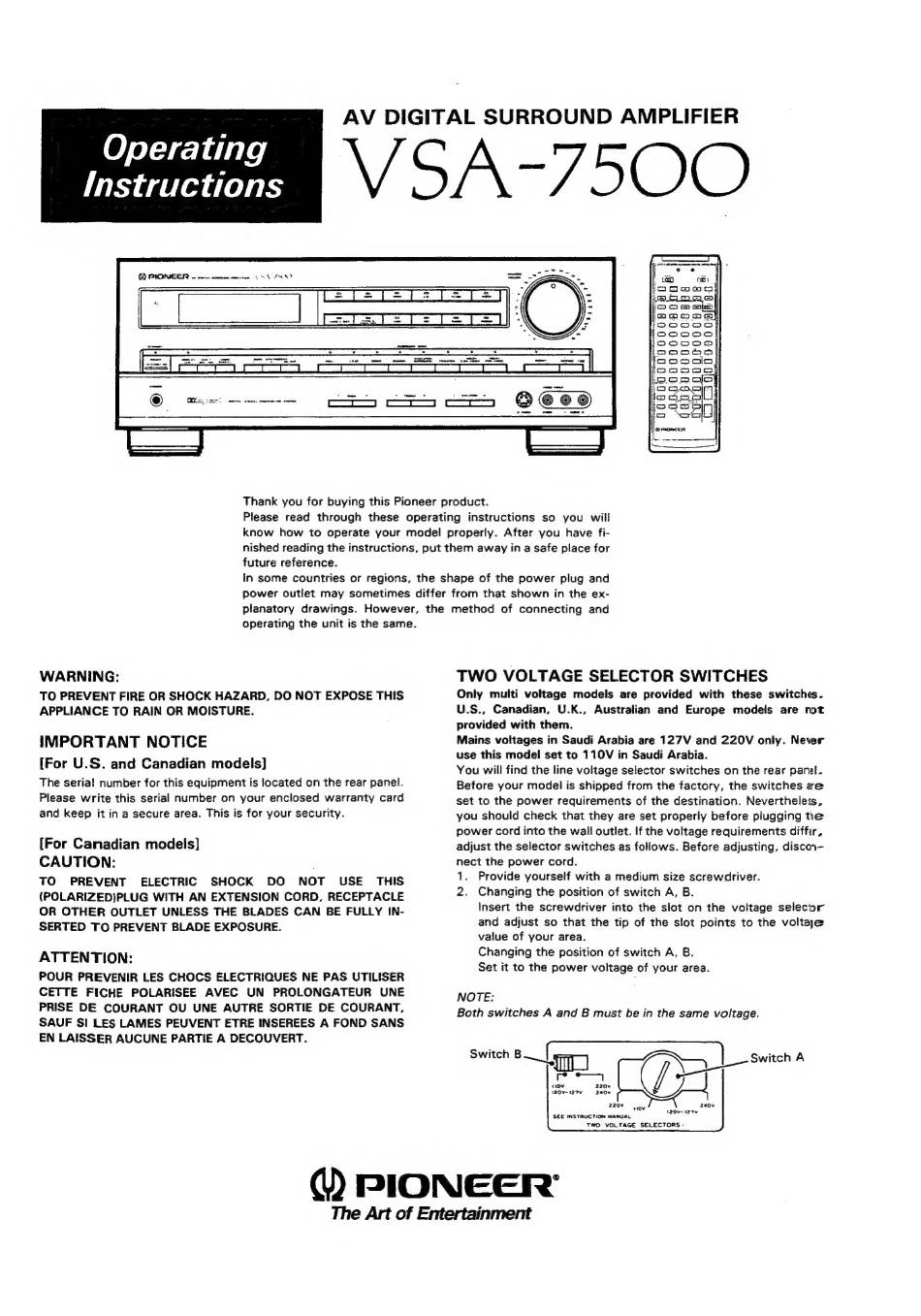

Pioneer VSA-7500 Operating Instructions Manual

Operating
Instructions
@ PIONEER — a ne eee
AV DIGITAL SURROUND AMPLIFIER
VSA-7500
Emery
Thank you for buying this Pioneer product.
Please read through these operating instructions so you will
know how to operate your model properly. After you have fi-
nished reading the instructions, put them away in a safe place for
future reference.
In some countries or regions, the shape of the power plug and
power outlet may sometimes differ from that shown in the ex-
planatory drawings. However, the method of connecting and
operating the unit is the same.
, ceo ir)
fOBeaao
proms
Oo en
aaooe
LOoOoOooO0Ooo
eooco
jOOCCe
WARNING:
TO PREVENT FIRE OR SHOCK HAZARD, DO NOT EXPOSE THIS
APPLIANCE TO RAIN OR MOISTURE.
IMPORTANT NOTICE
{For U.S. and Canadian models]
The serial number for this equipment is located on the rear panel.
Please write this serial number on your enclosed warranty card
and keep it in a secure area. This is for your security.
[For Canadian models]
CAUTION:
TO PREVENT ELECTRIC SHOCK DO NOT USE THIS
(POLARIZED)PLUG WITH AN EXTENSION CORD, RECEPTACLE
OR OTHER OUTLET UNLESS THE BLADES CAN BE FULLY IN-
SERTED TO PREVENT BLADE EXPOSURE.
ATTENTION:
POUR PREVENIR LES CHOCS ELECTRIQUES NE PAS UTILISER
CETTE FICHE POLARISEE AVEC UN PROLONGATEUR UNE
PRISE DE COURANT OU UNE AUTRE SORTIE DE COURANT,
SAUF SI LES LAMES PEUVENT ETRE INSEREES A FOND SANS
EN LAISSER AUCUNE PARTIE A DECOUVERT.
TWO VOLTAGE SELECTOR SWITCHES
Only multi voltage models are provided with these switches.
U.S., Canadian, U.K., Australian and Europe models are not
provided with them.
Mains voltages in Saudi Arabia are 127V and 220V only. Never
use this model set to 110V in Saudi Arabia.
You will find the line voltage selector switches on the rear panel.
Before your model is shipped from the factory, the switches re
set to the power requirements of the destination. Nevertheless,
you should check that they are set properly before plugging the
power cord into the wall outlet. If the voltage requirements differ,
adjust the selector switches as follows. Before adjusting, discon—
nect the power cord.
1. Provide yourself with a medium size screwdriver.
2. Changing the position of switch A, B.
Insert the screwdriver into the slot on the voltage selector
and adjust so that the tip of the slot points to the voltae
value of your area.
Changing the position of switch A, B.
Set it to the power voltage of your area.
NOTE:
Both switches A and B must be in the same voltage.
Saar.
nov 2z0v
120v-127¥ 240¥
220v
ney: 1Z0ve 1270
SEC INSTAUCTION MANUAL
TwO VOLTAGE SELECTORS -
@) PIONEER'
The Art of Entertainment
