Sealey PS110 Instructions

Thank you for purchasing a Sealey product. Manufactured to a high standard, this product will, if used according to these instructions,
and properly maintained, give you years of trouble free performance.
IMPORTANT: PLEASE READ THESE INSTRUCTIONS CAREFULLY. NOTE THE SAFE OPERATIONAL REQUIREMENTS, WARNINGS & CAUTIONS. USE
THE PRODUCT CORRECTLY AND WITH CARE FOR THE PURPOSE FOR WHICH IT IS INTENDED. FAILURE TO DO SO MAY CAUSE DAMAGE AND/OR
PERSONAL INJURY AND WILL INVALIDATE THE WARRANTY. KEEP THESE INSTRUCTIONS SAFE FOR FUTURE USE.
Refer to Wear eye
instructions protection
1. SAFETY
WARNING! Ensure all Health and Safety, local authority, and general workshop practice regulations are strictly adhered to when using
‰
tools.
DO NOT use tools if damaged or worn.
8
Maintain the tools in good and clean condition for best and safest performance.
9
Ensure all threads are clean and well lubricated.
9
Always check that puller is correctly assembled and is square with the workpiece.
9
If vehicle is raised, ensure it is adequately supported with axle stands, ramps, etc. as appropriate.
9
Wear suitable clothing to avoid snagging. DO NOT wear jewellery. Tie back long hair.
9
Wear approved eye protection. A full range of personal safety equipment is available from your Sealey stockists.
9
Where possible shield workpiece with canvas or similar to provide protection against failed parts.
9
DO NOT heat puller jaws when heating a gear or bearing as this will affect the temper and, therefore, the strength of the material.
8
DO NOT hit workpiece, with a hammer if workpiece has not moved with maximum puller force applied. Use a larger capacity
8
puller.
Account for all tools and parts being used and DO NOT leave them in or on the vehicle.
9
IMPORTANT: Always refer to the vehicle manufacturer's service instructions, or proprietary manual, to establish the correct procedure
and data. These instructions for use are provided as a guide only.
2. INTRODUCTION
Suitable for gearboxes, electric motors, agricultural machinery and general machinery. Features reversible jaws allowing internal and
external pulling operations. Adjustable shims for precise fit into the deep grove bearing. Ideal for use with a ratchet or spanner.
Manufactured from high-grade steel for added strength and durability. Supplied in a storage case.

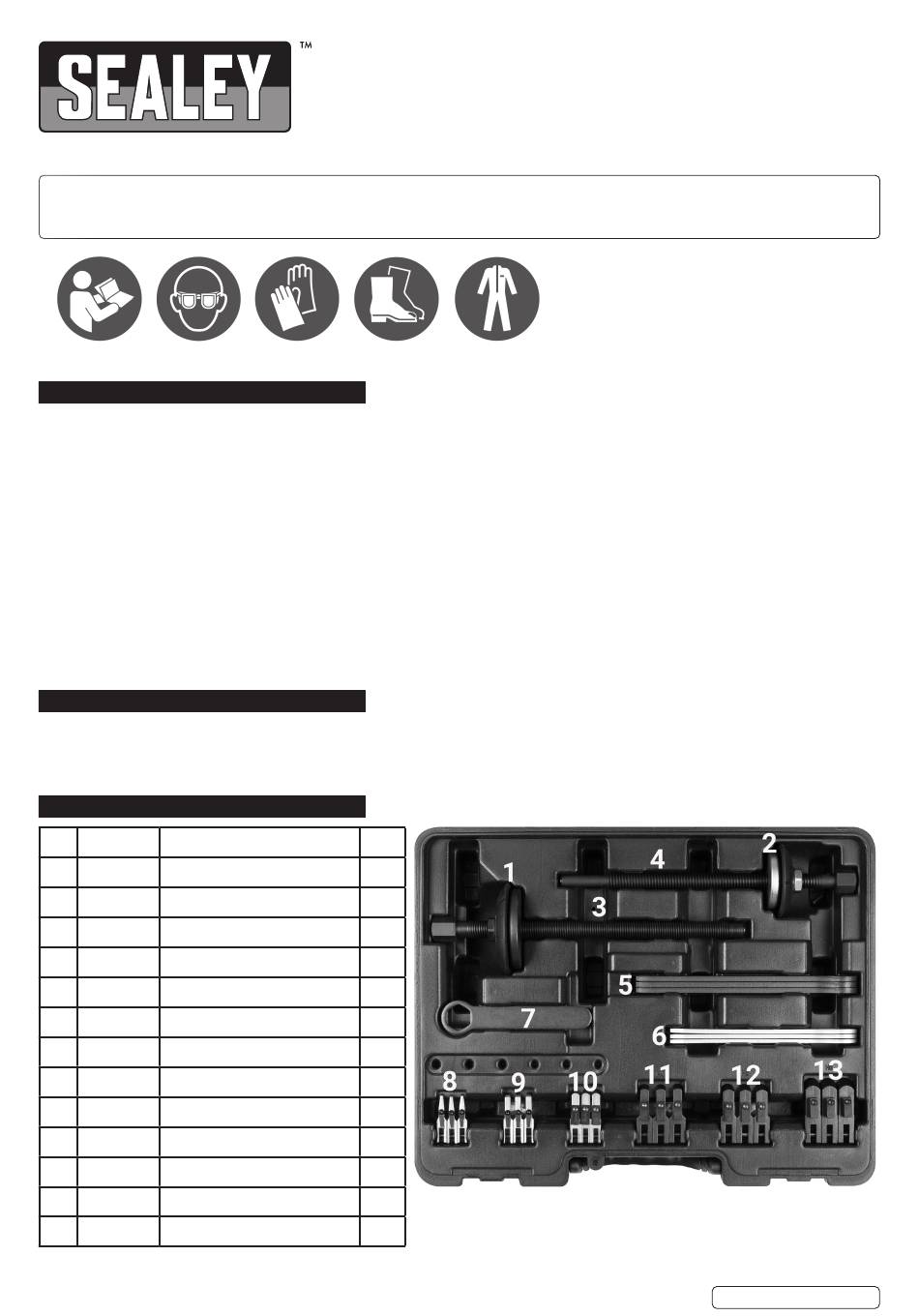

3. CONTENTS
No. Part No. Description
1 PS110-A1 Jaw Hook Holder Large
2 PS110-A2 Jaw Hook Holder Small
3 PS110-B1 Draw Bar Large
4 PS110-B2 Draw Bar Small
5 PS110-C1 Jaw Hook Large
6 PS110-C2 Jaw Hook Small
7 PS110-D Spanner
8 PS110-E1 Jaw with 3pcs washer (0.3mm)
9 PS110-E2 Jaw with 3pcs washer (0.3mm)
10 PS110-E3 Jaw with 4pcs washer (0.5mm)
11 PS110-E4 Jaw with 4pcs washer (0.5mm)
12 PS110-E5 Jaw with 4pcs washer (0.5mm)
13 PS110-E6 Jaw with 6pcs washer (1.0mm)
© Jack Sealey Limited
DEEP GROOVE BEARING PULLER SET
PS110
MODEL NO:
Wear protective Wear safety
gloves footwear
Qty.
1
1
1
1
3
3
1
3
3
3
3
3
3
Original Language Version
Wear protective
clothing
PS110 Issue:1 14/01/25
