FCC Information and Copyright
This equipment has been tested and found to comply with the limits of a Class
B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed
to provide reasonable protection against harmful interference in a residential
installation. This equipment generates, uses, and can radiate radio frequency
energy and, if not installed and used in accordance with the instructions, may
cause harmful interference to radio communications. There is no guarantee
that interference will not occur in a particular installation.
The vendor makes no representations or warranties with respect to the
contents here and specially disclaims any implied warranties of merchantability
or fitness for any purpose. Further the vendor reserves the right to revise this
publication and to make changes to the contents here without obligation to
notify any party beforehand.
Duplication of this publication, in part or in whole, is not allowed without first
obtaining the vendor's approval in writing.
The content of this user's manual is subject to be changed without notice and
we will not be responsible for any mistakes found in this user's manual. All the
brand and product names are trademarks of their respective companies.

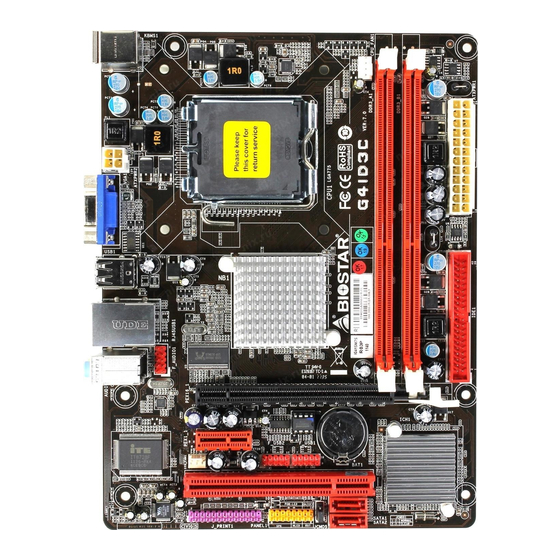

G41D3C Setup Manual
Dichiarazione di conformità
sintetica
Ai sensi dell'art. 2 comma 3 del D.M.
275 del 30/10/2002
Si dichiara che questo prodotto è
conforme alle normative vigenti e
soddisfa i requisiti essenziali richiesti
dalle direttive
2004/108/CE, 2006/95/CE e
1999/05/CE
quando ad esso applicabili
Short Declaration of conformity
We declare this product is complying
with the laws in force and meeting all
the essential requirements as specified
by the directives
2004/108/CE, 2006/95/CE and
1999/05/CE
whenever these laws may be applied
Advertisement
Table of Contents
Troubleshooting
Related Manuals for Biostar G41D3C
Summary of Contents for Biostar G41D3C
- Page 1 G41D3C Setup Manual FCC Information and Copyright This equipment has been tested and found to comply with the limits of a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation.
-
Page 2: Table Of Contents
Table of Contents Chapter 1: Introduction ........1 Before You Start ................1 Package Checklist ................1 Motherboard Features..............2 Rear Panel Connectors ..............3 Motherboard Layout................. 4 Chapter 2: Hardware Installation ......5 Installing Central Processing Unit (CPU)........5 FAN Headers.................. -
Page 3: Chapter 1: Introduction
G41D3C CHAPTER 1: INTRODUCTION EFORE TART Thank you for choosing our product. Before you start installing the motherboard, please make sure you follow the instructions below: Prepare a dry and stable working environment with sufficient lighting. Always disconnect the computer from power outlet before operation. -
Page 4: Motherboard Features
Motherboard Manual OTHERBOARD EATURES SPEC LGA 775 Supports Hyper-Threading / Execute Disable Bit / Intel Core2Duo / Core2Quad / Enhanced Intel SpeedStep® / Intel Architecture-64 / Pentium Dual-Core / Celeron Dual-Core / Extended Memory 64 Technology / Virtualization Celeron 4xx processor Technology (Maximum Watt: 95W) 800 / 1066 / 1333 MHz... -
Page 5: Rear Panel Connectors
Audio Jack Provide Audio-In/Out and microphone connection Board Size 170 (W) x 225 (L) mm Biostar reserves the right to add or remove support for OS Support Windows XP / Vista / 7 any OS with or without notice ANEL... -
Page 6: Motherboard Layout
Motherboard Manual OTHERBOARD AYOUT CPU_FAN1 KBMS1 LGA775 ATXPWR1 CPU1 ATXPWR2 USB1 Intel RJ45USB1 AUDIO1 F_AUDIO1 PEX16_1 BIOS BAT1 PEX1_1 F_USB2 F_USB1 Super Intel SYS_FAN1 ICH7 PCI1 J_PRINT1 PANEL1 Codec SATA2 JCMOS1 Note: ■ represents the 1 pin. -
Page 7: Chapter 2: Hardware Installation
G41D3C CHAPTER 2: HARDWARE INSTALLATION (CPU) NSTALLING ENTRAL ROCESSING Special Notice: Remove Pin Cap before installation, and make good preservation for future use. When the CPU is removed, cover the Pin Cap on the empty socket to ensure pin legs won’t be damaged. - Page 8 Motherboard Manual Step 2: Look for the triangular cut edge on socket, and the golden dot on CPU should point forwards this triangular cut edge. The CPU will fit only in the correct orientation. Step 2-1: Step 2-2: Step 3: Hold the CPU down firmly, and then lower the lever to locked position to complete the installation.
-
Page 9: Fan Headers
G41D3C FAN H EADERS These fan headers support cooling-fans built in the computer. The fan cable and connector may be different according to the fan manufacturer. Connect the fan cable to the connector while matching the black wire to pin#1. -
Page 10: Installing System Memory
Motherboard Manual NSTALLING YSTEM EMORY A. DDR3 module Unlock a DIMM slot by pressing the retaining clips outward. Align a DIMM on the slot so that the notch on the DIMM matches the break on the Slot. Insert the DIMM vertically and firmly into the slot until the retaining chip snap back in place and the DIMM is properly seated. - Page 11 G41D3C B. Memory Capacity DIMM Socket Total Memory DDR3 Module Location Size DDR3_A1 256MB/512MB/1GB/2GB/4GB Max is 8GB. DDR3_B1 256MB/512MB/1GB/2GB/4GB C. Dual Channel Memory Installation Please refer to the following requirements to activate Dual Channel function: Install memory module of the same density in pairs, shown in the table.
-
Page 12: Connectors And Slots
Motherboard Manual ONNECTORS AND LOTS IDE1: IDE/ATAPI Connector The motherboard has a 32-bit Enhanced PCI IDE Controller that provides PIO Mode 0~4, Bus Master, and Ultra DMA 33/66/100 functionality. The IDE connector can connect a master and a slave drive, so you can connect up to two drives. - Page 13 G41D3C ATXPWR1: ATX Power Source Connector This connector allows user to connect 24-pin power connector on the ATX power supply. Assignment Assignment +3.3V +3.3V -12V +3.3V Ground Ground PS_ON Ground Ground Ground Ground Ground PW_OK Standby Voltage+5V +12V +12V Ground +3.3V...
- Page 14 Motherboard Manual PEX16_1: PCI-Express x16 Slot PCI-Express 1.0a compliant. Maximum theoretical realized bandwidth of 4GB/s simultaneously per direction, for an aggregate of 8GB/s totally. PCI-Express supports a raw bit-rate of 2.5Gb/s on the data pins. 2X bandwidth over the traditional PCI architecture. PEX1_1: PCI-Express x1 Slot PCI-Express 1.1 compliant.
-
Page 15: Chapter 3: Headers & Jumpers Setup
G41D3C CHAPTER 3: HEADERS & JUMPERS SETUP OW TO ETUP UMPERS The illustration shows how to set up jumpers. When the jumper cap is placed on pins, the jumper is “close”, if not, that means the jumper is “open”. Pin opened... -
Page 16: Clear Cmos Header
Motherboard Manual JCMOS1: Clear CMOS Header Placing the jumper on pin2-3 allows user to restore the BIOS safe setting and the CMOS data, please carefully follow the procedures to avoid damaging the motherboard. Pin 1-2 Close: Normal Operation (Default). Pin 2-3 Close: Clear CMOS data. - Page 17 G41D3C J_PRINT1: Printer Port Connector This header allows you to connector printer on the PC. Assignment Assignment -Strobe Ground -ALF Data 6 Data 0 Ground -Error Data 7 Data 1 Ground -Init -ACK Data 2 Ground -Scltin Busy Data 3...
-
Page 18: Chapter 4: Useful Help
Motherboard Manual CHAPTER 4: USEFUL HELP RIVER NSTALLATION After you installed your operating system, please insert the Fully Setup Driver CD into your optical drive and install the driver for better system performance. You will see the following window after you insert the CD The setup guide will auto detect your motherboard and operating system. -
Page 19: Software
G41D3C OFTWARE Installing Software 1. Insert the Setup CD to the optical drive. The drivers installation program would appear if the Autorun function has been enabled. 2. Select Software Installation, and then click on the respective software title. 3. Follow the on-screen instructions to complete the installation. - Page 20 If you are not using Outlook Express as your default e-mail client application, you may need to save the system information to a .txt file and send the file to our tech support with other e-mail application. Go to the following web http://www.biostar.com.tw/app/en-us/about/contact.php for getting our contact information.
-
Page 21: Bios Update
G41D3C BIOS Update BIOS Update is a convenient utility which allows you to update your motherboard BIOS under Windows system. Show current BIOS information AWARD BIOS AMI BIOS Online Update function Clear CMOS function (Only for AMI BIOS) (Only for AWARD BIOS) Save current BIOS to a .bin file... - Page 22 Motherboard Manual <Update BIOS> Before doing this, please download the proper BIOS file from the website. For AWARD BIOS, update BIOS procedure should be run with Clear CMOS function, so please check on Clear CMOS first. Then click Update BIOS button, a dialog will show for asking you backup current BIOS.
- Page 23 G41D3C <Online Update> (for AMI BIOS only) Automatically download and update the latest BIOS via internet; make sure that the computer is connected to the internet before using this function. After clicking on the Online Update button, the utility will search for the latest BIOS from internet.
-
Page 24: Extra Information
Motherboard Manual XTRA NFORMATION CPU Overheated If the system shutdown automatically after power on system for seconds, that means the CPU protection function has been activated. When the CPU is over heated, the motherboard will shutdown automatically to avoid a damage of the CPU, and the system may not power on again. - Page 25 G41D3C BIO-Flasher BIO-Flasher is a BIOS flashing utility providing you an easy and simple way to update your BIOS via USB pen drive or floppy disk. The BIO-Flasher is built in the BIOS chip. To enter the utility, press <F12>...
-
Page 26: Ami Bios Beep Code
Motherboard Manual AMI BIOS B Boot Block Beep Codes Number of Beeps Description No media present. (Insert diskette in floppy drive A:) “AMIBOOT.ROM” file not found in root directory of diskette in Insert next diskette if multiple diskettes are used for recovery Flash Programming successful File read error No Flash EPROM detected... -
Page 27: Troubleshooting
G41D3C ROUBLESHOOTING Probable Solution There is no power in the system. Make sure power cable is Power LED does not shine; the securely plugged in. fan of the power supply does not Replace cable. work Contact technical support. Indicator light on keyboard does not shine. -
Page 28: Appendix: Spec In Other Languages
Motherboard Manual APPENDIX: SPEC IN OTHER LANGUAGES ERMAN Spezifikationen LGA 775 Unterstützt Hyper-Threading / Execute Disable Bit / Intel Core2Duo / Core2Quad / Enhanced Intel SpeedStep® / Intel Architecture-64 / Pentium Dual-Core / Celeron Dual-Core / Extended Memory 64 Technology / Virtualization Celeron 4xx Prozessoren Technology (Maximales Watt: 95W) - Page 29 PS/2-Maus Rückseiten-E VGA-Anschluss LAN-Anschluss USB-Anschluss Audioanschluss Platinengröße 170 mm (B) X 225 mm (L) Biostar behält sich das Recht vor , ohne Ankündigung OS-Unterstüt Windows XP / Vista / 7 die Unterstützung für ein Betriebssystem zung hinzuzufügen oder zu entfernen.
-
Page 30: French
Motherboard Manual RENCH SPEC LGA 775 Prend en charge les technologies Hyper-Threading / Processeurs Intel Core2Duo / Core2Quad d'exécution de bit de désactivation / Intel SpeedStep® / Pentium Dual-Core / Celeron Dual-Core / optimisée/ d'architecture Intel 64 / de mémoire Celeron 4xx étendue 64 / de virtualisation (Watt maximum : 95W) - Page 31 Port USB Fiche audio Dimensions 170 mm (l) X 225 mm (H) de la carte Biostar se réserve le droit d'ajouter ou de supprimer le Support SE Windows XP / Vista / 7 support de SE avec ou sans préavis.
-
Page 32: Italian
Motherboard Manual TALIAN SPECIFICA LGA 775 Supporto di Hyper-Threading / Execute Disable Processore Intel Core2Duo / Bit / Enhanced Intel SpeedStep® / Architettura Core2Quad / Pentium Dual-Core / Intel 64 / Tecnologia Extended Memory 64 / Celeron Dual-Core / Celeron 4xx Tecnologia V irtualization (Watt massimo: 95W) 800 / 1066 / 1333 MHz... - Page 33 Porta USB Connettore audio Dimension 170 mm (larghezza) x 225 mm i scheda (altezza) Sistemi Biostar si riserva il diritto di aggiungere o operativi Windows XP / Vista / 7 rimuovere il supporto di qualsiasi sistema supportati operativo senza preavviso.
-
Page 34: Spanish
Motherboard Manual PANISH Especificación LGA 775 Admite Hyper-Threading / Bit de deshabilitación de Procesador Intel Core2Duo / Core2Quad / ejecución / Intel SpeedStep® Mejorado / Intel Pentium Dual-Core / Celeron Dual-Core / Architecture-64 / Tecnología Extended Memory 64 / Celeron 4xx Tecnología de virtualización (Vatio máximo: 95W) 800 / 1066 / 1333 MHz... - Page 35 Tamaño de 170 mm. (A) X 225 Mm. (H) la placa Soporte de Biostar se reserva el derecho de añadir o retirar el sistema Windows XP / Vista / 7 soporte de cualquier SO con o sin aviso previo. operativo...
-
Page 36: Portuguese
Motherboard Manual ORTUGUESE ESPECIFICAÇÕES LGA 775 Processador Intel Core2Duo / Core2Quad Suporta as tecnologias Hyper-Threading / Execute / Pentium Dual-Core / Celeron Dual-Core / Disable Bit / Enhanced Intel SpeedStep® / Intel Celeron 4xx Arquitecture -64 / Extended Memory 64 / Virtualization (Watt máximo: 95W) 800 / 1066 / 1333 MHz Intel G41... - Page 37 Tomada de áudio Tamanho 170 mm (L) X 225 mm (A) da placa Sistemas A Biostar reserva-se o direito de adicionar ou remover operativos Windows XP / Vista / 7 suporte para qualquer sistema operativo com ou sem aviso prévio.
-
Page 38: Polish
Motherboard Manual OLISH SPEC LGA 775 Obsługa Hyper-Threading / Execute Disable Bit / Procesor Intel Core2Duo / Core2Quad / Enhanced Intel SpeedStep® / Intel Architecture-64 / Procesor Pentium Dual-Core / Celeron Dual-Core / Extended Memory 64 Technology / Virtualization Celeron 4xx Technology (Maksymalny Watt: 95W) 800 / 1066 / 1333 MHz... - Page 39 Back Panel Port VGA Port LAN Port USB Gniazdo audio Wymiary 170 mm (S) X 225 mm (W) płyty Obsluga Biostar zastrzega sobie prawo dodawania lub systemu Windows XP / Vista / 7 odwoływania obsługi dowolnego systemu operacyjne operacyjnego bez powiadomienia.
-
Page 40: Russian
Motherboard Manual USSIAN СПЕЦ LGA 775 Поддержка технологий Hyper-Threading / Execute Процессор Intel Core2Duo / Core2Quad / (центральн Disable Bit / Enhanced Intel SpeedStep® / Intel Pentium Dual-Core / Celeron Dual-Core / ый Architecture-64 / Extended Memory 64 Technology / Celeron 4xx процессор) технологии... - Page 41 ввода-выв USB-порт ода Гнездо для подключения наушников Размер 170 мм (Ш) X 225 мм (В) панели Biostar сохраняет за собой право добавлять или Поддержка Windows XP / Vista / 7 удалять средства обеспечения для OS с или без предварительного уведомления.
-
Page 42: Arabic
Motherboard Manual RABIC اﻟﻤﻮاﺻﻔﺎت LGA 775 ﺗﺪﻋﻢ ﺗﻘﻨﻴﺎتHyper-Threading / Execute Disable Bit / ﻡﻌﺎﻟﺠﺎتIntel Core2Duo / Core2Quad / Enhanced Intel SpeedStep® / Intel Architecture-64 / اﻟﻤﻌﺎﻟﺠﺔ وﺣﺪة Pentium Dual-Core / Celeron Dual-Core / Extended Memory 64 Technology / Virtualization اﻟﻤﺮآﺰیﺔ Celeron 4xx ﺼﻞ... - Page 43 G41D3C اﻟﻤﻮاﺻﻔﺎت ﻋﺪد ﻡﻨﻔﺬ ﻃﺎﺑﻌﺔ ﻋﺪد ﻡﻨﻔﺬ یﺪﻋﻢ آﻞ ﻡﻨﻔﺬ اﺙﻨﻴﻦ ﻡﻦ أﺝﻬﺰةIDE ﻋﺪد SATA ﻡﻨﻔﺬ یﺪﻋﻢ آﻞ ﻡﻨﻔﺬ واﺣﺪ ﻡﻦ أﺝﻬﺰةSATA ﻋﺪد ﻡﻨﻔﺬ اﻟﻠﻮﺣﺔ اﻷﻡﺎﻡﻴﺔ یﺪﻋﻢ ﺗﺠﻬﻴﺰات اﻟﻠﻮﺣﺔ اﻷﻡﺎﻡﻴﺔ ﻋﺪد ﻡﻨﻔﺬ اﻟﺼﻮت اﻷﻡﺎﻡﻲ یﺪﻋﻢ وﻇﻴﻔﺔ اﻟﺼﻮت ﺑﺎﻟﻠﻮﺣﺔ اﻷﻡﺎﻡﻴﺔ ﺳﻄﺢ...
-
Page 44: Japanese
Motherboard Manual APANESE 仕様 LGA 775 Hyper-Threading / Execute Disable Bit / Enhanced Intel Intel Core2Duo / Core2Quad / SpeedStep® / Intel Architecture-64 / Extended Pentium Dual-Core / Celeron Dual-Core / Memory 64 Technology / Virtualization Technologyをサ Celeron 4xx processor ポートします... - Page 45 G41D3C 仕様 プリンタポートコネクタ 各コネクタは1つのプリンタポートをサポートします IDEコネクタ 各コネクタは2つのIDEデバイスをサポートします SATAコネクタ 各コネクタは1つのSATAデバイスをサポートします フロントパネルコネクタ フロントパネル機能をサポートします フロントオーディオコネクタ フロントパネルオーディオ機能をサポートします CPUファンヘッダ CPUファン電源装置(スマートファン機能を搭載) オンボードコ システムファンヘッダ システムファン電源装置 ネクタ CMOSクリアヘッダ 各コネクタは2つのフロントパネルUSBポートをサポートし USBコネクタ ます 電源コネクタ(24ピン) 電源コネクタ(4ピン) PS/2キーボード PS/2マウス VGAポート 背面パネル LANポート USBポート オーディオジャック ボードサイズ 170 mm (幅) X 225 mm (高さ) Biostarは事前のサポートなしにOSサポートを追加または削...
Need help?
Do you have a question about the G41D3C and is the answer not in the manual?
Questions and answers
A mí placa base no le funcionan los puertos usb
The USB ports on the Biostar G41D3C motherboard may not be working if:
- The "USB Functions" setting in the BIOS is set to "Disabled" instead of "8 USB Ports," "6 USB Ports," "4 USB Ports," or "2 USB Ports."
- The "USB 2.0 Controller" setting in the BIOS is set to "Disabled" instead of "Enabled."
- The BIOS does not have built-in high-speed USB support, or the high-speed device was not detected properly.
Checking and enabling the correct BIOS settings can resolve the issue.
This answer is automatically generated
Como puedo instalar un disco solido, para Windows 11
The Biostar G41D3C motherboard does not officially support Windows 11, and the manual does not provide information on installing a solid-state drive (SSD) specifically for Windows 11. However, if you still want to install an SSD, follow these general steps:
1. Check Compatibility: Ensure the motherboard has a compatible SATA port for the SSD.
2. Connect the SSD: Attach the SSD to a SATA port on the motherboard and connect a power cable from the power supply.
3. Enter BIOS: Power on the system and press the BIOS setup key (usually
or).
4. Set Boot Order: Ensure the SSD is detected and set it as the primary boot device.
5. Install Windows 11: Boot from a USB installation media with Windows 11 and follow the installation instructions.
6. Check Drivers: Since the motherboard supports older operating systems, Windows 11 may lack compatible drivers.
Since Windows 11 has system requirements that the G41D3C may not meet (such as TPM 2.0 and Secure Boot), installation might not be possible without modifications.
