Lionel 1381 Operating Instructions Manual

U O N E L

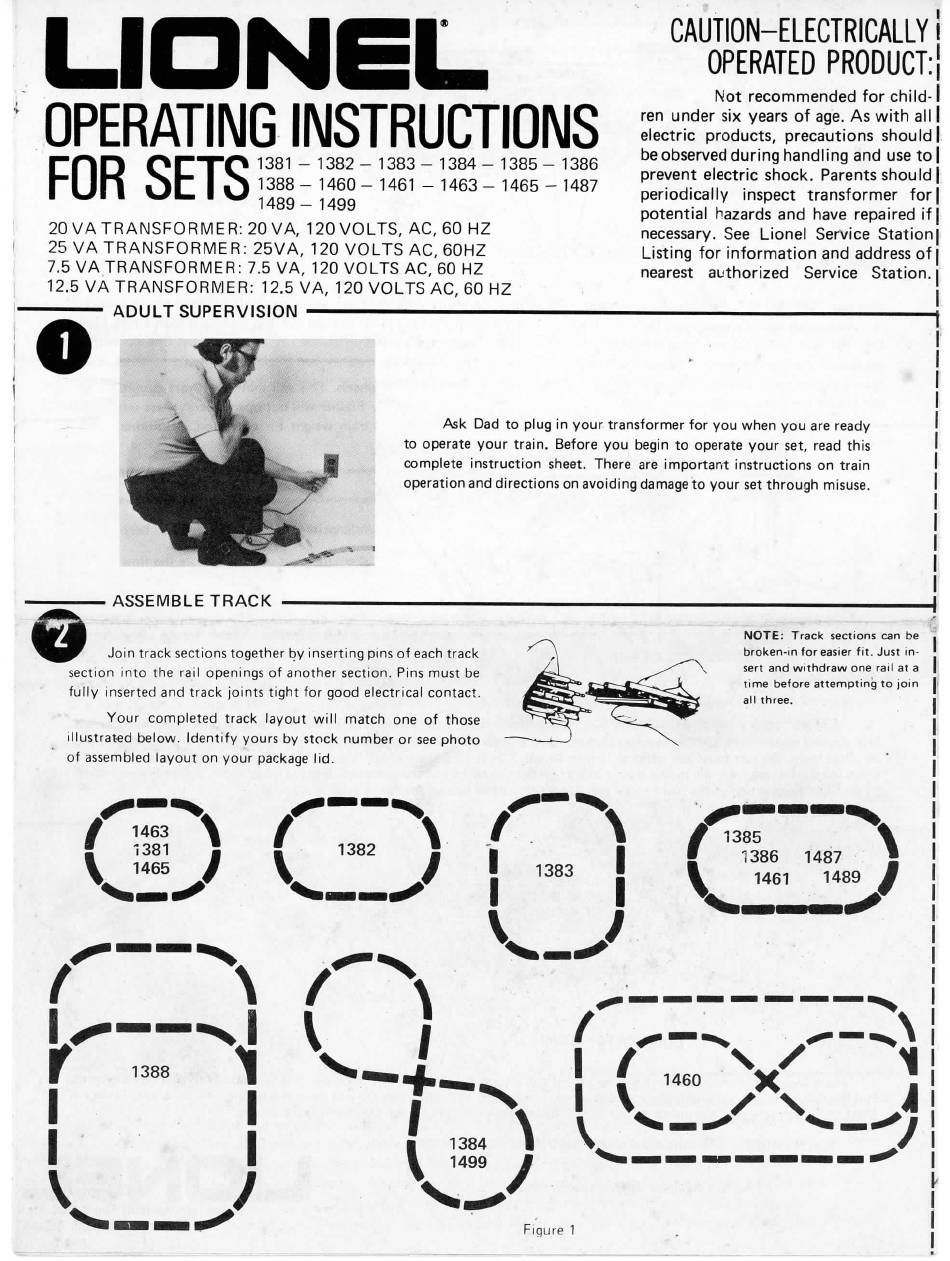

OPERATING INSTRUCTIONS
COD O C X O ^^^^ ~ ^382- 1 3 8 3 - 1 3 8 4 - 1385- 1386
l U r i O L I O 1388- 1 4 6 0 - 1461 - 1 4 6 3 - 1465 - 1487
2 0 V A T R A N S F O R M E R ; 2 0 V A , 1 2 0 V O L T S , A C , 60 HZ
25 V A T R A N S F O R M E R : 2 5 V A , 120 V O L T S A C , 60HZ
7.5 VA T R A N S F O R M E R : 7.5 VA, 120 V O L T S AC, 60 HZ
12.5 V A T R A N S F O R M E R : 12.5 V A , 120 V O L T S A C , 60 HZ
ADULT SUPERVISION
CAUTION-ELECTRICALLY
OPERATED PRODUCT:
Not recommended for child-
ren under six years of age. As with all
electric products, precautions should
be observed during handling and use to
prevent electric shock. Parents should
periodically inspect transformer for
potential hazards and have repaired if
necessary. See Lionel Service Station
Listing for information and address of
nearest authorized Service Station.
o
Ask Dad to plug in your transformer for you when you are ready
to operate your train. Before you begin to operate your set, read this
complete instruction sheet. There are important instructions on train
operation and directions on avoiding damage to your set through misuse.
• ASSEMBLE T R A C K
Join track sections together by inserting pins of each track
section into the rail openings of another section. Pins must be
fully inserted and track joints tight for good electrical contact.
Your completed track layout will match one of those
illustrated below. Identify yours by stock number or see photo
of assembled layout on your package lid.
N O T E ; T r a c k sections can be
broken-in for easier fit. Just in-
sert and w i t h d r a w one rail at a
time before attempting to join
all three.
/
V
1463
i381
1465
J
V
1382
\
J
j
1383
1385
1386 1487
1461 1489
J
f
iT
1388
I
I
I
I
^
+-
I
V
1384
1499
1
A
V
Figure 1
