Logitech Squeezebox Touch Manual

Package contents

What you need to get started

To start using your Squeezebox Touch, you will need:

• stereo system or set of powered speakers
• broadband Internet connection (for example, DSL or cable modem)
• The name and password of your wireless network

Find a good location

Place Squeezebox Touch where you can easily connect it to your stereo, and where the Squeezebox touchscreen is visible and accessible. Squeezebox Touch will need to be connected to an electrical outlet at all times.

	If you will be adding Squeezebox Touch to a wireless network, make sure that your Squeezebox is within range of your wireless network
	If you will be setting up a wired connection, locate Squeezebox Touch within reach of both your home stereo and an Ethernet jack *

* Ethernet cable not included

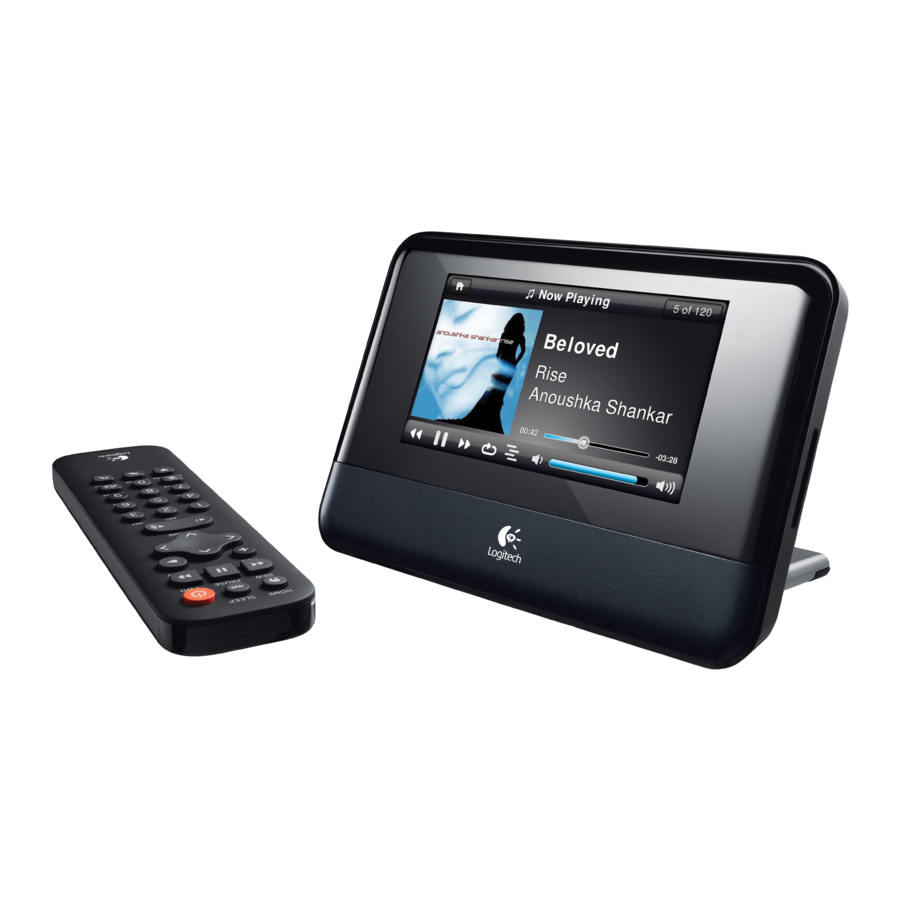

Squeezebox at a glance

Squeezebox Touch connects directly to your stereo, allowing you to hear the music that you want on your own stereo system or powered speakers. To manage Squeezebox Touch, use the touchscreen or the remote control.

Note
Please use only the enclosed cloth or an eyeglass cloth to clean the Squeezebox touchscreen. Tissues and other materials can cause scratches

The back of Squeezebox Touch includes ports for connecting to your stereo or powered speakers, as well as one for connecting to a wired Ethernet network

Remote control

You can navigate your Squeezebox with the touchscreen or the remote control
Note
When using the remote, maintain line of sight with your Squeezebox. The infrared light from the remote needs to be able to communicate with the sensor on Squeezebox Touch

Insert batteries into remote

Connect Squeezebox

Plug in Squeezebox

After plugging in your Squeezebox Touch, it will automatically turn on after a few seconds

Go to on-screen setup

To complete the setup process, make sure your router is on, and has an internet connection. Follow the simple on-screen steps using the touchscreen or remote

After the setup process is complete, a brief on-screen tutorial will get you up and running

Using your Squeezebox Touch

Playing music from the internet
As a Squeezebox Touch user, you can browse and add music services and other add-on apps directly from the Squeezebox Touch screen, or by visiting www.mysqueezebox.com.

Playing music from your computer
After you've completed the setup process, go to www.mysqueezebox.com and download Squeezebox software. Squeezebox Touch can then play music that you have stored on your computer. Files that are in iTunes or another music library are scanned and indexed. After that, you simply select your computer name from the My Music screen on your Squeezebox, navigate to the tune you want, and play

Playing music from a USB drive or SD card
In addition to playing music from the Internet and from your computer, you can play music directly from a USB drive or an SD card. Simply plug your drive into the USB connector on the back of your Squeezebox, or insert your SD card into the slot on the right side. Then, select your device name from the My Music screen on your Squeezebox, navigate to the tune you want, and play
To download the Squeezebox Touch Feature Guide, go to www.mysqueezebox.com.

Troubleshooting

Reset your Squeezebox

To reset Squeezebox Touch, press the reset button located on the back of your Squeezebox above the power plug. Hold the button until a "Factory Reset" message appears on the screen
Alternatively, go to Home > Settings > Advanced > Factory Reset > Continue. The Logitech logo will appear, followed by a Factory Reset message

I don't have my wireless network name and password

If you don't know your network name and password and you have a wireless network, do the following:

1. Check to see if you have them written down somewhere
2. Ask someone else in your home if they know them
3. Contact the person who set up your home network
4. Check your router manual
5. Contact your router manufacturer for assistance

As part of the setup process, you need the name and password that were assigned to your wireless network when it was installed. A network name is sometimes referred to as an SSID, and a password is sometimes referred to as a wireless key, or security key

I can't find my network

If your network does not appear in the list of wireless networks, do the following:

1. Make sure Squeezebox Touch is within range of your wireless network
2. Go to your computer to make sure your network is working
3. If your router is configured to not broadcast your network name (SSID), select Other Networks at the bottom of the list of networks, and enter yours
4. Unplug your router, wait 30 seconds, and plug it back in
5. Refer to your router documentation or contact the manufacturer for assistance

Password not accepted

If your password was not accepted, do the following:

1. Try entering it again There could be a typo
2. Convert your password from ASCII to hexadecimal. If your network password is not accepted, it could be in ASCII format. (This only applies to WEP passwords that are either 5 or 13 characters in length)

For more information, see our Knowledge Base at www.mysqueezebox.com/support.

Network connection not made

If Squeezebox Touch does not connect to your home network, do the following:

1. Confirm that you have selected the correct network name
2. Try selecting your network name again, or rename your network. If yours has a common name such as linksys, there could be multiple networks of that name in your neighborhood. One way to avoid this issue is to rename your wireless network to a more unique name
3. Enter a static IP address. If your router is not set to use DHCP to assign IP addresses, your Squeezebox will display an Address Problem screen. From there, you can enter your IP address, subnet mask, gateway address, and DNS server address. For help with this, contact the person who set up your wireless network, or your router vendor*
4. Turn off MAC filtering. If your router is using MAC filtering, turn it off or add the MAC address on the bottom of your Squeezebox to the router's table of allowed devices
5. Unplug your router, wait 30 seconds, plug it back in and try the setup process again
6. Contact your router vendor for assistance

* Squeezebox Touch normally relies on a DHCP server to provide an IP address during setup. If you prefer to use a static IP address, you can do it one of two ways:

• Make sure your DHCP server is off, and input a static IP address when Squeezebox Touch displays the a ppropriate screen
• Set up and connect your Squeezebox as normal using DHCP. After setup is complete, go to the Settings screen and change the IP address by entering it manually

For more information on how to set a static IP address, go to: www.mysqueezebox.com/support.

Music is not playing

1. If music is not playing, do the following:
2. Check the cables to your stereo or powered speakers to make sure they are connected properly
3. Check the input selector on your stereo to make sure it matches the inputs you used
4. Check the volume on your stereo
5. Add exceptions to your firewall software. If you are listening to music from your computer (using Squeezebox software), make sure there are no firewall warnings on your screen and make sure your firewall has the proper exceptions. Required exceptions include: port 3483 UDP, port 3483 TCP, and port 9000 TCP
6. As a test, try playing a different song
7. If Squeezebox Touch says "Stopped," check your internet connection

I can't find my music collection in My Music

If you want to play the music collection that is stored on your computer but your computer name does not appear in My Music, do the following:

1. Make sure that you've installed Squeezebox software from www.mysqueezebox.com.
2. Make sure Squeezebox software is running
   • Windows - Hover your mouse pointer over the software icon in your task bar. If you don't see "Squeezebox software Running," right-click on the icon and select Start Squeezebox software
   • Macintosh - Click on System Preferences, and then click on Squeezebox software. If the button displays Start Server, click it. If the button is labeled Stop Server, the application is already running
3. If you are using a third-party firewall such as Trend Micro, Norton, McAfee or OneCare, please see our Knowledge Base at www.mysqueezebox.com/support and search for articles on your specific firewall. If your firewall is not covered by our Knowledge Base, add exceptions for three ports as follows: port 3483 UDP, port 3483 TCP, and port 9000 TCP
   For information on how to make this change in your firewall software, search the internet for "exceptions, ports, <your firewall application name>," or contact technical support for your firewall software
4. If your network uses multiple routers or Voice over IP (VOIP) or you're on a corporate network that has a complex or segmented network configuration, ensure that your computer and Squeezebox Touch are on the same network segment. This allows Squeezebox Touch to automatically connect to Squeezebox software on your computer

Safety information

ELECTRIC SHOCK HAZARD

• Do not use this apparatus near water
• Do not block any ventilation openings. Install in accordance with the manufacturer's instructions
• Do not push objects into apparatus vents or slots because fire or electric shock hazards could result
• Maintain a minimum distance of at least 6 inches around apparatus for sufficient ventilation
• Ventilation should not be impeded by covering the ventilation openings with items, such as newspapers, table clothes, curtains, etc
• No naked (open) flame sources, such as lighted candles, should be placed on or near the apparatus
• Place apparatus in a stable location so it will not fall causing product damage or bodily harm
• Do not install near any heat sources such as radiators, heat registers, stoves, or other apparatus (including amplifiers) that produce heat
• Do not defeat the safety purpose of the polarized plug. A polarized plug has two blades with one wider than the other. The wide blade is provided for your safety. If the provided plug does not fit into your outlet, consult an electrician for replacement of the obsolete outlet
• Protect the power cord from being walked on or pinched particularly at plugs, convenience receptacles, and the point where they exit from the apparatus
• Only use attachments/accessories specified by the manufacturer
• Unplug this apparatus during lightning storms or when unused for long periods of time
• Refer all servicing to qualified service personnel. Servicing is required when the apparatus has been damaged in any way, such as power-supply cord or plug is damaged, liquid has been spilled or objects have fallen into the apparatus, the apparatus has been exposed to rain or moisture, does not operate normally, or has been dropped
• The apparatus shall be disconnected from the mains by unplugging the power cord of the apparatus from the AC mains receptacle
• The socket-outlet shall be installed near the equipment and shall be easily accessible

TO REDUCE THE RISK OF FIRE OR ELECTRIC SHOCK, DO NOT EXPOSE THIS APPARATUS TO RAIN OR MOISTURE.
UL safety: Your product has been UL tested It should only be used with other UL listed devices

Battery warning

Risk of explosion and personal injury if batteries are replaced by incorrect type. Do not open, mutilate, or expose to conducting materials (metal), moisture, liquid, fire, or heat (above 54°C or 130°F). Doing so may cause batteries to leak or explode, resulting in personal injury. Dispose of spent, leaking, or damaged batteries according to manufacturer instructions and local laws. Do not use or charge batteries (lithium-ion rechargeables) if leaking, discolored, or deformed. Do not mix battery types. Do not charge alkaline batteries. Do not leave rechargeable batteries discharged or unused for extended periods. Battery life varies with usage When replacing, remove all spent batteries, and do not mix old batteries with new. When device is not in use for extended periods, remove batteries to avoid leakage and store away from children in a cool, dry place at room temperature

Power supply warning

To reduce risk of electric shock, do not expose power supply to rain, moisture, liquid, or heat sources (e g, radiators, heat registers, stoves, amplifiers, etc ). For indoor use only. Do not use any other power supply with product. Do not use a damaged power supply or attempt to repair one. Inspect power supply regularly for cable, plug, or casing damage

Operating and Storage Conditions
Operating Conditions: 0 0 ~ +40 0 (degree C), 10~90% (Noncondensing)
Non-Operating Conditions: -40 0 ~ +70 0 (degree C), 10~95% (Excluding rain)

Getting help

For more information about your Squeezebox, go to www.mysqueezebox.com
