puggle Monaco XT Manual

Welcome

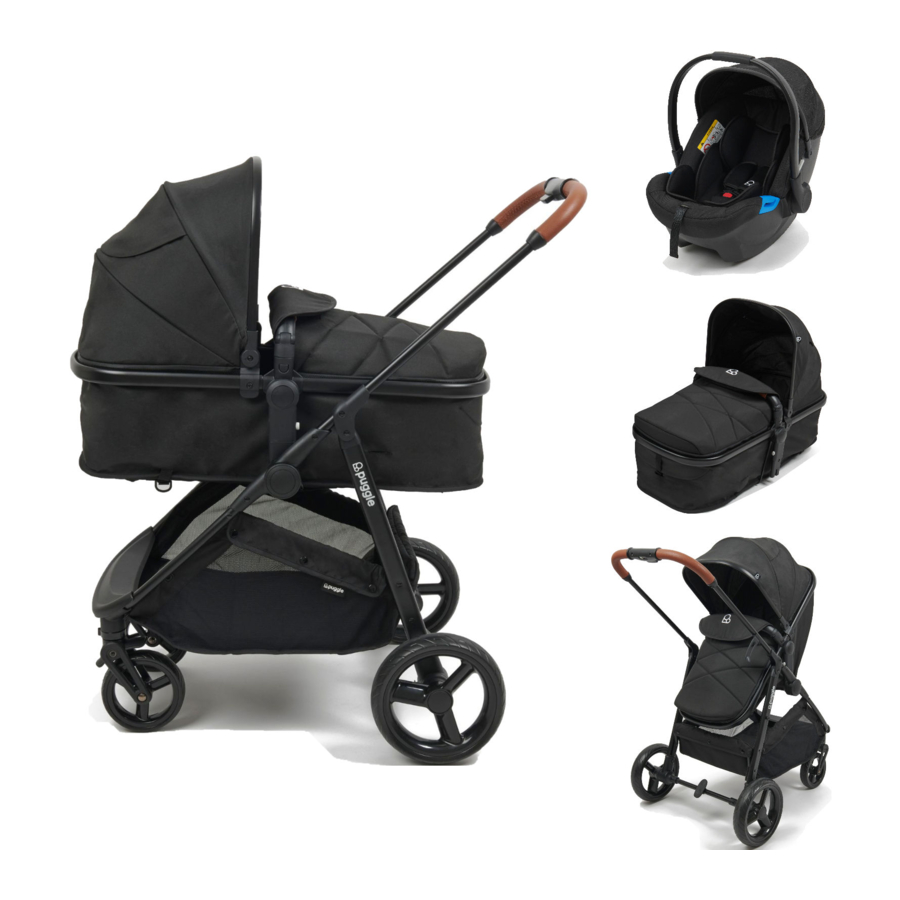

Please read the instructions and warnings carefully before use to ensure safe and satisfactory operation of your Puggle Monaco XT 2-in-1 Travel System.
If you have a query with this product or require replacement parts, please contact Online4baby online at online4baby.com/contact-us.

Parts List

Contained in your carton are:

Assembly

CHASSIS ASSEMBLY

To release the chassis (A) from the locked folded position, lift the folding latch on the side of the frame.

Lift the handle to open the chassis.

When the chassis is completely open, you will hear a "click" indicating it is locked into place.

REAR WHEEL ASSEMBLY

Push each rear wheel (C) into the sides of the rear wheel axle until you hear a "click". Give them a tug to ensure they are attached securely.

To remove the rear wheels, simply pull out the metal latch located underneath the rear wheel axle and pull the wheel out.

FRONT WHEEL ASSEMBLY

Insert each of the front wheel (B) pins into the center of the socket until you hear a "click". Give each wheel a firm tug to ensure they're securely attached.
To remove the front wheels, simply press the button at the back of the wheel socket and pull down.

Pram Mode

SEAT UNIT ASSEMBLY

On the rear of the seat unit (E), fasten the hook and loop panels as illustrated.

The fabric must cover the metal bracket.

ATTACHING SEAT UNIT TO CHASSIS
Attach the seat unit to the chassis. Line up the seat connectors with the chassis housing and press downwards. Listen for a "click" to signal correct assembly.

DETACHING SEAT UNIT FROM CHASSIS
Push the button located both sides of the seat connectors to remove the seat unit from the chassis.

BUMPER BAR ASSEMBLY

Insert the bumper bar (D) into the seat unit slots ensuring that the release buttons are on the outside and you hear a "click". Give the bumper bar a tug to ensure it's securely in place.
To remove the bumper bar, simply press the release buttons on either or both sides and lift up.

APRON ASSEMBLY

Fasten the apron (H), secure the zip around the side and attach the hook and loop fasteners over the bumper bar.

CANOPY ASSEMBLY

Attach the canopy (G) to the seat unit. First attach the plastic canopy clips to their respective sides, ensuring that they sit over the small plastic guides located on each side of the seat unit frame. Next, secure the canopy to the frame with the zip. Start with the right side (when facing the seat).

USING PRAM MODE

Suitable from birth in bassinet mode up to a maximum weight of 9kg or until the child can sit up unaided, roll over or push itself up on its hands and knees.

Never use in pram mode with seat unit forward facing.

Pushchair Mode

CONVERTING THE SEAT UNIT

Press buttons both sides of the seat connectors to remove the seat unit from the chassis.

Fasten the webbing belts located on the rear side of the seat unit footrest. Listen for the "click" to signal buckles are secure.

HARNESS ASSEMBLY

Attach the harness (F) to the seat unit. Thread the shoulder strap retainers under the webbing holders and out through the horizontal slots in the seat unit backrest.

Thread the waist strap retainers through the vertical slots in the seat unit backrest and thread the crotch strap retainer through the horiztonal slot at the centre of the seat unit.

Ensure the strap retainers are fully through and secure at the rear of the seat unit.

To remove reverse the above process.

BACKREST ADJUSTMENT

Re-attach the seat unit to the chassis. Locate the backrest adjustment mechanism at the rear of the seat unit. Squeeze the clip on the reclining harness and gently pull up the backrest.

Press buttons both sides of the seat connectors to adjust the seat unit recline. Ensure you hear a "click" as the seat engages at your desired position.

The seat unit is not suitable in pushchair mode for children under 6 months.

REVERSIBLE SEAT UNIT

The seat unit is reversible in stroller mode. It can be forward or parent facing

Press the buttons both sides of the seat connectors to remove the seat unit from the chassis. To re-attach the seat unit to the chassis, line up the seat connectors with the chassis housing and press downwards. Listen for a "click" to signal correct assembly.

In Use

HARNESS OPERATION

Slide the shoulder strap buckle onto the housing of the waist strap buckle. Repeat for the opposite side.

Insert the completed buckle into the buckle housing until it engages securely in place. Listen for the "click". Repeat for the opposite side.

Press the centre button to release child from harness.

Always use the restraint system.

HARNESS ADJUSTMENT

To adjust the shoulder straps, move the slides as shown.

Always adjust the harness to fit your child correctly for their comfort and safety. A loose fitting harness can be very dangerous.

There are 3 shoulder height positions. Undo the harness and remove the shoulder pads to adjust the shoulder height.

Always adjust the shoulder strap height according to baby height.

THE CANOPY
The canopy can be opened or closed by pulling forward or backward on the canopy rim.

THE CANOPY
The canopy features a window to keep an eye on baby in forward facing position. Lift the flap to reveal the window.

HANDLE ADJUSTMENT

Push and hold the handle height adjustment buttons. At the same time adjust the handle up or down.
Release buttons at your desired position. Listen for the 'click' to ensure the handle is secure.

SWIVEL WHEELS

When travelling along straight surfaces or uneven terrain, the front wheels may spin. To lock the front swivel wheels into place, twist the top of the wheel socket so the notch is towards the front. To go back to 360° swivel mode, twist top of the wheel socket so the notch is towards the back.

BRAKES

Press down on the brake pedal to engage the brake. Listen for the "click" signalling that the brake is locked.
Push the brake pedal upwards to disengage the brake.

Always apply the parking brake when the pram is not moving.

Always apply the brake when you are placing and removing the child.

SEAT LINER
There is a seat liner (I) included for the seat unit. Undo the harness and remove the chest pads and crotch pad.

SEAT LINER
Thread the harness through the slots in the seat liner allocated for the waist, shoulder and crotch straps.

Ensure to thread the shoulder harness through the corresponding slot height of the seat unit.

Re-attach the chest pads and the crotch pad. Repeat the process to remove the seat liner.

RAINCOVER

Locate the raincover (J). Pull the raincover down over the stroller starting at the top of the canopy and pulling down towards the footrest.
NOTE. The raincover will fit the seat unit in both pram and pushchair mode.

Care and Maintenance

CLEANING

• Spot or sponge clean fabrics with mild detergent. Use mild soap or upholstery shampoo. NEVER use bleach. Dry in shade thoroughly before reuse and avoid
• direct heat and sunlight. Do not iron. Do not dry clean.
• Wipe clean plastics and metals with a damp cloth.
• Never clean any part of the product with abrasive, ammonia based, bleach based or spirit type cleaners.
• Ensure the product is fully dry before use or storage.
• Always ensure the product is stored in a dry place to prevent mold or mildew developing.

MAINTENANCE

• The product requires regular maintenance to ensure correct and safe performance.
• Regularly inspect the wheels, locks, brakes, harness, catches, seat adjusters, joints and fixings to ensure they are clean, operating correctly and in full working order.
• Replace tyres if they are excessively worn.
• Do not use this product if any part is broken, torn or missing and use only spares
• provided by the manufacturer.
• If parts become stiff or difficult to operate, ensure dirt is not the cause, then try a light application of a silicon lubricant, ensuring it penetrates between the components. Regular lubrication of moving parts will extend the life of your product and make opening and folding easier.
• After exposure to damp conditions, dry off with a soft cloth and leave fully open in a warm environment. Storing damp will encourage mildew to form.
• Store in a dry place.
• Do not leave in sunlight for prolonged periods as some fabrics may fade.

Safety instructions

PLEASE READ THE FOLLOWING INSTRUCTIONS CAREFULLY BEFORE INSTALLING THE PRODUCT.

•
  Keep for future reference. The child may be hurt if you do not follow these instructions.
•
  A childs safety is your responsibility.
•
  This product is suitable for one child from birth (max. weight 15kg).
•
  Suitable from birth in pram mode up to a maximum weight of 9kg or until
• the child can sit up unaided, roll over or push itself up on its hands and knees.
•
  Not suitable for children under 6 months in pushchair mode.
•
  Follow suitability recommendations given in the separate infant car seat instruction manual.
•
  Never leave the child unattended.
•
  Ensure all locking devices are engaged before use.
• Always apply the parking brake when the product is stationary.
• Ensure the parking brake is engaged during the loading and unloading of the child.
• Take extra care in windy conditions.
• Be careful when going up or down kerbs.
•
  To avoid injury ensure that your child is kept away when unfolding and folding this product.
•
  Do not let your child play with this product.
•
  ALWAYS USE THE HARNESS AS SOON AS YOUR CHILD CAN SIT UNAIDED.
•
  Always use the crotch strap in combination with the waist belt section of the harness.
•
  Check that the pram body or seat unit attachment devices are correctly engaged before use.
•
  This product is not suitable for running or skating.
•
  Do not let other children play or hang on the product.
•
  Do not use this product if any part is broken, torn or missing.
•
  Do not add an additional mattress to the seat unit when in pram mode.
•
  Do not place the product near an open fire or other source of strong heat.
• Adult assembly is required.
