puggle Memphis Manual

Welcome

Please read the instructions and warnings carefully before use to ensure safe and satisfactory operation of your Puggle Memphis 3-in-1 i-Size Travel System.
If you have a query with this product or require replacement parts, please contact Online4baby online at online4baby.com/contact-us.

Carrycot Assembly

Remove the carrycot mattress (N) and unzip the carrycot lining (M) to remove from the carrycot (L).

Pull the metal rods into place as shown. The metal rods should engage with the plastic holders in the carrycot base board. This will give your carrycot its structure.

Ensure metal rods are fully engaged before continuing. Failure to do so could cause collapse and fatality.

Re-zip the carrycot lining (M) onto the carrycot frame and re-insert the carrycot mattress (N).

Do not add an additional mattress to the carrycot.

CANOPY ASSEMBLY
Attach the canopy (O) to the carrycot. First attach the plastic canopy clips to their respective sides. Next, secure the canopy to the frame with the zip. Start with the right side (when facing the seat).

CANOPY ASSEMBLY
The canopy can be opened or closed by pulling forward or backward on the canopy rim. There is also a mesh air vent for maximum air circulation. Lift up the fabric panel at the back of the canopy to reveal the mesh panel.

BUMPER BAR ASSEMBLY

Insert the bumper bar (K) into the connection posts. Listen for a "click" signalling correct assembly. Give the bumper bar a tug to ensure it's securely in place. To remove the bumper bar, simply press the release buttons on either or both sides and lift up.

APRON ASSEMBLY

Starting from the right, zip the apron (P) onto the carrycot. Fasten the press studs to the inside of the canopy frame.

The carrycot is not suitable for overnight sleeping. Never use the carrycot on a stand.

Pram Mode

ATTACHING CARRYCOT TO CHASSIS

Line up the carrycot connectors with the chassis housing and press downwards. Listen for a "click" to signal correct assembly.

The carrycot is suitable for one child from birth who cannot sit up unaided, roll over or push itself up on its hands and knees (approx. 9kg).

DETACHING CARRYCOT FROM CHASSIS

Press the buttons located both sides of the seat connectors and pull up to remove the carrycot from the chassis.

USING PRAM MODE

Suitable from birth in pram mode up to a maximum weight of 9kg or until the child can sit up unaided, roll over or push itself up on its hands and knees.

Never use in pram mode with carrycot forward facing.

Seat Unit Assembly

CANOPY ASSEMBLY

Attach the canopy (F) to the seat unit (E). First secure the canopy to the frame with the zip. Next, attach the plastic canopy clips to their respective sides.

BUMPER BAR ASSEMBLY

Insert the bumper bar (D) into the connection posts. Listen for a "click" signalling correct assembly. Give the bumper bar a tug to ensure it's securely in place. To remove the bumper bar, simply press the release buttons on either or both sides and lift up.

Pushchair Mode

ATTACHING SEAT UNIT TO CHASSIS

Line up the seat connectors with the chassis housing and press downwards. Listen for a "click" to signal correct assembly.

The seat unit is not suitable for children under 6 months.

DETACHING SEAT UNIT FROM CHASSIS

Press the buttons located both sides of the seat connectors and pull up to remove the carrycot from the chassis.

REVERSIBLE SEAT UNIT

The seat unit is reversible in pushchair mode. It can be forward or parent facing.

Press the buttons located both sides of the seat connectors and pull up to remove the seat unit from the chassis. To re-attach the seat unit to the chassis, line up the seat connectors with the chassis housing and press downwards. Listen for a "click" to signal correct assembly.

HARNESS OPERATION

Insert all buckle clips into the buckle housing until they engage securely in place. Listen for the "click".

Press the centre button to release child from harness.

HARNESS ADJUSTMENT

To adjust the shoulder straps, move the slides as shown.

Always adjust the harness to fit your child correctly for their comfort and safety. A loose fitting harness can be very dangerous.

There are 3 shoulder height positions. Undo the harness and rethread to adjust the shoulder height.

Always adjust the shoulder strap height according to baby height and ensure that both straps are at the same height.

THE CANOPY
The canopy can be opened or closed by pulling forward or backward on the canopy rim.

THE CANOPY
The canopy features an extending mesh panel and a window to keep an eye on baby in forward facing position. Unzip the canopy to reveal the mesh panel and lift the flap to reveal the window.

SWIVEL WHEELS

When travelling along straight surfaces or uneven terrain, the front wheels may spin. To lock the front swivel wheels into place, twist the ridged locking mechanism at the top of the front wheels. To go back to 360° swivel mode, twist the ridged locking mechanism at the top of the front wheels back.

BRAKES

Press down on the brake pedal on the rear axle to engage the brake. Listen for the "click" signalling that the brake is locked.
Push the brake pedal upwards to disengage the brake.

Always apply the parking brake when the pram is not moving.

Always apply the brake when you are placing and removing the child.

Always apply the brake when you are making adjustments to the pram (e.g. changing seat direction).

HANDLE ADJUSTMENT

Push the button in the middle of the handle bar and pull or push the handle to your desired height. The handle will "click" into place.

BACKREST ADJUSTMENT

Lift the lever at the back of the seat unit to adjust the seat unit recline. Ensure you hear a "click" as the seat engages at your desired position.

SEAT LINER

There is a reversible seat liner (G) included for the seat unit. To attach the liner, undo the harness and remove the chest pads and crotch pad.

Then thread the harness through the slots in the seat liner allocated for the waist, shoulder and crotch straps.

Ensure to thread the shoulder harness through the corresponding slot height of the seat unit.

Ensure the strap retainers are fully through and secure at the rear of the seat unit.
Re-attach the chest pads and the crotch pad. Reverse the process to remove the seat liner.

FOOTREST ADJUSTMENT

Press both footrest buttons simultaneously and adjust the footrest to the desired position. Listen for the "click" signalling that the footrest is locked into position.

DO NOT attempt to force the footrest position, only adjust using the buttons on both sides of the seat unit.

CUP HOLDER

A cup holder (I) is included and can be easily attached to the side of the chassis.
Line up the cup holder connector with the hook on the side of the chassis handle. Push down firmly.
To remove, push up and pull the cup holder away.

RAINCOVER

Locate the raincover (H). Pull the raincover down over the pram starting at the top of the canopy and pulling down towards the footrest. Fasten the hook and loop fasteners around the chassis to secure.
NOTE. The raincover included will only fit one carrycot, seat unit or car seat.

Travel System

ATTACHING CAR SEAT TO CHASSIS
A car seat (J) and set of car seat adaptors (Q) are included to complete the travel system. Remove the seat unit from the chassis to fit the car seat adaptors. Line up the car seat adaptors with the standard adaptors on the chassis and press downwards. Listen for a "click" to signal correct assembly.

ATTACHING CAR SEAT TO CHASSIS
Place the car seat (J) onto the adaptors. Push down to "click" into place. Pull handle to ensure car seat is secure. Alternatively, attach the adaptors to the car seat first and then attach the car seat to the chassis.

Never attach the car seat forward facing.

Refer to the car seat manual for full details of use.

DETACHING CAR SEAT FROM CHASSIS
Press the buttons located on the sides of the car seat and pull upwards to remove.

DETACHING CAR SEAT FROM CHASSIS
Press the buttons on both sides of the adaptors to remove the adaptors from the chassis.

Elevate Adaptors

ELEVATE ADAPTORS
A set of elevate adaptors (R) are included. When installed, they elevate the carrycot, seat unit and infant carrier. They also allow more space for when using as a tandem stroller.

REMOVING STANDARD ADAPTORS FROM CHASSIS

Remove the standard adaptors (T) by pushing the top button down and sliding them up off the chassis frame.

ATTACHING ELEVATE ADAPTORS TO CHASSIS

Clip the elevate adaptors (R) onto the chassis frame then slide downwards over the chassis connector. Listen for a "click" to signal correct assembly.

REMOVING ELEVATE ADAPTORS FROM CHASSIS

Remove the elevate adaptors by pushing the button down and sliding them up off the chassis frame.

Tandem Adaptors

TANDEM ADAPTORS

A set of tandem adaptors (S) are included to convert your single stroller into a tandem. NOTE. When using as a tandem stroller, you must also always use the elevate adaptors.

ATTACHING TANDEM ADAPTORS TO CHASSIS

Line up the tandem adaptors with the lower chassis connectors and slide downwards over the connectors. Listen for a "click" to signal correct assembly.

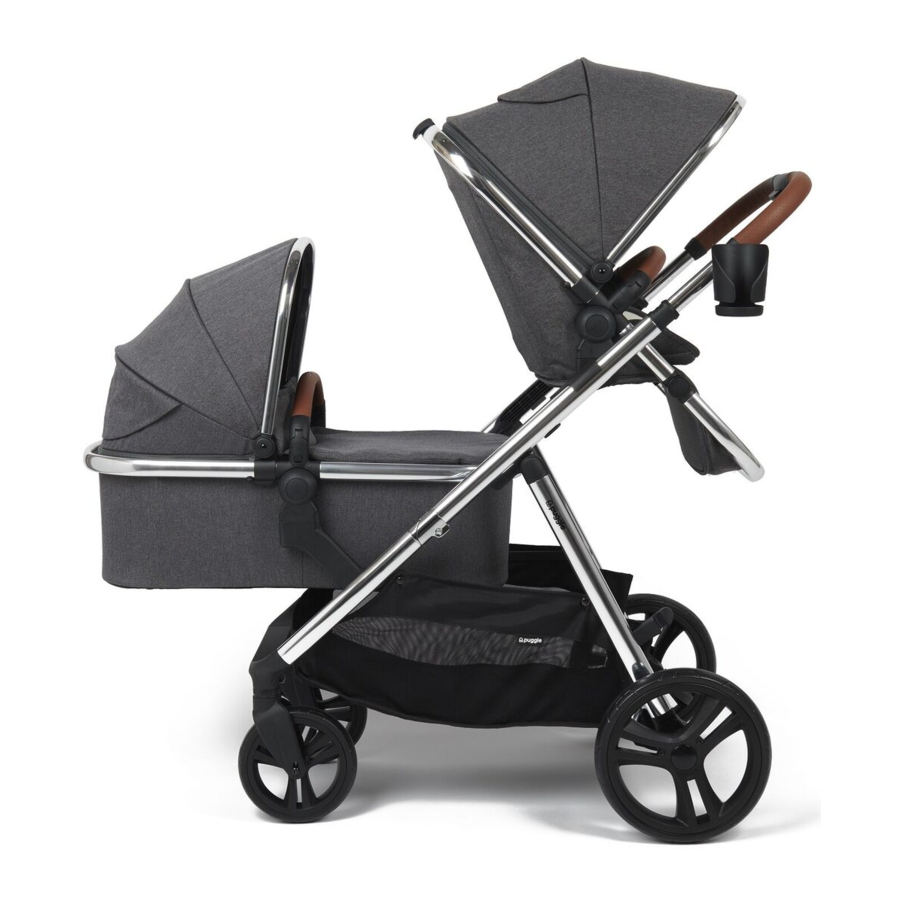

USING AS A TANDEM STROLLER

The stroller can be used as a tandem with the included carrycot, seat unit and infant carrier.
NOTE. The carrycot must be on the bottom of the chassis.

When using as a tandem, load primary child into the main seat first. After child is secured in the main seat, place second child into the lower seat.

DO NOT place a child in the lower seat without a child in the main seat.

REMOVING TANDEM ADAPTORS FROM CHASSIS

Remove the tandem adaptors by pushing the button down and sliding them up off the chassis frame.

Pram Configurations

Folding

REMOVE THE SEAT UNIT AND CAR SEAT

For a more compact fold, remove the seat unit/carrycot before folding. Otherwise, the chassis can only fold with the seat unit assembled forward facing. NEVER fold chassis with the car seat attached. ALWAYS fold the canopy, apply the brakes, and lower handle to the shortest height before folding.

UNLOCK SWIVEL WHEELS

If the swivel wheels are locked, twist the ridged locking mechanism at the top of the front wheels to unlock. This will ensure the wheels can move and do not touch the bar when the chassis is folded.

FOLDING THE CHASSIS

Pull both release triggers towards you and push handle downwards to fold the chassis.

COMPACT FOLD

If the seat unit is assembled, adjust the footrest for a more compact fold.

To avoid injury ensure that your child is kept away when unfolding and folding this product.

Care and Maintenance

CLEANING

• Spot or sponge clean fabrics with mild detergent. Use mild soap or upholstery shampoo. NEVER use bleach. Dry in shade thoroughly before reuse and avoid direct heat and sunlight. Do not iron. Do not dry clean.
• Wipe clean plastics and metals with a damp cloth.
• Never clean any part of the product with abrasive, ammonia based, bleach based or spirit type cleaners.
• Ensure the product is fully dry before use or storage.
• Always ensure the product is stored in a dry place to prevent mold or mildew developing.

MAINTENANCE

• The product requires regular maintenance to ensure correct and safe performance.
• Regularly inspect the wheels, locks, brakes, harness, catches, seat adjusters, joints and fixings to ensure they are clean, operating correctly and in full working order.
• Replace tyres if they are excessively worn.
• Do not use this product if any part is broken, torn or missing and use only spares provided by the manufacturer.
• If parts become stiff or difficult to operate, ensure dirt is not the cause, then try a light application of a silicon lubricant, ensuring it penetrates between the components. Regular lubrication of moving parts will extend the life of your product and make opening and folding easier.
• After exposure to damp conditions, dry off with a soft cloth and leave fully open in a warm environment. Storing damp will encourage mildew to form.
• Store in a dry place.
• Do not leave in sunlight for prolonged periods as some fabrics may fade.

Safety instructions

PLEASE READ THE FOLLOWING INSTRUCTIONS CAREFULLY BEFORE INSTALLING THE PRODUCT.

•
  Keep for future reference. The child may be hurt if you do not follow these instructions.
•
  A child's safety is your responsibility.
•
  Before using, remove and dispose of any plastic bags and other packaging (e.g. fasteners, fixing ties, etc.) and keep them out of reach of children.
•
  This product is suitable for one child from birth up to 9kg with the carrycot and from 6 months, up to 22kg (or 4 years of age, whichever comes first) using the seat unit.
•
  The carrycot is suitable for one child from birth who cannot sit up unaided, roll over or push itself up on its hands and knees.
•
  The seat unit is not suitable for children under 6 months.
•
  The carrycot is not suitable for overnight sleeping. Never use the carrycot on a stand.
•
  The overall load on the vehicle may not exceed 47kg (including the basket).
•
  Follow suitability recommendations given in the separate infant car seat instruction manual.
•
  Never leave the child unattended.
•
  Ensure all locking devices are engaged before use.
• Always apply the parking brake when the product is stationary.
• Ensure the parking brake is engaged during the loading and unloading of the child.
• Take extra care in windy conditions.
• Be careful when going up or down kerbs.
•
  To avoid injury ensure that your child is kept away when unfolding and folding this product.
•
  Do not let your child play with this product.
•
  ALWAYS USE THE HARNESS AS SOON AS YOUR CHILD CAN SIT UP UNAIDED.
•
  Always use the crotch strap in combination with the waist belt section of the harness.
•
  Check that the pram body or seat unit attachment devices are correctly engaged before use.
•
  This product is not suitable for running or skating.
•
  Do not let other children play or hang on the product.
