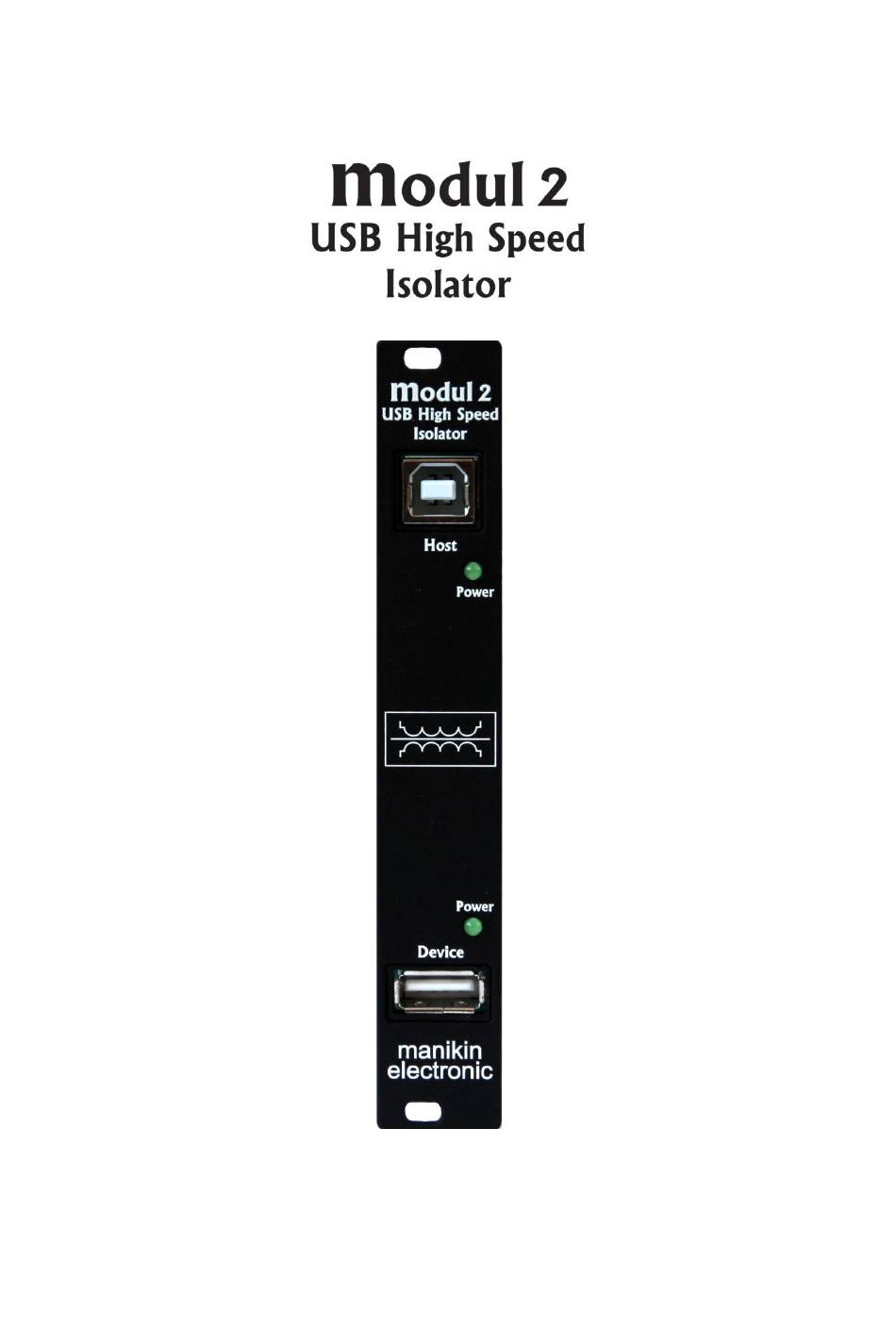

- Page 1 User Manual...
- Page 2 At the same time, the modul 2 is completely transparent. To be able to use the modul 2 as quickly and effectively as possible, you should take the time to read this manual thoroughly.
-
Page 3: Table Of Contents
Inhaltsverzeichnis 1. Introduction................1 2. Initial operation..............3 3. Mode of operation..............4 4. Controls & Connectors............4 5. Basic operation..............5 6. Additional application examples.........5 7. Technical Data..............6 8. Disposal.................7... -
Page 4: Introduction
Do not expose the appliance to strong vibrations. 1.3 Power connection The module 2 is a passive module that does not require a power supply from the Eurorack. It is supplied exclusively from the USB port of the USB 2.0 host. modul 2 User Manual... - Page 5 1.4 Operation When operating the modul 2, ensure that it is installed correctly in your Eurorack. Make sure that no objects get into the module. If this does happen, switch off the device, pull out the mains plug and then contact a qualified specialist dealer.
-
Page 6: Initial Operation
2 mounting screws for mounting the modul 2 in the Eurorack 2.2 Installation in the Eurorack The modul 2 has been developed for use in a Eurorack. All cables and screws required for installation and operation are included in the scope of delivery. -
Page 7: Mode Of Operation
3. Mode of operation The modul 2 is a highly efficient USB isolator for isolating a USB host (PC / laptop) and a USB device, e.g. the modul 1. Both the data connection and the power supply are galvanically isolated. -
Page 8: Basic Operation
USB host device is switched on, the two power indicator LEDs (2 and 3) signal that the modul 2 is ready for operation. Now connect your USB device to the USB device socket (4) of the modul 2. This establishes the connection between your USB host and device. -
Page 9: Technical Data
: 1x USB-A Buchse Indicators : 2x LED Power Supply : USB-Host (5V / 100mA) Output Voltage : 5V / 400mA max. USB Device Port Dimensions (W/H/D) : 4HP / 3U / 28mm Weight : 60g modul 2 User Manual... -
Page 10: Disposal
For information on disposal facilities, please contact your local authority or the store where you purchased this product. modul 2 User Manual... - Page 11 C 2025 by Manikin Electronic All rights reserved www.manikin-electronic.com...
