Identification and Overview
High Range ZPM - Zone Pressure Sensor in a BBox Enclosure

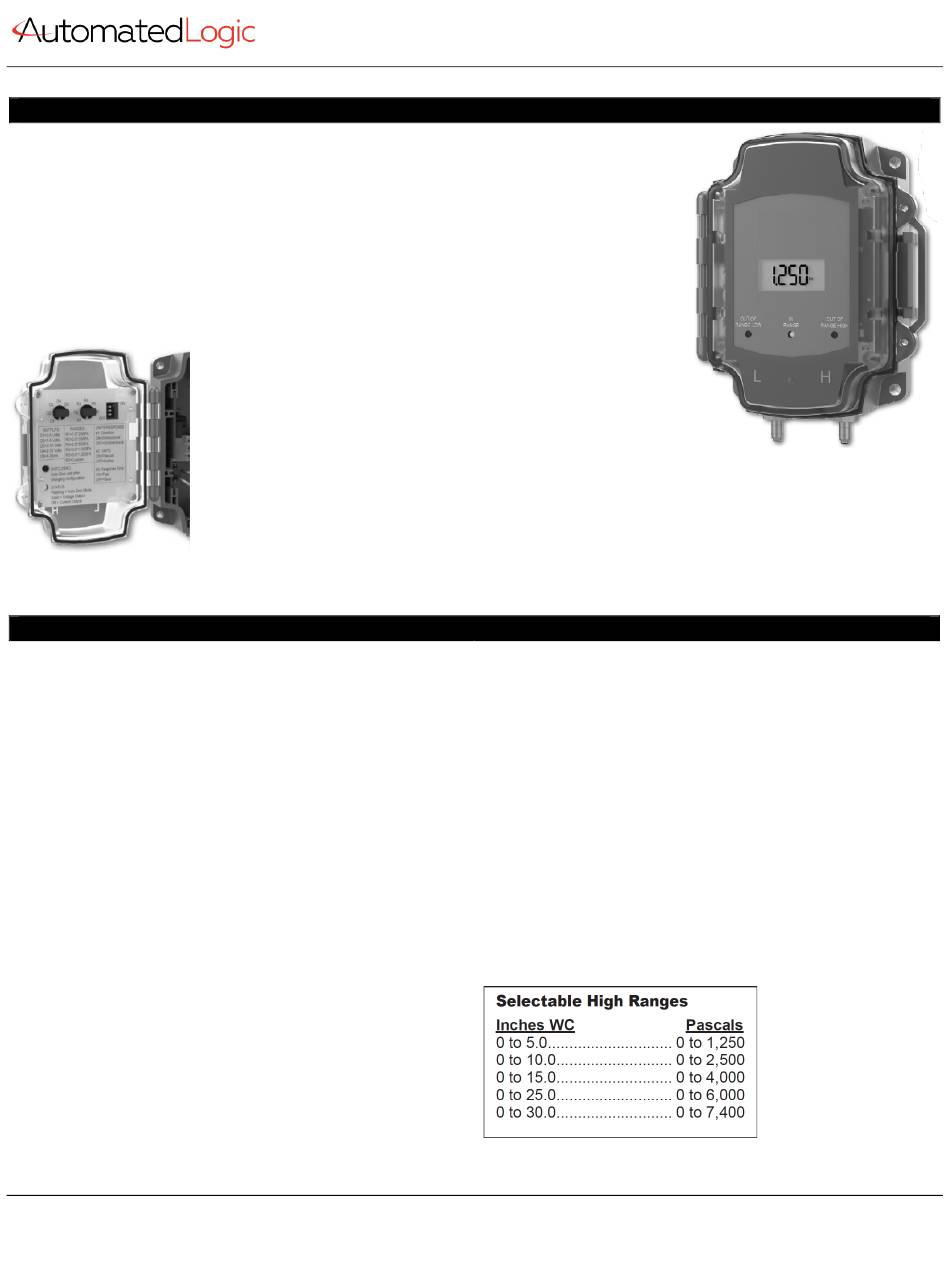

The ZPM is designed for quick and easy field installation. The outputs, ranges, units,
directionality, and response time are all easily set in the field without powering the unit.
The optional LCD display helps with troubleshooting because it displays the actual
pressure regardless of the selected pressure range. Three LEDs on the face of the
unit indicate when the pressure is "Out of Range Low", "In Range" or "Out of Range
High" for the selected range. The appropriate LED will flash when out of range
Part #: N1-ZPM-HR-ST-D-BB-A
Specifications
Power:
7 to 40 VDC (4 to 20 mA Output)
7 to 40 VDC or 18 to 32 VAC (0 to 5 or 1 to 5 VDC
Output)
13 to 40 VDC or 18 to 32 VAC (0 to 10 or 2 to 10 VDC
Output)
Power Consumption:
20 mA max, DC only at 4 to 20 mA Output
5.2 mA max DC at 0 to 5 or 0 to 10 VDC Output
0.12 VA max AC at 0 to 5 or 0 to 10 VDC Output
Load Resistance:
4 to 20 mA Output 850 Ω Maximum @ 24 VDC
0 to 5 or 0 to 10 VDC Output 6KΩ Minimum
System Accuracy:
±0.25% FS at 72°F (22°C) for All Units High Range Unit:
±0.075" WC (±18.66 Pa)
Stability: ±0.25% FS per year
Overpressure: Proof 350" WC (87 kPa)
Media: Clean, dry, non-corrosive gases
Compensated Temperature Range:
32 to 122°F (0 to 50°C)
Ranges and outputs can be set easily without powering the
unit. Just open the hinged cover.
Specifications subject to change without notice.
1150 Roberts Boulevard, Kennesaw, Georgia 30144
770-429-3000 Fax 770-429-3001 | www.automatedlogic.com
High Range ZPM - Zone Pressure Sensor
Environmental Operating Range:
-4 to 140°F (-20 to 60°C)
Storage Temperature: -40 to 185°F (-40 to 85°C)
Humidity: 0 to 95% RH, non-condensing
Wiring:
2 wires (4 to 20mA Current loop)
3 wires (AC or DC powered, VDC output)
Port Size: 1/4" barb
Enclosure Material:
UV-resistant Polycarbonate, UL94, V-0
Enclosure Rating: IP66, NEMA 4
Agency:
CE EN 61326-1:2013 EMC (Industrial Electromagnetic
Environment), UL, RoHS
Specification
Page 1 of 8
