Summary of Contents for Black & Decker BDXBT425

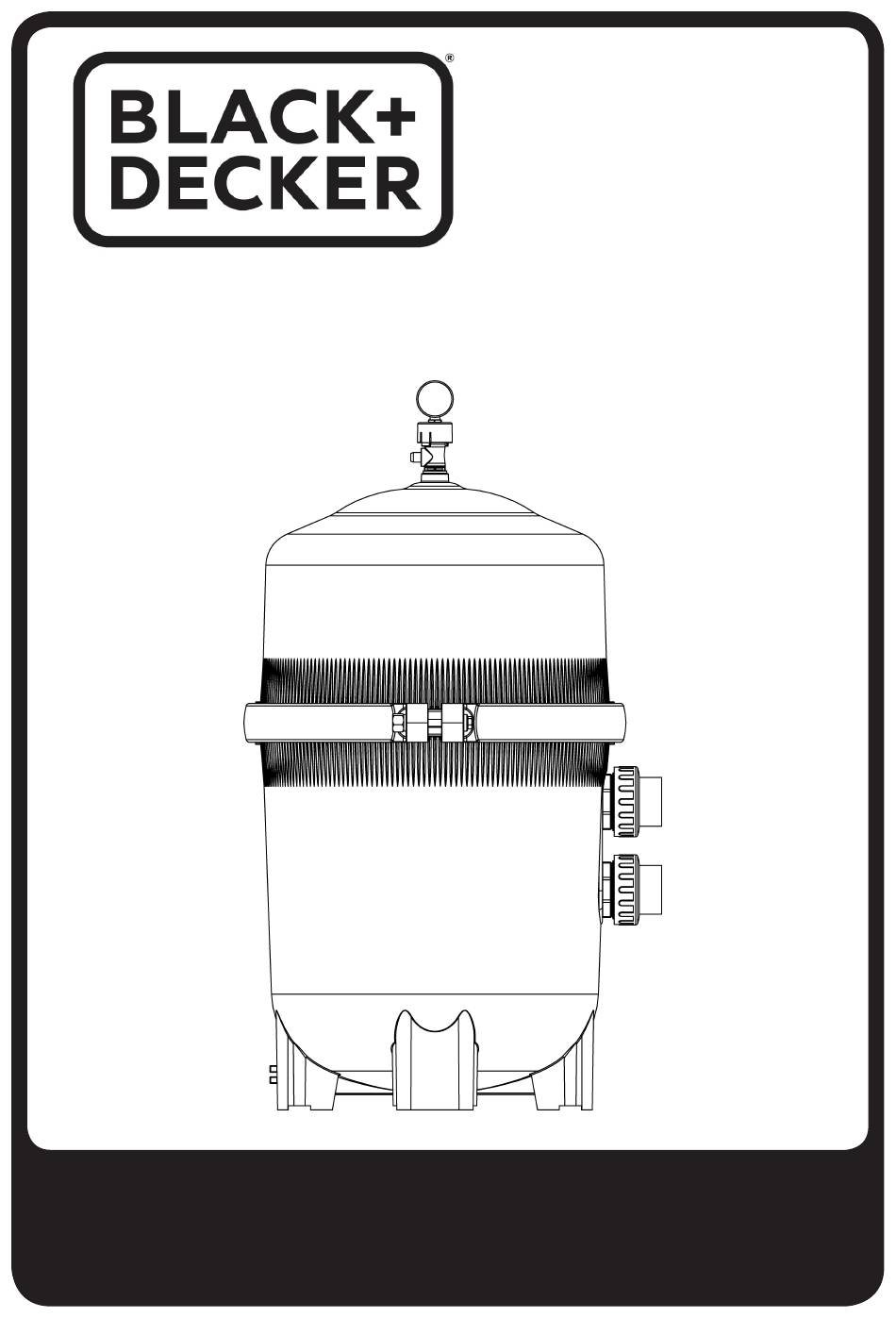

- Page 1 IN-GROUND CARTRIDGE FILTER INSTALLATION & OPERATION MANUAL BDXBT425 BDXBT525 Please read before returning this product for any reason.
-
Page 2: Table Of Contents
Page 2 ENGLISH Installation & Operation Manual TABLE OF CONTENTS 3.6 Pre-Assembly ............. 1. Important Safety Instructions ......2. General Information ........... 3.7 Installing the Clamp ........... 2.1 Introduction ............3.8 Attaching Fittings and Hoses ......2.2 Filter Overview ........... 3.9 Assembly ............ -
Page 3: Important Safety Instructions
ENGLISH Page 3 Installation & Operation Manual Definitions: Safety Alert Symbols and Words This instruction manual uses the following safety alert symbols and words to alert you to hazardous situations and your risk of personal injury or property damage. DANGER: Indicates an imminently hazardous situation which, if not avoided, will result in death or serious injury. WARNING: Indicates a potentially hazardous situation which, if not avoided, could result in death or serious injury. -
Page 4: General Information
Page 4 ENGLISH Installation & Operation Manual 2. General Information 2.1 Introduction This manual contains information for the proper installation and operation of the Black & Decker Cartridge Filter family. The instructions in this manual MUST be followed precisely. 2.2 Cartridge Filter Overview Diatomaceous Earth (DE) Filters have always been renowned for providing crystal clear pool water. -
Page 5: Filter Structure
2.3 Filter Structure PART # DESCRIPTION BD 51322 Press Gauge BD 51330 Air Relief Assembly BD 51349 Upper Filter Tank for BDXBT425 BD 51357 Upper Filter Tank for BDXBT525 BD 51365 Clamp System (Clamp, Nut, Bolt) BD 51373 O-Ring BD 51381... -
Page 6: Installation
Page 6 ENGLISH Installation & Operation Manual 3. Installation 3.1 Location 3.2 Piping The piping sequence is as follows: pool > pool pump > The placement of the filter is very important in keeping filter > heater > corrosion-resistant check valve > chemical installation costs to a minimum while providing for feeder >... -
Page 7: Installing The Clamp
Page 8 ENGLISH Installation & Operation Manual 3.7 Installing the Clamp 3.8 Attaching Fittings and Hoses There are several ways to hook up hoses to your filter and The clamp installation instructions must be followed pump and the best way will depend on your set-up. Some precisely in order to prevent the lid from blowing off during pumps have female threads only (inside), some have male initial startup, restart or filter operation. -
Page 8: Assembly
ENGLISH Page 9 Installation & Operation Manual If your pump has threads on the outside of the outlet (top of the pump) then you will thread one of the connection fittings directly onto it. Thread opposite side directly onto the “FROM PUMP”... -
Page 9: Operating The Filter
Page 10 ENGLISH Installation & Operation Manual 4. Operating the Filter 5. Filter Disassembly and Check all clamps, bolts,lids and system accessories before Reassembly testing. Release all air in system before testing. Tighten trap lids. Water pressure must be less than 25 PSI (172 kPa). DANGER : Hazardous pressure. -
Page 10: Cleaning The Filter
ENGLISH Page 11 Installation & Operation Manual 5.3 Reassembling the Filter Note: If heavy dirt deposits have collected around bottom of filter element and base, wash out base Check the tank gasket located on the lip of the bottom before removing element. tank half. -
Page 11: Troubleshooting
Page 12 ENGLISH Installation & Operation Manual 7. Troubleshooting Problem Possible Cause Corrective Action Element is plugged. Clean the filter. Pipe blocked downstream from filter. Remove obstruction.. Piping too small. Replace with larger pipe (consult dealer for recommendation). Low water flow. Pump hair and lint trap is plugged. -
Page 12: Limited Warranty
ENGLISH Page 13 Installation & Operation Manual 8. Limited Warranty Service Information The Pump Service Center is staffed with trained personnel to provide customers with efficient and reliable pool service. Whether you need technical advice, repair, or genuine factory replacement parts, contact the Pump Service Center. Call: (516) 796-2425 or visit service@blackanddecker-pool.com/warranty@blackanddecker-pool.com.
