Page 3: Description
The sensitivity of the feedback inputs is 1 mA current consumption. • The YD6016ES-CS has a capacitive input filter at each feedback input. This filter suppresses noise (antenna effect) on long line paths and sections. This effectively suppresses false alarms. -
Page 4: Important Notes (Including Health & Safety)
"C". • The YD6016ES-CS must never be installed near sources of intense heat, such as radiators or places exposed to direct sunlight. Therefore, install the YD6016ES-CS in a place with sufficient ventilation to be able to dissipate the waste heat. -
Page 5: Must Read Before Using Yd6016 Product/Hardware Overview

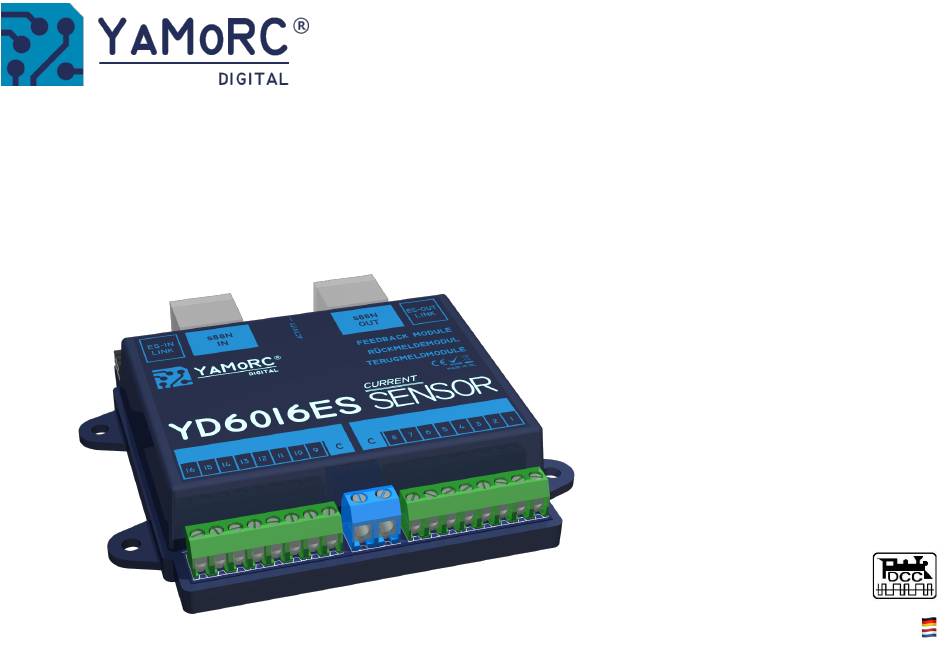

YD6016ES-CS Hardware Overview s88N OUT Connection (5V supply voltage) At this connection four more s88N standard feedback modules with 16 inputs can be connected to this port. Attention! If the "s88-OUT" is used for the connection of further mo dules, the "ES-OUT Link" must not be used at the same time. be used at the same time. -
Page 6: Connection Example Of The Feedback Devices At The 2-Wire Track And Connection Of The Yd6016Es-Cs Via "Es-Link
Operating the YD6016ES-CS on command stations that provide a supply voltage of 12 V at the "s88N master" (e.g. Märklin® CS3+) will therefore destroy the YD6016ES-CS. Attention! All connection work on the YD6016ES-CS must always be performed in a de-energized state. Disconnect the power supply from the mains and switch off! www.yamorc.de... -
Page 7: Connection Example Of The Feedback On The 2-Wire Track And Connection Via S88N To An S88N Capable Control Center
Operating the YD6016ES-CS on command stations that provide a supply voltage of 12 V at the "s88N master" (e.g. Märklin® CS3+) will therefore destroy the YD6016ES-CS. Attention! All connection work on the YD6016ES-CS must always be performed in a de-energized state. Disconnect the power supply from the mains and switch off! www.yamorc.de... -
Page 8: Warranty
Content of the guarantee/exclusions: The warranty includes, at YaMoRC's discretion, the free repair or free replacement of the defective part, which can be proven to be due to design, manufacturing, material or transport faults. For this purpose, you must send the decoder to us properly stamped. Further claims are excluded.
