GE 15163 Quick Start Manual

15163 - 24 HOUR TIME SWITCH
SWITCH: SPST
CONTACT RATINGS:
120-277 V ac, 40 A Resistive, Single Phase
120-277 V ac, 40 A General Purpose, Single Phase
120-277 V ac, 20 A Ballast (Inductive)
120 V ac, 40 A Tungsten
120 V ac, 2HP
240 V ac, 5HP
TIMING MOTOR: 100-120 VAC 60Hz
POWER CONSUMPTION: 3 Watts MAX

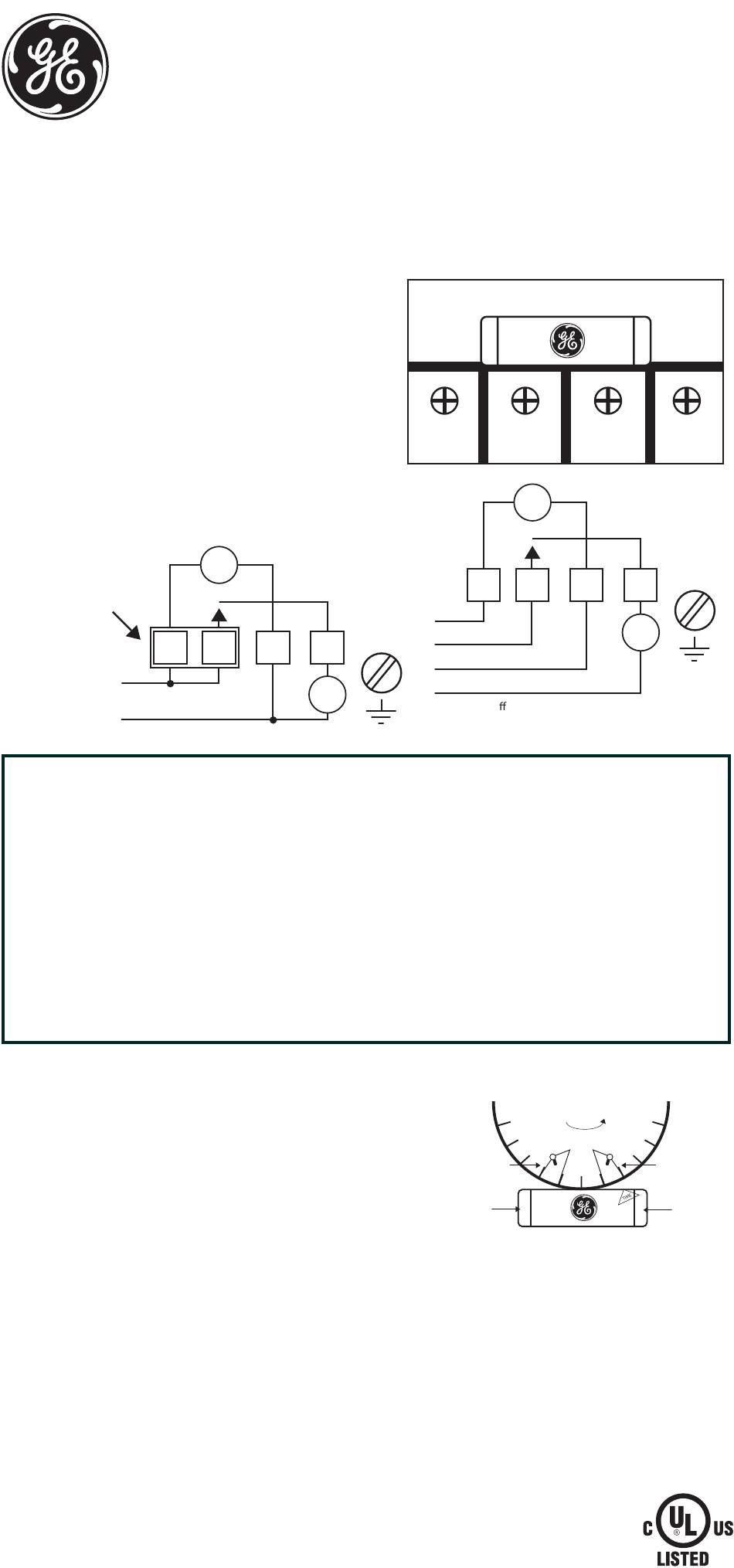

For separate motor terminals,
remove bridge from terminals L & 1
Removable
Bridge
H
H
Typical for same voltage in LOAD and MOTOR
• Recommended installation by licensed electrician.
• High Voltage (There may be more that one source of supply) disconnect all power sources
before servicing.
• Risk of electric shock – All terminals are live.
• Use copper wire only.
• Close the cover after setting.
• Tighten connections to 25 lbf-in.
• Use correct gauge wire (8-14 AWG) based on local electrical code of at least 105C rating.
• Approved for outdoor use.
• Wire strip length ½"
• GROUNDING: National Electrical Code requires that grounding must be continuous and
in proper electrical contact in all grounding conductors, metallic conduits and grounding
terminals.
120VAC/60Hz
INSTALLATION AND OPERATING INSTRUCTIONS TO SET ON
AND OFF TIMES: Light trippers turn ON. Dark trippers turn OFF.
Place tripper on dial edge as shown in figure and set point of
each tripper to desired operating time. Note if selected time
is AM or PM. Hold tripper against dial edge and firmly tighten
knurled screw.
INSTALLATION AND OPERATING INSTRUCTIONS TO SET DIAL
TO TIME: Turn dial counter-clockwise until correct time is
indicated by arrow on nameplate.
FOR TEMPORARY MANUAL OVERRIDE: Press down lever on right of nameplate to turn ON. Press down lever on
left of nameplate to turn OFF. CAUTION: Do not rotate dial for manual override.
TO REMOVE MECHANISM FROM CASE: Press lever near the top of the case, and pull the mechanism out of
the metal box. To replace, insert main plate projections in slots opposite latch and push in mechanism until
it latches.
15163 VERSION 1
03/07/12
WWW.JASCOPRODUCTS.COM
MECHANICAL TIME SWITCH
M
L 1 X
L
H
H
2
N
N
LOAD
Typical for di erent voltage in LOAD and MOTOR
Remove bridge from terminal 1 & L
To separate motor terminal
OFF TIME
(Dark Tripper)
CONNECTIONS
O
F
F
1
(NEUTRAL)
M
L 1 X
Dial Calibrations
Knurled Screw
MANUAL
O
F
OFF
F
LEVER
YYWW
GE5365-41K2
O
N
X 2
2
LOAD
ON TIME
(Light Tripper)
MANUAL
O
ON
N
LEVER
