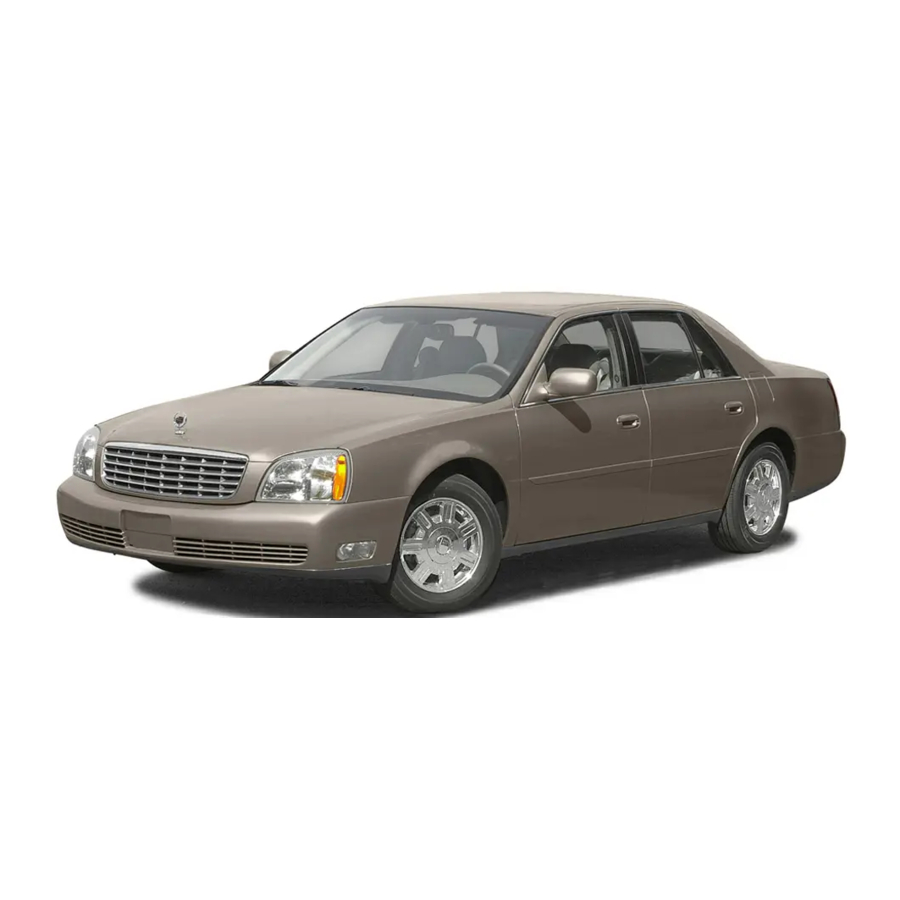

Cadillac DeVille 2004 Manual

INSTRUMENT PANEL DeVille and DHS

1. Air Outlets
2. Driver Information CenterControls
3. Digital Instrument Cluster(available on DHS) Analog Instrument Cluster (DHS)
4. Driver Information Center Display
5. Shift Lever
6. Hazard Warning Flasher
7. Electronic Climate Controls
8. Glove Box
9. Passenger-Side Air Bag
10. Audio System
11. Ashtray/Lighter
12. Steering Wheel Audio SystemControls
13. Cruise Control
14. Driver-Side Air Bag/Horn
15. Tilt Wheel Lever (DeVille) Power Tilt/Telescope Wheel Control (DHS)
16. Parking Brake Pedal
17. Hood Release
18. Steering Wheel Climate System Controls or optional Phone Controls
19. Turn Signal/Multifunction Lever
20. Lighting Controls
21. 12V Power Outlet (On front of Passenger seat, near umbrella tray)

NSTRUMENT PANEL DTS

1. Air Outlets
2. Driver Information Center Controls
3. Digital Instrument Cluster
4. Driver Information Center Display
5. Hazard Warning Flasher
6. Electronic Climate Controls
7. Audio System
8. Glove Box
9. Passenger-Side Air Bag
10. Ashtray/Lighter
11. Console Shift Lever
12. Steering Wheel Audio System Controls
13. Driver-Side Air Bag/Horn
14. Cruise Control
15. Tilt Wheel Lever (Power Tilt/Telescope Wheel Control if equipped)
16. Parking Brake Pedal
17. Hood Release
18. Steering Wheel Climate System Controls or optional Phone Controls
19. Turn Signal/Multifunctional Lever
20. Lighting Controls
21. 12V Power Outlet (On front of Passenger seat, near umbrella tray)

1. Odometer
2. Trip Odometer
3. Engine Coolant Temperature Gauge
4. PRND321 Indicator
5. Speedometer
6. High Beam Indicator Light
7. Turn Signal Indicator
8. Fuel Data Center
9. Traction Control System Warning Light
10. Air Bag Ready Light
11. Brake System Warning Light
12. Seat Belt Reminder Light
13. Service Engine Soon Light
14. Antilock Brake System Warning Light
15. Cruise Control Light
16. The Driver Information Center (DIC) shows the status of many of your vehicle's systems; the DIC also displays driver personalization features and warning/status messages
17. Charging System Light
18. Security Light
19. Oil Pressure Light
20. Engine Coolant Temperature Warning Light
21. Exterior Lamps Indicator Light

11. Safety Belt Reminder Light
12. Antilock Brake System Warning Light
13. Service Engine Soon Light
14. Cruise Control Light
15. Odometer
16. The Driver Information Center (DIC) shows the status of many of your vehicle's systems; the DIC also displays driver personalization features and warning/status messages

17. High Beam Indicator Light Location
18. Trip Odometer
19. Charging System Light
20. Security Light
21. Oil Pressure Light
22. Engine Coolant Temperature Warning Light
23. Fog Lamp Indicator Light (if equipped)
24. Exterior Lamps Indicator Light

Audio Systems

AM/FM Stereo with Compact Disc Player (Base System)

AM/FM Stereo with Cassette and Compact Disc Player

AM/FM Stereo with Cassette and Compact Disc Player/RDS/DSP (DHS & DTS if equipped)

Navigation/Radio System

Note: If your vehicle is equipped with the Radio/Navigation System, please see your NAVIGATION SYSTEM SUPPLEMENT for operating instructions.

AUDIO SYSTEM CONTROL DESIGNATIONS AND FUNCTIONS

PWR – Press to turn system ON or OFF.

VOL – Turn to control volume.

RDS – Press to activate an RDS function.

TA – Press to seek traffic announcement.

MSG – Press to see message when MSG is displayed.

TUNE/SEEK – Press up arrow to seek next station, tape selection or disc track. Press down arrow to seek previous station, tape selection or CD track.

SCAN – Press to scan stations, tape selections or CD tracks.

SOURCE – Press to select tape or disc source.

BAND – Press to select AM, FM or XM band.

– Press to eject tape or disc.

SIDE – Press to play other side of tape.

TONE – Up-level system:

Press and release to display BALANCE, FADE, BASS, TREBLE or MIDRANGE.

TONE () – Base system: Press TONE to select BASS, TREBLE, or MIDRANGE. Press speaker symbol to select BALANCE or FADE.

- LEVEL + — Press to select tone or speaker level.

DSP – Press to turn DSP on and continue to press and release until desired listening experience appears in display. To turn DSP off, press and hold button until DSP OFF is displayed.

1-6 – Base system: Press to select discs loaded in changer.

PTY – Press to select RDS or XM listening category. See Owner Manual for complete instructions.

RDM – Press to listen to CD tracks in random order.

DISC – Press to select next disc if equipped with changer.

RW (<< >>) – Press to rewind tape or reverse through track.

FF (<< >>) – Press to fastforward tape or advance through track.

NEXT – Press to select next tape selection or CD track.

PREV – Press to select previous tape selection or CD track.

PRESET STATIONS

• Turn radio on.
• Select band.
• Tune to desired station.
• Press one of six-numbered buttonsfor two seconds.

SETTING THE TIME

All radios:

• Press and hold HR button until correct hour appears in display.
• Press and hold MN button until correct minute appears in display.
• Display time when ignition is off by pressing either HR or MN button.

RDS radio only: To synchronize time with RDS broadcast information:

• Press and hold HR and MN buttons at same time until TIME UPDATED is displayed. If time is not available from station, NO STATION TIME will be displayed.

LOADING CD CHANGER

• Slide the door of the changer open. The magazine will eject only when the door is completely open.
• Press the EJECT button to remove the magazine. (The EJECT button is on the upper left after the door is opened. In this view, the button is hidden by the closed door.)
• Load the trays into the magazine from the bottom to the top, placing the label side of the CD up.
• To remove a tray, press the buttonon the back of the magazine.
• Push the magazine into the changer, following the direction of the arrow marked on top of the magazine.

FRONT CLIMATE CONTROL SYSTEM
Your climate control system can operate automatically or manually. In the automatic mode, the system automatically controls the temperature and fan speed.

1. Driver-Side Temperature Knob
   Press the knob to turn the system on. Turn the knob to increase or decrease the temperature.
2. Outside Temperature Display
3. Auto
   Press the AUTO button to switch from manual to automatic operation.
4. Passenger-Side Temperature Press the PASS TEMP button to turn the system on. Press the up or down arrow to increase or decrease the temperature.
5. PASS OFF
   Press button to deactivate the dual zone system.
6. AC
   Press this button to turn the air conditioning on and off.
7. Recirculation
   Press this button to limit the amount of outside air entering the vehicle.
8. Fan
   During AUTO operation, the fan is automatically controlled. In the manual mode, to increase or decrease fan speed, press the up or down arrow.
9. Mode
   Press the button to deliver air through the floor, middle or windshield outlets. Settings include heater, bi-level, upper and defog.
10. Rear Window Defogger
    Press this button to defog the rear window and both outside mirrors.
11. Defrost
    Press this button to quickly remove fog or frost from the windshield.

REAR CLIMATE CONTROL

1. Mode
   Press this button to enter MANUAL mode, and to adjust airflow direction up or down.
   1. To enter AUTO mode, press the button down until the display indicates AUTO.
2. Fan Speeds
   Press this button to adjust blower speed.
3. Temperature
   Press the TEMP up or down button to adjust the temperature.

4. INFO
   Press this button up or down to display information such as battery volts, oil life, average miles per gallon, and outside air temperature.
5. INFO RESET
   Press this button to reset average fuel economy, fuel used, average speed, timer, oil life left, and transmission fluid life.

DRIVER MEMORY SETTINGS

(if equipped)

Four-Button Memory Systems
Set Seat and Mirror positions, Climate Control and Audio Settings, and (if equipped) Power Tilt/Telescope Steering Wheel With vehicle in PARK (P), adjust driver's seat (including lumbar support and recliner) outside rearview mirror positions, climate control, audio settings and (if equipped) power tilt/telescope steering wheel position.

1. Press and hold the SET button until you hear a beep.
2. Press and hold one of the two numbered buttons until you hear a beep.

Unless REMOTE RECALL (see Personalization Guide) has been turned OFF, unlocking with the key fob will recall the settings.

Set EXIT Position
With vehicle in PARK (P), adjust driver seat (including recliner) and the power tilt/telescoping steering wheel (if so equipped) to desired exit position.

1. Press the SET button. Release it when you hear a beep.
2. Press the EXIT button. Release it when you hear a beep.

Three-Button Memory Systems
If your vehicle is equipped with the three button memory system, follow these procedures to set the memory: With the vehicle in Park (P) adjust the driver's seat including lumbar support and recliner, outside rearview mirror positions, climate control and audio settings and (if equipped) power tilt/telescoping steering wheel position.

1. Press and hold Memory button 1 or 2 until two beeps sound. Again look at your RKE transmitter to determine which Memory button you need to set.

Set EXIT Position

1. Recall driver position by briefly pressing the appropriate Memory button or RKE unlock button.
2. Adjust driver seat and power tilt/telescoping steering wheel (if equipped) to the desired exit position.
3. Press and hold the EXIT button until two beeps sound.

These settings can be restored by pressing the Memory 1 or 2 button on the driver's door (shown above), or by using the Remote Keyless Entry (RKE) transmitter. The vehicle memory settings will correspond to the number on the RKE: 1 or 2.

Heated Seats Heated and Cooled Seats (if equipped)

Your vehicle may have heated or heated and cooled seats. The buttons are located on the driver and front passenger door armrests.

The button with the heat lines through just the seatback turns on the heated seatback.

The button with heat lines through both the seatback and seat cushion turns on the heated seatback and seat cushion.

The button with the snow flake above the seat turns on the cooled seatback and seat cushion.

There are three temperature settings for each of the features above.

A light bar on the controls will display which setting the feature is in: high, medium or low. The longest bar shows the high range and the shortest bar shows the low range.

When you press a button, the feature will turn on the highest setting. Each time you press the button, the feature will go down one temperature setting.

To turn the feature off, keep pressing the button until the display lights turn off.

ULTRASONIC REAR PARKING ASSIST (URPA) (if equipped)

This feature uses ultrasonic sensors in your bumper to help determine how close an object is to your rear bumper.

Both a variable audible chime and three color coded lights (located inside your vehicle above the rear window) convey your distance to an object.

URPA activates automatically when your vehicle is shifted into Reverse (R) and your vehicle speed is less than 3 mph (5 km/h).

Disable URPA
To disable URPA, press the URPA on/off button located near the climate control system and radio.

NIGHT VISION (if equipped)

This feature helps you see better at night — beyond the headlamps — by sensing heat given off by objects in its field of view.

Warmer objects such as pedestrians, animals and other moving vehicles will appear white. Colder objects, such as the sky, signs and parked vehicles, will appear darker.

The controls are located on the lower-left side of the instrument panel. They can be used to adjust the brightness and location of the image.

1. Operate Night Vision
   Move the dimmer switch up to turn On. Continue upward to increase brightness. Move switch down to decrease brightness.
   To turn off image, move dimmer switch to OFF position.
2. Locate Image Push up on the image switch to raise the image or down to lower the image.

Personalization Guide

You can personalize many of your DeVille's features to your own needs.

DIC = Driver Information Center
RKE = Remote Keyless Entry

With the ignition key ON and the vehicle in PARK (P), press the appropriate memory button "1" or "2" on the driver's door panel that corresponds to the number on the back of your RKE.

Note: Memory 1 or 2 is dependent on the RKE transmitter being used and the key being in the ignition during programming. See the back of your RKE transmitter for the corresponding memory number.

The following features and instructions are for vehicles equipped with either Digital or Analog instrument clusters.

DIC readout on INSTRUMENT CLUSTER with OFF/ON status

DIC controls located to right of cluster

The back-lit buttons, which control the DIC, are located immediately to the right of the instrument panel:

• INFO button selects the next feature.
• INFO/RESET button exits the programming.
• ON/OFF turns feature on or off.

To start programming press () on the INFO button until Feature Programming appears in the DIC. Press the ON/OFF button to enter feature programming. Press down () on the INFO button to scroll through the menu. To exit, press the INFO RESET button.

Do not attempt programming the vehicle while driving.

ENGINE COMPARTMENT

1. Coolant Fill
2. Power Steering Fluid Fill Location
3. Brake Master Cylinder
4. Air Filter
5. Transaxle Fluid Dipstick
6. Engine Oil Dipstick
7. Oil Fill Location
8. Windshield Washer Fluid Fill
9. Fuses/Relay Center
