Fisher TAC-M80 Service Manual

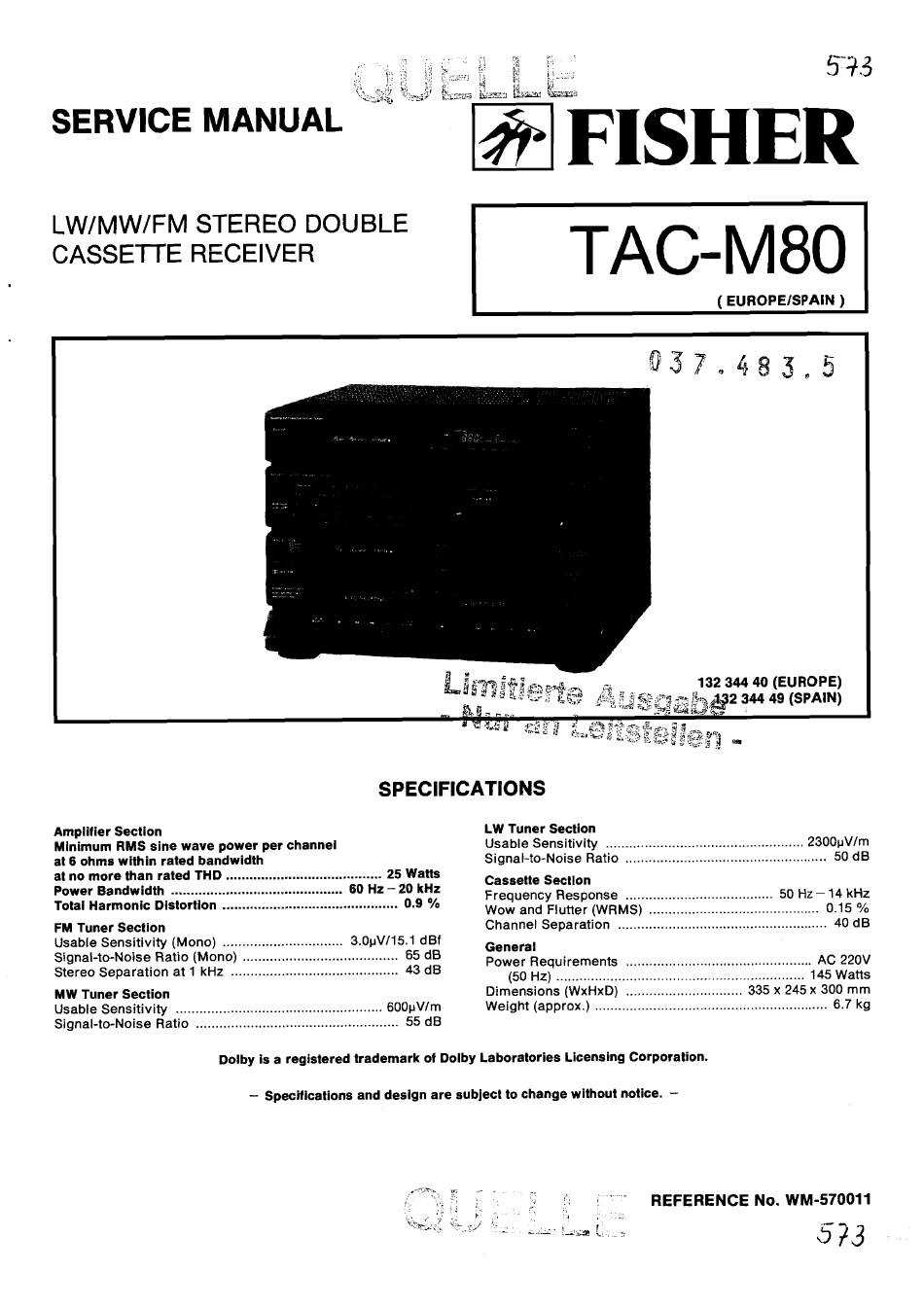

SERVICE MANUAL FISHER
LWIMWIFM STEREO DOUBLE
CASSET-TE RECEIVER
SPECIFICATIONS
Amplifier Section
Mlnimum RMS sine wave power per channel
at 6 ohms within rated bandwidth
........................................
at no more than rated THD
25 Watts
Power Bandwidth
............................................
60 Hz
-
20 kHz
Total Harmonic Distortion
........................................
0.9 %
FM Tuner Section
Usable Sensitivity (Mono)
...............................
3.OpV115.1 dBf
Signal-to-Noise Ratio (Mono)
........................................
65 dB
Stereo Separation at 1 kHz
...........................................
43 dB
MW Tuner Section
.....................................................
Usable Sensitivity 600pVlm
Signal-to-Noise Ratio
....................................................
55 dB
LW Tuner Section
...................................................
Usable Sensitivity 2300pVlm
....................................................
Signal-to-Noise Ratio 50 dB
Cassette Section
Frequency Response
......................................
50
Hz
-
14 kHz
............................................
Wow and Flutter (WRMS)
0.15 %
......................................................
Channel Separation 40 dB
General
................................................
Power Requirements AC 220V
(50 Hz)
................................................................
145 Watts
..............................
Dimensions (WxHxD)
335 x 245 x 300 mm
............................................................
Weight (approx.) 6.7 kg
Dolby is a registered trademark of Dolby Laboratories Licensing Corporation.
-
Specifications and deslgn are subject to change without notice.
-
,"
-\
