Fisher TAC-M82 Service Manual

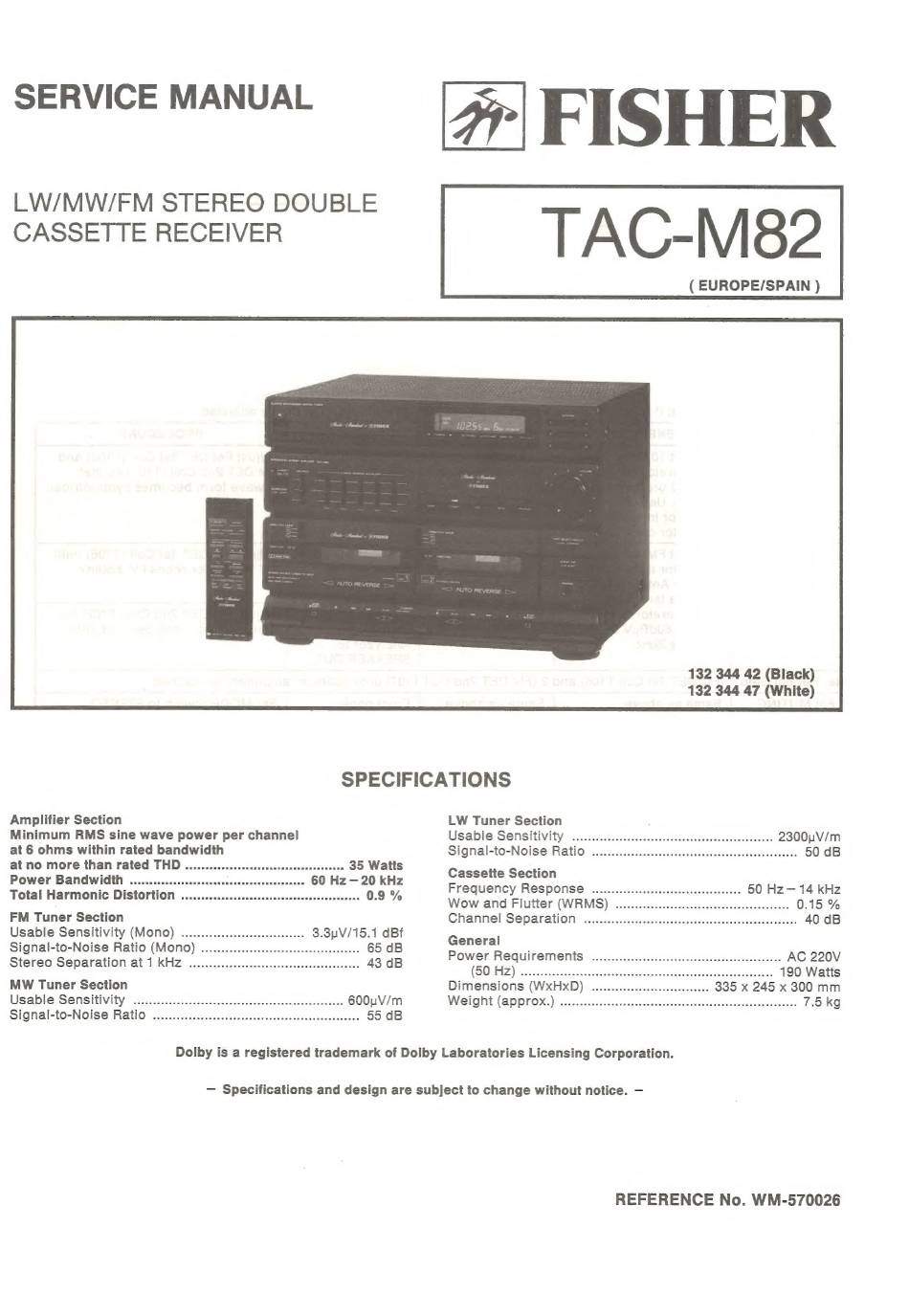

SERVICE MANUAL

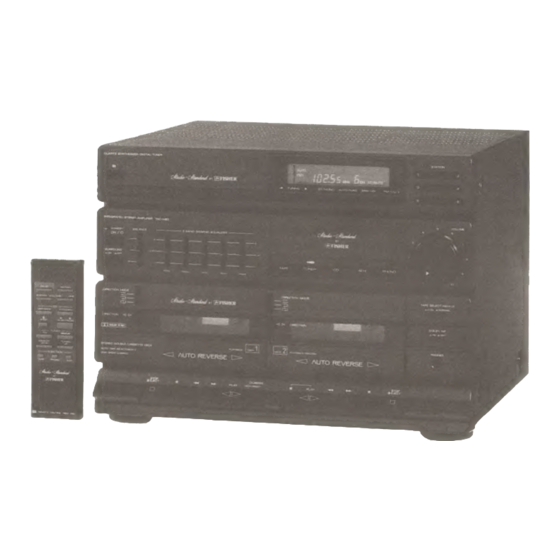

LW/MW/FM STEREO DOUBLE
CASSETTE RECEIVER
( EUROPE/SPAIN )
132 344 42 (Black)
132 344 47 (White)
SPECIFICATIONS
Amplifier Section
Minimum RMS sine wave power per channel
at 6 ohms within rated bandwidth
at no more than rated THD .............:cccsssssssecsessessereeees 35 Watts
Power Bandwidth ........:cc:ccccssssceescsnsseccesennsstenss 60 Hz — 20 kHz
Total Harmonic Distortion ..............sccssssssecescsseseesseenenens 0.9 %
FM Tuner Section
Usable Sensitivity (MONO) ............ccccccccceeseeeees 3.3nV/15.1 dBf
Signal-to-Noise Ratio (Mono) 65 dB
Stereo Separation at 1 KHZ oo... cccccceseeeeeeeeeeeeeeees 43 dB
MW Tuner Section
Usable: Sensitivity, assccicdisssesscsus tasezsostessssaaesenecioeenesaaes 600yuV/m
Signal-to-Noise Ratio ..............ccccssesscsseceececenecceeceescesseees 55 dB
LW Tuner Section ,
Usable: SGnSitivity® svssicccc.cccsius ices cance sewsaven ssewsertixcceosce 2300"uV/m
Signal-to-Noise Ratio ..........ecccccssssssecseeesessenecensersecees 50 dB
Cassette Section
Frequency ReSponse ..............cssssccceesesssnreeneees
Wow and Flutter (WRMS)
Channel S@paration): sieiceissicesiewesesies ceseees cccnedeseasadsssscaans
General
Power RequireMents ...........ccccccsssscccesesssssssereseeneanee AC 220V
(BO AZ) cscead ees iecesiuieescdasenesdivandanetnacaservdcesiescassenes 190 Watts
Dimensions (WxHxD) ... 335 x 245 x 300 mm
WEIGHtE (QPPTOX:) a sascesscscscnsndececsievevsesessccissevesddecavadrordeanaes 7.5 kg
Dolby is a registered trademark of Dolby Laboratories Licensing Corporation.
— Specifications and design are subject to change without notice. —
REFERENCE No. WM-570026
