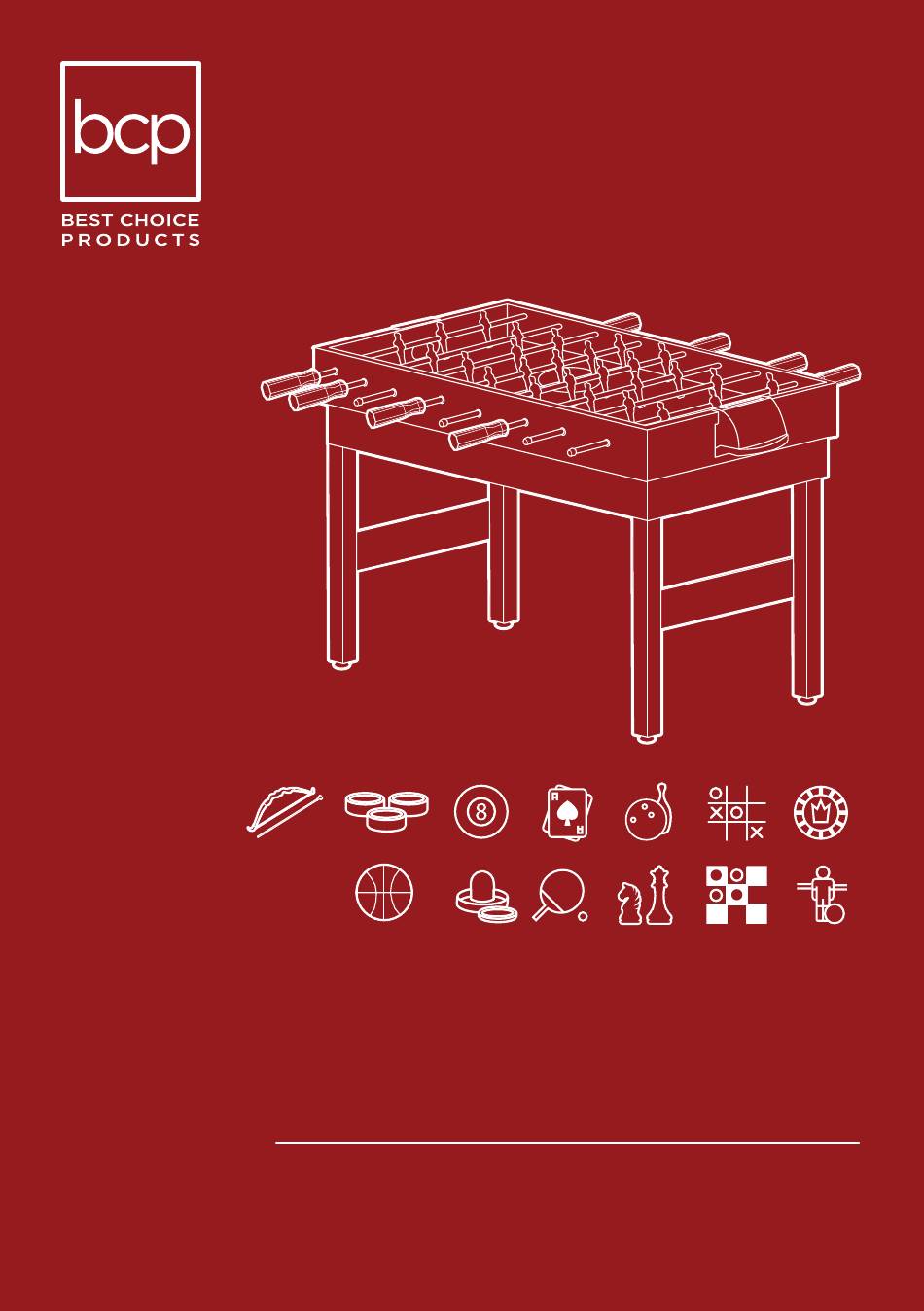

- Page 1 INSTRUCTION MANUAL 13-in-1 Multi-Game Table SKY6712 + SKY6713 + SKY8141 + SKY8360 Ver. 2...
- Page 2 Fasten screws loosely during assembly. Do not firmly tighten screws until item is fully assembled. bestchoiceproducts.com CHOKING HAZARD - Toy contains a small ball. Not for children under 3 years old. CHOKING HAZARD - Small parts. Not for children under 3 years old. ADULT ASSEMBLY REQUIRED...
-
Page 3: Tools Required
NOTICE Please retain these instructions for future reference. • Please read all instructions before attempting to install or assemble this item. Assembly should be done by adults only. • This product contains small parts for assembly. Keep small children and pets away during assembly. •... - Page 4 HARDWARE HANDLE END CAP RUBBER BASKETBALL BUMPER BACKBOARD HOOK 8 PCS 8 PCS 16 PCS 2 PCS FRAMING STOP BRACKET STOP BRACKET BRACKET (LEFT) (RIGHT) 2 PC 1 PC 1 PC PARTS SIDE PANEL END PANEL 3-HOLE ROD 2 PCS 2 PCS 4 PCS 2-HOLE ROD...
- Page 5 PARTS HOME PLAYER TABLE SUPPORT BASKETBALL BOARD 13 PCS 2 PCS 1 PC SLING PUCK/BOWLING CHESS/CHECKERS BILLIARDS TABLE /SHUFFLEBOARD /TIC-TAC-TOE BOARD 1 PC 1 PC 1 PC LEFT LEG RIGHT LEG HOCKEY/TABLE TENNIS PLAYFIELD 2 PCS 2 PCS 1 PC GOAL BOX BASKETBALL RIM BASKETBALL RETURN...
- Page 6 PARTS SOCCER PLAYFIELD SUPPORT BRACE SAFETY LOCK 1 PC 2 PCS 2 PCS ACCESSORIES BILLIARD BALLS CUE STICK CHALK TRIANGLE 1 SET 2 PCS 2 PCS 1 PC HOCKEY PUSHER HOCKEY PUCK FELT PAD NET & POST 2 PC 2 PCS 2 PCS 1 SET CHESS...
- Page 7 ACCESSORIES SHUFFLE BALL BRUSH SUCTION CUP ARROW 1 SET 1 PC 1 PC 3 PCS BASKETBALL NET BASKETBALL AIR PUMP W/ MESH STORAGE NEEDLE 1 PC 1 PC 1 PC 1 PC PLASTIC RIVET BALL STOP SOCCER BALL LARGE ACCS. PLUG STORAGE BAG 4 PCS...
-
Page 8: Product Assembly
PRODUCT ASSEMBLY Position two part A side panels upside down with the ball entry hole closer to the floor. Attach a part B end panel with four part 7 screws . Flip part S soccer playfield upside down and slide it into the designated slots. Attach another part B end panel and two part T support brace with eight part 7 screws . - Page 9 PRODUCT ASSEMBLY Flip the game table over. Slide the appropriate number of part F and G away/home players onto the part C, D, and E rods . Slide two part 15 rubber bumpers onto each rod, one bumper on each side. Slide one end of a rod into the designated hole, then slide the other end into the opposite hole.
- Page 10 PRODUCT ASSEMBLY Secure players with twenty-six part 8 bolts and twenty-six part 9 nuts , one bolt/nut per player. Each player has a recessed inset for the fastening nut, consider this the “back” of the player. Attach two part P goal boxes to the part B end panels with eight part 6 screws .
- Page 11 PRODUCT ASSEMBLY Slide eight part 13 handles and eight part 14 end caps onto the rods, one handle and one end cap per rod. Secure each handle with one part 1 screw , eight screws total. Flip the part L billiards table upside down. Attach four part M & N table legs (L/R) with sixteen part 4 bolts and sixteen part 5 washers , four screws/washers per leg.
- Page 12 PRODUCT ASSEMBLY Locate the front of the part L billiard table and attach the part A20 mesh storage bag with three part 2 screws and three part 3 nuts . Attach the part A26 main storage hammock to the billiard table with eight part 6 screws .
- Page 13 PRODUCT ASSEMBLY Flip the billiard table upright, then attach two part 19 framing brackets to the back of the part L billiard table with four part 10 screws , two screws per bracket. Attach one part 17 & 18 stop brackets (L/R) to the part M & N legs with four part 11 screws , two screws per bracket.
-
Page 14: Playing Games
PLAYING GAMES Rearrange the game table depending on the game you would like to play. • Billiards • Shu eboard • Foosball • Bowling • Table Hockey • Sling Puck • Table Tennis • Cards • Chess • Basketball • Checkers •... - Page 15 PLAYING GAMES Chess/Checkers/Tic-Tac-Toe: Place the part K Chess/Checkerboard on a flat level surface and use either the part A9 chess set or • part A11 sling pucks/checkers . Flip the board and use the part A11 sling pucks/checkers to play tic-tac-toe. •...
- Page 16 PLAYING GAMES Table Tennis/Hockey: Flip part O to the hockey playfield and place it on the billiards table. Locate two part A7 felt pads , peel • the paper backing and attach them to two part A5 hockey pushers . Use the part A6 hockey pucks to play.
- Page 17 PLAYING GAMES Basketball/Archery: Insert the part O table tennis playfield into the part 17, 18, and 19 brackets with the table tennis side • face the billiards table. Insert two part A21 plastic rivet plugs into the openings near the front end of the billiard table sides, •...
- Page 18 PLAYING GAMES Basketball/Archery: • Locate and attach the part A17 basketball net and attach it to the part Q basketball rim . • Locate the part I basketball board and attach the part Q basketball rim with four part 10 screws . •...
- Page 19 PLAYING GAMES Basketball/Archery: • Locate the part R basketball return net and attach it to the part L billiard table and part O table tennis playfield by looping the canvas hooks over the part A21 plastic rivet plugs , secure by wrapping the elastic strap on the return net around part O .
-
Page 20: Help Center
HELP CENTER Question about your product? We're here to help. Visit us at: help.bestchoiceproducts.com CHAT Chat Support Product Inquiry Orders FAQ Product Assembly Returns & Refunds PRODUCT WARRANTY INFORMATION All items can be returned for any reason within 60 days of the receipt and will receive a full refund as long as the item is returned in its original product packaging and all accessories from its original shipment are included.
