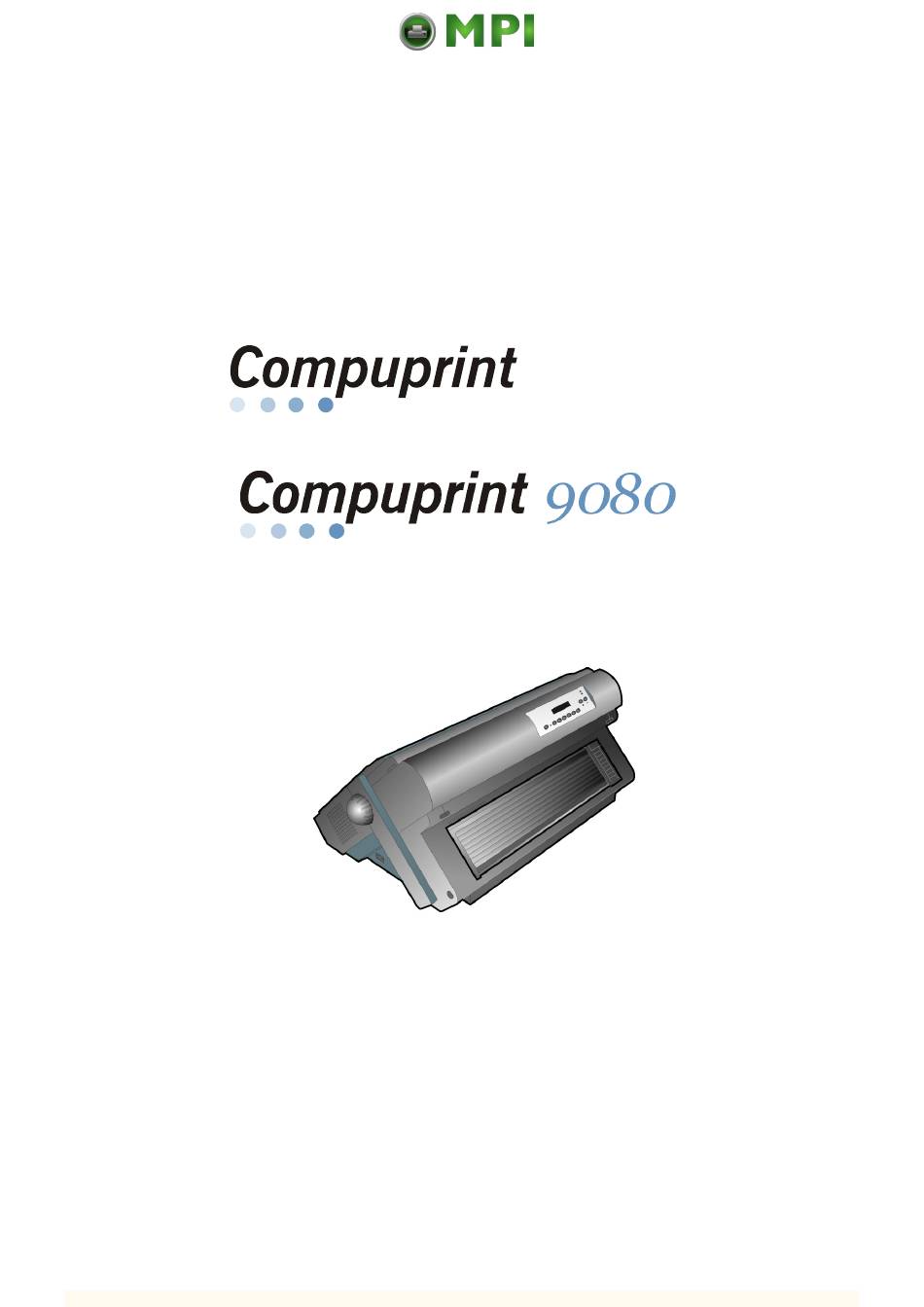

  • Page 1 9065 Rev. 01 78413010-001 Sett. 08 Mantenimiento Periféricos Informáticos C/Canteras,15 28860 Paracuellos de Jarama Madrid Tel: 91 748 16 04 www.mpi.com.es...

  • Page 2: Compuprint Products Information

    Sferal advises the customers not to use products for which the compliance to this safety rules are not warranted. Finally seek your dealer or contact a Sferal office and be sure that are provided you the original Compuprint branded consumables. Mantenimiento Periféricos Informáticos C/Canteras,15 28860 Paracuellos de Jarama Madrid Tel: 91 748 16 04 www.mpi.com.es...
  • Page 3 The above openings must always be protected with their cover. Do not touch inside and do not insert any object into these openings or into the gears. Mantenimiento Periféricos Informáticos C/Canteras,15 28860 Paracuellos de Jarama Madrid Tel: 91 748 16 04 www.mpi.com.es...

  • Page 4: Ffc Notes

    Attention: This is a Class A product. In a domestic environment this product may cause radio interference in which case the user may be required to take adequate measures. Mantenimiento Periféricos Informáticos C/Canteras,15 28860 Paracuellos de Jarama Madrid Tel: 91 748 16 04 www.mpi.com.es...

  • Page 5: Table Of Contents

    The Printer Pedestal ............151   Power-On Configuration ..........33   Printer Specifications ........152   Entering the Power-On Configuration ....... 33   Program Setup ..............72   Mantenimiento Periféricos Informáticos C/Canteras,15 28860 Paracuellos de Jarama Madrid Tel: 91 748 16 04 www.mpi.com.es...

  • Page 6: Getting To Know Your Printer

    • Bi-directional IEEE 1284 parallel interface, standard serial RS-232/C interface and USB interface • Ethernet 10/100 Base-T interface option that coexists with the parallel interface • Optional 4 pin 2° Front Push Tractor • Optional printer pedestal Mantenimiento Periféricos Informáticos C/Canteras,15 28860 Paracuellos de Jarama Madrid Tel: 91 748 16 04 www.mpi.com.es...

  • Page 7: Printer Features (Prt9080)

    • Ethernet 10/100 Base-T interface option that coexists with the parallel interface • Optional 6 pin 2° Front Push Tractor (2 fanfold) • Optional printer pedestal Mantenimiento Periféricos Informáticos C/Canteras,15 28860 Paracuellos de Jarama Madrid Tel: 91 748 16 04 www.mpi.com.es...

  • Page 8: Unpacking Your Printer

    The following items are included in the box: Notify any damage to your supplier. (with User Manual included) Power Cable Ribbon Cartridge Mantenimiento Periféricos Informáticos C/Canteras,15 28860 Paracuellos de Jarama Madrid Tel: 91 748 16 04 www.mpi.com.es...

  • Page 9: Printer Parts

    PRT9065 and PRT9080 models Mantenimiento Periféricos Informáticos C/Canteras,15 28860 Paracuellos de Jarama Madrid Tel: 91 748 16 04 www.mpi.com.es...

  • Page 10: Rear View

    Mantenimiento Periféricos Informáticos C/Canteras,15 28860 Paracuellos de Jarama Madrid Tel: 91 748 16 04 www.mpi.com.es...

  • Page 11: Setting Up Your Printer

    • The power outlet must be compatible with the plug of the printer's power cord. There must be sufficient clearances on sides easy operation. required space is shown in the figure: Mantenimiento Periféricos Informáticos C/Canteras,15 28860 Paracuellos de Jarama Madrid Tel: 91 748 16 04 www.mpi.com.es...

  • Page 12: Printer Assembly

    Open all the printer covers and make sure that you remove all the shipment locks from the printer. Mantenimiento Periféricos Informáticos C/Canteras,15 28860 Paracuellos de Jarama Madrid Tel: 91 748 16 04 www.mpi.com.es...

  • Page 13: Ribbon Cartridge Installation

    Cartridge Pins Cartridge Pin To be used when the ribbon shifter option is not To be used when the ribbon shifter option is installed installed Mantenimiento Periféricos Informáticos C/Canteras,15 28860 Paracuellos de Jarama Madrid Tel: 91 748 16 04 www.mpi.com.es...
  • Page 14 4. Open the top cover using the small handles on either side of the top cover. 5. The print carriage prepares for ribbon cartridge installation. Mantenimiento Periféricos Informáticos C/Canteras,15 28860 Paracuellos de Jarama Madrid Tel: 91 748 16 04 www.mpi.com.es...
  • Page 15 6. Align the right and left cartridge pins with the printer locking points. Black cartridge when the ribbon shifter option is Black “Long Life” cartridge when the ribbon not installed shifter option is installed Mantenimiento Periféricos Informáticos C/Canteras,15 28860 Paracuellos de Jarama Madrid Tel: 91 748 16 04 www.mpi.com.es...
  • Page 16 8. If the shifter kit option is installed on Ribbon Guide your printer, insert the shifter holder onto the ribbon shifter as shown in Shifter Holder this figure. Ribbon Shifter Mantenimiento Periféricos Informáticos C/Canteras,15 28860 Paracuellos de Jarama Madrid Tel: 91 748 16 04 www.mpi.com.es...
  • Page 17 12. To ensure that the ribbon guide runs freely along the ribbon, manually move the print carriage horizontally. If the used ribbon cartridge needs to be replaced, see "Replacing The Ribbon Cartridge", later in this manual. Mantenimiento Periféricos Informáticos C/Canteras,15 28860 Paracuellos de Jarama Madrid Tel: 91 748 16 04 www.mpi.com.es...

  • Page 18: Host Computer Connection

    • An USB interface. • Second Controller: this controller provides the following two interfaces: • A bidirectional IEEE1284 parallel interface • An Ethernet LAN interface. Mantenimiento Periféricos Informáticos C/Canteras,15 28860 Paracuellos de Jarama Madrid Tel: 91 748 16 04 www.mpi.com.es...
  • Page 19 Insert the serial interface cable into the serial connector and fasten it by means of the two screws (use the screwdriver). Insert the USB interface cable into the USB connector Insert the LAN interface cable into the LAN connector. Mantenimiento Periféricos Informáticos C/Canteras,15 28860 Paracuellos de Jarama Madrid Tel: 91 748 16 04 www.mpi.com.es...

  • Page 20: Software Driver Selection

    In a WINDOWS 95/98/2000/XP/NT4.0/Millennium®/Vista environment the printer supports the Plug & Play feature. The printer drivers of all Compuprint printers can be found at the Internet Address http://www.compuprint.com Mantenimiento Periféricos Informáticos C/Canteras,15 28860 Paracuellos de Jarama Madrid Tel: 91 748 16 04 www.mpi.com.es...

  • Page 21: Power Connection

    1. Make sure the power outlet is near the printer location and easily accessible. 2. Make sure that the power switch is in 0 position (OFF). Mantenimiento Periféricos Informáticos C/Canteras,15 28860 Paracuellos de Jarama Madrid Tel: 91 748 16 04 www.mpi.com.es...
  • Page 22 (the figure shows the European version). 4. If you need to turn the printer on, press the power switch in the I position (ON). Mantenimiento Periféricos Informáticos C/Canteras,15 28860 Paracuellos de Jarama Madrid Tel: 91 748 16 04 www.mpi.com.es...

  • Page 23: Selecting The Display Language

    When the desired language is displayed, press the → key to select it. The printer exits the setup. From now on the display messages appear PROGRAM in the selected language. Mantenimiento Periféricos Informáticos C/Canteras,15 28860 Paracuellos de Jarama Madrid Tel: 91 748 16 04 www.mpi.com.es...

  • Page 24: Configuring The Printer

    The operator panel consists of: • A 16 character display (Liquid Crystal Display) • Five led indicators • Nine function keys Mantenimiento Periféricos Informáticos C/Canteras,15 28860 Paracuellos de Jarama Madrid Tel: 91 748 16 04 www.mpi.com.es...

  • Page 25: Display Messages

    Current Macro where: OFF LINE Indicates the printer status. ON LINE M1, M2, M3, M4 Indicate which of the four User Macros is currently used. Mantenimiento Periféricos Informáticos C/Canteras,15 28860 Paracuellos de Jarama Madrid Tel: 91 748 16 04 www.mpi.com.es...
  • Page 26 Indicates the printer status. OFF LINE ON LINE Indicate which of the four User Macros is currently used. M1, M2, M3, M4 Mantenimiento Periféricos Informáticos C/Canteras,15 28860 Paracuellos de Jarama Madrid Tel: 91 748 16 04 www.mpi.com.es...
  • Page 27 The paper is fed in microsteps downwards when pressing the arrow key . MICRO FEED DOWN ↓ The paper is fed in microsteps forwards when pressing the arrow key. ↑ MICRO FEED UP Mantenimiento Periféricos Informáticos C/Canteras,15 28860 Paracuellos de Jarama Madrid Tel: 91 748 16 04 www.mpi.com.es...
  • Page 28 These messages are displayed when the printer receives a paper parking command. Tear off the fanfold paper if necessary and then press the PARK PAPER PARK to park the paper. Mantenimiento Periféricos Informáticos C/Canteras,15 28860 Paracuellos de Jarama Madrid Tel: 91 748 16 04 www.mpi.com.es...
  • Page 29 When the access to the Printer Setups has been unlocked at the power on, the printer displays this message. For the error messages see "Error Handling” later in this manual. Mantenimiento Periféricos Informáticos C/Canteras,15 28860 Paracuellos de Jarama Madrid Tel: 91 748 16 04 www.mpi.com.es...

  • Page 30: Indicators

    Unlit when the Front1 paper path is not selected. Front 2 Lit when the Front2 paper path is selected. Unlit when the Front2 paper path is not selected. Mantenimiento Periféricos Informáticos C/Canteras,15 28860 Paracuellos de Jarama Madrid Tel: 91 748 16 04 www.mpi.com.es...

  • Page 31: Function Keys

    Program Setup is selected. ON LINE In the Program Setup mode only the four arrow keys and the key are PROGRAM enabled and the indicator is lit. PROGRAM Mantenimiento Periféricos Informáticos C/Canteras,15 28860 Paracuellos de Jarama Madrid Tel: 91 748 16 04 www.mpi.com.es...

  • Page 32: On Line Key

    2 seconds without pressing any key and the parameters of this macro will be set. Program Scrolls the parameters of the functions or macros forwards. → Function Mantenimiento Periféricos Informáticos C/Canteras,15 28860 Paracuellos de Jarama Madrid Tel: 91 748 16 04 www.mpi.com.es...

  • Page 33: Micro Feed

    Moves the paper backward in microsteps. Keeping the key pressed the paper is MICRO FEED Function moved continuously at increasing speed. Program Scrolls the setup and macro functions forwards. ↓ Function Mantenimiento Periféricos Informáticos C/Canteras,15 28860 Paracuellos de Jarama Madrid Tel: 91 748 16 04 www.mpi.com.es...

  • Page 34: Tear/Pitch Key

    Alternate Selects the pitch to be used with the currently selected font. The selected pitch is PITCH Function valid until the printer is turned off. Mantenimiento Periféricos Informáticos C/Canteras,15 28860 Paracuellos de Jarama Madrid Tel: 91 748 16 04 www.mpi.com.es...

  • Page 35: Path/Park Key

    Normal Lock or unlock the access to the printer setups. See later ONLINE + MACRO + TEAR Function “How to Lock/Unlock the Printer Setups” section. Mantenimiento Periféricos Informáticos C/Canteras,15 28860 Paracuellos de Jarama Madrid Tel: 91 748 16 04 www.mpi.com.es...

  • Page 36: Printer Setups

    The arrow keys are used to move within the different functions inside the Printer Setups. ↑ ↓ ← → See the following description of the setup items. Mantenimiento Periféricos Informáticos C/Canteras,15 28860 Paracuellos de Jarama Madrid Tel: 91 748 16 04 www.mpi.com.es...

  • Page 37: Leaving The Printer Setups

    When the desired setting is → ← displayed, press the key to exit from the Setup. PROGRAM Mantenimiento Periféricos Informáticos C/Canteras,15 28860 Paracuellos de Jarama Madrid Tel: 91 748 16 04 www.mpi.com.es...

  • Page 38: Power-On Configuration

    As soon as the key gets released, the following message will be PROGRAM displayed: STARTING UP then, 9065/9080 ver. x.xx then, PRINT OUT? NO Mantenimiento Periféricos Informáticos C/Canteras,15 28860 Paracuellos de Jarama Madrid Tel: 91 748 16 04 www.mpi.com.es...
  • Page 39 Main Structure This figure shows the structure of the Power-On Configuration and how to move inside the Setup. Mantenimiento Periféricos Informáticos C/Canteras,15 28860 Paracuellos de Jarama Madrid Tel: 91 748 16 04 www.mpi.com.es...
  • Page 40 PRINT OUT? NO The printer setup is printed showing the currently selected values. The PRINT OUT? YES printout starts as soon as you select this value. Mantenimiento Periféricos Informáticos C/Canteras,15 28860 Paracuellos de Jarama Madrid Tel: 91 748 16 04 www.mpi.com.es...
  • Page 41 Emulation Options This setup defines the available options according to the selected emulation and is structured as follows: Options Mantenimiento Periféricos Informáticos C/Canteras,15 28860 Paracuellos de Jarama Madrid Tel: 91 748 16 04 www.mpi.com.es...
  • Page 42 The printer uses the ANSI 3.64 emulation. EMUL. ANSI If ANSI emulation has been selected, specific ANSI parameters are available. See the “ANSI options” section later in this manual. Mantenimiento Periféricos Informáticos C/Canteras,15 28860 Paracuellos de Jarama Madrid Tel: 91 748 16 04 www.mpi.com.es...
  • Page 43 CHAR. SET CS1 → or ← CHAR. SET CS2 ↓ NATION CP437 These items select the character set to be used in IBM Proprinter emulation. Mantenimiento Periféricos Informáticos C/Canteras,15 28860 Paracuellos de Jarama Madrid Tel: 91 748 16 04 www.mpi.com.es...
  • Page 44 FRANCE GERMANY ENGLAND DENMARK1 SWEDEN ITALY SPAIN1 JAPAN NORWAY DENMARK2 SPAIN2 LATIN A1 The CP 858 and ISO 8859/15 character sets contain the Euro character. Mantenimiento Periféricos Informáticos C/Canteras,15 28860 Paracuellos de Jarama Madrid Tel: 91 748 16 04 www.mpi.com.es...
  • Page 45 ISO 8859/2 ISO 8859/3 ISO 8859/4 ISO 8859/5 ISO 8859/6 ISO 8859/7 ISO 8859/8 ISO 8859/9 ISO 8859/15 CP 437SL CP 1098 UKRAIN KOI8-U FARSI1 FARSI2 Mantenimiento Periféricos Informáticos C/Canteras,15 28860 Paracuellos de Jarama Madrid Tel: 91 748 16 04 www.mpi.com.es...
  • Page 46 Default value in IBM emulation. AUTO CR YES The printer performs an automatic carriage return after a LF, VT or ESCJ code. Default value in EPSON emulation. Mantenimiento Periféricos Informáticos C/Canteras,15 28860 Paracuellos de Jarama Madrid Tel: 91 748 16 04 www.mpi.com.es...
  • Page 47 Only in EPSON emulation. The printer checks the AUTOFEEDXT signal AUTO LF HOST coming from the host and executes an automatic LF after CR, if the signal is low. Mantenimiento Periféricos Informáticos C/Canteras,15 28860 Paracuellos de Jarama Madrid Tel: 91 748 16 04 www.mpi.com.es...
  • Page 48 BAR CODE NATIV The compressed printing is performed at 17.1 cpi. 20 CPI IBM NO The compressed printing is performed at 20 cpi. 20 CPI IBM YES Mantenimiento Periféricos Informáticos C/Canteras,15 28860 Paracuellos de Jarama Madrid Tel: 91 748 16 04 www.mpi.com.es...
  • Page 49 Enables bar code printing using the native commands (DC4, DC4, …). BAR CODE NATIV Enables bar code printing using ANSI commands even if the emulation in use is BAR CODE ALTER EPSON or IBM. Mantenimiento Periféricos Informáticos C/Canteras,15 28860 Paracuellos de Jarama Madrid Tel: 91 748 16 04 www.mpi.com.es...
  • Page 50 Only the Serial RS232 Interface is active. Hot Port is not operative. SERIAL Only the USB Interface is active. Hot Port is not operative. Only the Ethernet LAN Interface is active. Hot Port is not operative. Mantenimiento Periféricos Informáticos C/Canteras,15 28860 Paracuellos de Jarama Madrid Tel: 91 748 16 04 www.mpi.com.es...
  • Page 51 Parallel Interface This setup defines the use of the parallel interface and is structured according to the interface specific parameters. Parallel Interface Parameters Mantenimiento Periféricos Informáticos C/Canteras,15 28860 Paracuellos de Jarama Madrid Tel: 91 748 16 04 www.mpi.com.es...
  • Page 52 The printer checks the SELECT-IN signal coming from the host. SELECT-IN HOST The SELECT-IN signal of the parallel interface is ignored and treated always SELECT-IN ON as ON. Mantenimiento Periféricos Informáticos C/Canteras,15 28860 Paracuellos de Jarama Madrid Tel: 91 748 16 04 www.mpi.com.es...
  • Page 53 INP. BUFFER 32K → or ← INP. BUFFER 64K → or ← → or ← INP. BUFFER 128K ↓ PARALL. INTERFACE Selects the input buffer size. Mantenimiento Periféricos Informáticos C/Canteras,15 28860 Paracuellos de Jarama Madrid Tel: 91 748 16 04 www.mpi.com.es...
  • Page 54 The following Serial Interface Parameters will display only if the Serial Interface is present. This setup defines the use of the serial interface and is structured according to the interface specific parameters. Serial Interface Parameters Mantenimiento Periféricos Informáticos C/Canteras,15 28860 Paracuellos de Jarama Madrid Tel: 91 748 16 04 www.mpi.com.es...

  • Page 55: Serial Interface

    SERIAL INTERFACE → SERIAL I/F 232 → or ← ↓ ↓ FUNCTIONS BAUD 9600 It is available the serial interface RS-232/C only. SERIAL I/F 232 Mantenimiento Periféricos Informáticos C/Canteras,15 28860 Paracuellos de Jarama Madrid Tel: 91 748 16 04 www.mpi.com.es...
  • Page 56 DATA BITS 8 → or ← → or ← DATA BITS 7 ↓ PARITY NONE Selection of the number of data bits: 7 or 8. Mantenimiento Periféricos Informáticos C/Canteras,15 28860 Paracuellos de Jarama Madrid Tel: 91 748 16 04 www.mpi.com.es...

  • Page 57: Parity None

    Parity check is disabled and the transmitted parity bit is always a Mark. PARITY MARK Parity check is disabled and the transmitted parity bit is always a Space. PARITY SPACE Mantenimiento Periféricos Informáticos C/Canteras,15 28860 Paracuellos de Jarama Madrid Tel: 91 748 16 04 www.mpi.com.es...
  • Page 58 Connection Type HANDSHAKE DTR ↑ CONNECTION LOCAL → or ← CONNECT. REMOTE → or ← ↓ INP. BUFFER 2K Selects the connection type: local or remote. Mantenimiento Periféricos Informáticos C/Canteras,15 28860 Paracuellos de Jarama Madrid Tel: 91 748 16 04 www.mpi.com.es...
  • Page 59 INP. BUFFER12K INP. BUFFER32K → or ← INP. BUFFER64K → or ← INP. BUFFER128K → or ← ↓ SERIAL INTERFACE Selects the input buffer size. Mantenimiento Periféricos Informáticos C/Canteras,15 28860 Paracuellos de Jarama Madrid Tel: 91 748 16 04 www.mpi.com.es...
  • Page 60 The following LAN interface parameters will display only if the Ethernet 10/100 Mbit interface is present. This setup defines the use of the LAN interface and is structured according to the interface specific parameters. LAN Interface Parameters Mantenimiento Periféricos Informáticos C/Canteras,15 28860 Paracuellos de Jarama Madrid Tel: 91 748 16 04 www.mpi.com.es...
  • Page 61 → keys to increase or decrease the values in one field and the ↓ or ↑ keys to move to the next field (↓ to move to the right and ↑ to move to the left). The default value is 127.000.000.000 Mantenimiento Periféricos Informáticos C/Canteras,15 28860 Paracuellos de Jarama Madrid Tel: 91 748 16 04 www.mpi.com.es...
  • Page 62 Use the ← or → keys to increase or decrease the values in one field and the ↓ or ↑ keys to move to the next field (↓ to move to the right and ↑ to move to the left). Mantenimiento Periféricos Informáticos C/Canteras,15 28860 Paracuellos de Jarama Madrid Tel: 91 748 16 04 www.mpi.com.es...
  • Page 63 ↓ or ↑ keys to move to the next field (↓ to move to the right and ↑ to move to the left). Press the key to save the selected init workgroup name. The default name is PROGRAM workgroup Mantenimiento Periféricos Informáticos C/Canteras,15 28860 Paracuellos de Jarama Madrid Tel: 91 748 16 04 www.mpi.com.es...

  • Page 64: E-Mail Address

    → keys to increase or decrease the values in one field and the ↓ or ↑ keys to move to the next field (↓ to move to the right and ↑ to move to the left). Mantenimiento Periféricos Informáticos C/Canteras,15 28860 Paracuellos de Jarama Madrid Tel: 91 748 16 04 www.mpi.com.es...

  • Page 65: Lan Interface

    → keys to increase or decrease the values in one field and the ↓ or ↑ keys to move to the next field (↓ to move to the right and ↑ to move to the left). Press the key to save the sender’s e-mail PROGRAM address. Mantenimiento Periféricos Informáticos C/Canteras,15 28860 Paracuellos de Jarama Madrid Tel: 91 748 16 04 www.mpi.com.es...
  • Page 66 Functions This item groups various printer functions, with which you can configure the printer. Mantenimiento Periféricos Informáticos C/Canteras,15 28860 Paracuellos de Jarama Madrid Tel: 91 748 16 04 www.mpi.com.es...
  • Page 67 → or ← ↓ RETURN TO MFG: NO SEQUENCE NONE Enable or disables the buzzer. (*) If Serial Interface is present. (**) If LAN Interface is present. Mantenimiento Periféricos Informáticos C/Canteras,15 28860 Paracuellos de Jarama Madrid Tel: 91 748 16 04 www.mpi.com.es...
  • Page 68 BAR CODE 120DPI → or ← → or ← BAR CODE 180DPI ↓ TEXT DIRECT BI Selects the bar code print density: 120 or 180 dpi. Mantenimiento Periféricos Informáticos C/Canteras,15 28860 Paracuellos de Jarama Madrid Tel: 91 748 16 04 www.mpi.com.es...
  • Page 69 GRAPH DIRECT BI → or ← GRAPH DIRECT UNI → or ← ↓ BARCODES DIR. UNI Selects the print direction for graphics: bidirectional or unidirectional. Mantenimiento Periféricos Informáticos C/Canteras,15 28860 Paracuellos de Jarama Madrid Tel: 91 748 16 04 www.mpi.com.es...
  • Page 70 P. ON PATH MACRO Selects graphics printing (bit image data) at normal speed. GRAPH H.S. NO Selects graphics printing (bit image data) at high speed. GRAPH H.S. YES Mantenimiento Periféricos Informáticos C/Canteras,15 28860 Paracuellos de Jarama Madrid Tel: 91 748 16 04 www.mpi.com.es...
  • Page 71 P. ON PATH MACRO The paper path at power-on is the last one that was selected before the printer P. ON PATH LAST was powered off. Mantenimiento Periféricos Informáticos C/Canteras,15 28860 Paracuellos de Jarama Madrid Tel: 91 748 16 04 www.mpi.com.es...
  • Page 72 F1 JAM SENS. Y (if 6 pin Front1 Push Tractor option is installed) TEAR ADJUST:xxx These items are self explaining. See also “Selecting the Display Language” before in this manual. Mantenimiento Periféricos Informáticos C/Canteras,15 28860 Paracuellos de Jarama Madrid Tel: 91 748 16 04 www.mpi.com.es...
  • Page 73 Enables the paper jam sensor located in the 6 pin Front1 push tractor option. F1 JAM SENS. Y Disables the paper jam sensor located in the 6 pin Front1 push tractor option. F1 JAM SENS. N Mantenimiento Periféricos Informáticos C/Canteras,15 28860 Paracuellos de Jarama Madrid Tel: 91 748 16 04 www.mpi.com.es...
  • Page 74 Enables the paper jam sensor located in the 6 pin Front2 push tractor option. F2 JAM SENS. Y Disables the paper jam sensor located in the 6 pin Front2 push tractor option. F2 JAM SENS. N Mantenimiento Periféricos Informáticos C/Canteras,15 28860 Paracuellos de Jarama Madrid Tel: 91 748 16 04 www.mpi.com.es...
  • Page 75 Tear-Off Bar. The values correspond to 1/180 inch units, i.e. the tuning ranges between +1/6 and -13/6 inch. 0 is the default value. See also “How to Use the Tear-Off Function”, later in this Chapter. Mantenimiento Periféricos Informáticos C/Canteras,15 28860 Paracuellos de Jarama Madrid Tel: 91 748 16 04 www.mpi.com.es...
  • Page 76 PROGRAM Do not power off the printer before all data have been written into the NVM and the printer has returned online. Mantenimiento Periféricos Informáticos C/Canteras,15 28860 Paracuellos de Jarama Madrid Tel: 91 748 16 04 www.mpi.com.es...

  • Page 77: Program Setup

    PRINT OUT? NO The figure in the following page shows the structure and how to move inside the Program Setup. Mantenimiento Periféricos Informáticos C/Canteras,15 28860 Paracuellos de Jarama Madrid Tel: 91 748 16 04 www.mpi.com.es...

  • Page 78: Main Structure

    LAN Interface CONFIGURATION MENU BLOCK The items define the following parameters: • Four user macros • The direct access to the Power-On Configuration • Hexadecimal printout Mantenimiento Periféricos Informáticos C/Canteras,15 28860 Paracuellos de Jarama Madrid Tel: 91 748 16 04 www.mpi.com.es...
  • Page 79 NOTE: The Program setup printout indicates: • the currently selected values, • the current selected macro is marked with the #x# symbols (USER MACRO #x#), • the current firmware release. Mantenimiento Periféricos Informáticos C/Canteras,15 28860 Paracuellos de Jarama Madrid Tel: 91 748 16 04 www.mpi.com.es...
  • Page 80 MACRO#3 → or ← MACRO#4 → or ← ↓ LINE SP. 6 LPI Selection of the macro for which you intend to set the parameters. Mantenimiento Periféricos Informáticos C/Canteras,15 28860 Paracuellos de Jarama Madrid Tel: 91 748 16 04 www.mpi.com.es...
  • Page 81 Font … Pitch 10 cpi Pitch … 15&24 cpi Normal 15&24 cpi Micro Pitch Lock No Pitch Lock Yes Left Margin 0 Left Margin … Mantenimiento Periféricos Informáticos C/Canteras,15 28860 Paracuellos de Jarama Madrid Tel: 91 748 16 04 www.mpi.com.es...
  • Page 82 Mantenimiento Periféricos Informáticos C/Canteras,15 28860 Paracuellos de Jarama Madrid Tel: 91 748 16 04 www.mpi.com.es...
  • Page 83 Setting this item, the value set for vertical spacing cannot be changed by LINE SP. LOCK YES software but only by operator panel. Mantenimiento Periféricos Informáticos C/Canteras,15 28860 Paracuellos de Jarama Madrid Tel: 91 748 16 04 www.mpi.com.es...
  • Page 84 TOP OF FORM xxx ↓ IGNORE F.F. NO These items set the top of form. The values range between 0 and the page length - 1. Mantenimiento Periféricos Informáticos C/Canteras,15 28860 Paracuellos de Jarama Madrid Tel: 91 748 16 04 www.mpi.com.es...
  • Page 85 SKIPOVER xxx → or ← ↓ DRAFT MODE NORM These items set the skipover perforation. The values range between 0 and the page length - 1. Mantenimiento Periféricos Informáticos C/Canteras,15 28860 Paracuellos de Jarama Madrid Tel: 91 748 16 04 www.mpi.com.es...
  • Page 86 → or ← QUALITY NLQ ↓ FONT Draft The printer performs the Letter Quality printing. QUALITY LQ The printer performs the Near Letter Quality printing. QUALITY NLQ Mantenimiento Periféricos Informáticos C/Canteras,15 28860 Paracuellos de Jarama Madrid Tel: 91 748 16 04 www.mpi.com.es...
  • Page 87 → or ← FONT Script → or ← ↓ PITCH 10 CPI Selects the fonts. OCR-A is displayed only if a non proportional pitch has been selected. Mantenimiento Periféricos Informáticos C/Canteras,15 28860 Paracuellos de Jarama Madrid Tel: 91 748 16 04 www.mpi.com.es...
  • Page 88 PITCH PROP → or ← ↓ 15&24CPI NORMAL These items set the horizontal spacing in characters per inch. The PITCH PROP item sets proportional character spacing. Mantenimiento Periféricos Informáticos C/Canteras,15 28860 Paracuellos de Jarama Madrid Tel: 91 748 16 04 www.mpi.com.es...

  • Page 89: Left Margin

    Setting this item, the pitch can be changed by software or operator panel. PITCH LOCK NO Setting this item, the pitch can be changed ONLY by operator panel. PITCH LOCK YES Mantenimiento Periféricos Informáticos C/Canteras,15 28860 Paracuellos de Jarama Madrid Tel: 91 748 16 04 www.mpi.com.es...
  • Page 90 The Right Margin is set in number of columns (depending on the current pitch) starting from the physical left edge. The default value is 136. Mantenimiento Periféricos Informáticos C/Canteras,15 28860 Paracuellos de Jarama Madrid Tel: 91 748 16 04 www.mpi.com.es...

  • Page 91: Right Margin

    PATH FRONT 2 Paper loading with the Front2 push tractor (up position). This item is displayed only if the Front2 push tractor option is installed. Mantenimiento Periféricos Informáticos C/Canteras,15 28860 Paracuellos de Jarama Madrid Tel: 91 748 16 04 www.mpi.com.es...
  • Page 92 The paper does not execute any backward movement. TEAR NO See also “How to Use the Tear-Off Function” and “How to Handle the Paper Parking” later in this chapter. Mantenimiento Periféricos Informáticos C/Canteras,15 28860 Paracuellos de Jarama Madrid Tel: 91 748 16 04 www.mpi.com.es...
  • Page 93 This item defines the time that printer uses to move paper to the Tear-Off position in automatic tear mode. The range of the tear delay is between 1 and 5 seconds. The default value is 1 sec. Mantenimiento Periféricos Informáticos C/Canteras,15 28860 Paracuellos de Jarama Madrid Tel: 91 748 16 04 www.mpi.com.es...
  • Page 94 PERFOR. SAFE NO perforation of the paper passes. The function is enabled. The print head is moved aside, when the perforation PERFOR. SAFE YES passes. Mantenimiento Periféricos Informáticos C/Canteras,15 28860 Paracuellos de Jarama Madrid Tel: 91 748 16 04 www.mpi.com.es...
  • Page 95 AUTOGAP 0 The function is disabled. Printing at normal noise level. QUIET PRINT OFF QUIET PRINT ON The function is enabled. Printing at reduced noise level. Mantenimiento Periféricos Informáticos C/Canteras,15 28860 Paracuellos de Jarama Madrid Tel: 91 748 16 04 www.mpi.com.es...
  • Page 96 Selecting this item, the print head must be adjusted manually. MANUAL GAP FIXED GAP xxx Selecting one of these values the printer adjusts the print head gap to a fixed distance. Mantenimiento Periféricos Informáticos C/Canteras,15 28860 Paracuellos de Jarama Madrid Tel: 91 748 16 04 www.mpi.com.es...
  • Page 97 These values adjust the distance between the top paper margin and the first printable line. The values correspond to 1/180 inch units, i.e. the tuning ranges between -1/6 and 2 inch. 0 is the default value. Mantenimiento Periféricos Informáticos C/Canteras,15 28860 Paracuellos de Jarama Madrid Tel: 91 748 16 04 www.mpi.com.es...
  • Page 98 The new values set for the macro parameters will be the used. MACRO -> MFG NO The values set for the macro parameters will be reset to their factory defaults. MACRO -> MFG YES Mantenimiento Periféricos Informáticos C/Canteras,15 28860 Paracuellos de Jarama Madrid Tel: 91 748 16 04 www.mpi.com.es...
  • Page 99 You can now set the parameters for MACRO#2 as described above. In this way you prepare the second printing environment. Passing over from one macro to the other then sets two different printing environments. Mantenimiento Periféricos Informáticos C/Canteras,15 28860 Paracuellos de Jarama Madrid Tel: 91 748 16 04 www.mpi.com.es...
  • Page 100 If you select HEX DUMP YES, press the key to set this item. The hexadecimal printing PROGRAM continues, until the HEX DUMP NO item is selected, entering again into the Program Setup. Mantenimiento Periféricos Informáticos C/Canteras,15 28860 Paracuellos de Jarama Madrid Tel: 91 748 16 04 www.mpi.com.es...
  • Page 101 At this point the Program Configuration Setup is finished. You exit pressing the PROGRAM key. Mantenimiento Periféricos Informáticos C/Canteras,15 28860 Paracuellos de Jarama Madrid Tel: 91 748 16 04 www.mpi.com.es...

  • Page 102: Ansi Emulation

    MAZOWIA TURKISH CP 437G ROMAN-8 KAMENICKY CWI CODE 864E CP1250 CP 1251 CP 1252 CP 1253 CP 1254 CP 1255 CP 1256 CP 1257 BULGAR Mantenimiento Periféricos Informáticos C/Canteras,15 28860 Paracuellos de Jarama Madrid Tel: 91 748 16 04 www.mpi.com.es...
  • Page 103 If the printer receives a command (ESC c) from the host to reset the printer, then the printer will (YES) or will not (NO) reset the current configuration to the power-up configuration. Mantenimiento Periféricos Informáticos C/Canteras,15 28860 Paracuellos de Jarama Madrid Tel: 91 748 16 04 www.mpi.com.es...
  • Page 104 If the printer receives a command (LF) from the host to perform a line feed then the printer will (YES) or will not (NO) append a carriage return based upon your selection. Mantenimiento Periféricos Informáticos C/Canteras,15 28860 Paracuellos de Jarama Madrid Tel: 91 748 16 04 www.mpi.com.es...
  • Page 105 If the printer receives a control code from the host while in dot graphics mode, then the printer will (YES) or will not (NO) respond to the particular control code based upon your selection. Mantenimiento Periféricos Informáticos C/Canteras,15 28860 Paracuellos de Jarama Madrid Tel: 91 748 16 04 www.mpi.com.es...
  • Page 106 If is selected N: the 6-bit graphics horizontal densities are multiplies of 72. If is selected Y: the 6-bit graphics horizontal densities are multiplies of 60. Mantenimiento Periféricos Informáticos C/Canteras,15 28860 Paracuellos de Jarama Madrid Tel: 91 748 16 04 www.mpi.com.es...
  • Page 107 → or ← ↓ ESC+CTR CODE YES The printer will (YES) or will not (NO) respond to ESC [2 m and ESC [3 m commands. Mantenimiento Periféricos Informáticos C/Canteras,15 28860 Paracuellos de Jarama Madrid Tel: 91 748 16 04 www.mpi.com.es...
  • Page 108 → or ← ↓ DOUBLE LF YES In this setting the VT code received without tab set will yield line feed (YES) or will be ignored (NO). Mantenimiento Periféricos Informáticos C/Canteras,15 28860 Paracuellos de Jarama Madrid Tel: 91 748 16 04 www.mpi.com.es...
  • Page 109 If you disable auto wrap by selecting N, then the data beyond the right margin is discarded up to the next line terminator. Mantenimiento Periféricos Informáticos C/Canteras,15 28860 Paracuellos de Jarama Madrid Tel: 91 748 16 04 www.mpi.com.es...
  • Page 110 → or ← CLEAR MARGIN NO → or ← ↓ BACKOP NINE Clears (Y) or preserves (N) top and bottom margins on form length changes. Mantenimiento Periféricos Informáticos C/Canteras,15 28860 Paracuellos de Jarama Madrid Tel: 91 748 16 04 www.mpi.com.es...
  • Page 111 Barcode and Oversize modes at the completion of printing of the current barcode symbol. The print head will remain in the vertical and horizontal position active at the completion of NONE printing of the selected symbol. Mantenimiento Periféricos Informáticos C/Canteras,15 28860 Paracuellos de Jarama Madrid Tel: 91 748 16 04 www.mpi.com.es...
  • Page 112 Guard bars based upon your selection. The Guard bars extend into the human readable line of the barcode symbol when it is enabled. Mantenimiento Periféricos Informáticos C/Canteras,15 28860 Paracuellos de Jarama Madrid Tel: 91 748 16 04 www.mpi.com.es...

  • Page 113: How To Select The Paper Path

    Tractor”, “Loading Paper Using the Front2 Push Tractor (option)”. When a new paper path is selected, the paper loaded in the printer is automatically parked. Mantenimiento Periféricos Informáticos C/Canteras,15 28860 Paracuellos de Jarama Madrid Tel: 91 748 16 04 www.mpi.com.es...

  • Page 114: How To Use The Tear-Off Function

    5. Press the → or ← key until the desired page size is displayed. 6. Press again the key to exit the setup and set the new value. PROGRAM Mantenimiento Periféricos Informáticos C/Canteras,15 28860 Paracuellos de Jarama Madrid Tel: 91 748 16 04 www.mpi.com.es...

  • Page 115: Adjusting The Tear-Off Position

    The values can be set between +30 and -390 at 1/180 inches (from +1/6 to -13/6 inches). 5. When the desired value is displayed, press the key. PROGRAM 6. Press the key to save and exit from the setup. PROGRAM Mantenimiento Periféricos Informáticos C/Canteras,15 28860 Paracuellos de Jarama Madrid Tel: 91 748 16 04 www.mpi.com.es...

  • Page 116: Selection Of The Tear-Off Mode

    PARK toward the back of the printer. The tear-off function is disabled. TEAR NO 5. Press the key to exit the setup. PROGRAM Mantenimiento Periféricos Informáticos C/Canteras,15 28860 Paracuellos de Jarama Madrid Tel: 91 748 16 04 www.mpi.com.es...

  • Page 117: How To Lock/Unlock The Printer Setups

    RELEASE KEYS message. As soon as these keys are released, the following messages will be displayed: STARTING UP then, 9065/9080 ver. x.xxx then, UNLOCKED MENU Mantenimiento Periféricos Informáticos C/Canteras,15 28860 Paracuellos de Jarama Madrid Tel: 91 748 16 04 www.mpi.com.es...

  • Page 118: How To Handle The Paper Parking

    PATH or tear it off and press the key again to PARK PARK PARK perform the parking procedure. TEAR IF NECESS. PARKING PARK PAPER PARK PARKING Mantenimiento Periféricos Informáticos C/Canteras,15 28860 Paracuellos de Jarama Madrid Tel: 91 748 16 04 www.mpi.com.es...
  • Page 119 • When the paper is positioned in the tear-off position after pressing the PARK PARKING key, if you press the TEAR PARK printer performs automatically parking PARKING procedure. Mantenimiento Periféricos Informáticos C/Canteras,15 28860 Paracuellos de Jarama Madrid Tel: 91 748 16 04 www.mpi.com.es...
  • Page 120 PATH PARK when the paper is already in the tear position, printer performs PARK automatically the parking procedure. PARKING Mantenimiento Periféricos Informáticos C/Canteras,15 28860 Paracuellos de Jarama Madrid Tel: 91 748 16 04 www.mpi.com.es...
  • Page 121 18" tear it off and press the key again to PARK perform the paper ejection. EJECTING TEAR IF NECESS. EJECT PAPER PARK EJECTING Mantenimiento Periféricos Informáticos C/Canteras,15 28860 Paracuellos de Jarama Madrid Tel: 91 748 16 04 www.mpi.com.es...
  • Page 122 PARK During the parking procedure the display shows PARKING. If the printer is ejecting the paper (see LABEL selection) the display shows EJECTING. Mantenimiento Periféricos Informáticos C/Canteras,15 28860 Paracuellos de Jarama Madrid Tel: 91 748 16 04 www.mpi.com.es...

  • Page 123: Paper Handling

    Front1 Push Path Base Configuration With Installed Option F ront2 Push Path Mantenimiento Periféricos Informáticos C/Canteras,15 28860 Paracuellos de Jarama Madrid Tel: 91 748 16 04 www.mpi.com.es...

  • Page 124: Paper Specifications

    1 + 7 Weight (g/m - Original 55 to 150 55 to 150 - Other sheets 45 to 75 45 to 75 - Carbon Paper Mantenimiento Periféricos Informáticos C/Canteras,15 28860 Paracuellos de Jarama Madrid Tel: 91 748 16 04 www.mpi.com.es...

  • Page 125: Fanfold Paper Loading

    • Tear off the fanfold loaded with the Front2 push tractor (if it is longer than 18 inches) and press the key. The display shows: PARK PARKING followed by LOAD FRONT1 Mantenimiento Periféricos Informáticos C/Canteras,15 28860 Paracuellos de Jarama Madrid Tel: 91 748 16 04 www.mpi.com.es...
  • Page 126 2. Open the Push tractors cover turning it upwards and lay it on the top of the printer. Mantenimiento Periféricos Informáticos C/Canteras,15 28860 Paracuellos de Jarama Madrid Tel: 91 748 16 04 www.mpi.com.es...
  • Page 127 3. Unlock the sprockets of the Front1 tractor moving the sprocket levers down. Slide the left sprocket to the first printing column. Mantenimiento Periféricos Informáticos C/Canteras,15 28860 Paracuellos de Jarama Madrid Tel: 91 748 16 04 www.mpi.com.es...
  • Page 128 Open the left and right sprocket covers. Hold the fanfold paper in front of the sprockets insert paper perforation on the left sprocket pins and close the left sprocket cover. Mantenimiento Periféricos Informáticos C/Canteras,15 28860 Paracuellos de Jarama Madrid Tel: 91 748 16 04 www.mpi.com.es...
  • Page 129 If you are using the 6 pin Front1 Push tractor option, make sure the paper goes under the paper sensor, and close the right sprocket cover. Mantenimiento Periféricos Informáticos C/Canteras,15 28860 Paracuellos de Jarama Madrid Tel: 91 748 16 04 www.mpi.com.es...
  • Page 130 7. Match the left sprocket for the first printing position, i.e. the left paper margin must match the ninth mark on the printer cabinet. 1 2 3 4 5 6 7 8 Mantenimiento Periféricos Informáticos C/Canteras,15 28860 Paracuellos de Jarama Madrid Tel: 91 748 16 04 www.mpi.com.es...
  • Page 131 8. Adjust the right sprocket gently to remove slack from the paper. Make sure the paper is not taut. 9. Lock the left and right sprockets moving the sprocket levers up. Mantenimiento Periféricos Informáticos C/Canteras,15 28860 Paracuellos de Jarama Madrid Tel: 91 748 16 04 www.mpi.com.es...
  • Page 132 10. Close the Push tractors cover. Press the key to load the paper into the printer. LOAD/FF The paper must be loaded as shown in figure. Mantenimiento Periféricos Informáticos C/Canteras,15 28860 Paracuellos de Jarama Madrid Tel: 91 748 16 04 www.mpi.com.es...

  • Page 133: Printer Maintenance And Troubleshooting

    • Do not use an abrasive cloth, alcohol, paint thinner or similar agents because they may cause discoloration and scratching. • Be especially careful not to damage the electronic and mechanical components. Mantenimiento Periféricos Informáticos C/Canteras,15 28860 Paracuellos de Jarama Madrid Tel: 91 748 16 04 www.mpi.com.es...

  • Page 134: Replacing The Ribbon Cartridge

    3. Slide the ribbon guide out of the print head. If the Ribbon Shifter kit is installed on the printer, free the shifter holder pushing the tab towards the rear and pulling the shifter holder Ribbon Guide Shifter Holder Ribbon Shifter Mantenimiento Periféricos Informáticos C/Canteras,15 28860 Paracuellos de Jarama Madrid Tel: 91 748 16 04 www.mpi.com.es...
  • Page 135 Black “Long Life” cartridge when the ribbon not installed shifter option is installed Now, you are ready to insert the new ribbon cartridge. See before “Ribbon Cartridge Installation”. Mantenimiento Periféricos Informáticos C/Canteras,15 28860 Paracuellos de Jarama Madrid Tel: 91 748 16 04 www.mpi.com.es...

  • Page 136: Printing The Self Test

    2. When you release the key, after initializing the printer starts the self-test printout. 3. To stop the self-test printing, press the key again. The printer is offline. ON LINE Mantenimiento Periféricos Informáticos C/Canteras,15 28860 Paracuellos de Jarama Madrid Tel: 91 748 16 04 www.mpi.com.es...

  • Page 137: Error Handling

    GAP parameter is displayed. Press the → ← keys to select the fixed gap adjustment values. From FIXED GAP 1 (simple fanfold paper) to FIXED GAP 4 (multipart fanfold paper). Mantenimiento Periféricos Informáticos C/Canteras,15 28860 Paracuellos de Jarama Madrid Tel: 91 748 16 04 www.mpi.com.es...
  • Page 138 Press the key to reset ON LINE Front2 paper path. the error condition. NO PATH AVAILABLE An electromechanical Call Service. failure occurs in the paper paths. Mantenimiento Periféricos Informáticos C/Canteras,15 28860 Paracuellos de Jarama Madrid Tel: 91 748 16 04 www.mpi.com.es...
  • Page 139 A tractor type that is not Check that the installed tractor is compatible UNKNOWN TRACTOR recognized has been with the printer. mounted on the printer. Mantenimiento Periféricos Informáticos C/Canteras,15 28860 Paracuellos de Jarama Madrid Tel: 91 748 16 04 www.mpi.com.es...

  • Page 140: Options

    Controller Board on top of the protective package. Mantenimiento Periféricos Informáticos C/Canteras,15 28860 Paracuellos de Jarama Madrid Tel: 91 748 16 04 www.mpi.com.es...
  • Page 141 Controller Board from its shipping box and from the protective package. 4. Align the left and right sides of the Controller Board with the guides in the printer and slide it into the slot. Mantenimiento Periféricos Informáticos C/Canteras,15 28860 Paracuellos de Jarama Madrid Tel: 91 748 16 04 www.mpi.com.es...
  • Page 142 The Controller Board is correctly seated in the printer when the Controller Board metal plate is aligned with the back profile of the slot. Mantenimiento Periféricos Informáticos C/Canteras,15 28860 Paracuellos de Jarama Madrid Tel: 91 748 16 04 www.mpi.com.es...
  • Page 143 6. Attach the Controller Board with the two screws using the screwdriver that came in the Controller Board box. Mantenimiento Periféricos Informáticos C/Canteras,15 28860 Paracuellos de Jarama Madrid Tel: 91 748 16 04 www.mpi.com.es...

  • Page 144: The Front2 Push Tractor

    This second push tractor can be installed in front position on the Front1 Push tractor. 4 pin Front2 Push Tractor option 6 pin Front2 Push Tractor option with paper sensor Mantenimiento Periféricos Informáticos C/Canteras,15 28860 Paracuellos de Jarama Madrid Tel: 91 748 16 04 www.mpi.com.es...
  • Page 145 Align the hooks on both sides of the Front2 push tractor with the pins on the Front1 push tractor. Push the Front2 tractor until it is fully engaged. Mantenimiento Periféricos Informáticos C/Canteras,15 28860 Paracuellos de Jarama Madrid Tel: 91 748 16 04 www.mpi.com.es...
  • Page 146 3. Insert the connector cable in the electrical connector located in the lower push tractor. Rotate the Front2 push tractor onto the Front1 push tractor. Mantenimiento Periféricos Informáticos C/Canteras,15 28860 Paracuellos de Jarama Madrid Tel: 91 748 16 04 www.mpi.com.es...

  • Page 147: Removing The Front2 Push Tractor

    If you need to remove the upper push tractor, turn the printer off. Disconnect the connector cable and press on the push buttons to disengage the Front2 push tractor. Mantenimiento Periféricos Informáticos C/Canteras,15 28860 Paracuellos de Jarama Madrid Tel: 91 748 16 04 www.mpi.com.es...

  • Page 148: Loading Paper Using The Front2 Push Tractor (Option)

    • Tear off the fanfold loaded with the Front1 push tractor (if it is longer than 18 inches) and press the key. The display shows: PARK PARKING followed by LOAD FRONT2 Mantenimiento Periféricos Informáticos C/Canteras,15 28860 Paracuellos de Jarama Madrid Tel: 91 748 16 04 www.mpi.com.es...
  • Page 149 2. Open the Push tractors cover turning it upwards and lay it on the top of the printer. Mantenimiento Periféricos Informáticos C/Canteras,15 28860 Paracuellos de Jarama Madrid Tel: 91 748 16 04 www.mpi.com.es...
  • Page 150 3. Unlock the Front2 push tractor sprockets moving the sprocket levers up. 4. Space the paper guides along the tractor bar. Open the sprocket covers of the left and right sprocket. Mantenimiento Periféricos Informáticos C/Canteras,15 28860 Paracuellos de Jarama Madrid Tel: 91 748 16 04 www.mpi.com.es...
  • Page 151 If you are using the 6 pin Front2 push tractor option, make sure the paper goes under the paper sensor and close the sprocket cover Mantenimiento Periféricos Informáticos C/Canteras,15 28860 Paracuellos de Jarama Madrid Tel: 91 748 16 04 www.mpi.com.es...
  • Page 152 1 2 3 4 5 6 7 8 8. Adjust gently the right sprocket to remove slack from the paper. Mantenimiento Periféricos Informáticos C/Canteras,15 28860 Paracuellos de Jarama Madrid Tel: 91 748 16 04 www.mpi.com.es...
  • Page 153 9. Lock the Front2 tractor sprockets moving the sprocket levers down. 9. Close the Push tractors cover. 10. Press the key to load the paper into the printer. LOAD/FF Mantenimiento Periféricos Informáticos C/Canteras,15 28860 Paracuellos de Jarama Madrid Tel: 91 748 16 04 www.mpi.com.es...

  • Page 154: Loading Paper Using The Front1 Push Tractor

    1. Open the Push tractors cover turning it upwards and lay it on the top of the printer. 2. Rotate the Front2 push tractor option outside the printer. Mantenimiento Periféricos Informáticos C/Canteras,15 28860 Paracuellos de Jarama Madrid Tel: 91 748 16 04 www.mpi.com.es...
  • Page 155 Front2 push tractor in its initial position before closing the Push tractors cover. 5. Press the LOAD/FF key to load the paper into the printer. Mantenimiento Periféricos Informáticos C/Canteras,15 28860 Paracuellos de Jarama Madrid Tel: 91 748 16 04 www.mpi.com.es...

  • Page 156: The Printer Pedestal

    For better paper handling, use the available Three Levels Floor printer pedestal option. Three Levels Floor Pedestal Mantenimiento Periféricos Informáticos C/Canteras,15 28860 Paracuellos de Jarama Madrid Tel: 91 748 16 04 www.mpi.com.es...

  • Page 157: Printing Characteristics

    12 cpi micro 15 cpi normal 15 cpi Throughput (ECMA132) PRT9065 PRT9080 Pages per Hour Draft-High Speed Draft Lines per minute @10 cpi 40crt/line 80crt/line 136crt/line Mantenimiento Periféricos Informáticos C/Canteras,15 28860 Paracuellos de Jarama Madrid Tel: 91 748 16 04 www.mpi.com.es...
  • Page 158 20 cpi 15 cpi 24 cpi Vertical Spacing 6, 8, 12 lpi 3, 4, 6, 8, 12 lines/30 mm n/62, n/72, n/180, n/216, n/360 per inch Mantenimiento Periféricos Informáticos C/Canteras,15 28860 Paracuellos de Jarama Madrid Tel: 91 748 16 04 www.mpi.com.es...
  • Page 159 UKRANIAM, KOI8-U, FARSI1, FARSI2 ISO Character Sets 8859/1 (Latin1), 8859/2 (Latin2), 8859/3 (Latin3), 8859/4 (Latin4), 8859/5 (Latin/Cyrillic), 8859/6 (Latin/Arabic), 8859/7 (Latin/Greek), 8859/8 (Latin/Hebrew), 8859/9 (Latin5). 8859/15 (Latin9) Mantenimiento Periféricos Informáticos C/Canteras,15 28860 Paracuellos de Jarama Madrid Tel: 91 748 16 04 www.mpi.com.es...
  • Page 160 • Setting and storage of paper format and print conditions for each paper path in the non volatile memory • Printing of the macro characters using the Compuprint native commands Mantenimiento Periféricos Informáticos C/Canteras,15 28860 Paracuellos de Jarama Madrid Tel: 91 748 16 04 www.mpi.com.es...

  • Page 161: Physical And Electrical Characteristics

    Type B USB 2.0 Compatible Bi-directional - 4 pin connector, 12Mbit/s 10BASE-T – 100BASE-TX – RJ45 8 pin connector Automatic interface switching Reliability MTBF Mean Time between failure: 20,000 hours at 25% DC Mantenimiento Periféricos Informáticos C/Canteras,15 28860 Paracuellos de Jarama Madrid Tel: 91 748 16 04 www.mpi.com.es...
  • Page 162 Max. 154 W Power Consumption Standby: 19W ---- Printing: 121 W (9065) / Standby: 20W ---- Printing: 133 W (9080) Noise Level < 54 dBA Mantenimiento Periféricos Informáticos C/Canteras,15 28860 Paracuellos de Jarama Madrid Tel: 91 748 16 04 www.mpi.com.es...
  • Page 163 315 mm (12,21 inches) Width 670 mm (26,18 inches) Depth 390 mm (15,35 inches) Weight 18 kg Consumables Black ribbon cartridge (15 million characters) PRKN407-1 Mantenimiento Periféricos Informáticos C/Canteras,15 28860 Paracuellos de Jarama Madrid Tel: 91 748 16 04 www.mpi.com.es...
  • Page 164 Three Level Floor Pedestal PRFN-PD1 Controller Parallel-Serial-USB (9065-9080) PRAN965 - PRAN980 Controller Parallel-Ethernet LAN (9065-9080) PRAN965N-PRAN980N Standards IEC 60950-1:2001 EN 60950-1:2001 EN55022 CISPR22 EN55024 EN61000-3-2 , EN61000-3-3 EN27779 Mantenimiento Periféricos Informáticos C/Canteras,15 28860 Paracuellos de Jarama Madrid Tel: 91 748 16 04 www.mpi.com.es...
  • Page 165 78413010-001 Sferal WWT proprietary. All trademarks herein recalled are registered by their respective companies. Mantenimiento Periféricos Informáticos C/Canteras,15 28860 Paracuellos de Jarama Madrid Tel: 91 748 16 04 www.mpi.com.es...

This manual is also suitable for:

Compuprint 9080

Table of Contents
