Graham Field Lumex Drop Arm VersaMode 6810A Assembly And Operation Instructions

WARNING: Important! Read and understand these instructions before assembling or using your
Lumex Drop Arm VersaMode™. If you do not understand any part of these warnings, cautions
or instructions, contact a healthcare professional for direction in the use of this product. If the
VersaMode is not properly adjusted, personal injury and damage to the VersaMode could result.
WARNING: If components are damaged or missing, contact your GF Health Products, Inc. ("GF")
authorized distributor immediately. DO NOT use substitute parts. Use only Lumex replacement parts.
Non-Lumex replacement parts could cause personal injury and damage to the VersaMode™.
WARNING: This product has a maximum weight capacity of 300 lb (130 kg), EVENLY DISTRIBUTED.
WARNING: GF Health Products, Inc. assumes no responsibility for any damage or injury caused by
improper assembly or use of this product.

INTENDED USE

To provide transport, transfer, and commode functions
with one device.

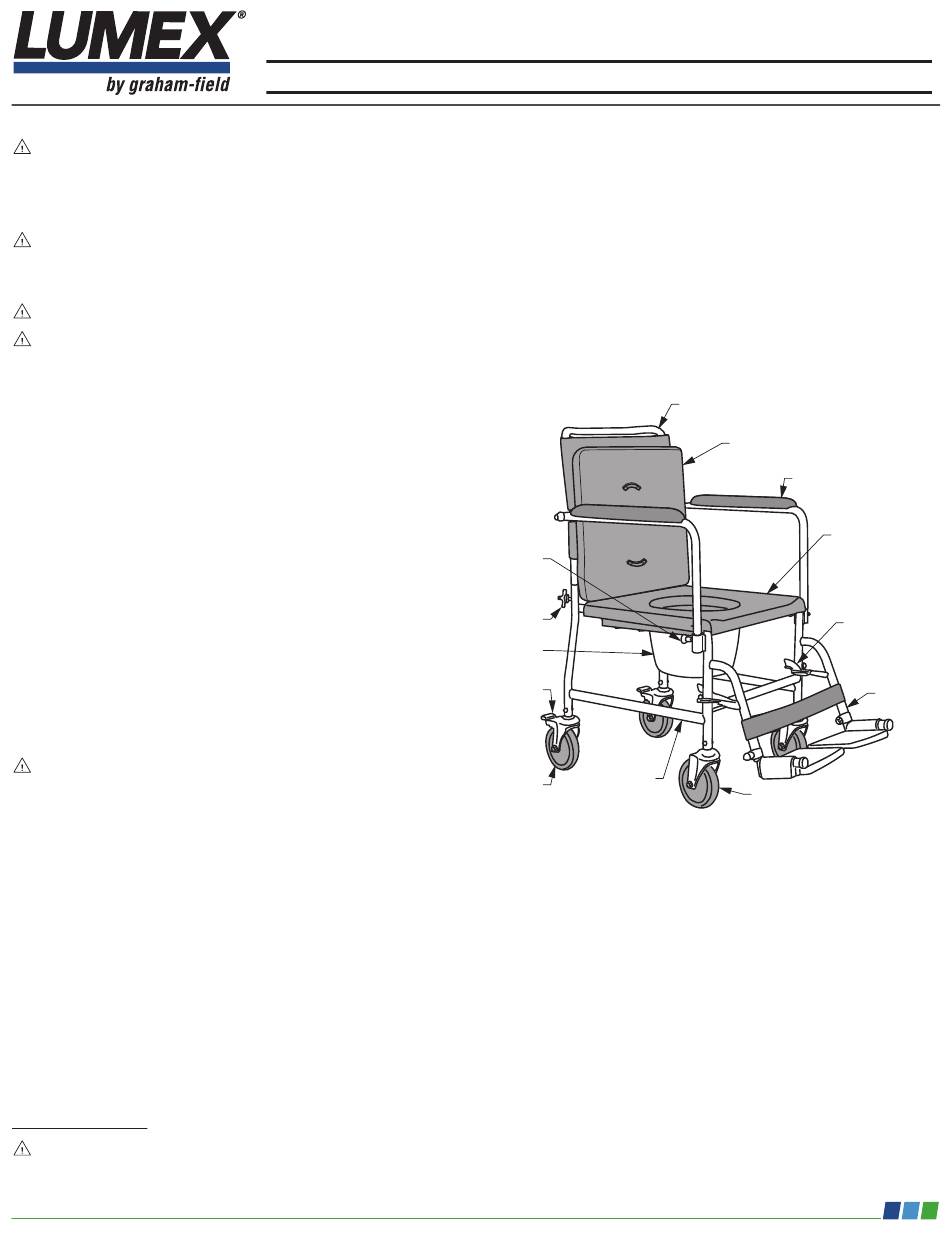

ASSEMBLY (SEE PICTURE AT RIGHT)
1. Carefully remove components from box.
2. Install back and arm assembly on base and seat
frame assembly by inserting back tubes into
base frame tubes. If necessary loosen, but do not
remove, knobs.
3. Tighten knobs at rear seat until secure — do not
overtighten.
4. Install footrests on base frame footrest brackets.
Lock footrests into place.
5. Slide the commode pail in under the seat from the
back.
WARNING: Before use, ensure all components
are securely installed and VersaMode is
assembled as described above.

OPERATION

Drop Armrests
The VersaMode armrests drop to facilitate transfer. To drop the armrest, pull the release lever outward until
the armrest releases, lift the armrest up out of the socket, then swing it downward.
Lock Rear Casters
The rear casters lock into place to prevent movement. To lock, step on the rear pedal until it latches. To
unlock, step on the rear pedal until it unlatches.
Swing Away / Remove Footrests
The VersaMode footrests swing away or detach to facilitate transfer. To swing the footrest away, depress the
footrest release lever and swing it out of the way. To remove the footrest, swing it away, then lift it up off the
brackets. To lock the footrest in place, swing it in toward the center of the VersaMode until it locks into place.

MAINTENANCE

WARNING: Inspect the VersaMode weekly for proper function and wea; check the fit and tightness of
all nuts, bolts and knobs weekly. If any component is not in proper working order or appears worn,
contact your GF authorized distributor for repair and appropriate replacement parts.
LX_6810A-INS-LAB-RevD23
6810A: DROP ARM VERSAMODE™
ASSEMBLY AND OPERATION INSTRUCTIONS
PARA INSTRUCCIONES EN ESPAÑOL, CONSULTE LA PAGINA 3
SAVE THESE INSTRUCTIONS FOR FUTURE USE
www.grahamfield.com
armrest
release
lever
knob
commode
pail
locking
pedal
base and
rear
seat frame
(locking)

assembly

caster
6810A Drop Arm VersaMode
back and arm
assembly
seat cushion (flipped up
to show commode seat)
armrest
commode seat
footrest
release
lever
front caster
footrest
