Mark-10 R01 Series Quick Start Manual

MODELS PTA & PTAF SENSOR ADAPTERS
These adapters connect third-party strain gage-based
load cells, force sensors, and torque sensors to Mark-
10 indicators and Series F test frames.
To confi gure the sensor, follow the instructions in the
user's guide. Once connected and confi gured via Plug
& Test® software, the sensor will be recognized by a
Mark-10 indicator or Series F test frame.
PC requirements
Plug & Test
Microsoft Windows 7 or later, with minimum monitor
resolution of 1108 x 758. A USB or RS-232C serial port
is required. If USB communication is required, install
the Mark-10 USB driver.
Follow the Resources link below to download the soft-
ware and USB driver.

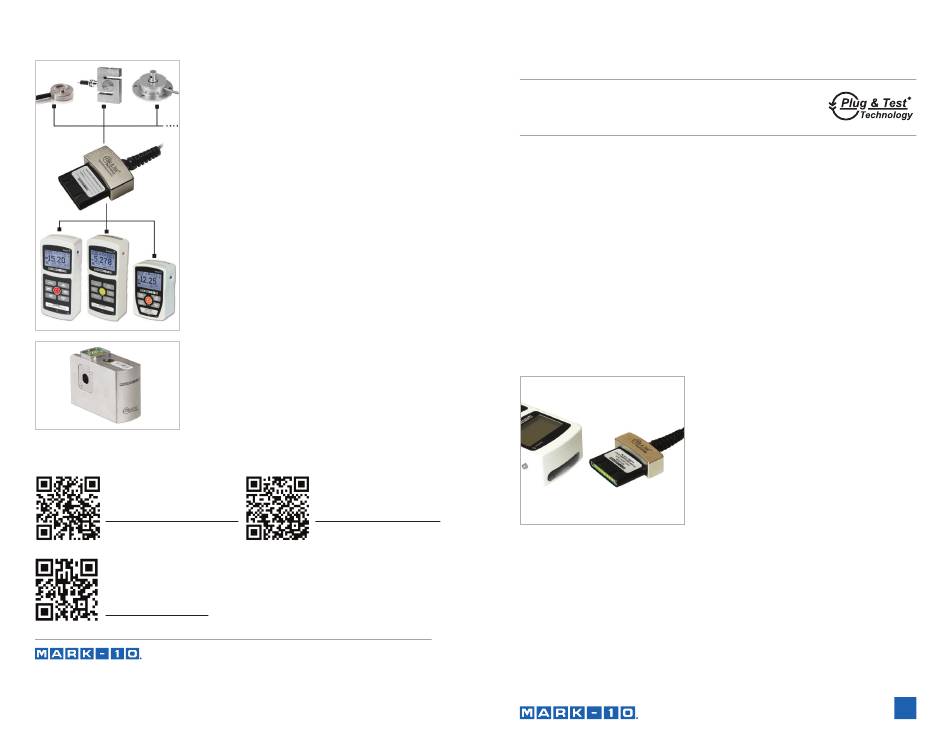

< Model PTA adapts a sensor to a
Mark-10 indicator
< Model PTAF adapts a sensor to a
Mark-10 Series F test frame
USER'S GUIDES LINKS
Sensors
mark-10.com/manualplug&test
Download user's guides,
data sheets, software,
solid models, and more.
mark-10.com/resources
11 Dixon Avenue, Copiague, NY 11726
888-MARK-TEN  Tel: 631-842-9200
www.mark-10.com  info@mark-10.com
software is compatible with PCs running
®
PTA / PTAF Adapter
mark-10.com/manualpta-ptaf
32-1265
0624
Force & Torque Sensors
& Sensor Adapters
Series R01 / R02 / R03 / R04 / R05 / R06 / R07 /
R50 / R51 / R52 / R55 / FS05 / FS06 sensors
Models PTA and PTAF adapters
Thank you!
Thank you for purchasing a Mark-10 Plug & Test® sensor or sensor adapter. With
proper usage, we are confi dent that you will get many years of great service with
this product. Mark-10 sensors are ruggedly built for laboratory and industrial en-
vironments.
Please read through this quick start guide and the complete user's guide before use.
IMPORTANT SAFETY CONSIDERATIONS
Force and torque sensors are sensitive instruments that must be treated with care.
Please review the yellow safety information card included in the box, as well as
the safety information provided in the user's guide prior to operating the sensor.
SENSOR - INDICATOR SETUP
Plug & Test® sensors are designed to inter-
face with Mark-10 indicator models M3I, M5I,
and M7I. All confi guration and calibration
data is saved within the sensor's connector,
shown at left.
Insert the connector into the corresponding
slot in the indicator. When fully inserted, the
connector will lock into place with a "click".
To release the connector, press both buttons
on either side of the indicator housing. Pull
the connector completely out of the indica-
tor by gripping the curved aluminum section.
DO NOT pull on the cable or strain relief.
QUICK START GUIDE
