Summary of Contents for NAVAC MASTER Series

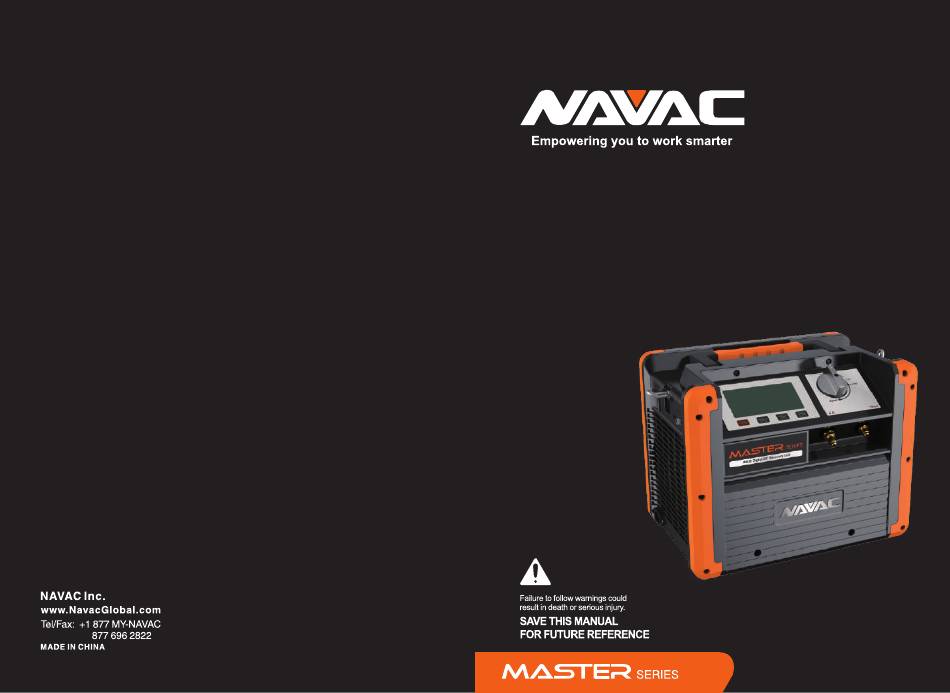

- Page 1 Recovery Unit NRDD User Manual...
- Page 2 The power must be cut off and no display in LCD before inspecting or repairing. If the original power supply cord is damaged, an OEM replacement may be ordered throughyour NAVAC distributor. Please take power supply and the capacity of your ammeter and electrical wire.
- Page 3 3. The knob should be in the "Close" Position before operation. All the valves must be closed, the input and output fittings should be covered with protective caps when the unit is not in operation. The air/ moisture is harmful to the recovery result and will shorten the life span of the unit. 4.
- Page 4 Start/Stop: Starts and Stops recovery unit. LP Switch: Hold for 3 seconds to switch between LP1, LP2, Lp3. Units/Zero: Press to change units to InHg, Kpa, Psi, Kg/f, Bar, Mpa. Hold for 3 seconds to zero out readings. Cancel Alarm: Hold for 3 seconds to mute recovery unit. LP1: (Auto shutoff with manual restart) if the inlet pressure is lower than -20inHg for 20 seconds, the unit will shut down.
- Page 5 open open stops rotating. Digital Control Board...
- Page 6 9.Observe the reading of the lowpressure gauge when it reaches to -20inHg, after 20 seconds, LP cutoff opens and the machine shuts off. Disconnect 7.Press the " START" button to start machine. 8.Turn the knob to recover,...
- Page 7 leve setting based on level 4.Press the "START" button to start machine. 5.Turn the knob to "Recover".
- Page 8 recovery control board Refer to section 6 of OPERATION MANUAL on page 3. Could restart with pressure rise. 3.Press "START" button to start machine, then it starts liquid push/pull mode. 4.Turn the knob to "Recover".
