Summary of Contents for arbane APG DA Series

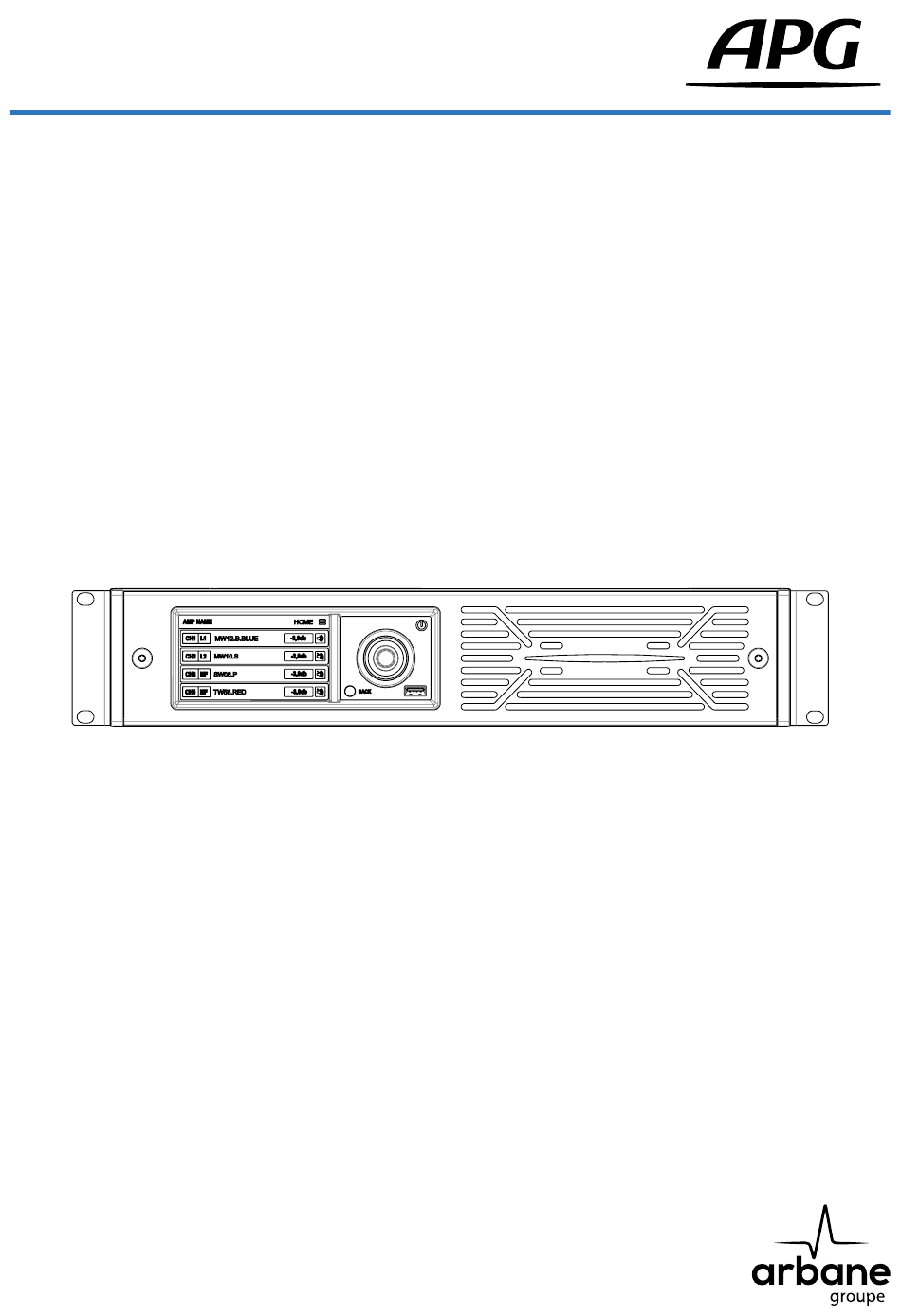

- Page 1 User Guide...
- Page 2 User Guide - DA amplifiers General information DA amplifier - User Guide 01/2022 EN APG France (Active Audio / Arbane Groupe) 8 Rue Johannes Gutenberg - 44340 Bouguenais- France Tél : 02.40.46.66.64 www.apg.audio/en DOP_1502_C 01/2022...
-
Page 3: Table Of Contents
User Guide - DA amplifiers Important Safety Instructions Preliminary operations Connections Basic operations Networking ArmoníaPlus System Design Location Exposing the filters Cooling Dimensions Pinouts Front panel Rear panel Specifications DOP_1502_C 01/2022... - Page 4 User Guide - DA amplifiers DOP_1502_C 01/2022...
-
Page 5: Important Safety Instructions
User Guide - DA amplifiers Important Safety Instructions Common symbols and meanings • THE TRIANGLE WITH THE LIGHTNING BOLT IS USED TO ALERT THE USER TO THE RISK OF ELECTRIC SHOCK. • THE TRIANGLE WITH THE EXCLAMATION POINT IS USED TO ALERT THE USER TO IMPORTANT OPERATING OR MAINTENANCE INSTRUCTIONS. - Page 6 User Guide - DA amplifiers • OUTPUT TERMINALS ARE HAZARDOUS: WIRING CONNECTION TO THESE TERMINALS REQUIRES INSTALLATION BY AN INSTRUCTED PERSON AND THE USE OF READY MADE LEADS. • PROPERLY FIT THE AC MAINS PLUG TO THE AMPLIFIER INLET. BEFORE POWERING THIS AMPLIFIER, VERIFY THAT THE CORRECT VOLTAGE RATING IS BEING USED.
- Page 7 User Guide - DA amplifiers Please read and keep all safety and use instructions. This product is intended for installation by professional installers only! This document is intended to provide professional installers with basic installation and safety guidelines for this product in typical fixed-installation systems.
- Page 8 User Guide - DA amplifiers Regulatory Compliance Statements Europe If the time arises to dispose of your product, please recycle all possible component. This symbol indicates that when the end-user wishes to discard this product, it must be sent to separate collection facilities for recovery and recycling.
- Page 9 User Guide - DA amplifiers Canada Canadian Caution This device contains licence-exempt transmitter(s)/receiver(s) that comply with Innovation, Science and Economic Development Canada’s licence-exempt RSS(s). Operation is subject to the following two conditions: 1)This device may not cause interference. 2)This device must accept any interference, including interference that may cause undesired operation of the device. WARNING: This is a class A product.
-
Page 10: Preliminary Operations
User Guide - DA amplifiers Preliminary operations Package list The box contains the following: 1x DA Series amplifier 1x Power cord 3x1.5mm2 16A Type F 1x Power cord 3x1.5mm2 16A Type I 1x Power cord 16/3 SJT 1x User Guide Location •... -
Page 11: Basic Operations
User Guide - DA amplifiers The DA Series amplifiers offers two Ethercon ports supporting a total of 4-in and 4-out Dante/AES67 channels. Users can configure the amplifier to operate at one of the following three modes: 2-in x 2-out (at 96kHz), 4-in x 4-out (at 48kHz - default), 4-in x 0-out (at 96kHz). - Page 12 User Guide - DA amplifiers Matrix The DA amplifier series has an internal 4 x 4 mixing matrix. The Matrix page shows the internal matrix outputs and the matrix inputs that are routed to them. It is possible to change the routing by clicking on one of the ‘INPUT’ labels and selecting a new input from the list.
-
Page 13: Networking
User Guide - DA amplifiers Networking The DA Series amplifier supports Dante networking. The two- gigabit ports are internally connected via a Gigabit switch to simplify wiring and eliminate the need for external network switches in small systems. Control and Dante audio are available in both ports by default. -
Page 14: Location
User Guide - DA amplifiers Location Cooling 1 RU 1 RU 1 RU Exposing the filters Dimensions T20 Torx screw. DOP_1502_C 01/2022... -
Page 15: Pinouts
User Guide - DA amplifiers Pinouts COLD COLD Analog/AES3 input XLR-M pinout Analog/AES3 input XLR-F pinout Pin# Terminal Pin# Terminal 1 Ground (GND) 1 Ground (GND) 2 Positive (+) 2 Positive (+) 3 Negative (-) 3 Negative (-) Network Connector RJ45 pinout Output NL4 Speakon-F pinout Color code (TIA/EIA-568-B) Single Ended... -
Page 16: Front Panel
User Guide - DA amplifiers Front panel Control Panel USB Port Main menu Reserved for servicing purposes Rotary encoder pushbutton Power status LED «Back/ArmoníaPlus Callback» pushbutton Rear panel Output section Input section CH1 (1+/-) CH2 (2+/-) Input 1 (XLR-F) CH2 (1+/-) N.C. (2+/-) Input 2 (XLR-F) CH3 (1+/-) CH4 (2+/-) Input 3 (XLR-F) -
Page 17: Specifications
User Guide - DA amplifiers Specifications Channel Handling Output Stage DA12 4 x Speakon NL4 1500 W 1800 W Outputs 4 Dante/AES67 TX (from local input or DSP) 2000 W 3000 W Inputs 2500 W 2500 W 4 XLR female Analog 1600 W 1900 W... - Page 18 Arbane Groupe 8 Rue Johannes Gutenberg - 44340 Bouguenais- France Tél : 02.40.46.66.64 www.apg.audio...
