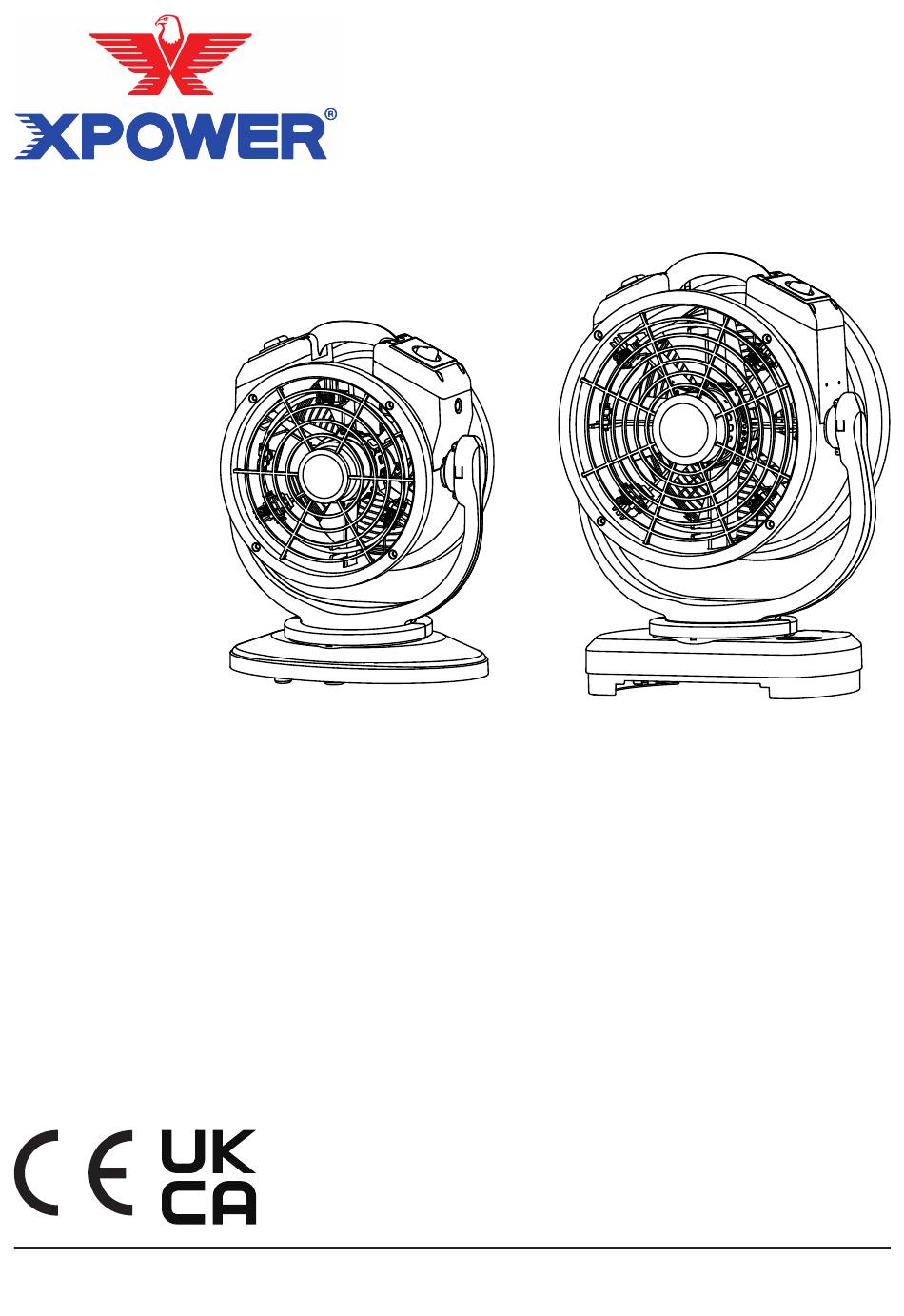

- Page 1 Misting Fan Owner's Manual Model : FM-68, FM-68W, FM-88W, FT-68W, FT-88W (220-240V~ , 50Hz) Read and save these instructions before use Read and save these instructions www.xpower.com | www.tx-5.com.hk Index: EU-1-A36 Edition: 1.0.Final...
-
Page 2: Safety Instructions
Refer to troubleshooting guide or contact • Store in a dry area, away from exposure to sunlight, extreme temperature and humidity, or other extreme environments, when not in use. • An electronic instruction manual can be obtained through website www.xpower.com. English - 2... - Page 3 Grounding Instructions This appliance must be grounded. In the event of malfunction or breakdown, grounding provides a path of least resistance for electric current to reduce the risk of electric shock. This appliance is equipped with a cord having an equipment-grounding conductor and a grounding plug.
-
Page 4: Parts Description
(17) Oscillation Motor (25) Water Hose** (9) Speed Switch Panel (18) Top Base Cover * For model FM-68W, FM-88W, FT-68W, FT-88W only. ** For model FM-68 only. Items Included • Spare Misting Nozzle x 1 Owner's Manual XXX Manual De Usuario (página 10) - Page 5 Installation and Operation Guide Water Source Connection For Model FM-68: • Screw the water faucet adapter onto the water faucet. • Turn the switch to desired position to open or close the valve. • Turn on the water faucet. Water Faucet...
- Page 6 For Model FM-68W, FM-88W, FT-68W and FT-88W: • The misting fan must connect to a container with water as a source of water. • You can choose your own container or use XPOWER Water Tank for fast and convenient connection.
- Page 7 If you want to fill the container with a solution / liquid other than water: • IMPORTANT: Always disconnect the machine from the power source before filling the solution. • Do not exceed the maximum capacity of the container. For WT Series, it’s suggested to fill 80% of the maximum capacity.
- Page 8 RCD Protected Power Cord For RCD (Residual Current Device) protected power cord receptacle: • Once a ground fault occurs, the RCD will immediately interrupt the power connection to this appliance. • A ground fault is an inadvertent contact between an energized conductor (for example, a human being) and ground or equipment frame.
-
Page 9: User Maintenance Instructions
Multiple Operating Positions Water Pump Speed Switch • Press to switch the speed of the water pump. • There are 3 water pump speeds from: 1, 2, 3. “1” is the lowest speed and “3” is the highest speed. Water Pump Timer •... - Page 10 Organizing the Cord and Water Hose For Model FM-68: • Wrap the water hose first and then the power cord around the rack base after use. For Model FM-68W/FM-88W/FT-68W/FT-88W: • Wrap the power cord around the rack base after use.
- Page 11 Atomization Assembly Maintenance When not in use, unscrew the misting nozzles, store the nozzles in a dry indoor place out of reach of children. The nozzles must be dried completely before stored. • Disassemble the nozzles (See illustration above) and unscrew the water faucet adapter.
-
Page 12: Troubleshooting Guide
The atomization assembly is Remove blockage. blocked. 11: Atomization Assembly Maintenance) The water switch is off. Check for water supply. If troubleshooting does not resolve your problem, please contact XPOWER or other parties authorized by XPOWER for further instructions. English - 12... -
Page 13: Technical Specification
Technical Specification MODEL NUMBER FM-68 FM-68W FT-68W FM-88W FT-88W Voltage / Frequency 220-240V~, 50Hz Power 60 W 68 W 100 W Rated Airflow 900 CFM 1450 CFM Speed Control 3 Speeds Cord Length 3.0 m 7.6 m 3.0 m 7.6 m Unit Dimension 37.5 x 21 x 48.3 cm... -
Page 14: Year Limited Warranty
This limited warranty covers defects in materials and workmanship in your XPOWER- branded products. Contact an XPOWER Distributor in your region for warranty service and parts replacement. Items mentioned but not limited to below are not covered by warranty: (1) Power cord, batteries, filters or any other components considered as a “consumable... - Page 15 English - 15...
- Page 16 XPOWER Manufacture, INC. 668 S. 6th Ave., City of Industry, CA 91746 USA Read and save these instructions www.xpower.com | www.tx-5.com.hk Index: EU-1-A36 Edition: 1.0.Final...
