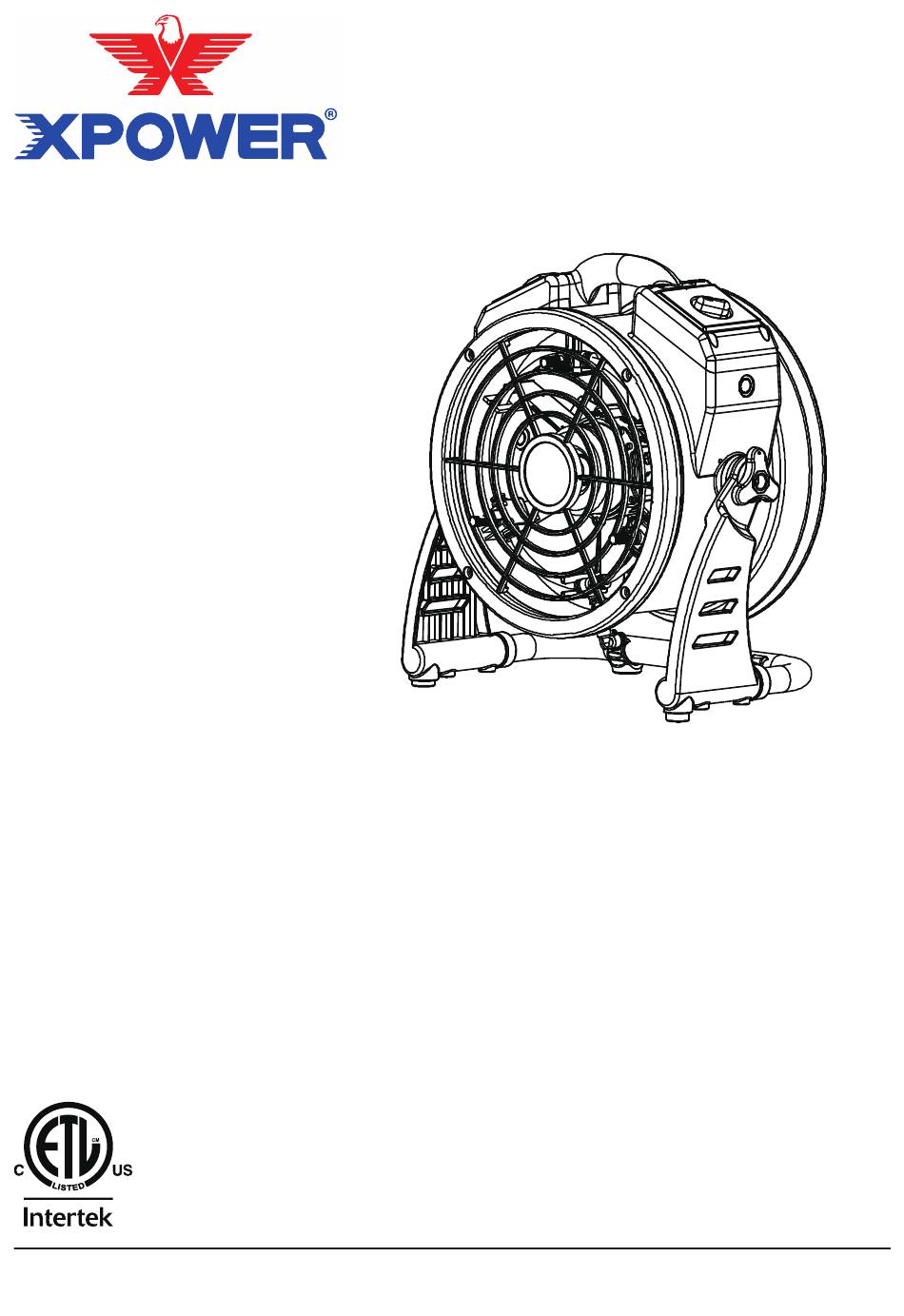

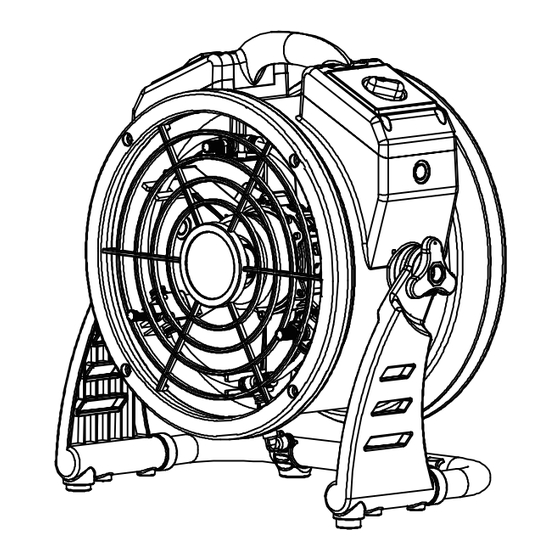

Misting Fan Owner's Manual
Ventilador con Nebulizador de Usuario
Brumiventilateur Manual d'emploi
Model / Modelo / Modèle:
FM-65
(115V~ , 60Hz)
Read and save these instructions before use
Lea y guarde estas instrucciones
Lisez et gadez ces instructions
www.xpower.com | 1-(855)-855-8868 | info@xpower.com
www.xpower.com | 1-(855)-855-8868 | info@xpower.com
Index: NA-1-A46
Edition: 1.1.Final
Advertisement
Table of Contents
Related Manuals for XPower FM-65
Summary of Contents for XPower FM-65
- Page 1 Model / Modelo / Modèle: FM-65 (115V~ , 60Hz) Read and save these instructions before use Lea y guarde estas instrucciones Lisez et gadez ces instructions www.xpower.com | 1-(855)-855-8868 | info@xpower.com www.xpower.com | 1-(855)-855-8868 | info@xpower.com Index: NA-1-A46 Edition: 1.1.Final...
-
Page 2: Safety Instructions
Refer to troubleshooting guide or contact • Store in a dry area, away from exposure to sunlight, extreme temperature and humidity, or other extreme environments, when not in use. • An electronic instruction manual can be obtained through website www.xpower.com. English - 2... - Page 3 Grounding Instructions This appliance must be grounded. In the event of malfunction or breakdown, grounding provides a path of least resistance for electric current to reduce the risk of electric shock. This appliance is equipped with a cord having an equipment-grounding conductor and a grounding plug.
-
Page 4: Parts Description
Parts Description (1) Front Grille Cover (9) Housing (2) Atomization Assembly (10) Fan (3) Motor (11) Rear End Cover (4) Cover (12) Rear Grille Cover (5) Housing Handle Front (13) Bracket (6) Housing Handle Rear (14) Water Outlet (7) Speed Switch Panel (15) Power Cord (8) Capacitor (16) Water Hose... - Page 5 Installation and Operation Guide Water Source Connection • Screw the water faucet adapter onto the water faucet. • Turn the switch to desired position to open or close the valve. • Turn on the water faucet. Water Faucet Open Close Water Switch English - 5...
- Page 6 GFCI Protected Power Cord Power Indicator Circuit Reset Button RESET Test Button TEST • The power cord of the misting fan is protected by GFCI. • If the misting fan stops working, press the RESET BUTTON to reset the circuit. For GFCI (Ground Fault Circuit Interrupter) protected power cord receptacle: •...
-
Page 7: User Maintenance Instructions
User Maintenance Instructions Frequent maintenance is recommended on this appliance. Failure to follow the maintenance instructions may cause failure of the appliance and void the warranty. • When not in use, unplug and store the appliance in a dry and cool indoor place. Make sure it’s out of reach of children. - Page 8 Replacing the Fuse FUSE FUSE Fuse Cover Fuse • Grasp plug and remove from the receptacle or other outlet device. Do not unplug by pulling on cord. • Slide open the fuse cover on top of attachment plug. Remove the fuse carefully. •...
-
Page 9: Troubleshooting Guide
The water hose is blocked. Remove blockage. abnormal The atomization assembly Remove blockage. (See Page 7: Atomization Assembly is blocked. Maintenance) If troubleshooting does not resolve your problem, please contact XPOWER or other parties authorized by XPOWER for further instructions. English - 9... -
Page 10: Technical Specification
16.1 x 14.2 x 8.9 in. / 41.0 x 36.0 x 22.5 cm (L) x (W) x (H) Unit Weight 10.6 lbs. / 4.8 kg Safety Certification ETL/C-ETL If your product(s) is not listed above, please visit www.xpower.com for more information. Atomization Specification Misting Nozzle Max Mist Volume Max Throw Distance FM-65 0.3 mm (Marked 3010) - Page 11 (2) Call XPOWER U.S. Customer Service Department at 855-855-8868 or other numbers provided on www.xpower.com. (3) Visit XPOWER U.S. Head Office at 668 S. 6th Ave., City of Industry, CA 91746 or the most current address provided on www.xpower.com. Please also have your original proof of purchase and the serial number(s) of your product(s) ready when you contact XPOWER.
- Page 12 XPOWER Manufacture, INC. 668 S. 6th Ave., City of Industry, CA 91746 USA www.xpower.com | 1-(855)-855-8868 | info@xpower.com www.xpower.com | 1-(855)-855-8868 | info@xpower.com Read and save these instructions before use Lea y guarde estas instrucciones Lisez et gadez ces instructions Index: NA-1-A46 Edition: 1.1.Final...
