Summary of Contents for Avallon AWC242DPRSRH

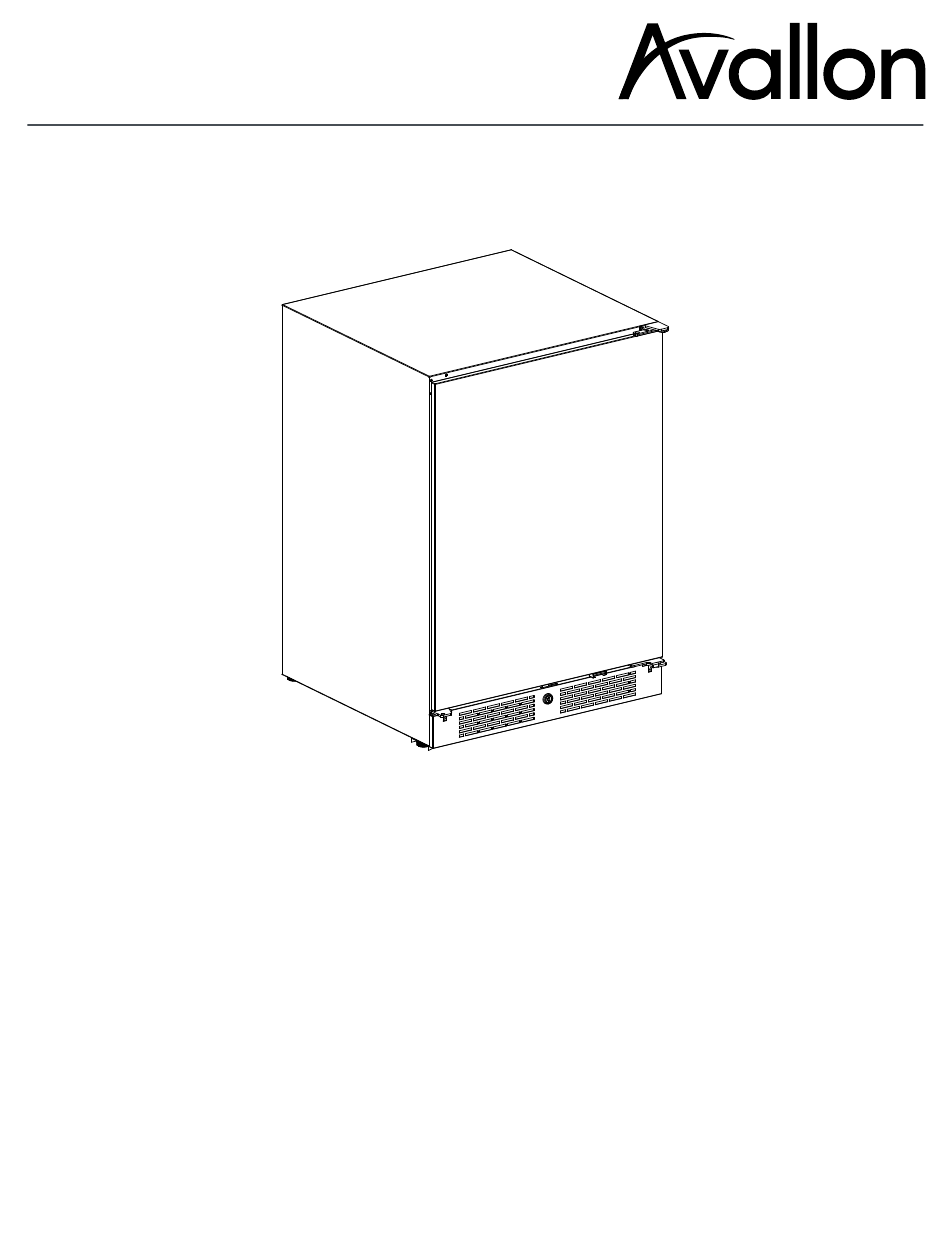

- Page 1 ® Owner’s Manual Undercounter Wine Refrigerator Model: AWC242DPRSRH / AWC242DPRSLH AVALLON.COM ©2025 Ferguson Enterprises, LLC V1.1-04042025...
-
Page 2: Important Safety Information
® Important Safety Information Improper handling can cause serious damage to the Avallon refrigerator and / or injury to the user. This refrigerator is designed for domestic indoor use only. Do not use the unit for industrial or commercial use. Any other use may invalidate the warranty. Please review the rating label located inside and on the rear panel of the unit for electrical and other technical data related to this unit. -
Page 3: General Safety
If the supply cord is damaged, it must be replaced by the manufacturer, its service agent, or a similarly qualified individual. Warning: Risk of child entrapment. Before you throw away your old refrigerator or freezer, take off the doors and leave the shelves in place so that children may not easily climb inside. AVALLON.COM... -
Page 4: Table Of Contents
Internal Light ................................14 Normal Sounds ................................. 14 Temperature Alarm ..............................15 Door Ajar Alarm................................ 15 Defrosting .................................. 15 Preparing the Refrigerator for Storage ......................15 Cleaning and Maintenance ............................16 Troubleshooting ................................17 Specifications ..................................19 Product Warranty ................................20 AVALLON.COM... -
Page 5: First-Time Operating Instructions
The instruction manual should be read before use. Introduction Thank you for purchasing this Avallon refrigerator. We hope that this purchase will be the beginning of a lasting and rewarding relationship between you and Avallon. We will provide the customer support and exemplary products necessary to nurture that relationship. -
Page 6: Parts Identification
® Parts Identification Full View: Door Lock Front Vent Leveling Leg Empty View: Internal Fan Carbon Filter Control Panel Shelf AVALLON.COM... -
Page 7: Back View
Note: The carbon filter should be replaced every three to six (3 - 6) months depending on the unit’s exposure level to odor. If the unit is placed in the kitchen, regular replacement every three (3) months is ideal. AVALLON.COM... -
Page 8: Installation
2. If the electrical outlet for the refrigerator is behind the cabinet, plug in the refrigerator. 3. Push the refrigerator into position. Warning: DO NOT install the refrigerator behind a closed cabinet door. AVALLON.COM... -
Page 9: Clearance Requirements
If needed, you can adjust the height of the refrigerator by rotating the feet. See the “Leveling the Refrigerator” section. Note: A standard electrical supply (115 VAC only, 60 Hz), properly grounded in accordance with National Electrical Code and local codes and ordinances, is required. AVALLON.COM... -
Page 10: Electrical Requirements
3-pronged wall socket, and grounded in accordance with the National Electrical Code and local codes and ordinances. If a mating wall socket is not available, it is the personal responsibility of the customer to have a properly grounded, 3-prong wall receptacle installed by a qualified electrician. AVALLON.COM... -
Page 11: Leveling The Refrigerator
Caution: Do not over-tighten the screws as this may cause damage to the handle or door. Note: Panel ready models allow for the installation of handles which may be affixed to the panel overlay directly. Door handle installation may be different than the above instructions. Please visit www.avallon.com for additional panel ready information. AVALLON.COM... -
Page 12: Installing The Shelves
You may choose to do this by hand or by using a flathead screwdriver. 5. Evenly pull out the shelf from the track until it is completely removed from the inner compartment. Nail Notch Rail FIG. B FIG. A Rail AVALLON.COM... -
Page 13: Operation
To switch between C and F, press and hold both the Up and Down buttons simultaneously for approximately three (3) seconds. A beep will sound and the indicator light will illuminate next to the desired temperature setting. AVALLON.COM... -
Page 14: Sabbath Mode
Water running from the evaporator to the water bin may make a splashing sound. • As each cycle ends, you may hear a gurgling sound due to the refrigerant flowing in your refrigerator. • You may hear air being forced over the condenser by the condenser fan. AVALLON.COM... -
Page 15: Temperature Alarm
If the inner temperature is lower than 32°F (0°C), “LO” is shown on the temperature display panel and the temperature alarm will sound continuously after fifteen minutes. If one of these situations occurs please reference the troubleshooting section found in this manual or contact Avallon for support. Door Ajar Alarm This refrigerator includes a door ajar alarm, which will sound if the door is open for more than three (3) minutes. -
Page 16: Preparing The Refrigerator For Storage
2. Open the door and remove the contents and shelves. 3. Wait until the unit defrosts. 4. With a clean cloth, wipe down the interior of the unit. 5. Reinsert the shelves and contents. 6. Reconnect power to the unit. AVALLON.COM... -
Page 17: Troubleshooting
Read and follow the “Installation have sufficient ventilation. Clearance Requirements” section. The door is opened too Close the door tightly and do not open frequently or for a long the door too frequently or for a long period of time. period of time. AVALLON.COM... - Page 18 Make sure the refrigerator is on a level properly. surface. The door gasket is dirty. Clean the door gasket. The door gasket is not Make sure the door gasket is correctly installed correctly. installed. The shelves are incorrectly Install the shelves correctly. installed. AVALLON.COM...
-
Page 19: Specifications
Specifications are subject to change. Check the rating label on the refrigerator for the most accurate information. Product Type Undercounter Wine Refrigerator Model AWC242DPRSRH / AWC242DPRSLH Voltage / Frequency AC 115V~60Hz Amperage Color Black Cabinet with Solid Panel Ready Door Refrigerant R600a, 1.4 oz. -
Page 20: Product Warranty
WHAT IS COVERED: One Year Parts and Labor: For one year from the date of original retail purchase, Avallon will repair or replace any part free of charge including labor that fails due to a defect in materials or workmanship. Avallon will be responsible for all transportation costs for the first 90 days from original purchase date, after 90 days the consumer will be responsible. - Page 21 ® AVALLON.COM ©2025 Ferguson Enterprises, LLC V1.1-04042025...
