Summary of Contents for Avallon AWC151DBLSS

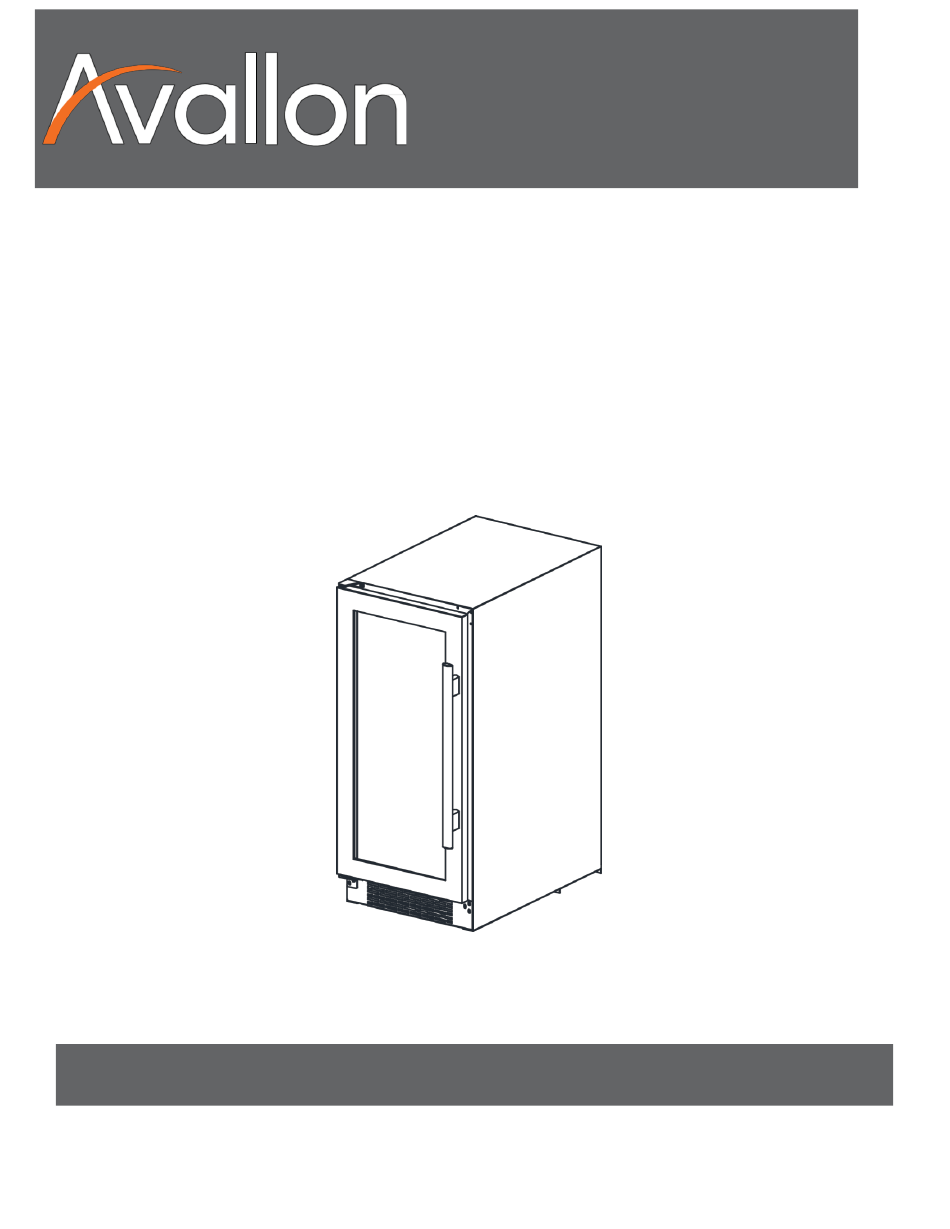

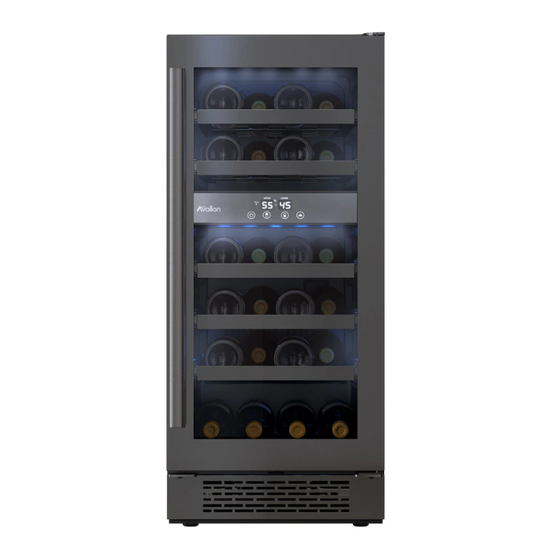

- Page 1 USER’S GUIDE Installation, Operation, and Maintenance for your product. Built-In Wine Refrigerator Model – AWC151DBLSS www.avallon.com V2.0-09102019...
-
Page 2: Important Safety Information
Important Safety Information Improper handling can cause serious damage to the Avallon wine refrigerator and/or injury to the user. This wine refrigerator is designed for domestic indoor use only. Do not use the unit for industrial or commercial use. Any other use may invalidate the warranty. Please review the rating label located on the rear panel of the unit for electrical and other technical data related to this unit. - Page 3 GENERAL SAFETY • To prevent injuries, use at least two people to move and install the beverage refrigerator. • Install the beverage refrigerator in a well-ventilated area where the ambient temperature is above 50° F and below 90° F. • The temperature range for this refrigerator is optimized for beverage storage. Perishable food items may require a different storage environment.
-
Page 4: Table Of Contents
Temperature Alarm................................12 Door Ajar Alarm ..................................12 Cleaning and Maintenance ..............................13 INTERIOR CLEANING: ................................13 EXTERIOR CLEANING: ................................13 Preparing Your Wine Refrigerator for Storage ........................13 Troubleshooting ..................................14 Specifications ..................................16 Avallon Product Warranty ..............................17... - Page 5 First Time Operating Instructions: Before use, make sure all packaging labels and materials are removed from the unit. Be sure to keep track of all included parts and pieces before discarding packaging materials. It is advised that you keep the original box and packaging materials in case you need to move or ship the appliance in the future. Allow the unit to stand for at least 24 hours before you use it;...
-
Page 6: Introduction
Introduction Thank you for purchasing your Avallon wine refrigerator. Avallon is dedicated to developing products that will enhance your lifestyle with superior quality and distinctive features. Please visit www.avallon.com for more information on your product and other Avallon products. This manual contains important information regarding the proper installation, use, and maintenance of your wine refrigerator. -
Page 7: Parts Identification
Parts Identification Full View Empty View... -
Page 8: Back View
Back View Carbon Filter A built-in carbon filter protects your wines by acting as a natural barrier against harmful odors. Internal Fan This is an air-cooled unit equipped with an internal fan that maintains a consistent internal temperature. Note: The carbon filter should be replaced every 3-6 months depending on the unit’s exposure level to odor. -
Page 9: Installing Your Wine Refrigerator
Installing Your Wine Refrigerator The wine refrigerator should be installed in accordance with local electrical code requirements. It should also be placed in a location that is strong enough to support its total weight, keeping in mind that it will weigh substantially more when fully loaded than when empty. -
Page 10: Installation Clearance Requirements
Installation Clearance Requirements: When installing the wine refrigerator under a counter, follow the recommended spacing dimensions shown. • To ensure proper service access and ventilation, allow between 1 - 2 inches of clearance at the back as shown in the diagram. •... -
Page 11: Recommended Grounding Method
RECOMMENDED GROUNDING METHOD: For your personal safety, this appliance must be grounded. It is equipped with a power supply cord having a 3-prong grounding plug. To minimize possible shock hazard, the cord must be plugged into a mating 3- pronged wall socket, and grounded in accordance with the National Electrical Code and local codes and ordinances. -
Page 12: Installing The Shelves
INSTALLING THE SHELVES: 1. Open the door completely. 2. Ensure that the metal guide posts are attached to the rear of the shelf. 3. Tilt the shelf 45° counterclockwise. The metal guide post on your left side should rest on the shelf track. 4. -
Page 13: Reversing Your Door Swing
Reversing Your Door Swing REVERSING THE DOOR: A. Open the door to a 90 degree angle, take out the 2 screws from the lower door axis (1), remove the door (2) and the axis plate from the door. B. Take out the 3 hinge screws from the top right hinge (3) and remove it. C. -
Page 14: Operation
Operation INSTALLATION CHECK-LIST BEFORE OPERATION: 1. Have all packing materials and tape been removed from the interior and exterior of the wine refrigerator? 2. Have the installation instructions been followed, including connecting the machine to electricity? 3. Has proper grounding been installed for the wine refrigerator? 4. -
Page 15: Internal Light
Interior Light Press this button to cycle through the different internal light settings. There are four light settings: Constant Blue, Constant White, Automatic Blue, and Automatic White. Press this button to choose the next option in the progression, eventually cycling back to the original setting. The lights will fade out of the previous setting and into the next setting in the cycle each time you press this button. -
Page 16: Defrosting
Note: We run test every unit that we produce in our factory. Because of this, your model may default to any of the above settings out of the box. Simply cycle through the progression of settings until you reach your desired light setting. The lights will return to the Constant Blue setting after the Automatic White setting, thus starting back at the beginning of the progression. -
Page 17: Normal Sounds
32°F (0°C), “LO” is shown on the temperature display panel and the temperature alarm will sound continuously after one hour. If one of these situations occurs, please reference the troubleshooting section found in this manual or contact Avallon for support. Door Ajar Alarm This Wine Cooler includes a door ajar alarm, which will sound if one of the doors is open for more than five (5) minutes. -
Page 18: Cleaning And Maintenance
Cleaning and Maintenance Periodic cleaning and proper maintenance will ensure efficiency, top performance, and long life. INTERIOR CLEANING: 1. Disconnect power to the unit. 2. Open the door and remove the contents and shelves. 3. Wait until the unit defrosts. 4. -
Page 19: Troubleshooting
Troubleshooting ISSUE POSSIBLE CAUSE SOLUTION The wine refrigerator turns on and The room temperature is higher Run the refrigerator at the off frequently. than the recommended ambient appropriate ambient environment. temperature. The door is being opened often. Minimize the number of times the door is opened. - Page 20 ISSUE POSSIBLE CAUSE SOLUTION The wine refrigerator will not The refrigerator has restricted air Open up space in the cabinet to reach the desired temperature. flow due to too much storage. allow air flow. The refrigerator is placed too Keep the refrigerator away from close to a heat source.
-
Page 21: Specifications
Specifications DESCRIPTION OF PRODUCT Built-In Wine Refrigerator MODEL AWC151DBLSS VOLTAGE / FREQUENCY AC 115 / 60 Hz AMPERAGE 1.5 A INPUT POWER 120 W COLOR Black Cabinet with Black Stainless Steel Door STORAGE CAPACITY 23 Bottles * REFRIGERANT R600a, 1.06 oz. -
Page 22: Avallon Product Warranty
WHAT IS COVERED: One Year Parts and Labor: For one year from the date of original retail purchase, Avallon will repair or replace any part free of charge including labor that fails due to a defect in materials or workmanship. Avallon will be responsible for all transportation costs for the first 90 days from original purchase date, after 90 days the consumer will be responsible.
