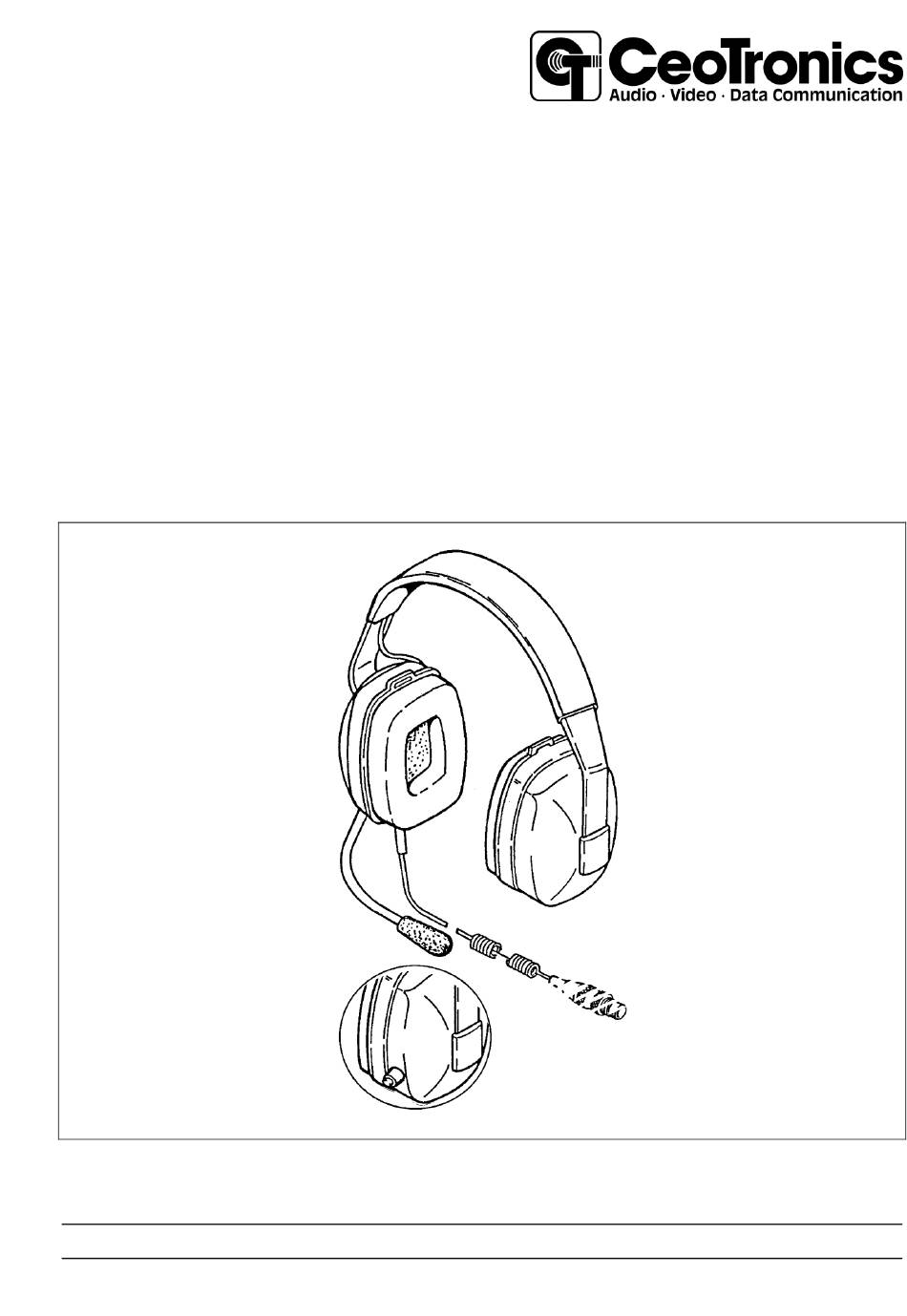

- Page 1 Hear/speak system PTT/Ex-* CT-PTT Headsets for the Operation of Radio Sets in Noisy Environments Operating Instructions English dok0591-be-08-0418...
-
Page 2: Table Of Contents
Contents PTT Headset – key to Fig. 1......................5 CeoTronics Operating, Warning, and Safety Instructions ............... 5 Additionally Safety Instructions ....................8 Description ............................8 Information concerning explosion proofness ................... 9 Equipment ..........................9 General ............................ 9 Conformity with standards ......................9 Product liability ......................... - Page 3 dok0591-be-08-0418 3 / 32...
- Page 4 dok0591-be-08-0418 4 / 32...
-
Page 5: Ptt Headset - Key To Fig. 1
Use CeoTronics products only without damage and abrasion. If repair work of any kind needs to be done to CeoTronics products, arrange for it to be performed only by the company CeoTronics or by a specialized workshop that is authorized by CeoTronics. In all other cases, our warranty and liability for the product shall lapse. - Page 6 Road traffic hazard! Do not leave CeoTronics products lying around loose in cars, e.g. on the parcel shelf. Stow these products in a suitable, safe place in the car so that they do not present a danger to you or to other occupants of the car, if emergency braking is effected.
- Page 7 Use CeoTronics products only in undamaged condition. In case of any kind of damage, refrain from further using the CeoTronics product and have it repaired. Adverse effect on cardiac pacemakers! If you are a cardiac pacemaker carrier, before operating a transmitter / receiver ask the manufacturer of your cardiac pacemaker for information about any impairment that could be caused due to high frequencies.
-
Page 8: Additionally Safety Instructions
The end user has to check and decide that the products can be used without risk. CeoTronics does not take over responsibility for any damage or material losses nor injuries to persons, caused by the use described above or by any other abnormal use of the products. -
Page 9: Information Concerning Explosion Proofness
– including plugs and cables – may be effected only by CeoTronics or by specialized operations that are authorized by CeoTronics. In all other cases our warranty and liability for the product shall lapse automatically and shall pass to the party who/that occasioned such action. -
Page 10: General Technical Specifications
4.7 General technical specifications Ambient temperature: -20 to +40 °C ≥ IP 20 (in some cases ≥ IP 40) Degree of protection 4.8 Electrical specifications PTT/Ex-1 ≤ 10 V maximum input voltage: ≤ 1.5 A maximum input current: ≤ 14 W... -
Page 11: Installation
If the following instructions for explosion hazard instructions are not complied with, the consequence could be a explosion! (1) This intrinsically safe CeoTronics equipment is not suitable for use in category 1 (zone 0). (2) Operate this intrinsically safe CeoTronics equipment only in compliance with its intended use and in an undamaged and clean condition. -
Page 12: Safekeeping - Storage
e. Adjust the flexible microphone boom so that the microphone is positioned at a distance of approx. 5 mm (0.2 inch) in front of your lips. Optimal voice transmission and the best possible noise compensation are then provided. f. Switching on and adjusting the volume – Switch on the radio set. The headset is operational and on standby/reception (listen) when the radio set is in operation. -
Page 13: Ptt Headset With A Side Tone
CeoTronics headset can be equipped with a tone generator. The tone generator resides in the inline PTT button of the CeoTronics headset. If the channel is busy and you press the PTT button an acoustic signal is audible via the speaker of the CeoTronics headset. -
Page 14: Replacing The Ear Cushions And Foam Covers
We like to expressly point out that replacement of the foam cover of intrinsically safe communication sets PTT / Ex* must be made only by CeoTronics itself or specialist workshops duly authorized by CeoTronics. Otherwise our guaranty and product liability lapses automatically and passes on to the person responsible. - Page 15 Ear cushion for headsets with VK shells, 2 pieces 50 00 501 Hygiene set for Headsets with Optime shells consisting of: 50 00 496 2 pieces ear cushion, 2 pieces cover foam Ear cushion for headsets with AS/AM shells, 2 pieces 50 00 502 Cover foam 5 mm for headsets with AS/AM shells, 1 piece 50 00 305...
-
Page 16: Ec-Type Examination Certificate Tüv 03 Atex 2124
16 EC-Type Examination Certificate TÜV 03 ATEX 2124 dok0591-be-08-0418 16 / 32... - Page 17 dok0591-be-08-0418 17 / 32...
- Page 18 dok0591-be-08-0418 18 / 32...
- Page 19 dok0591-be-08-0418 19 / 32...
- Page 20 dok0591-be-08-0418 20 / 32...
- Page 21 dok0591-be-08-0418 21 / 32...
- Page 22 dok0591-be-08-0418 22 / 32...
- Page 23 dok0591-be-08-0418 23 / 32...
- Page 24 dok0591-be-08-0418 24 / 32...
- Page 25 dok0591-be-08-0418 25 / 32...
- Page 26 dok0591-be-08-0418 26 / 32...
- Page 27 dok0591-be-08-0418 27 / 32...
- Page 28 dok0591-be-08-0418 28 / 32...
- Page 29 dok0591-be-08-0418 29 / 32...
- Page 30 dok0591-be-08-0418 30 / 32...
- Page 31 dok0591-be-08-0418 31 / 32...
- Page 32 Virginia Beach, VA 23452 Gewerbegebiet Rothenschirmbach 9 Tel. +1 757 549-6220 06295 Lutherstadt Eisleben Fax +1 757 549-6240 Tel. +49 34776 6149-0 E-Mail sales@ceotronicsusa.com Fax +49 34776 6149-11 E-Mail ctv.info@ceotronics.com Änderungen vorbehalten CeoTronics AG, 63322 Rödermark, Deutschland, Internet www.ceotronics.com dok0591-be-08-0418 Copyright © 11/2010...
