CeoTronics PTT/Ex-1 Operating Instructions Manual

Hide thumbs Also See for PTT/Ex-1:

Operating instructions manual (32 pages)

Table Of Contents

Quick Links

Download this manual

Hear/speak system PTT/Ex-*

CT-Throatmike and Earphone with

Earhanger

Operating Instructions

English

Revision: 03/1015 DOK 0600-be

Table of Contents

Need help?

Do you have a question about the PTT/Ex-1 and is the answer not in the manual?

Questions and answers

Summary of Contents for CeoTronics PTT/Ex-1

Page 1 Hear/speak system PTT/Ex-* CT-Throatmike and Earphone with Earhanger Operating Instructions English Revision: 03/1015 DOK 0600-be...
Page 2: Table Of Contents
Contents Legend to Fig. 1: Throatmike and earphone with earhanger – standard version ......4 Important safety instructions ......................4 Brief description ..........................5 Information concerning explosion proofness ................... 5 Equipment ..........................5 General ............................ 5 Conformity with standards ......................6 Product liability .........................
Page 3 Revision: 03/1015  DOK 0600-be 3 / 28...

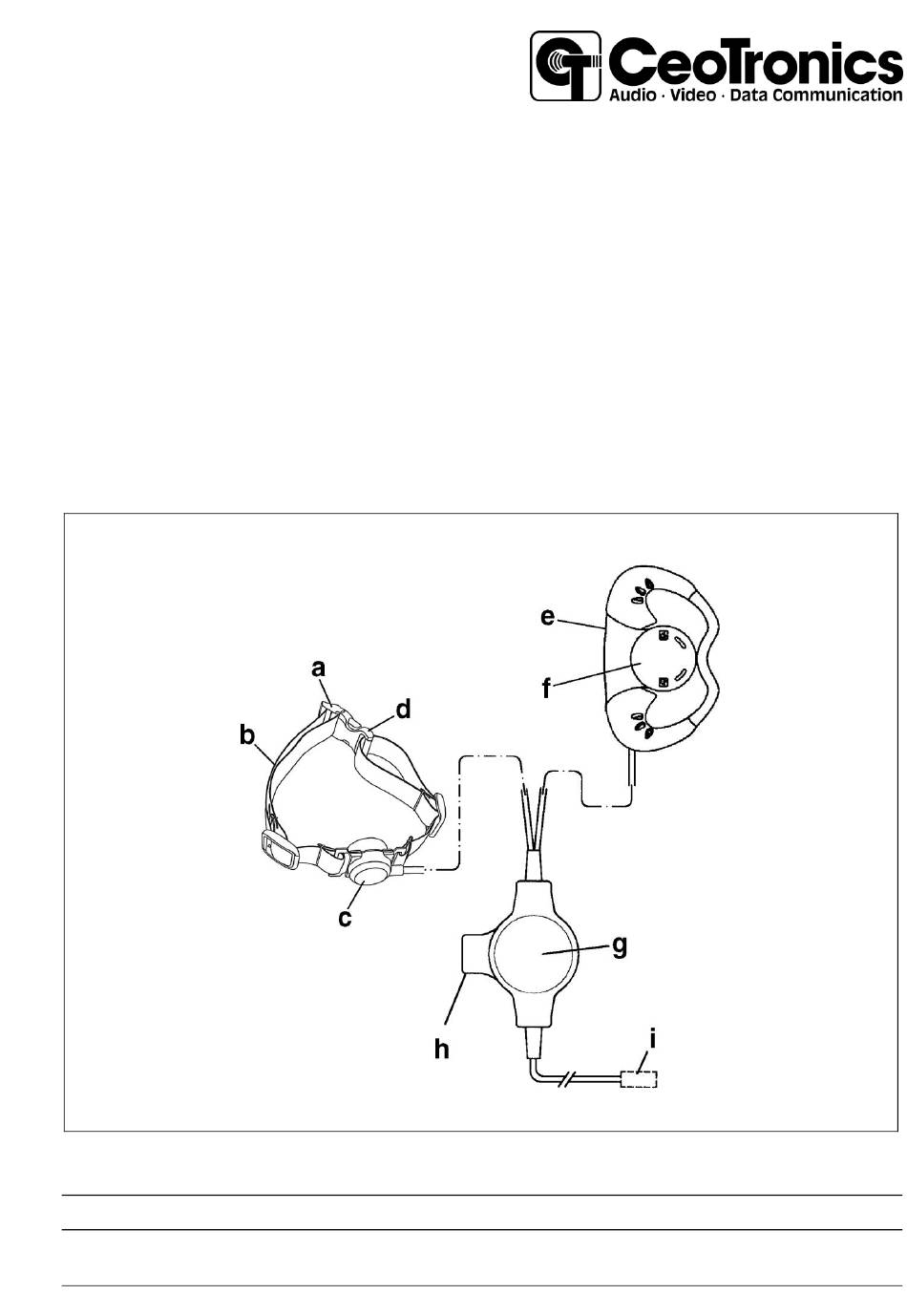

Page 4: Legend To Fig. 1: Throatmike And Earphone With Earhanger - Standard Version
 If repair work of any kind needs to be done to CeoTronics products, arrange for it to be performed only by the company CeoTronics or by a specialized workshop that is authorized by CeoTronics. In all other cases our warranty and liability for the product shall lapse.
Page 5: Brief Description
English  Do not leave CeoTronics products lying around loose in cars, e.g. on the parcel shelf. Stow these products in a suitable, safe place in the car so that they do not present a danger to you or to other occupants of the car, if emergency braking is effected.
Page 6: Conformity With Standards
CeoTronics product and of the electrical limit values. The use of a CeoTronics product that has no explosion-proof marking or that has one which has become illegible, is strictly prohibited in explosion hazard areas! Electrical limit values: Only if the electrical limit values of the CeoTronics product are complied with by the other intrinsically safe device, is deployment in an explosion hazard area allowed.
Page 7: Electrostatic Charging
(1) This intrinsically safe CeoTronics equipment is not suitable for use in category 1 (zone 0). (2) Operate this intrinsically safe CeoTronics equipment only in compliance with its intended use and in an undamaged and clean condition.
Page 8: Channel Busy" Signalling (Option)
"Channel busy" signalling (option) In conjunction with compatible two-way radios with the feature for "channel busy" signalling the CeoTronics communication headset can be equipped with a tone generator. The tone generator resides usually in the inline PTT button or in the radio adapter respectively in the radio plug. If the channel is busy and you press the PTT button an acoustic signal is audible via the speaker of the communication headset.
Page 9: Visual Inspections
"Electrostatic charging"). Visual inspections Examine the devices and in particular the cables and plug connectors regularly for signs of fractures, cracks and wear. Send defective devices to CeoTronics for repair. Cleaning CAUTION Do not immerse the devices in water. No moisture may be allowed to penetrate the devices.
Page 10: Ec-Type Examination Certificate Tüv 03 Atex 2124
EC-Type Examination Certificate TÜV 03 ATEX 2124 Revision: 03/1015  DOK 0600-be 10 / 28...
Page 11 Revision: 03/1015  DOK 0600-be 11 / 28...
Page 12 Revision: 03/1015  DOK 0600-be 12 / 28...
Page 13 Revision: 03/1015  DOK 0600-be 13 / 28...
Page 14 Revision: 03/1015  DOK 0600-be 14 / 28...
Page 15 Revision: 03/1015  DOK 0600-be 15 / 28...
Page 16 Revision: 03/1015  DOK 0600-be 16 / 28...
Page 17 Revision: 03/1015  DOK 0600-be 17 / 28...
Page 18 Revision: 03/1015  DOK 0600-be 18 / 28...
Page 19 Revision: 03/1015  DOK 0600-be 19 / 28...
Page 20 Revision: 03/1015  DOK 0600-be 20 / 28...
Page 21 Revision: 03/1015  DOK 0600-be 21 / 28...
Page 22 Revision: 03/1015  DOK 0600-be 22 / 28...
Page 23 Revision: 03/1015  DOK 0600-be 23 / 28...
Page 24 Revision: 03/1015  DOK 0600-be 24 / 28...
Page 25 Revision: 03/1015  DOK 0600-be 25 / 28...
Page 26 Revision: 03/1015  DOK 0600-be 26 / 28...
Page 27 Revision: 03/1015  DOK 0600-be 27 / 28...
Page 28 06295 Lutherstadt Eisleben Tel. +34 91 4608250 51 Tel. +49 34776 6149-0 Fax +34 91 4603193 Fax +49 34776 6149-11 E-Mail ventas@ceotronics.es E-Mail ctv.info@ceotronics.com Revision: 03/1015  DOK 0600-be Subject to change Copyright © 11/2010 CeoTronics AG, 63322 Rödermark, Germany, Internet www.ceotronics.com...
