Summary of Contents for Euro Shatal ST62-E

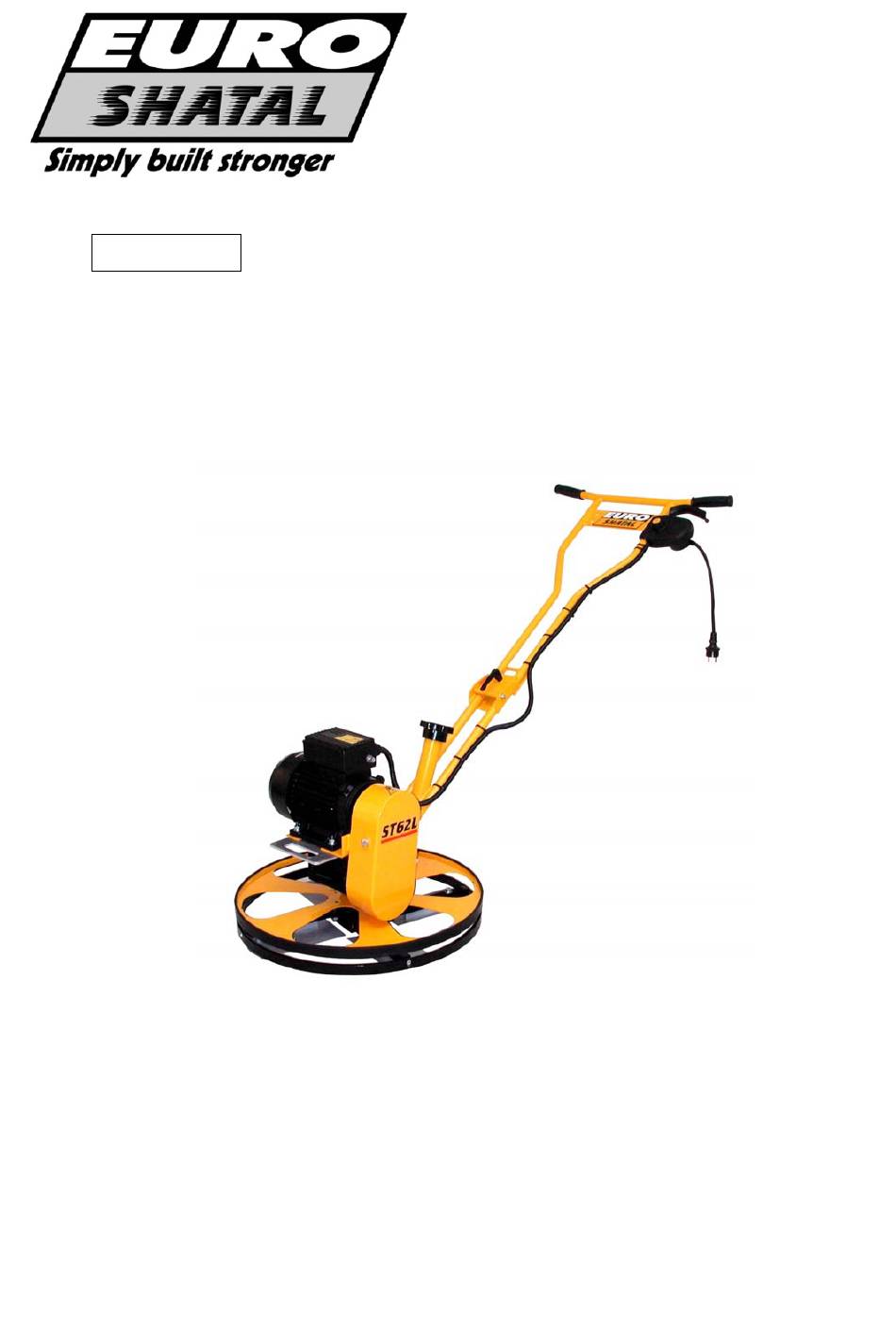

- Page 1 Murervej 5 DK-6710 Esbjerg V , Denmark Tel:(+45) 75168411 Fax: (+45)75168412 E-mail:euroshatal@shatal.com www.shatal.com ENGLISH OPERATING INSTRUCTIONS & SPARE PARTS LIST POWER TROWEL ST62L - M12900.F – ELECTRIC MOTOR FIRST EDITION JUNE 2005 UPDATE MAY. 2021...
- Page 2 Any costs to transport or ship the product are your responsibility. You must present proof of purchase (including date, product model and serial number) to an authorized Servicing Dealer/Center for warranty service. Proof of purchase rests solely with you. EURO SHATAL ApS , Denmark Head Office: Murervej 5 DK-6710 Esbjerg V (45) 75 168412 –...
-
Page 3: Table Of Contents
ENGLISH CE DECLARATION OF CONFORMITY We hereby declare that the equipment described below conforms to relevant fundamental safety and health requirements of the appropriate CE Directives, both in its basic design and construction. This declaration will cease to be valid if any modifications are made to the machine without our expressed approval. - Page 4 SAFETY INSTRUCTION- QUICK GUIDE POWER TROWELS ST62L ENGLISH ELECTRIC MOTOR Laws governing safety aspects on machinery vary between countries but the following guides will be useful to all operators: Before starting, carefully read the machine maintenance and operating manual and follow all the instructions.
- Page 5 SAFETY INSTRUCTION- QUICK GUIDE POWER TROWELS ST62L ENGLISH ELECTRIC MOTOR NEVER operate this machine in applications for which it is not intended. DO NOT operate the trowel with the Dead Man Control Handle disabled. Serious injury could occur if struck by rotating trowel due to disabling this safety device.
- Page 6 SAFETY INSTRUCTION- QUICK GUIDE POWER TROWELS ST62L ENGLISH ELECTRIC MOTOR When operate the machine, always wear noise reduction ear protectors and safety glasses. When operate the machine, always wear safety shoes and safety clothing. ST 62L - 4 - JUNE. 2005...
-
Page 7: Safety Information
SAFETY INFORMATION POWER TROWELS ST62L ELECTRIC MOTOR ENGLISH DISCONNECT VOLTAGE BEFORE REMOVING PROTECTION WARNING! HAND INJURE IF CAUGHT IN MOVING BELT. ALWAYS REPLACE A NAMEPLATE LISTING THE BELT GUARD MODEL NUMBER, ITEM NUMBER, IS ATTACHED TO EACH UNIT. PLEASE RECORD THE INFORMATION FOUND ON THIS PLATE SO IT WILL BE AVAILABLE SHOULD THE... -
Page 8: Technical Data And Specification
TECHNICAL DATA AND SPECIFICATION POWER TROWELS ST 62L ENGLISH ELECTRIC MOTOR MOTOR Model 90 L / 2 Motor output Motor speed 2750 Power requirements Volts/phase 220 / 1Ø Frequency Operating current Amps 13.7 IP rating TROWEL Trowel Diameter Number of Blades Speed range Pitch range degrees... -
Page 9: Operation
OPERATION POWER TROWELS ST62L ELECTRIC MOTOR ENGLISH Before starting Open the extension handle and locked it. Place trowel on the concrete and connect to power supply. Starting the motor Press the yellow button and then press the Dead Man Control Handle. ST 62L JUNE. - Page 10 OPERATION POWER TROWELS ST62L ELECTRIC MOTOR ENGLISH Operating the trowel NOTE Always operate the trowel using the Dead Man Control Handle. Assembly of the float disc 1. Place the trowel on to the float disc. 2. Rotate the blades so that the blades move underneath the 4 L shaped brackets.
-
Page 11: Extension Cords
OPERATION POWER TROWELS ST62L ELECTRIC MOTOR ENGLISH STOPPING: 1. Release the Dead Man Control Handle. INSTRUCTIONS FOR LIFTING MACHINE Never walk or stand under a machine being lifted. Use only lifting handles (1) for lifting the machine. EXTENSION CORDS When choosing an extension cord, make sure it has adequate wire size for safety. An undersized cord will cause a drop in line voltage resulting in a loss of power and overheating. -
Page 12: Maintenance
MAINTENANCE POWER TROWELS ST62L ENGLISH ELECTRIC MOTOR TROUBLESHOOTING Problem / Symptom Reason / Remedy • Trowel does not develop full Power supply is not proper voltage. • speed. Clean debris from moving parts and trowel blades. • Check belt for wear or damage. Tighten belt if necessary. Motor run, poor trowel •... -
Page 13: Schematic Wiring Diagram
SCHEMATIC WIRING DIAGRAM POWER TROWEL ST- 62L ELECTRIC MOTOR ENGLISH LINE LINE MOTOR ST 62L -12- JUNE. 2005... -
Page 14: Instructions For Ordering Parts
INSTRUCTIONS FOR ORDERING PARTS ENGLISH Please State Machine Details in the Following Sequence: Machine Serial Number Part Number, Description and Quantity of Parts Full Delivery Address Manufacturers Liability and the Use of Genuine Spare Parts Liability for this machine is accepted only when the machine is defective from the outset. Liability is reduced or nullified in the event that the user fails to comply with the operating and maintenance instructions and uses spare parts which are not guaranteed. -
Page 15: Gear Box,Spider And Trowels Assy
POWER TROWEL ST62L ELECTRIC MODEL GEAR BOX,SPIDER & TROWELS ASSY. FIRST EDITION JUNE 2005 ( SEE PARTS LIST PAGE 15 ) UPDATE JULY 2007 -14-... - Page 16 POWER TROWEL ST- 62L ( WITH ELECTRIC MOTOR ) SPARE PARTS LIST ENGLISH GEAR BOX,SPIDER & TROWELS ASSY. DESCRIPTION PART NO. QTY. DESCRIPTION PART NO. QTY. GEAR BOX 129977.1 SPIDER 129550 STUD 129953 WASHER 1171903 HEXAGON HEAD SCREW 1171916 HEXAGON HEAD SCREW 128923 WASHER 3111135...
- Page 17 POWER TROWEL ST62L ELECTRIC MODEL MOTOR MOUNTING ASSY. ( SEE PARTS LIST PAGE 17 ) UPDATED MAY 2021 -16-...
- Page 18 POWER TROWEL ST- 62L (WITH ELECTRIC MOTOR) SPARE PARTS LIST MOTOR MOUNTING ASSY. ENGLISH DESCRIPTION PART QTY. DESCRIPTION PART QTY. ENGINE BASE 129660 V-BELT PULLEY P51112 HEXAGON HEAD SCREW 31520931 BELT 50822.A WASHER 115903 BELT GUARD 129592 HEXAGON HEAD SCREW 1171916 WASHER 127954...
- Page 19 POWER TROWEL ST62L ELECTRIC MODEL HANDLE ASSEMBLY FIRST EDITION JUNE 2005 ( SEE PARTS LIST PAGE 19 ) -18- UPDATED DEC. 2007...
- Page 20 POWER TROWEL ST- 62L (WITH ELECTRIC MOTOR) SPARE PARTS LIST HANDLE ASSEMBLY ENGLISH DESCRIPTION PART NO. QTY. DESCRIPTION PART NO. QTY. HANDLE (LOWER END) 129635 SELF LOCKING HEXAGON NUT 321992 FORK JOINT 111931 LOCKING HANDLE 31105.1 HEXAGON NUT 321993 HANDLE (UPPER END) 129640 HANDLE CONTROL SHAFT 129555...
- Page 21 POWER TROWEL ST- 62L (WITH ELECTRIC MOTOR) MOTOR SPARE PARTS LIST ENGLISH DESCRIPTION PART NO. QTY. ROTOR SHAFT Ø20 BEARING 2M6205X 2EV90AA ST-62L - 20 - APR 2017...
- Page 22 SAFETY INSTRUCTION- QUICK GUIDE SIKKERHEDS INSTRUKTIONER- Forkortet udgave SICHERHEITSINSTRUKTIONEN- Kurzausgabe VEILIGHEIDSINSTRUKTIES- Korte uitgave INSTRUCCIONES DE SEGURIDAD - GUIA RAPIDA ENGLISH Laws governing safety aspects on machinery may vary between countries but the following guides will be useful to all operators: ...
-
Page 23: Purchase Order
Murervej 5 , P.O.Box 3024 DK-6710 Esbjerg V , Denmark Tel:(+45) 75168411 Fax: (+45)75168412 E-mail:euroshatal@shatal.com www.shatal.com PURCHASE ORDER ST62L POWER TROWELS (WITH ELECTRIC MOTOR) FAX YOUR SPARE PARTS REQUIREMENTS TO THE NEAREST SERVICE STATION. COMPANY’S NAME: --------------------------------------------------------------------------------------------------------- ADDRESS: ---------------------------------------------------------------------------------------------------------------------- COUNTRY: ---------------------------------------------------------------------------------------------------------------------- TELEPHONE: ------------------------------------------------------------------------------------------------------------------ FAX: ------------------------------------------------------------------------------------------------------------------------------ MACHINE SERIAL NO: -------------------------------------------------------------------------------------------------------...
