GAMEMAX RGB PRO Series User Manual

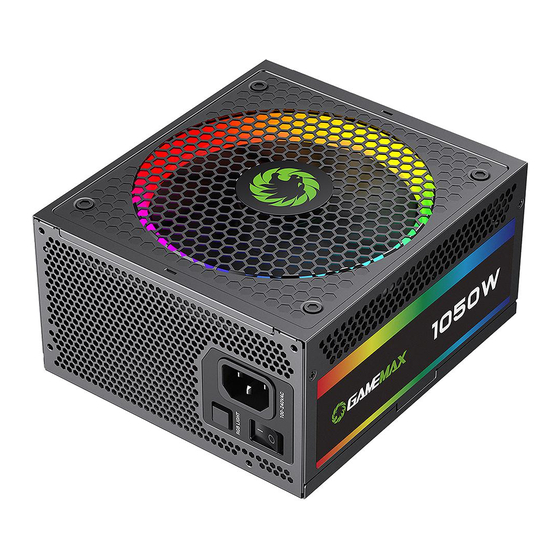

80 plus power supply

Advertisement

User Manual / Anwenderleitfaden /
Manual Do Usuário / Guide de l'utilisateur /
Pуководство пользователя /
ユーザー ガイド / 使用説明書 / 使用说明书
RGB PRO 5.1 VER
CopyRight @ 2025.03

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the RGB PRO Series and is the answer not in the manual?

Questions and answers

Summary of Contents for GAMEMAX RGB PRO Series

  • Page 1 User Manual / Anwenderleitfaden / Manual Do Usuário / Guide de l’utilisateur / Pуководство пользователя / ユーザー ガイド / 使用説明書 / 使用说明书 RGB PRO 5.1 VER CopyRight @ 2025.03...
  • Page 3: Table Of Contents

    SAFETY REMINDERS GENERAL SPECIFICATION PACKAGE CONTENTS DC CONNECTORS AND PINOUT For more information and product specifications, visit www.gamemaxpc.com MODULAR CABLE CONFIGURATION...
  • Page 4: Safety Reminders

    - Visite o site oficial da GameMax www.gamemaxpc.com para obter detalhes sobre a garantie. política de garantia da sua PSU. - Veuillez visiter le site Web officiel de GameMax www.gamemaxpc.com pour plus de détails sur la politique de garantie de votre bloc d'alimentation.
  • Page 5 - 保証ステッカーを剥がさないでください。ステッカーが破損または剥がれると保証が無効に - Не снимайте гарантийную наклейку. Повреждение или удаление наклейки аннулирует   なります。 вашу гарантию. - 電源の保証ポリシーの詳細については、GameMax の公式 Web サイト www.gamemaxpc.com - Пожалуйста, посетите официальный сайт GameMax www.gamemaxpc.com для получения подробной информации о гарантийной политике вашего блока питания.    をご覧ください。 繁體中文 简体中文...
  • Page 6: General Specification

    General Specification Allgemeine Spezifikation / Especificações gerais / Spécifications générales / Общие характеристики / 一般仕様 / 一般規格 / 一般规格 Life expectancy (MTBF) at maximum output load 100 000 hours Power factor correction (PFC) Active Voltage input 110-240V Fan type 14CM Smart Temperature Control Fan Protected against Over Power Over Voltage...
  • Page 7 AC INPUT CHARACTERISTICS RGB PRO 1300P / RGB PRO 1050G 110-240VAC, 15-8A, 50-60Hz RGB PRO 850G / RGB PRO 750G 110-240VAC, 10-5A, 50-60Hz DC OUTPUT CHARACTERISTICS MODEL +3.3V +5VSB 3.3/5V Max.Power +12V -12V Total Power RGB PRO 1300P 108A 0.3A 2.5A 1300W RGB PRO 1050G...
  • Page 8: Package Contents

    Package Contents Packungsinhalt / Conteúdo da embalagem / Contenu du colis / Кoмплект поставки / パッケージ内容 / 包装内容 / 包裝內容 Merkmale / Características / Caractéristiques / Защита скорости / 特徴 / 特點 / 特点 Power supply / Netzteil / Fonte de energia / Fonte de energia / Источник...
  • Page 9: Dc Connectors And Pinout

    DC Connectors and Pinout DC-Anschlüsse und Pinbelegung / Conectores DC e Pinagem / Connecteurs CC et brochage / Разъемы постоянного тока и схема расположеHия BыBодоB / DCコネクタとピン出カ / DC 連接器和引腳排列 / 直流连接器和引脚排列 Turning the I/O Switch Off ATX 24-pin [20+4] Before installing the PSU, unplug the AC Power cord Connect 20+4-pin connector to the motherboard.
  • Page 10 ATX12V [4+4] / EPS12V 8-pin [8] PIN 5 PIN 8 Connect ATX12V (CPU power) 4-pin or 8-pin (by 4+4-pin) to the motherboard. PIN 1 PIN 4 Signal Signal +12 VDC +12 VDC +12 VDC +12 VDC Detachable 4PIN 8PIN PCI-E 8-pin [6+2] PIN 1 PIN 4 Connect PCIe 6-pin or 8-pin (by 6+2-pin) to graphics card.
  • Page 11 12V 2x6 PIN 7 PIN 12 Connect 12V-2x6 (PCIe 5.1) to graphics card Signal Signal PIN 6 PIN 1 +12 VDC +12 VDC +12 VDC +12 VDC Do not bend vertically Do not bend horizontally +12 VDC Bend starting at 35mm from connector +12 VDC TIPs: Reserve a distance of 35mm for 12V-2x6 cables and install the correct bending method during cable management !
  • Page 12 Manual RGB Switch 5V 3Pin ARGB Port Manual RGB Switch, turn off the light by pressing 3 seconds, has SYNC: Connect 5V 3Pin ARGB connector to Motherboard 5V 3pin memory function to keep the last mode. ADD Header or HUB ARGB SYNC Header. Motherboard ADD Header HUB ARGB SYNC Header...
  • Page 13: Modular Cable Configuration

    Warning: This PSU is modular version, to be use original GameMax modular cables, Avoid incompatibility and English damage devices of PC system! Warnung: Diese PSU ist eine modulare Version, um Original -modulare Gamemax -Kabel zu verwenden, Inkompatibilität zu vermeiden Deutsch und Schäden Sie Geräte des PC-Systems! Português...
  • Page 14 RGB PRO 1300P / RGB PRO 1050G CABLE OVERVVIEW 24(20+4)Pin 8(4+4)Pin 8(6+2)Pin 16(12+4)Pin SATA 4Pin Peripheral ARGB SYNC Mainboard Connector CPU Connector PCI-E Connector PCI-E 5.1 Connector Connector Connector Connector Connector 550±10mm PCIE PCI-E 8(6+2)Pin MAIN- 24(20+4)Pin(Pro) BOARD 150±10mm 600±10mm PCI-E 8(6+2)Pin 12V-2x6 PCIE5.1...
  • Page 15 RGB PRO 850G / RGB PRO 750G CABLE OVERVVIEW 24(20+4)Pin 8(4+4)Pin 8(6+2)Pin 16(12+4)Pin SATA 4Pin Peripheral ARGB SYNC Mainboard Connector CPU Connector PCI-E Connector PCI-E 5.1 Connector Connector Connector Connector Connector 550±10mm PCIE PCI-E 8(6+2)Pin MAIN- 24(20+4)Pin(Pro) BOARD 150±10mm 600±10mm PCI-E 8(6+2)Pin SATA SATA...
  • Page 16 © 2025 GAMEMAX. All rights reserved. All trademarks are the property of their respective owners.
